Frameset

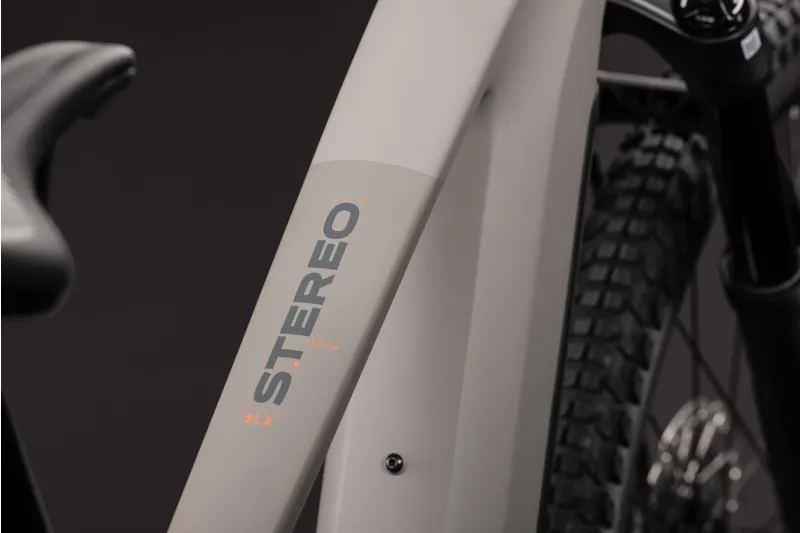

Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, fully integrated battery, advanced internal cable routing, kickstand/mudguard/carrier mounting points, integrated seat clamp

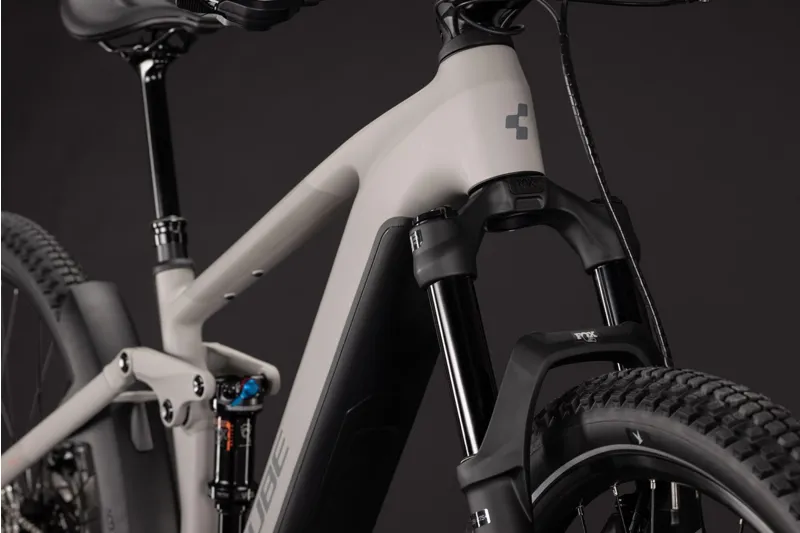

Fork: Fox 36 Float AWL RAIL 2.0, tapered, 15x110 mm, e-bike optimised, 140 mm travel

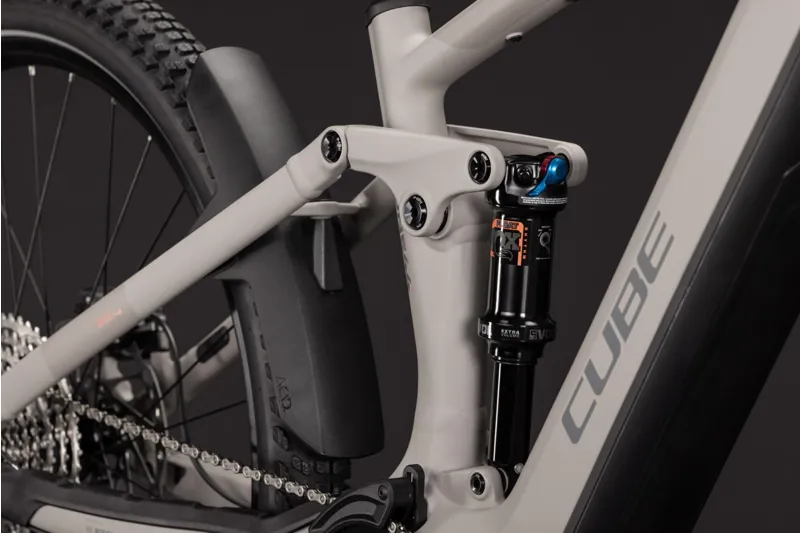

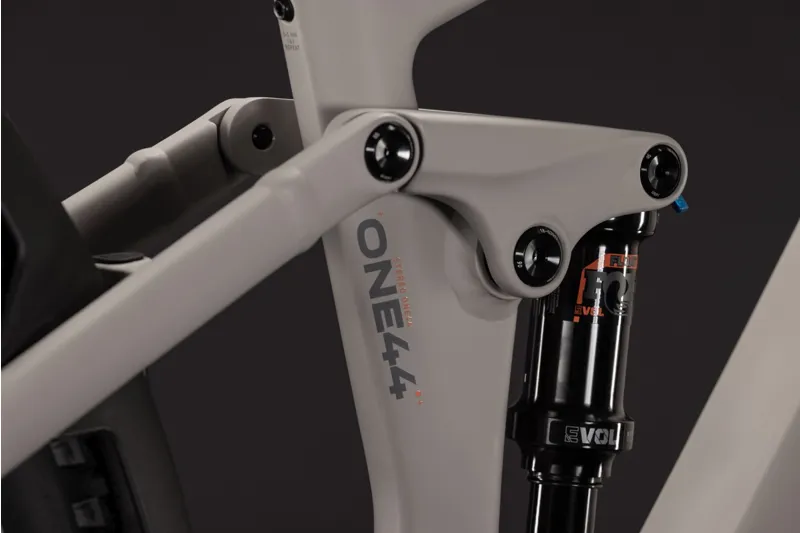

Shock: Fox Float Rhythm RC, 205x60 mm / 27.5": 185x55 mm, adjustable LSR with 2-position lever, trunnion mount
E-bike System
Motor: Bosch Drive Unit Performance Line CX, max. 120 Nm, BDU38
Battery: Bosch PowerTube 800

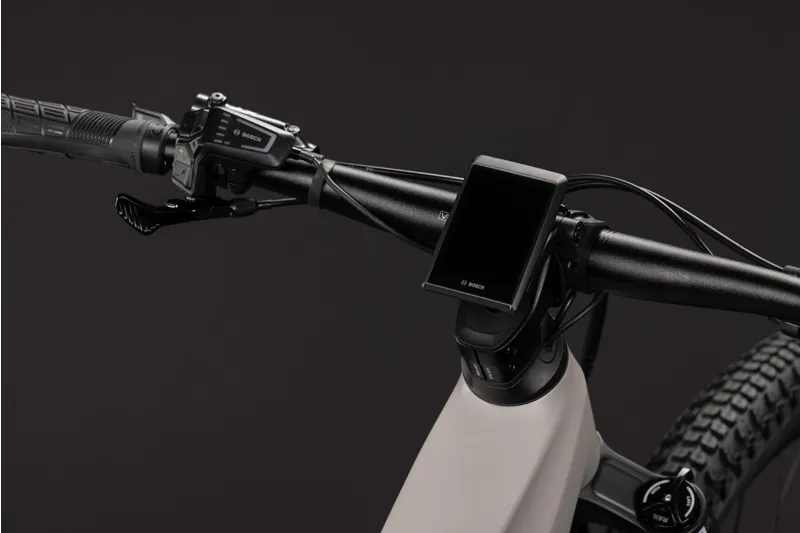

Display: Bosch Kiox 500
Drivetrain and brakes
Front brake: Shimano XT BR-M8220, hydraulic disc brake with front ABS, 203 mm
Rear brake: Shimano XT BR-M8220, hydraulic disc brake with front ABS, 203 mm
Rear derailleur: Shimano XT RD-M8200-SGS, Shadow Plus, 12-speed
Shifters: Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click

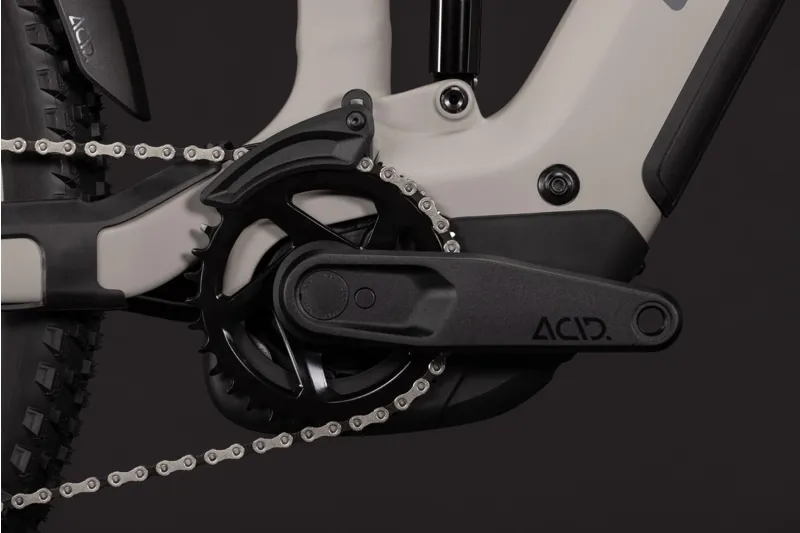

Crankset: Acid MTB Hybrid Pro, 27.5": 36T / 29": 34T
Cassette: Shimano Deore CS-M6200, 10-51T
Chain: KMC e12
Cockpit
Headset: Acros AZF-1034, ICR integrated cable routing, Top Zero-Stack 1-1/2" (ZS 56 mm), Bottom Zero-Stack 1-1/2" (ZS 56 mm), X-Connect interface
Handlebar: Cube Rise Trail Bar 35 VariGrip System
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Grips: Acid Hybrid Perform VariGrip System
Wheels and tyres
Wheels: Acid SLX 30, 32/32 spokes, 15x110 mm / 12x148 mm, Tubeless Ready
Front tyre: Schwalbe Johnny Watts 365, Performance, Kevlar, 2.6"
Other Parts
Saddle: Acid Venec EMTB Plus 145
Seatpost: Cube Dropper Post, handlebar lever, internal cable routing, 31.6 mm
Pedals: Acid PP MTB
