*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: High-performance hydroformed alloy, low-step, Removable Integrated Battery, internal cable routing, Motor Armor, post-mount disc, 148x12 thru axle
Fork: SR Suntour Mobie A32, 50mm travel
Wheels
Hub front: Formula DC-71 alloy, sealed bearing, 6-bolt, 15x100mm thru axle

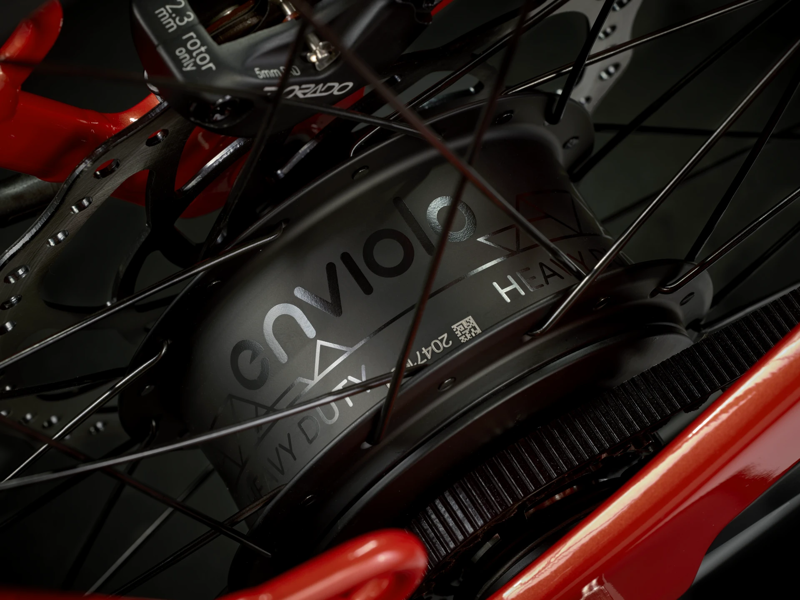

Hub rear: Enviolo CVP Heavy Duty, 6-bolt, 40T spline
Rim: Alloy double-walled, 32-hole
Tyre:
Size: L – Schwalbe Pick-Up, Addix E-Compound, ECE-R75 approved, wire bead, 20x2.15''
Size: L – Schwalbe Pick-Up, reflective, wire bead, Super Defence Carcass Construction, 60-584
Drivetrain
Shifter: Enviolo Pro Manual Controller twist shift display
Crank: ProWheel alloy, 170 mm length
Chainring: Gates CDX, 50T
Cassette: Gates CDX, 22 T, steel
Pedal: Bontrager City pedals
Components
Saddle: Bontrager Boulevard
Seatpost: TranzX JD-YSP28PLQ, 200mm travel, internal routing, 31.6 mm
Handlebar: Alloy, 31.8mm clamp, 25mm rise, 630mm width
Grips: Bontrager Satellite Elite, alloy lock-on
Stem: Bontrager alloy, 31.8 mm clamp, 35-degree, 90 mm length
Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brakes
Brake Set:
Size: L – HD-T737 4-piston hydraulic disc
Size: L – Tektro HD-E737 4-piston hydraulic disc
Brake rotor:

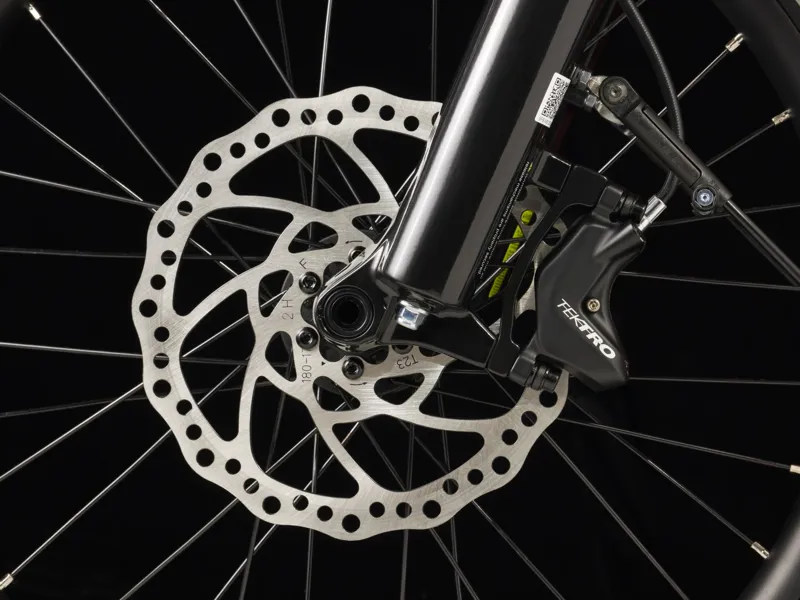

Size: L – Tektro wave, 6-bolt, 180 mm
Size: L – Tektro wave, 6-bolt, 203 mm
E-system

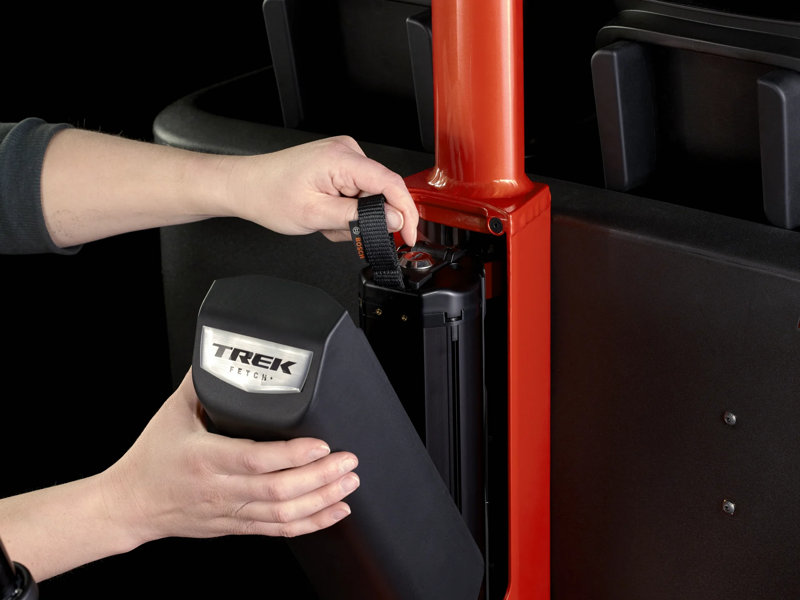

Battery: Bosch PowerTube 750Wh, smart system
Charger: Bosch standard 4A, 230V, smart system

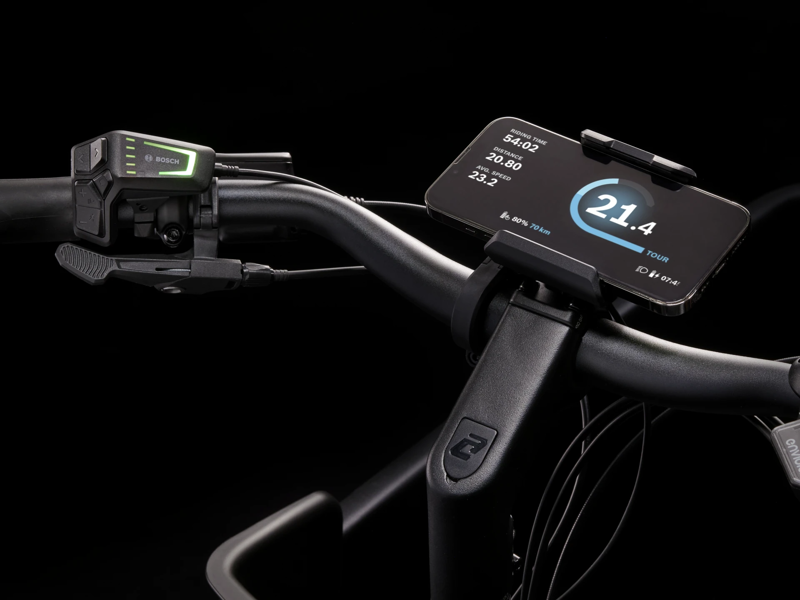

Controller: Bosch BSP3200 smart phone grip

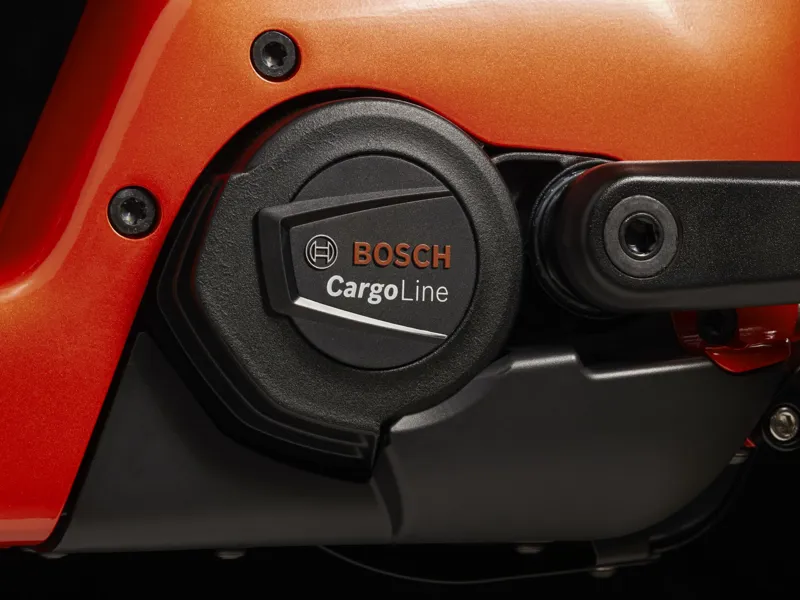

Motor: Bosch Performance Line Cargo, smart system, magnesium motor body, 85 Nm, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Light:

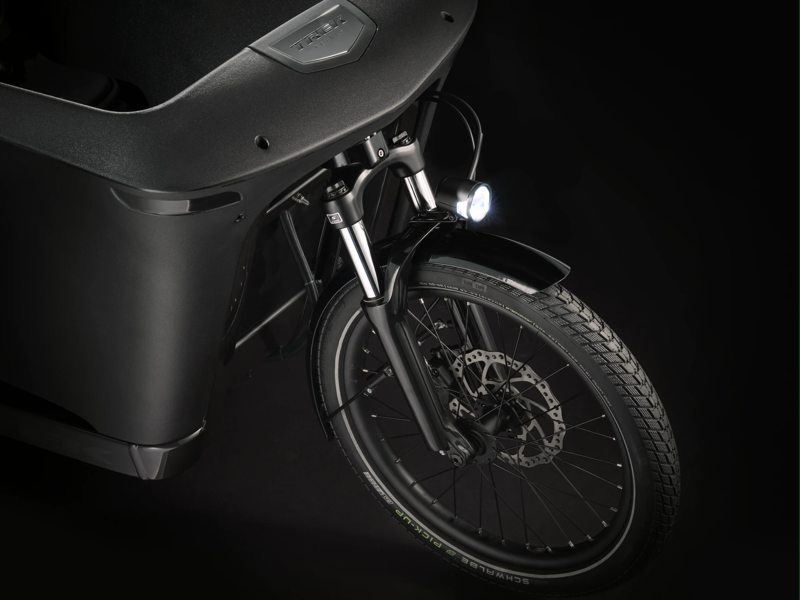

Size: L – Herrmans MR8, 180 lumen LED
Size: L – Trelock LS614 with brake light
Computer: Bosch LED remote, smart system
Kickstand: Fetch custom double leg
Mudguard: Trek Fetch custom
Weight
Weight: 75.00 kg / 165.35 lbs
Weight limit: 551 lb (250 kg)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
