General note
Please note: Spec applies to all sizes unless listed separately.
Frameset
Frame: Alpha Smooth Aluminium, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount
Fork: Alloy disc touring with accessory mounts, 100x5 mm ThruSkew
Wheels
Front hub: Shimano 3.0 watt dynamo hub
Front skewer: 139x5 mm bolt-on

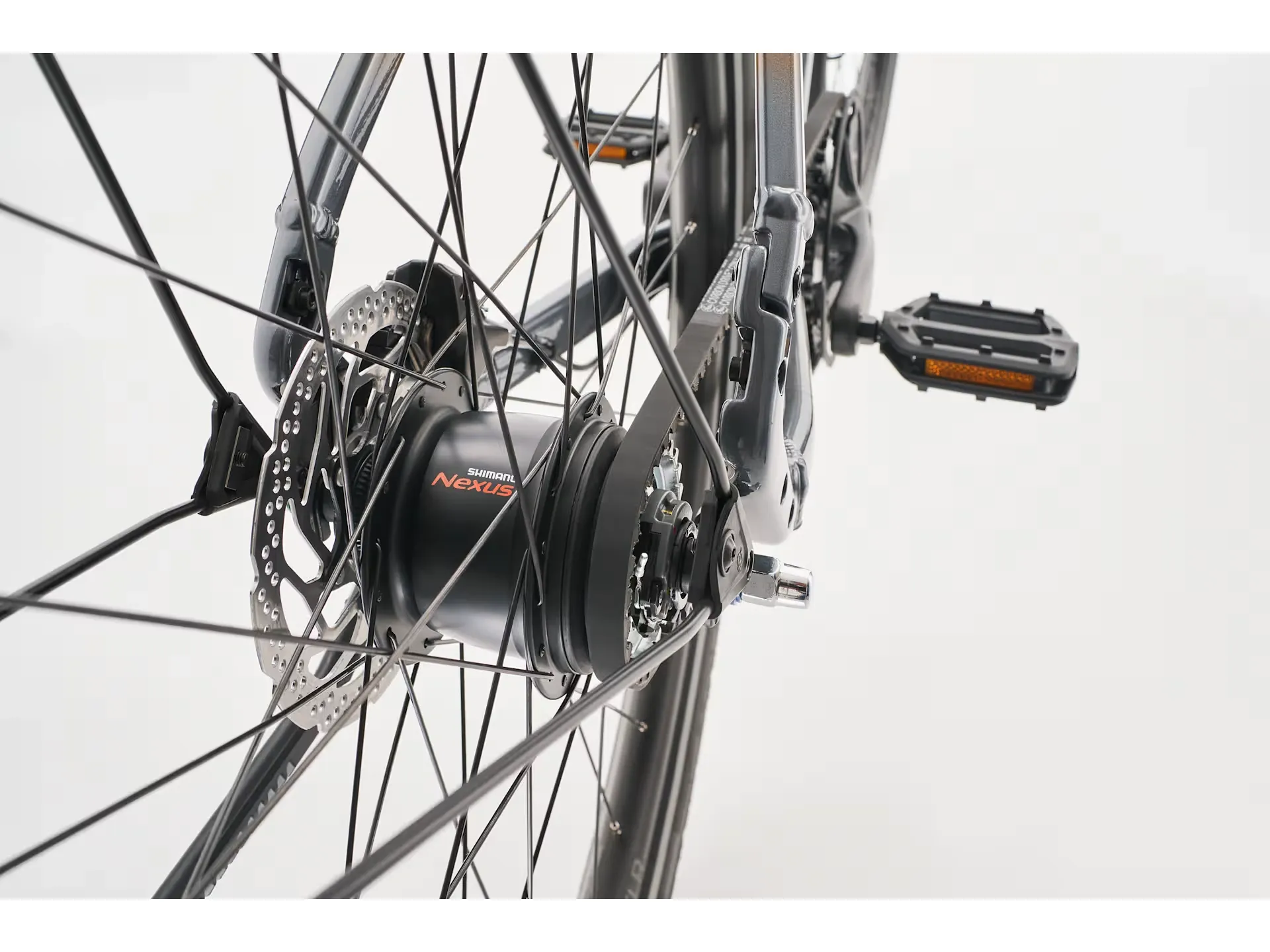

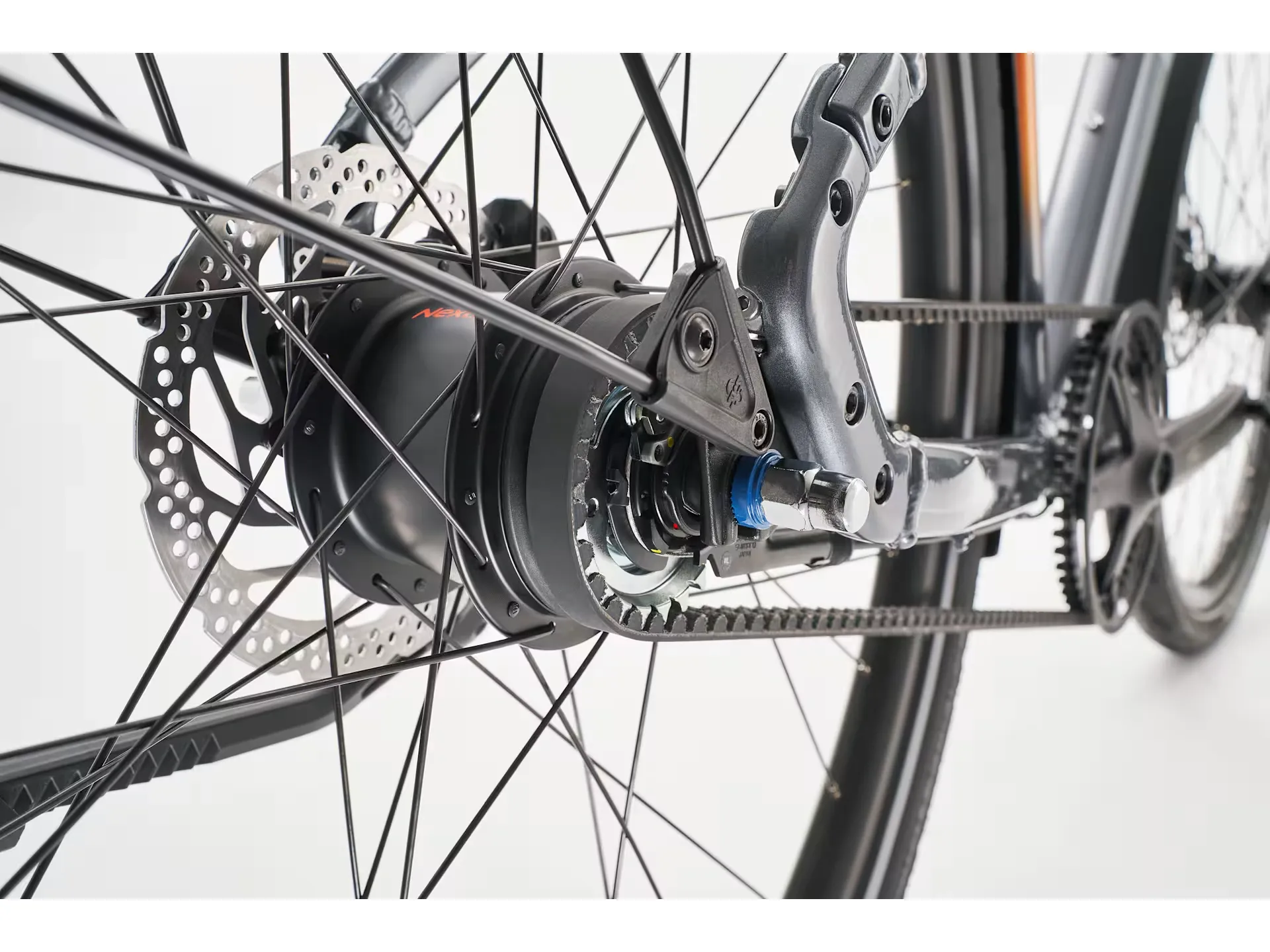

Rear hub: Shimano Nexus, 8-speed internal
Rim: Bontrager Affinity Disc, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 700x50mm
Drivetrain
Shifter: Shimano Alfine S7000, 8-speed

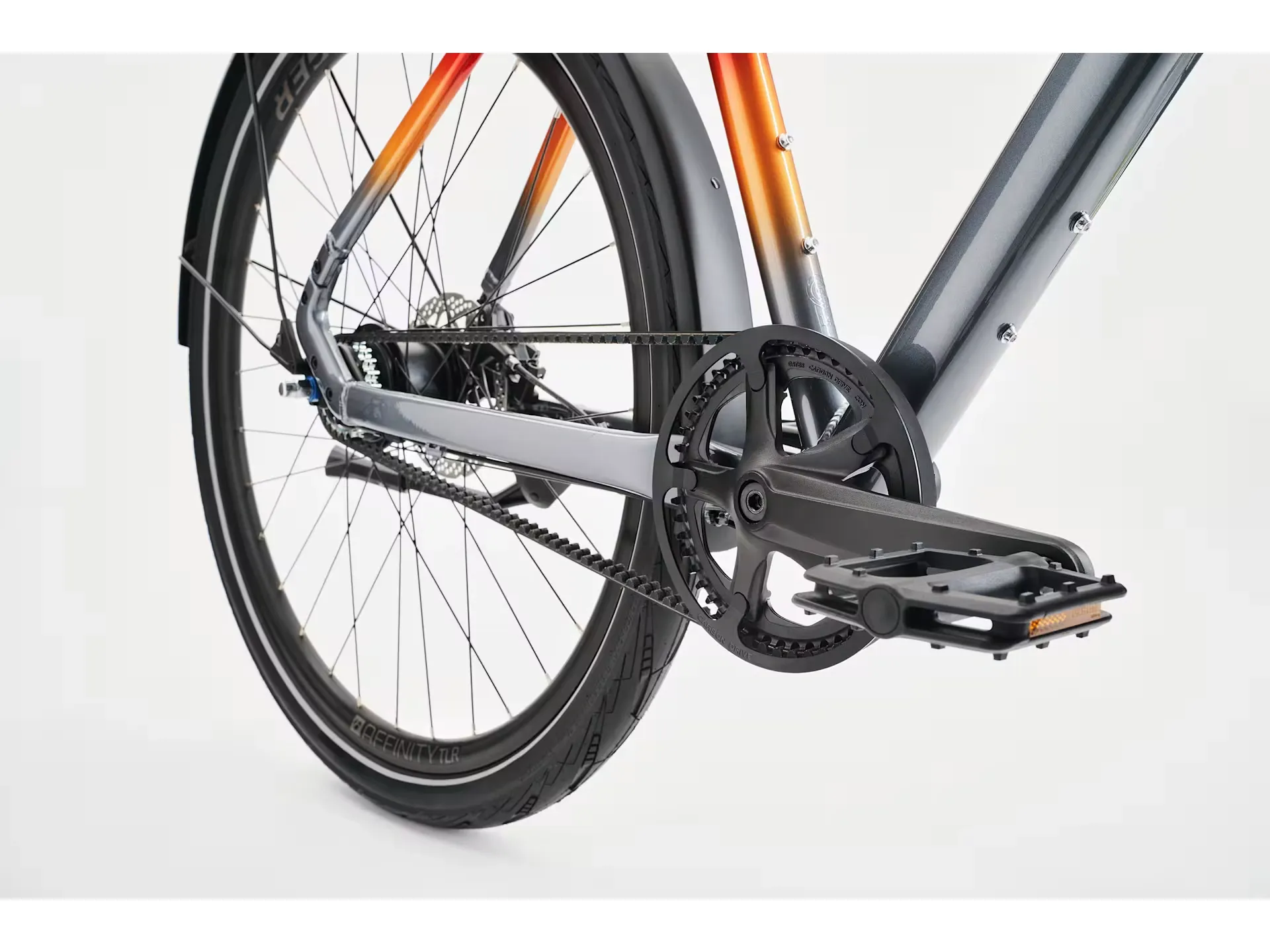

Crank: Size S, M: Gates CDN for Belt, 50T, 170 mm length / Size L, XL: Gates CDN for Belt, 50T, 175 mm length
Cassette: Gates CDC CenterTrack, 24T
Belt: Gates CDN CenterTrack, 122T
Pedal: VP-536 nylon platform
Components

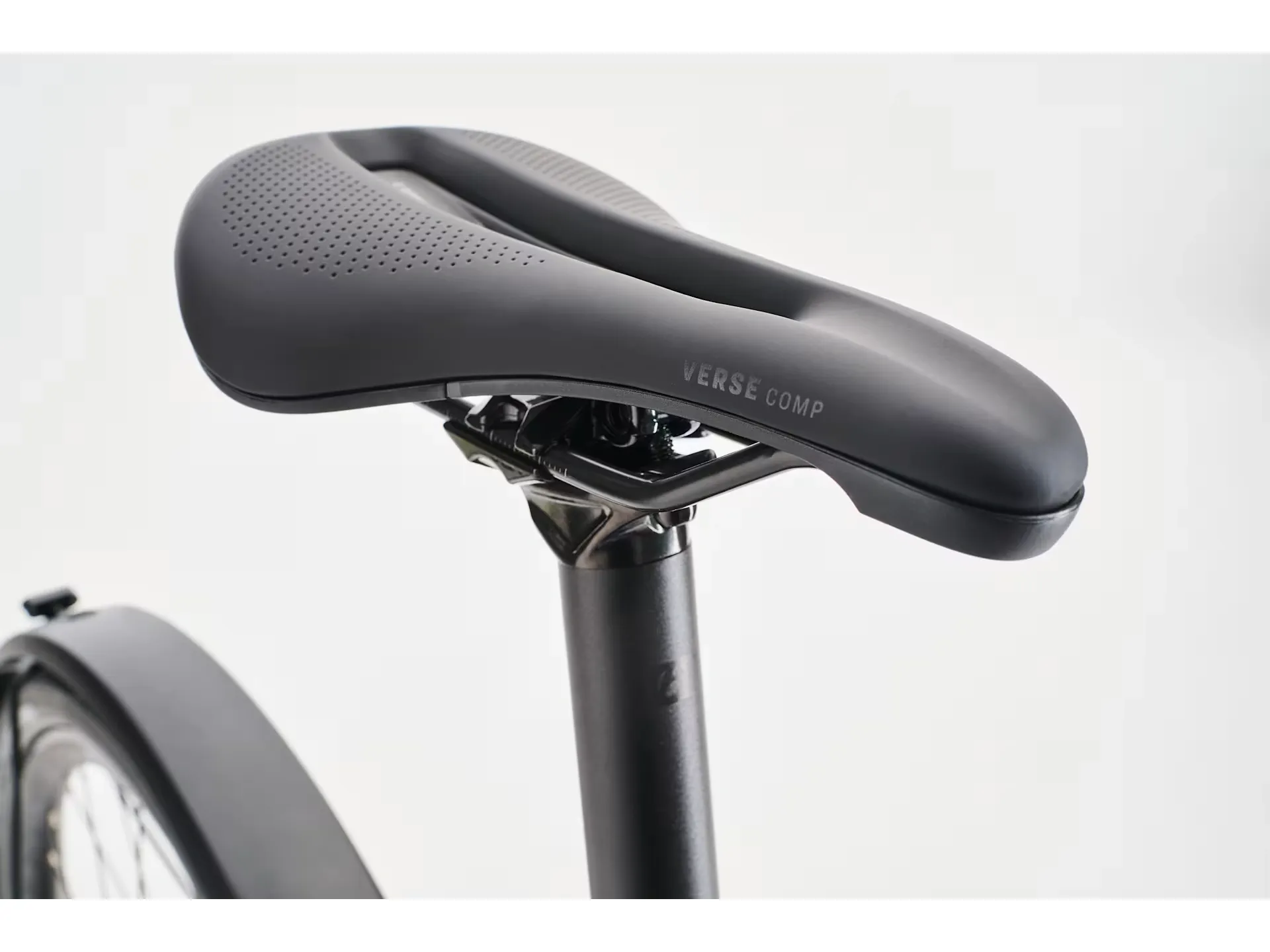

Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Handlebar: Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips: ESI Chunky
Stem: Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length / Size M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length / Size L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length / Size XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Accessories

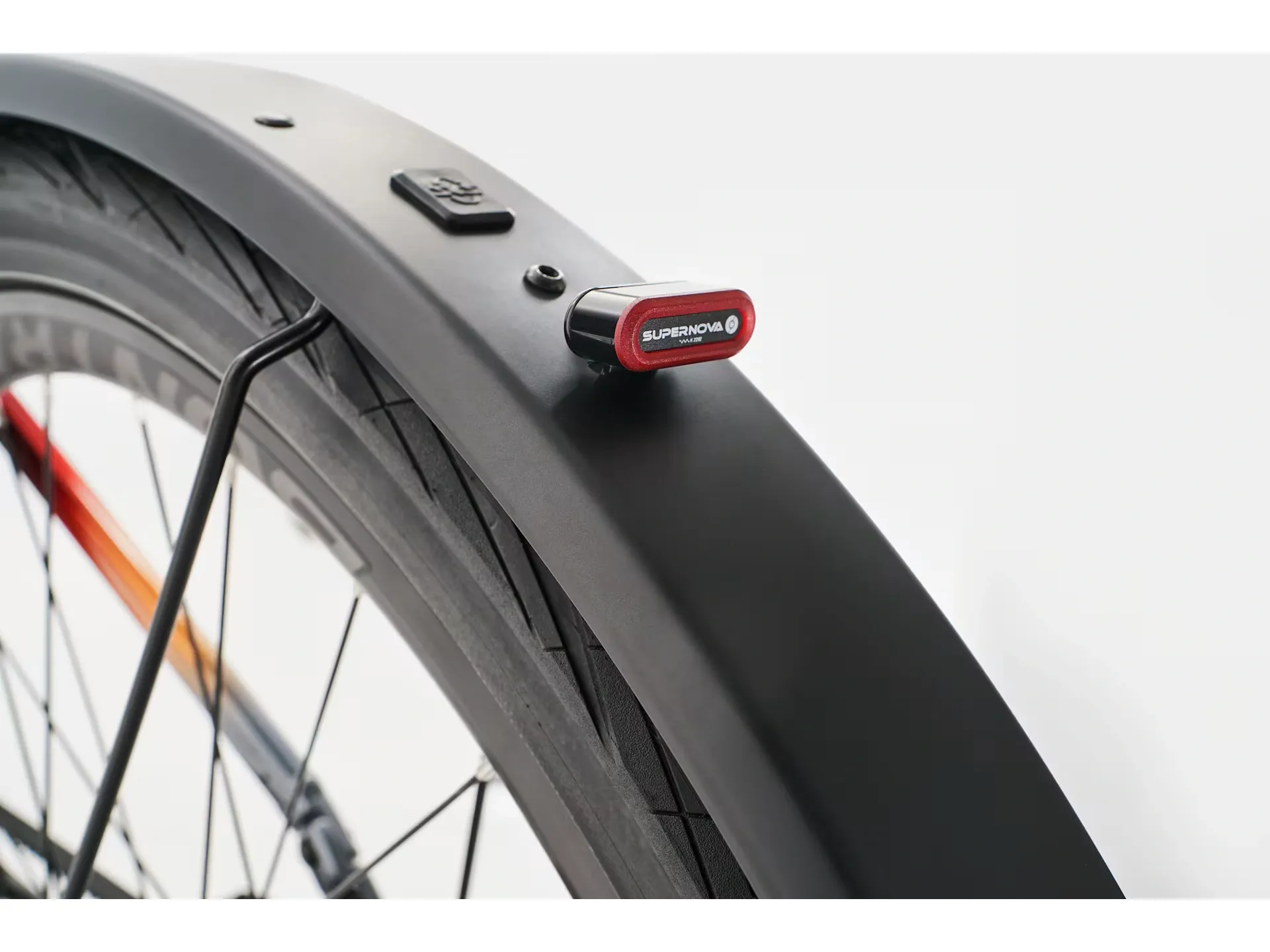

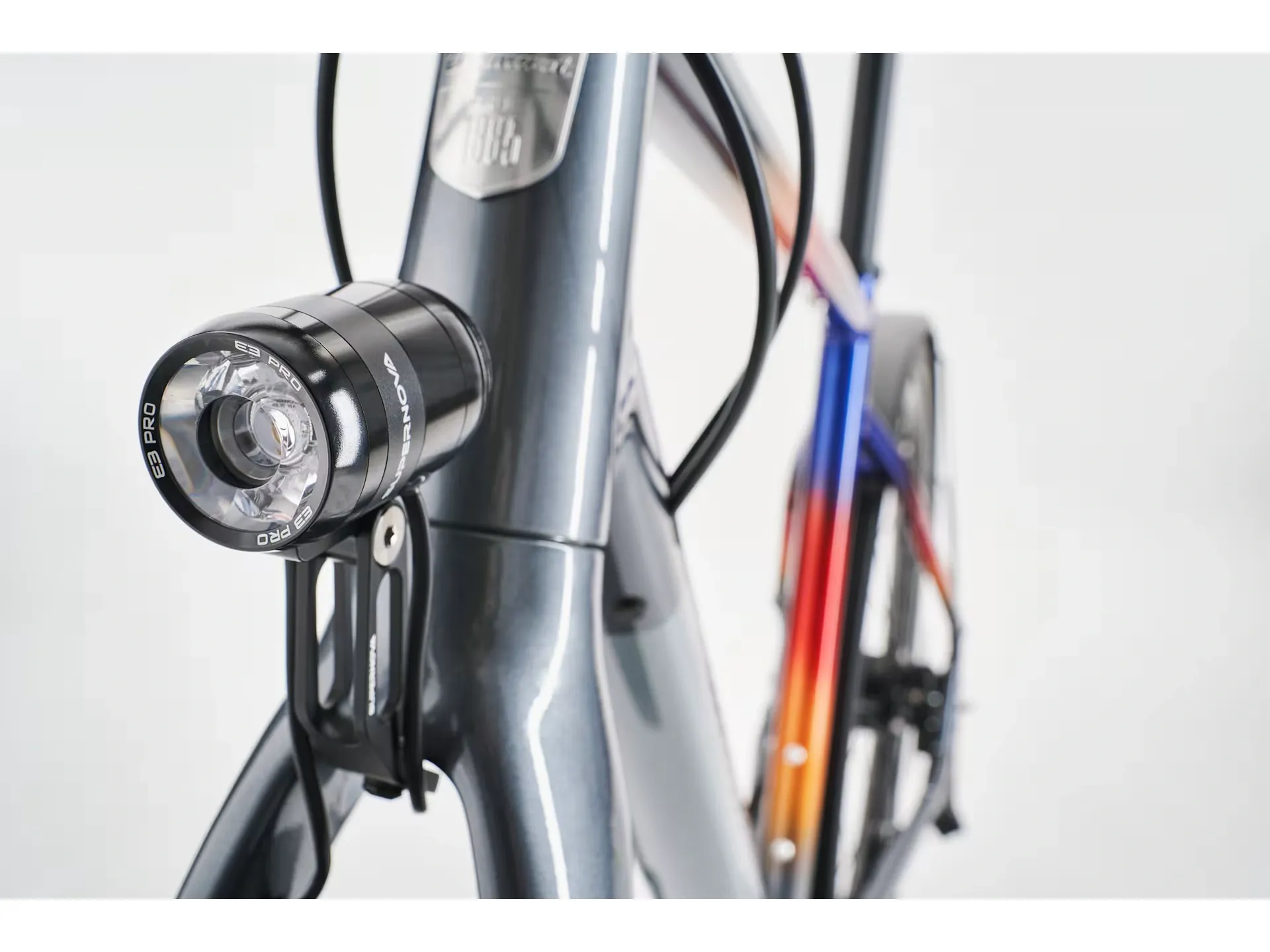

Light: Supernova E3 Pro 2, LED / Supernova TL3 mini, taillight
Kickstand: Pletscher Comp Flex 40
Mudguards: SKS plastic, rear / SKS plastic, front
Weight
Weight: Size L - 13.80 kg / 30.43 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg / 300 lbs.
Additional note
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
