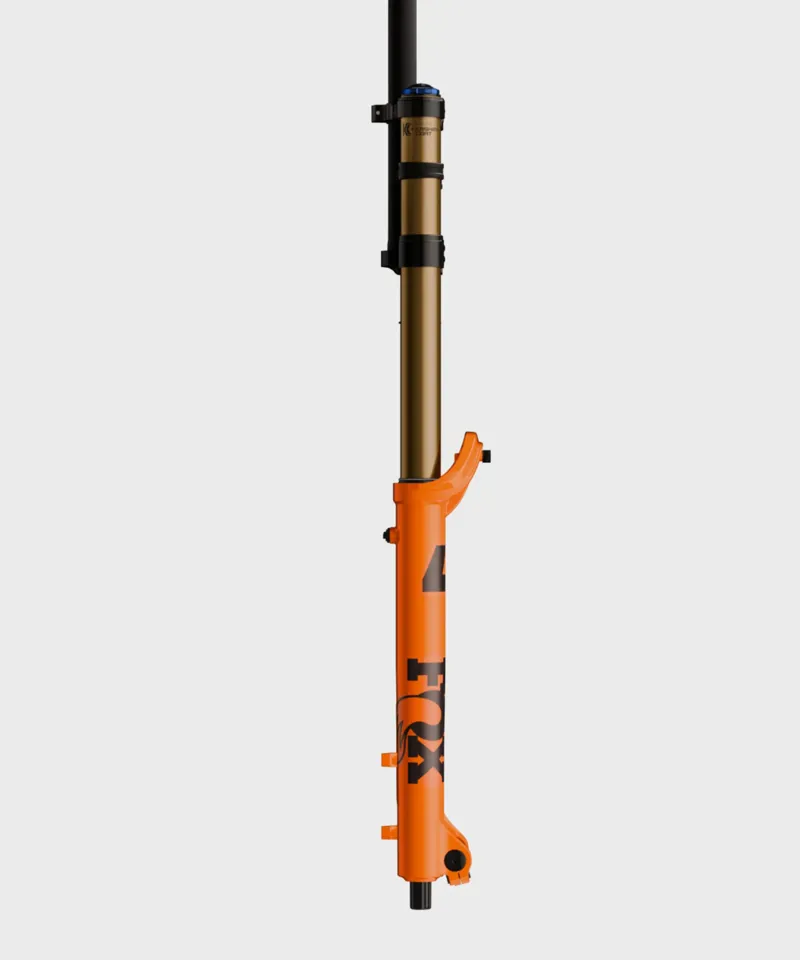

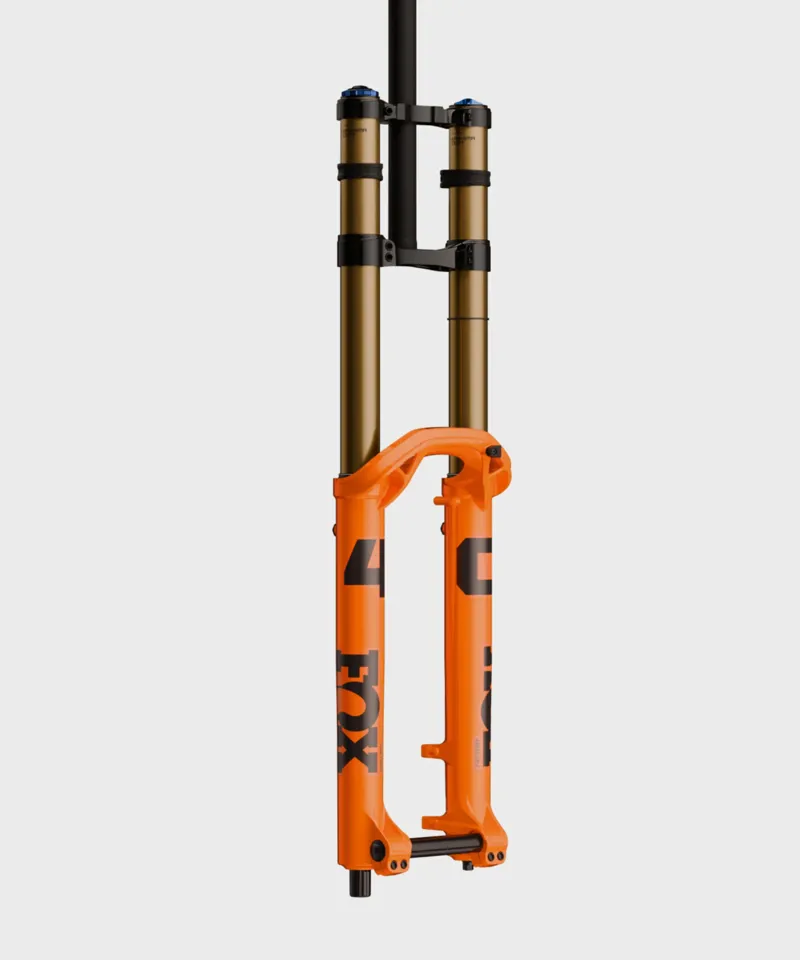

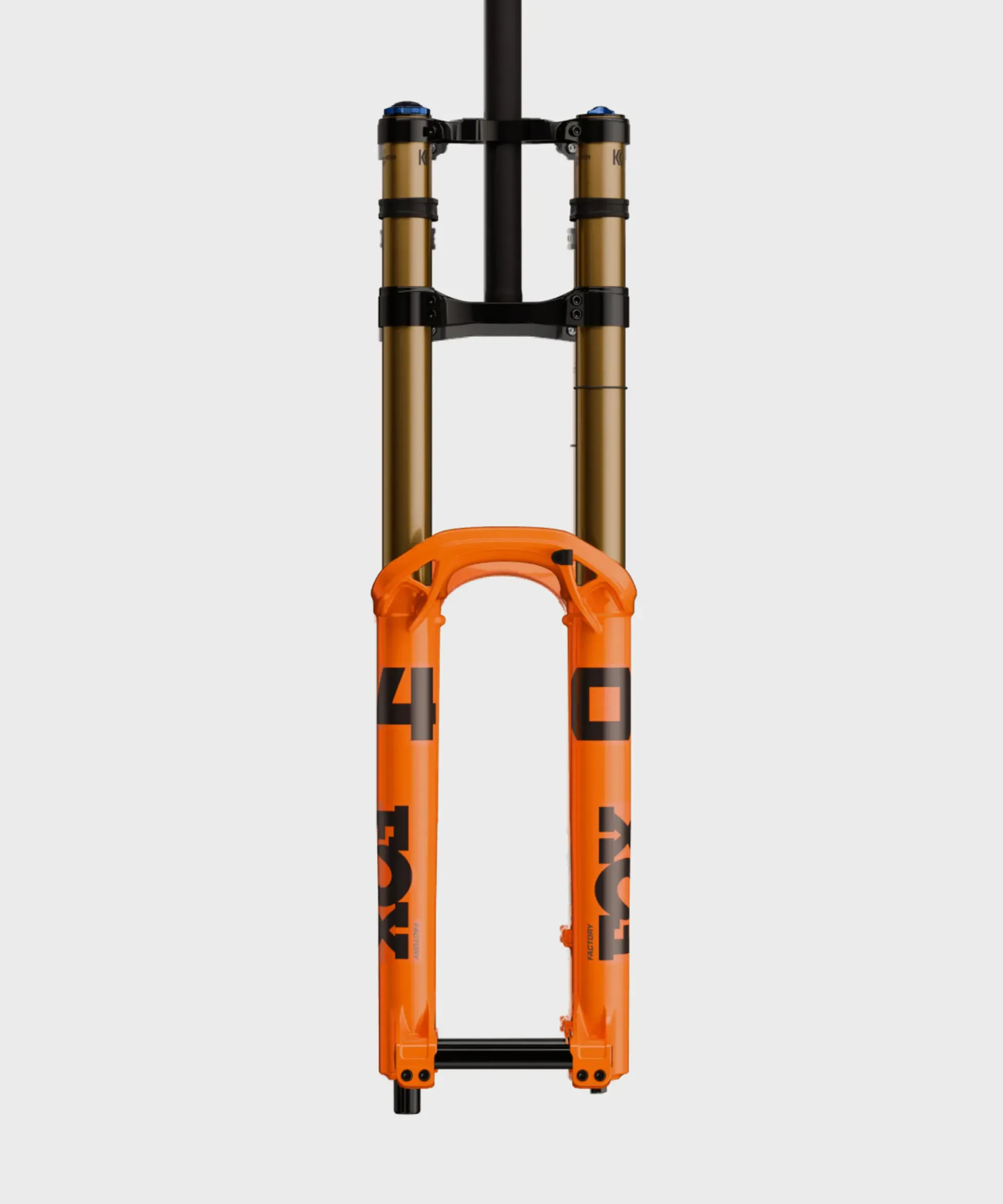

The FOX 40 Factory GRIP X2 1.125 29er 20TA x 110mm 52mm Rake 203mm Fork combines elite downhill performance, next generation suspension refinement and race proven control into a flagship fork built for all out gravity riding. Completely reworked for the latest generation, it is designed to be faster, smoother and more supportive from top to bottom, with updated damping, air spring performance and lower leg design all focused on maximum speed and confidence.
Key Features
- Fully redesigned chassis, damper and air spring for faster downhill performance
- Factory level fork built for elite gravity and downhill riding
- Updated GRIP X2 damper increases support while preserving suppleness
- New GlideCore air spring adds vertical and horizontal compliance for improved tracking
- MCU bottom out bumper improves control on bigger impacts
- Generatively designed lower legs optimise stiffness, strength and weight
- Updated bleeders improve pressure management during hard riding
- Relocated bypass channels enhance lower leg performance on 29er models
- New 40 mudguard with GD4 mount improves integration and protection
- Splined cassette tool air side top cap simplifies setup and servicing
- 203mm travel supports full downhill capability
- 52mm offset delivers the specified front end handling balance
- DH Boost 20mm floating axle adds stiffness and accurate wheel alignment
- Compatible with up to 230mm brake rotors for powerful braking setups
- Clears up to 2.5 inch tyres for modern gravity tyre compatibility
- Starting weight of 2755g balances strength and performance
At the heart of the latest 40 is the updated GRIP X2 damper, featuring a completely new mid valve piston and revised valve stack design to improve support without adding harshness. The result is a fork that feels more composed under heavy loads while still delivering the supple, controlled feel riders expect from FOX’s top level downhill platform. Paired with the next generation GlideCore air spring, which introduces both vertical and horizontal compliance, the fork tracks rough terrain more effectively and helps reduce rider fatigue through repeated hits and demanding race stages.
The redesigned lower leg assembly further improves the package, using a generative design approach to optimise stiffness, strength and weight for modern gravity demands. Updated bleeders, relocated bypass channels and the new mudguard system all add to the fork’s refined real world performance and usability, while the splined cassette tool top cap makes setup and servicing more straightforward. With 203mm of travel, DH Boost 20mm floating axle spacing, 52mm offset and clearance for up to 2.5 inch tyres, the FOX 40 Factory GRIP X2 is built to deliver maximum downhill speed, control and confidence on the toughest tracks.
