Frameset
Frame: Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

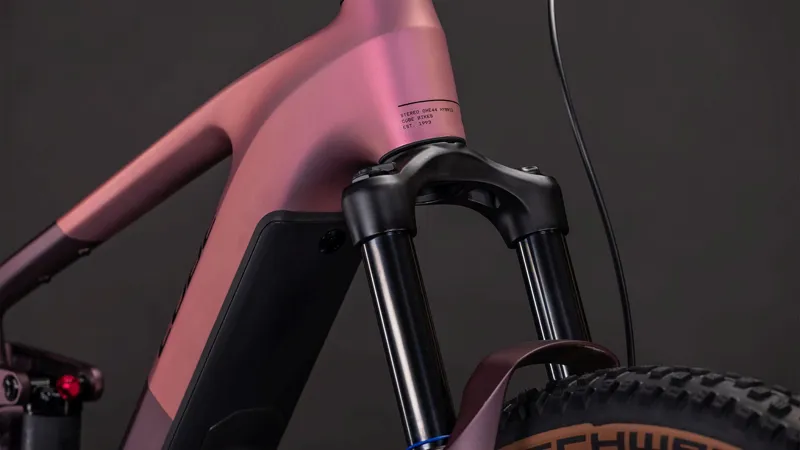

Fork: SR Suntour XCR36 2CR Air, Tapered, 15x110mm, 140mm

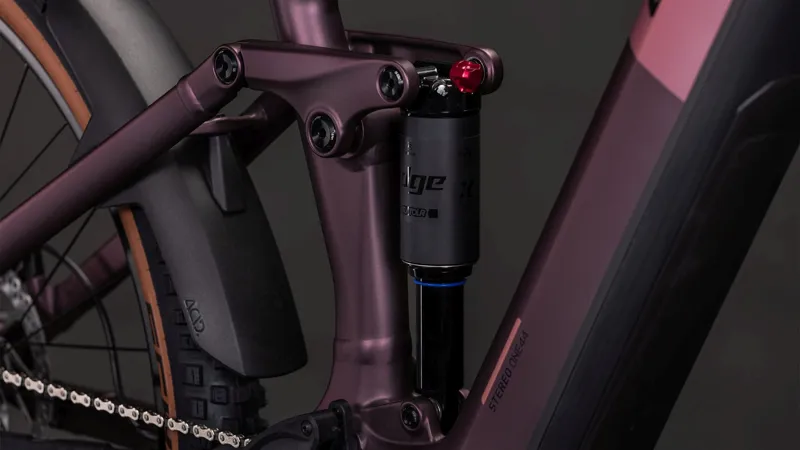

Shock: SR Suntour EdgeX R 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
E-Bike System
Engine: Bosch Drive Unit Performance Line CX, max. 100 Nm (BDU38)
Battery: Bosch PowerTube 800
Drivetrain & Brakes
Front Brake: Shimano BR-MT420, Hydraulic Disc Brake (203/203)
Rear Brake: Shimano BR-MT420, Hydraulic Disc Brake (203/203)
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

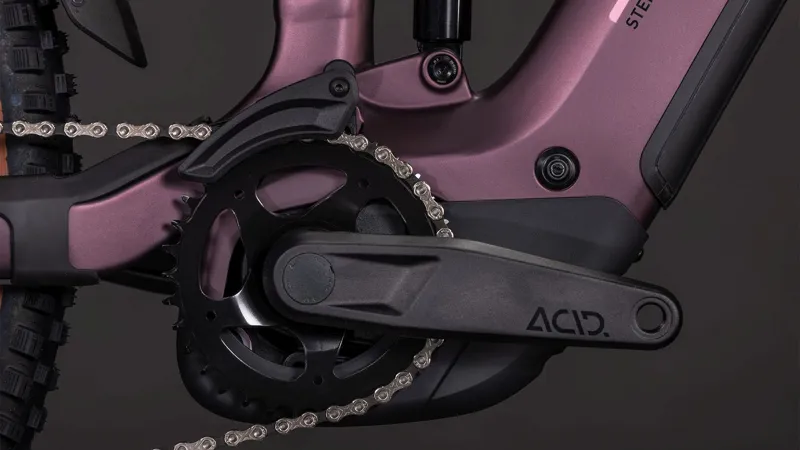

Crankset: Acid MTB Hybrid Pro, 27.5: 36T // 29: 34T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Cockpit
Headset: Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Handlebar: Cube Rise Trail Bar 35
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Handlebar Tape/Grips: Acid Hybrid Perform
Wheels & Tyres
Wheels: Acid SLX 30, 32/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Schwalbe Nobby Nic, Performance, 2.6"
Other Components
Saddle: Acid Venec EMTB Plus 145
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost Clamp: Cube Seatpost Clamp
Pedals: Acid PP MTB
