*Please note – spec applies to all sizes unless listed separately
Frameset
Mainframe: Size: S, XL, L, M – Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145–160 mm
Fork: Size: S, XL, L, M – Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

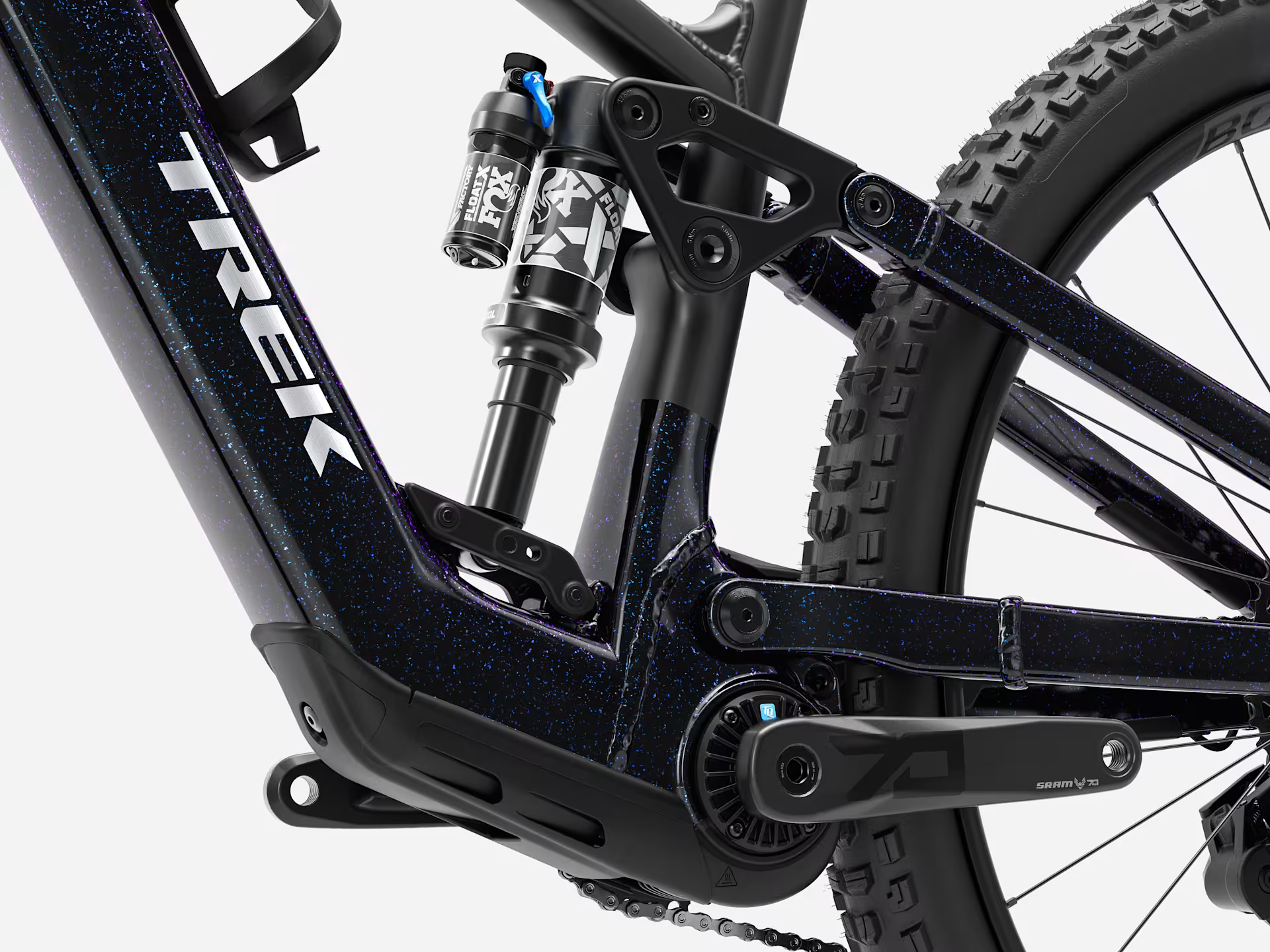

Shock: Size: S, XL, L, M – Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Wheels
Front Hub: Size: S, XL, L, M – Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Skewer: Size: S, XL, L, M – Bontrager Switch thru-axle, removable lever
Rim: Size: S, XL, L, M – Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Spokes: Size: S, XL, L, M – 14 g stainless steel, black
Tire: Size: S – Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Size: S, XL, L, M – Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Tire Part: Size: S, XL, L, M – Bontrager TLR sealant, 180 ml/6 oz
Rim Strip: Size: S, XL, L, M – Bontrager TLR
Max tyre size: Frame: 29x2.50", Fork: See manufacturer
E-system
Battery: Size: S, XL, L, M – TQ 580Wh
Charger: Size: S, XL, L, M – TQ 4A charger
Computer: Size: S, XL, L, M – TQ LED display with Bluetooth & ANT+ connectivity
Motor: Size: S, XL, L, M – TQ-HPR60, 60 Nm, 300 W continuous, 350 W peak
Drivetrain
Shifter: Size: S, XL, L, M – SRAM Eagle 70, 12-speed

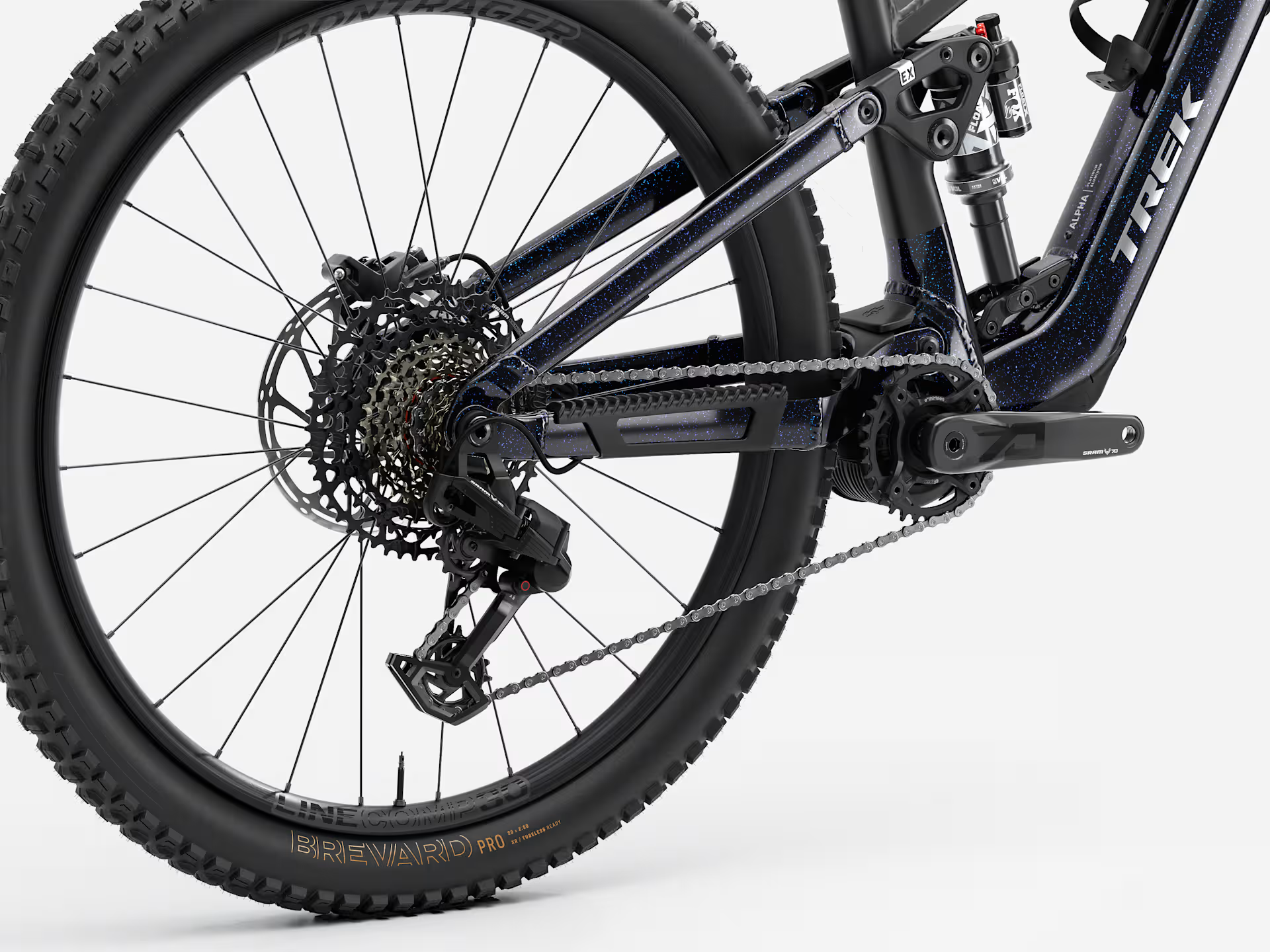

Rear Derailleur: Size: S, XL, L, M – SRAM Eagle 70, T-Type
Crank: Size: S, XL, L, M – SRAM EAGLE 70, 160 mm length
Chain Ring: Size: S, XL, L, M – SRAM T-Type, 32T, alloy
Cassette: Size: S, XL, L, M – SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Chain: Size: S, XL, L, M – SRAM Eagle 70, T-Type, 12-speed
Max. chainring size: 1x: 34T, min 30T
Components
Saddle: Size: S, XL, L, M – Bontrager Verse Short, stainless steel rails
Seatpost:
Size: S – Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
Size: M – Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Size: XL, L – Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Handlebar: Size: S, XL, L, M – Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Grips: Size: S, XL, L, M – Trek Line Comp, nylon lock-on
Stem: Size: S, XL, L, M – Bontrager Elite, 35 mm, 0-degree, 45 mm length
Headset: Size: S, XL, L, M – FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brakes
Brake: Size: S, XL, L, M – SRAM DB 8 4-piston hydraulic disc
Brake Rotor: Size: S, XL, L, M – SRAM CenterLine 2.0, 6-bolt, 200 mm
Size: S, XL, L, M – SRAM CentreLine, 6-bolt, round-edge, 200 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
Weight
Weight: M – 21.08 kg / 46.48 lbs (with TLR sealant, no tubes)
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
