*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Platinum, Removable Integrated Battery (RIB 2.0), tapered headtube, internal routing, Motor Armour, rack and mudguard mounts, ABP, Boost 148, 120 mm travel
Fork: Fox AWL Rail HD, Rail 2.0 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 180 mm direct mount, 130 mm travel

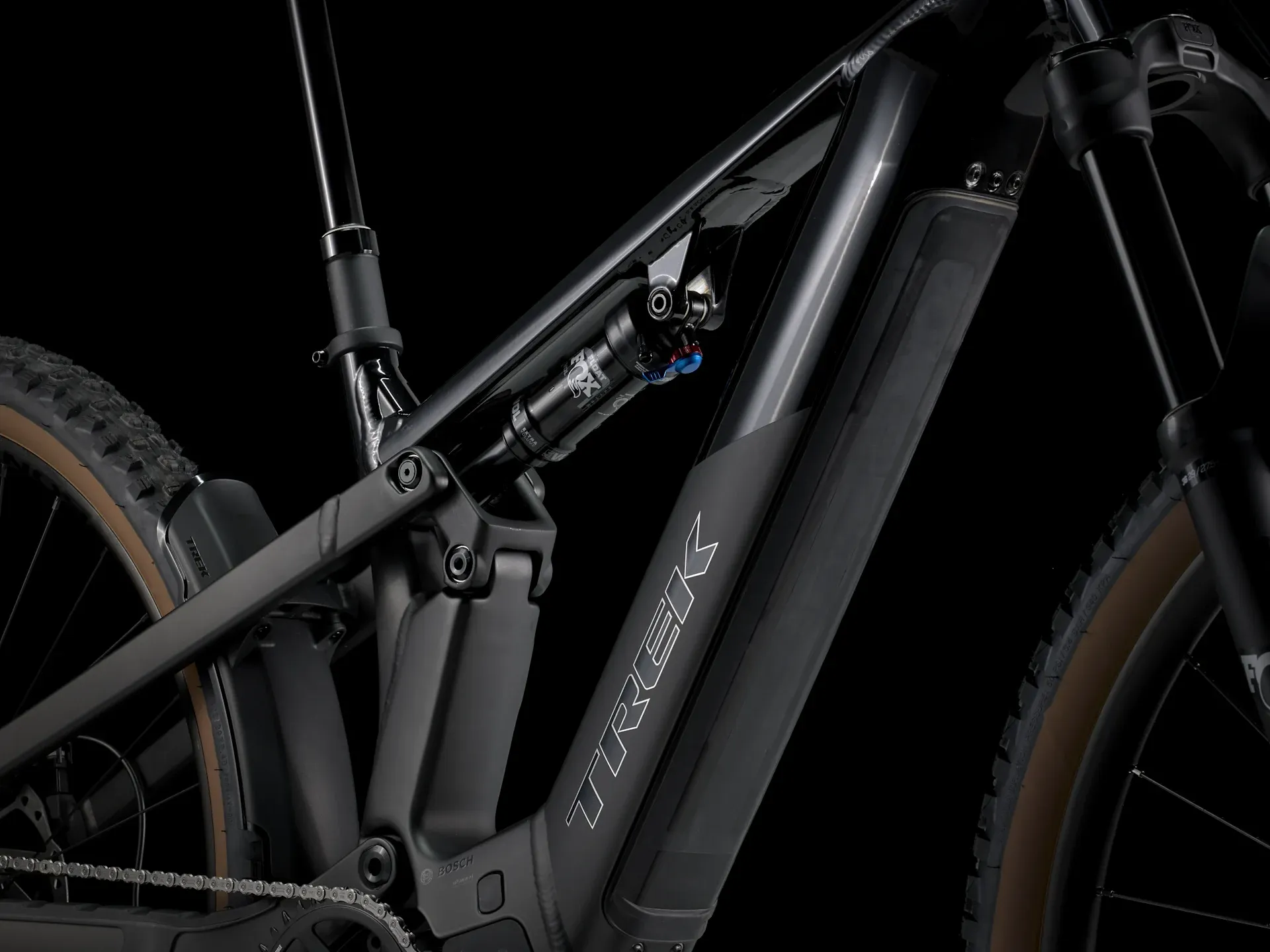

Shock: Fox Float Rhythm, 2-position damper, 210x50 mm
Max compatible fork travel: See service manual
Wheels
Hub (front): Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Spokes: 14 g stainless steel, black
Tyre:
- S: Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40"
- M, L, XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.50" (S: 27.5x2.50"), Fork: see manufacturer
E-system
Battery: Bosch PowerTube 800 Wh, smart system
Charger: Bosch standard 4A, 230V, smart system
Computer: Bosch Purion 200
Motor: Bosch Performance Line CX, 20 mph (25 km/h in Europe)

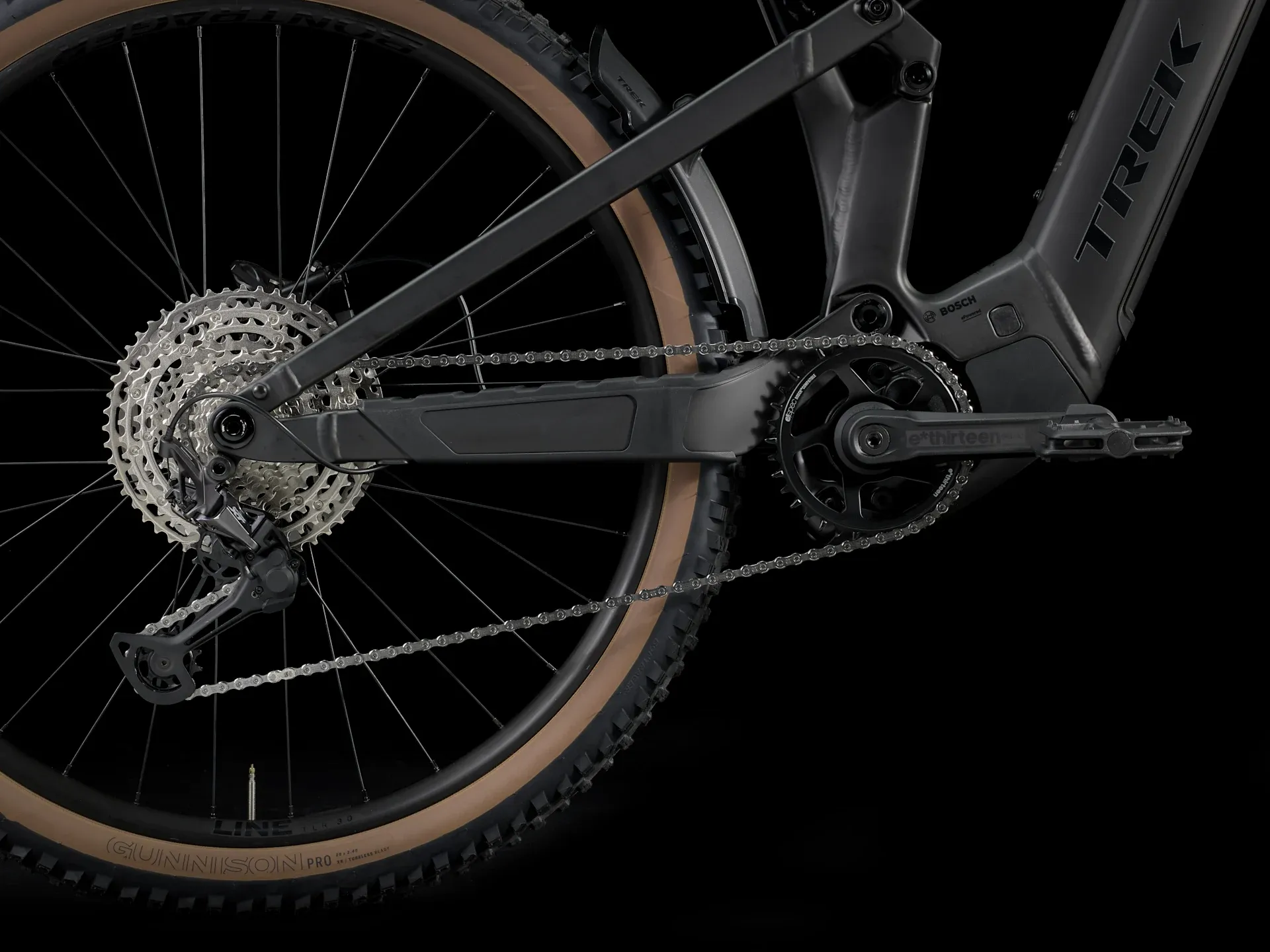

Drivetrain
Shifter: Shimano SLX M7100, 12-speed
Rear derailleur: Shimano XT M8100, long cage
Crank arm: E*thirteen E*spec Plus, 160 mm length
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 38T
Components
Saddle: Bontrager Verse P3, steel rails
Seatpost:
- S: Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
- M, L, XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Handlebar: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Brakes
Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake rotor: Shimano RT64, CentreLock, 203 mm
Rotor size: Max brake rotor sizes – Frame: 220 mm, min 180 mm, Fork: see fork manufacturer
Weight
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
