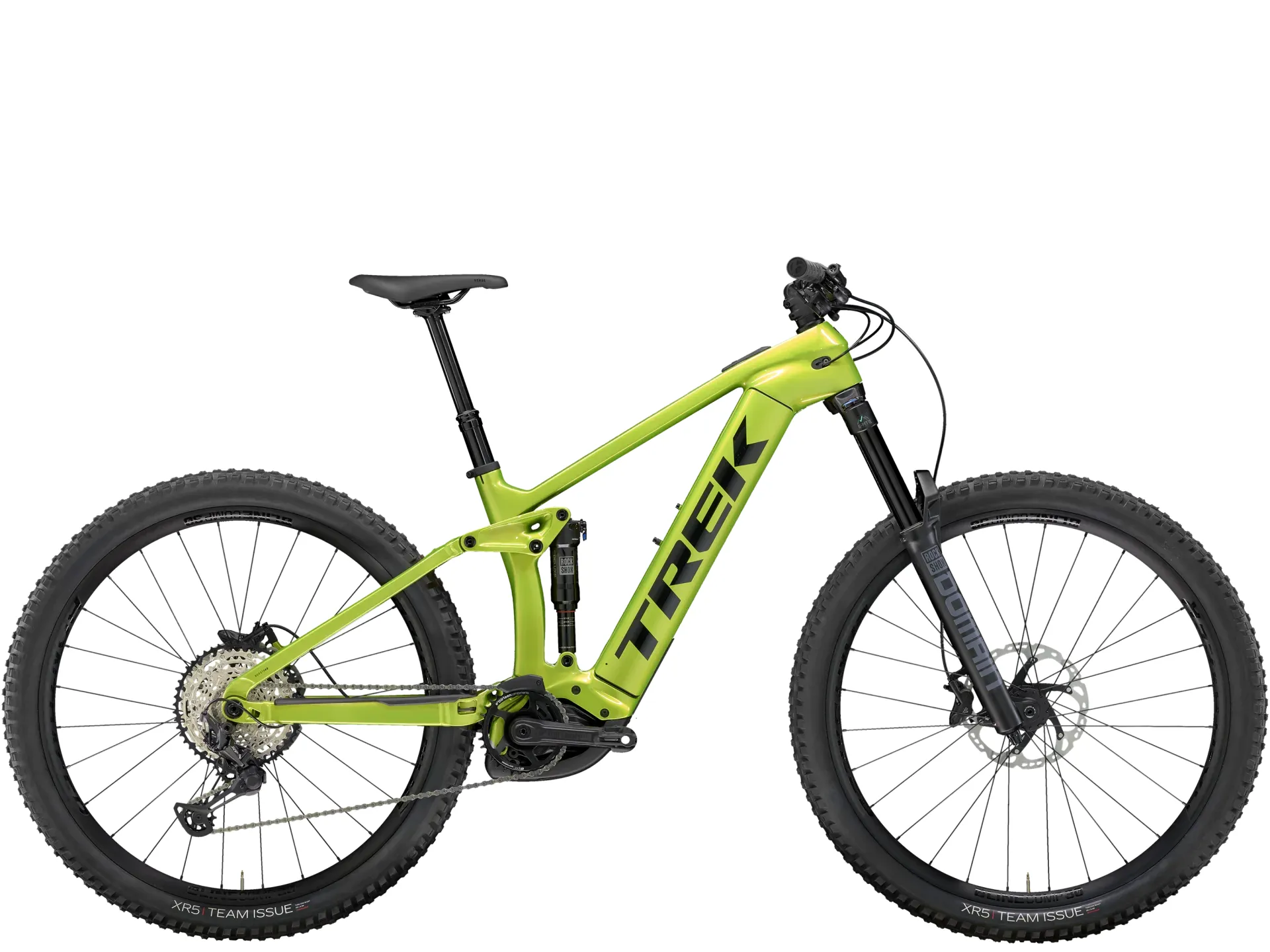

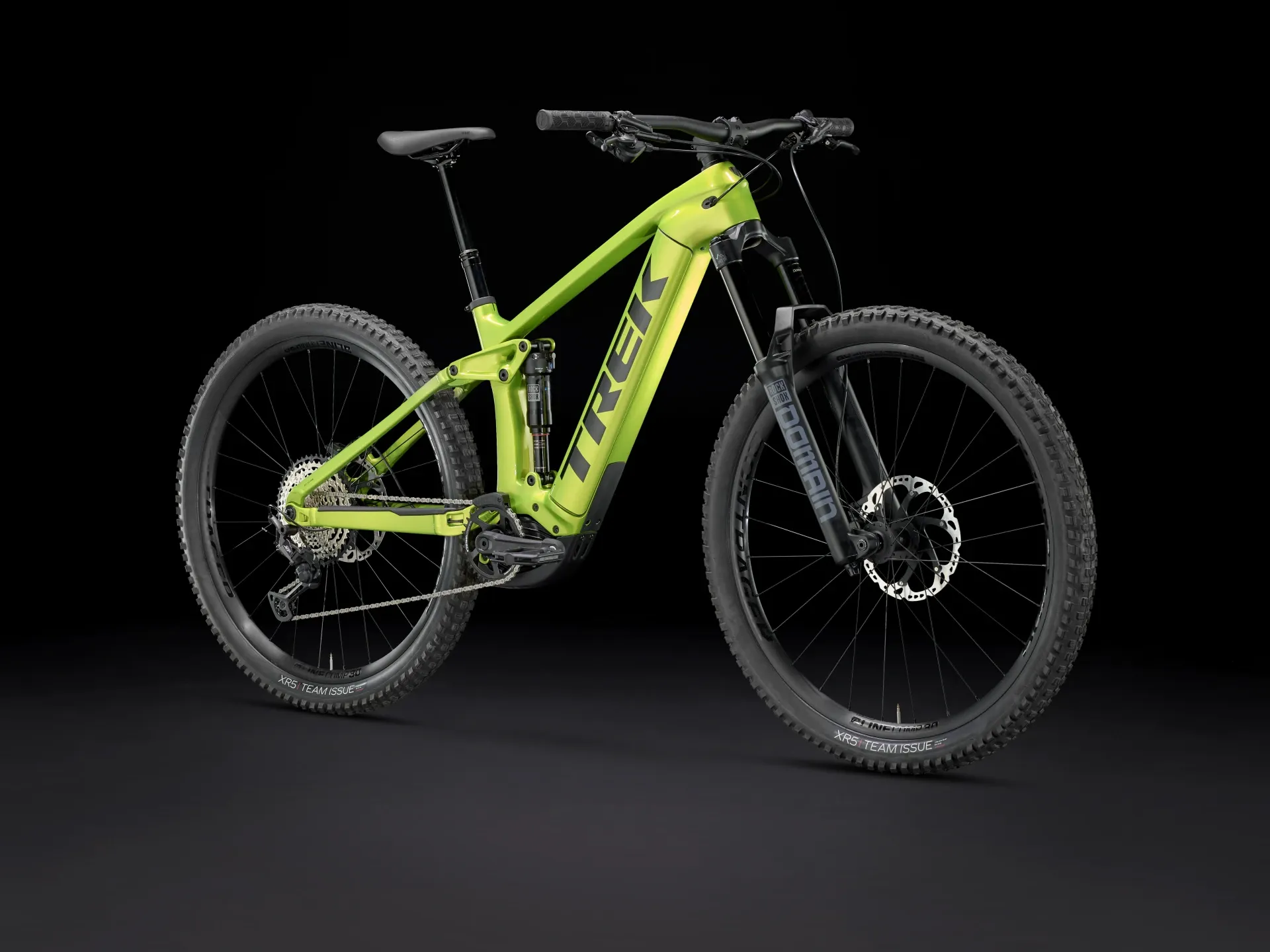

TREK Rail 9.7 Gen 4 750Wh Full Suspension Electric Mountain Bike in Power Surge

Season:2024

Brand:Trek

Code:37015GRN

The TREK Rail 9.7 Gen 4 750Wh Full Suspension Electric Mountain Bike is a high-performance e-MTB designed for riders who crave long-travel capabilities and the responsiveness of carbon construction. With its advanced features, powerful Bosch drive system, and top-notch components, the Rail 9.7 is ready to conquer challenging trails and provide an exhilarating riding experience.

Key Features:

  • OCLV Mountain Carbon Frame: The Rail 9.7 features a high-quality OCLV Mountain Carbon frame that provides a lightweight and responsive platform. The carbon construction contributes to the bike's overall agility and durability.

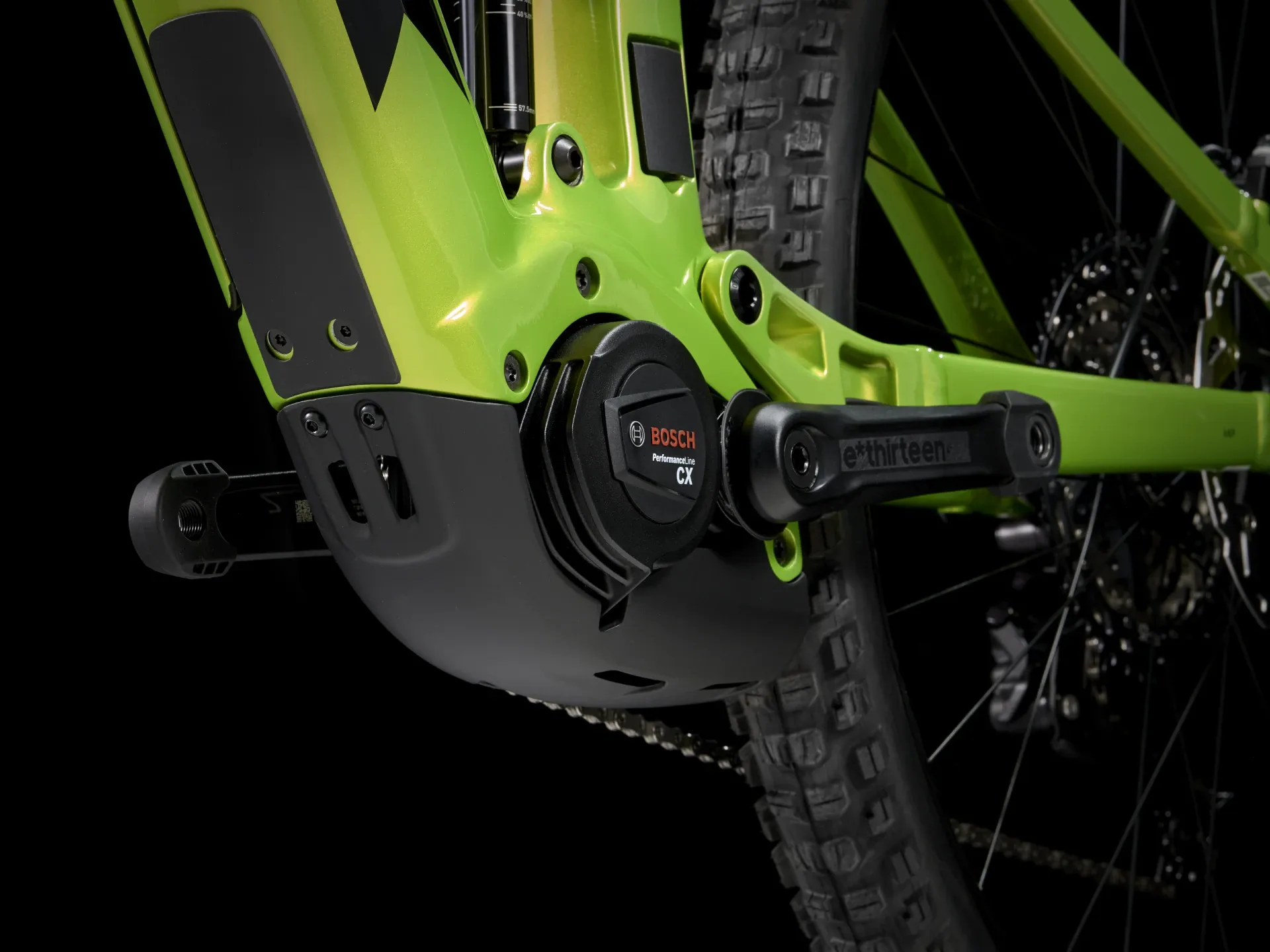

  • Bosch Smart System: Equipped with Bosch's latest smart system, the Performance Line CX drive unit offers robust power and responsiveness. The 750 Wh Removable Integrated Battery (RIB) ensures ample range, allowing riders to tackle long descents and climb back up for more.

  • Connectivity and Activity Tracking: The Bosch smart system includes a Bluetooth LED remote for connectivity and activity tracking through the eBike Flow app. This feature allows riders to customize settings and monitor performance.

  • Long-Travel Suspension: The Rail 9.7 is designed for serious trail riding with a 160 mm RockShox Domain fork at the front and a 150 mm RockShox Deluxe Select+ rear shock. This long-travel suspension setup enhances control and comfort on rugged terrain.

  • Shimano SLX/XT Drivetrain: The 1x12 Shimano SLX/XT drivetrain provides a wide range of gears for efficient pedaling and smooth shifting, ensuring optimal performance on both climbs and descents.

  • Dropper Post and 4-Piston Brakes: A Bontrager Line dropper post adds versatility, allowing riders to quickly adjust saddle height for optimal positioning. The 4-piston brakes offer confident stopping power for descents and technical sections.

  • Tubeless-Ready Wheels: The Rail 9.7 features tubeless-ready Bontrager Line Comp 30 29er wheels, providing enhanced traction, reduced risk of flats, and a smoother overall riding experience.

  • Top Tube Pocket: The Rail Gen 4 includes a pocket in the top tube, facilitating an easy upgrade to Bosch’s latest System Controller and Mini Remote for a cleaner and more integrated setup.

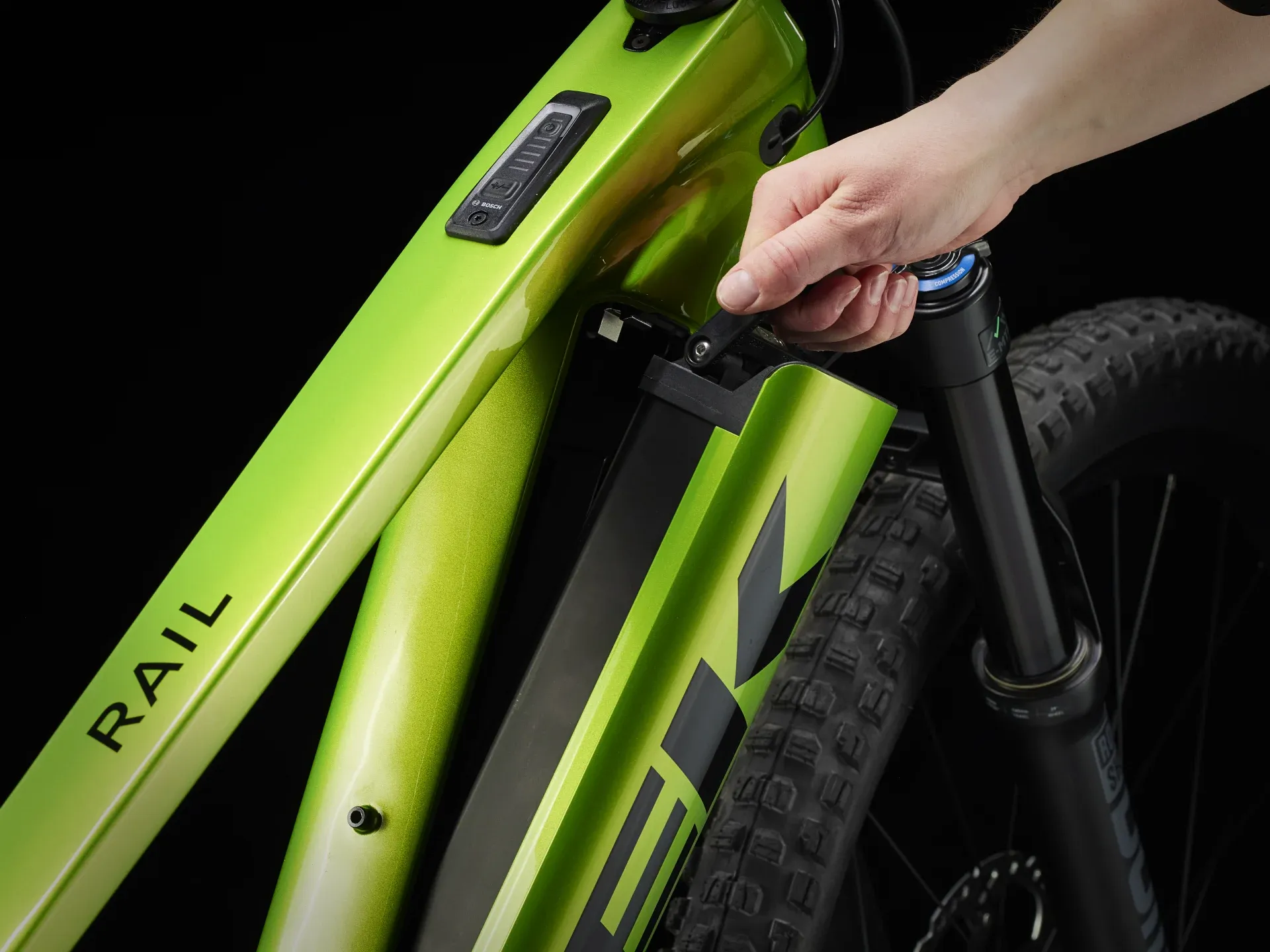

  • Removable Integrated Battery (RIB) System: The RIB system hides the battery in the frame for protection, simplifies battery removal without tools, and allows for the mounting of a water bottle cage.

  • Sturdy Frame Design: The frame is reinforced with features such as a 34.9 mm seat tube for robust dropper posts and an oversized head tube, contributing to overall stiffness and precise steering.

The TREK Rail 9.7 Gen 4 750Wh is a versatile and high-performance electric mountain bike that combines cutting-edge technology, premium components, and a robust frame to deliver an exceptional riding experience on challenging trails.

Technical Information

*Please note – spec applies to all sizes unless listed separately

Frameset
FrameOCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
ForkRockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8" oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

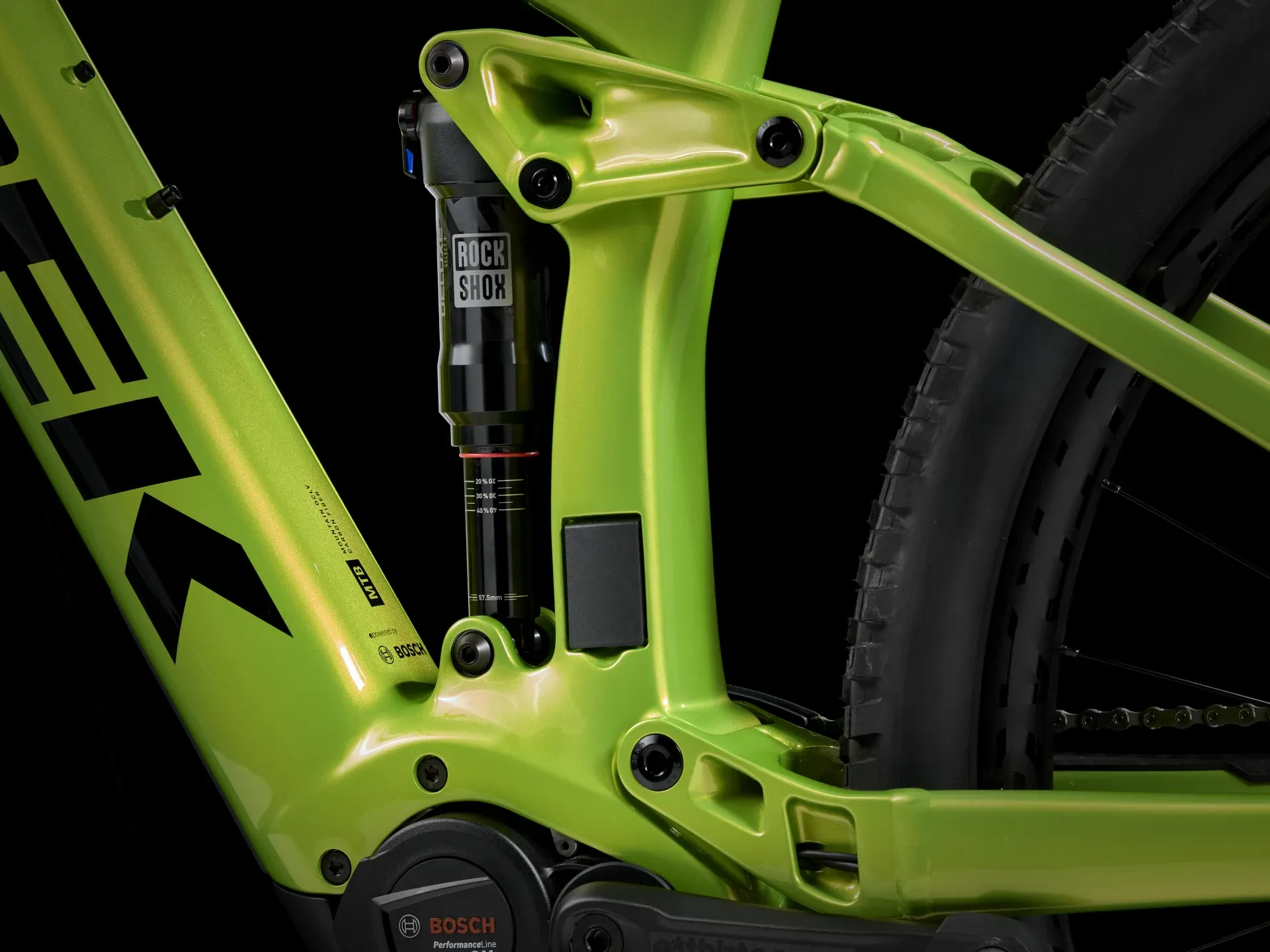

ShockRockShox Deluxe Select+ RT, 230mm x 57.5mm
Max compatible fork travel170 mm (580 mm axle-to-crown)
Wheels
Wheel frontBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rearBontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29"
Skewer rearBontrager Switch thru-axle, removable lever
TyreBontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre partBontrager TLR sealant, 180 ml/6 oz
Rim stripBontrager TLR
Max tyre sizeFrame: 29x2.60" Fork: See manufacturer
E-system
*BatterySize:S
Bosch PowerTube 625Wh, smart system
Size:M, L, XL
Bosch PowerTube 750Wh, smart system
ChargerBosch standard 4A, 230V, smart system
ComputerBosch LED remote, smart system

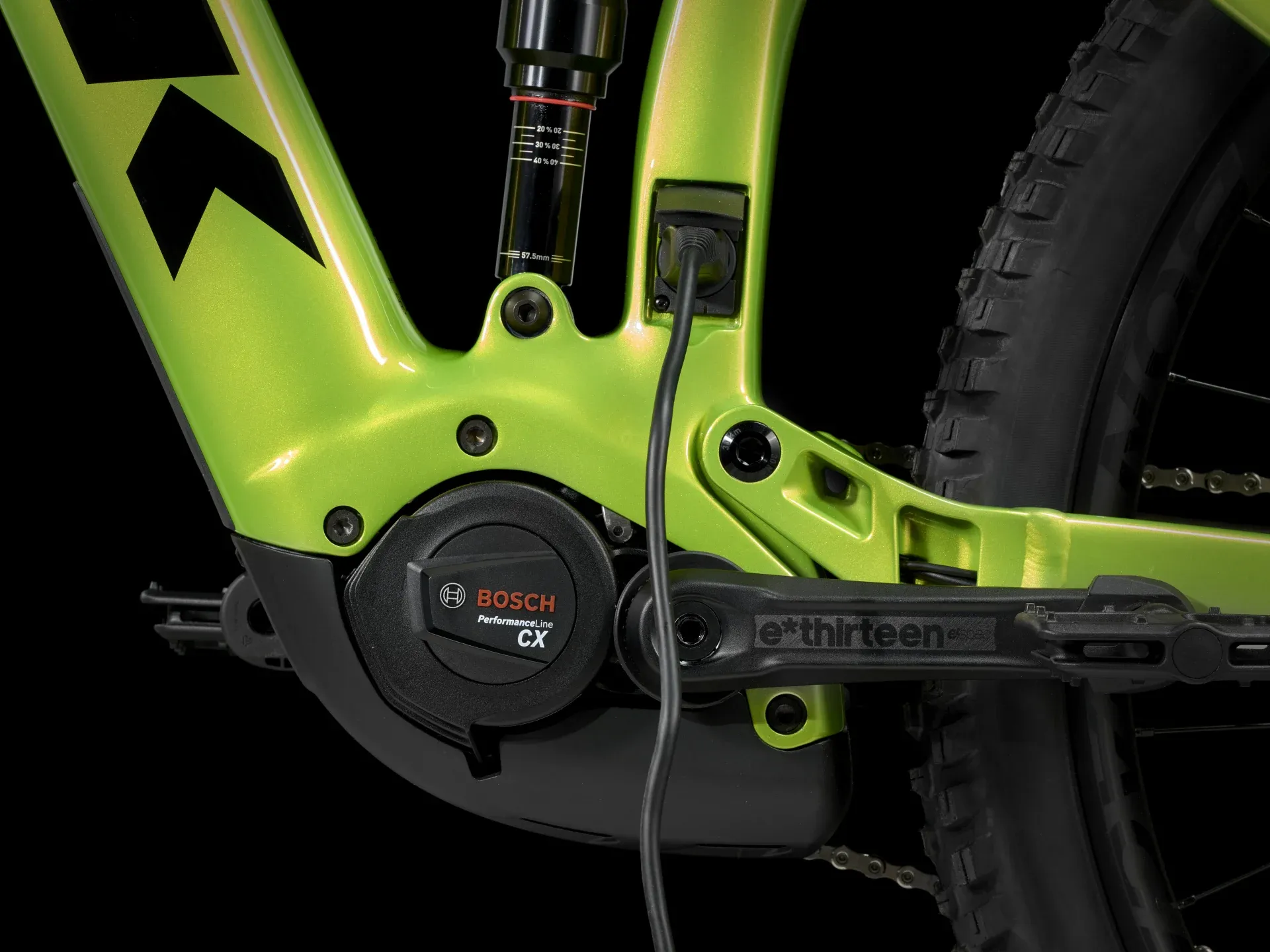

MotorBosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Drivetrain

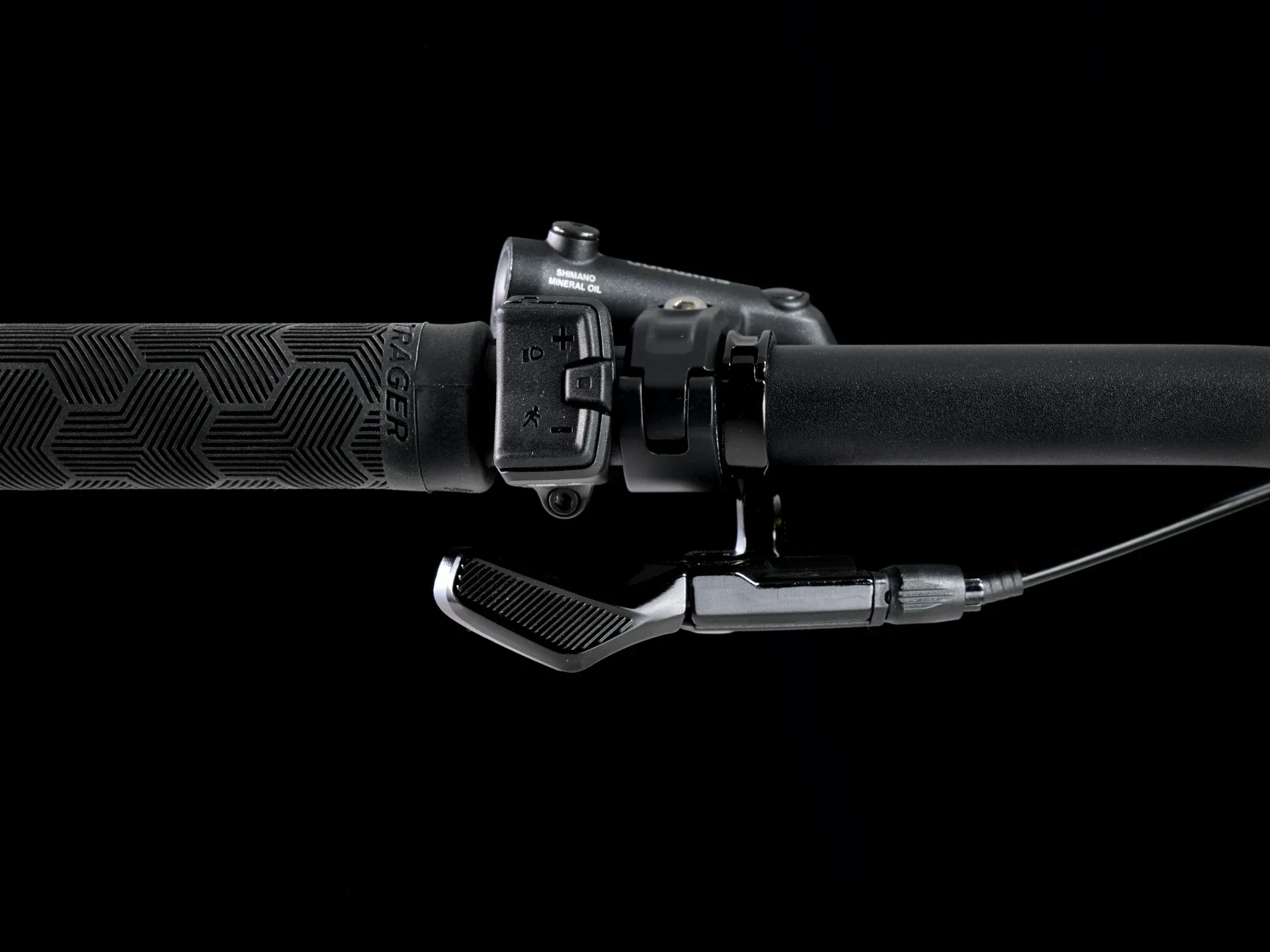

ShifterShimano SLX M7100, 12-speed

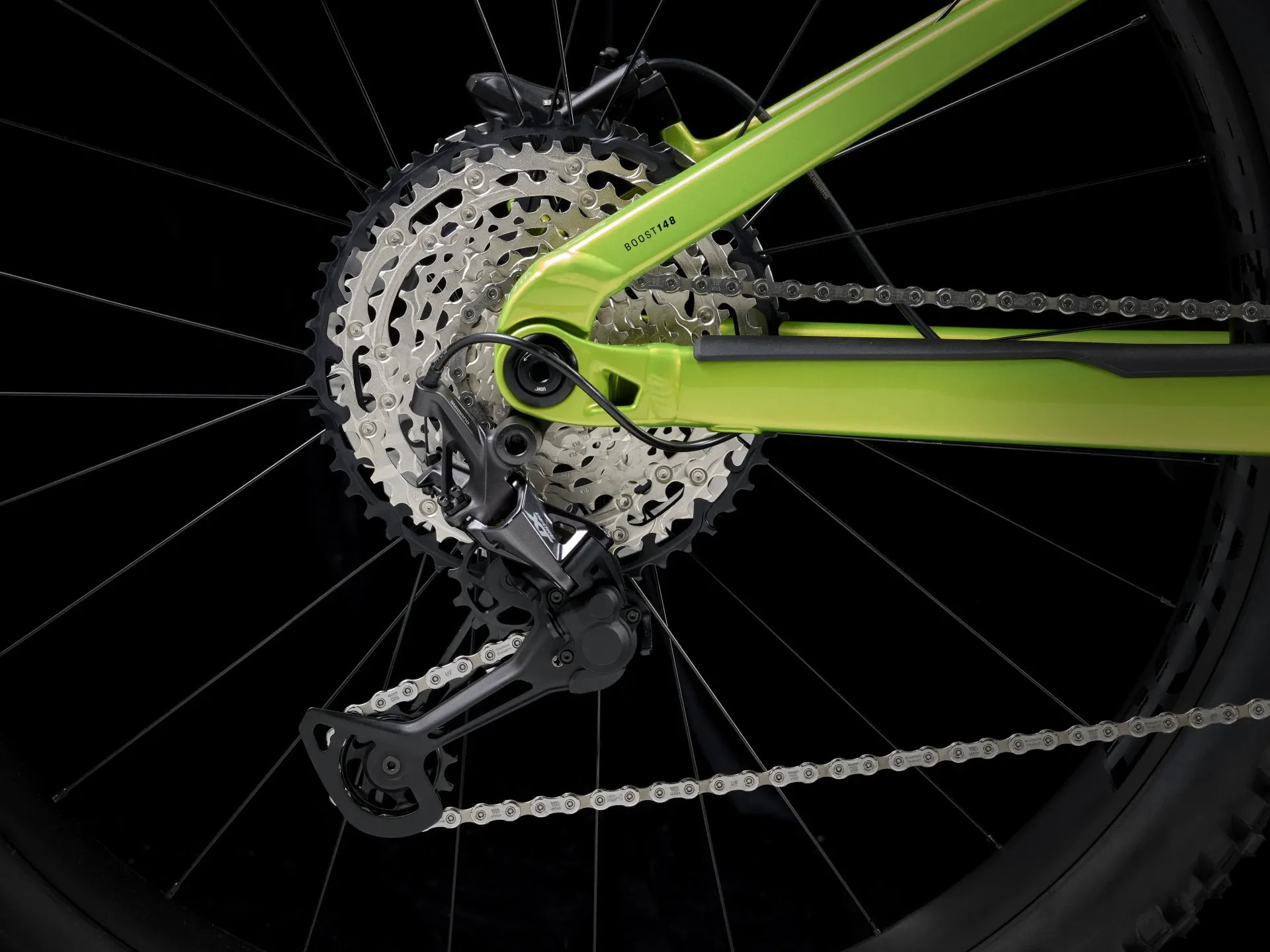

Rear derailleurShimano XT M8100, long cage
CrankE*thirteen E*spec Plus, 165 mm length
Crank armE*thirteen E*spec Plus, 160 mm length
ChainringE*thirteen E*spec, 34T alloy, 55 mm chainline
CassetteShimano SLX M7100, 10-51T, 12-speed
ChainShimano SLX M7100, 12-speed
PedalVP-536 nylon platform
Max. chainring size34T
Components
SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize:S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size:M
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size:L, XL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
HandlebarBontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
GripsBontrager XR Trail Comp, nylon lock-on

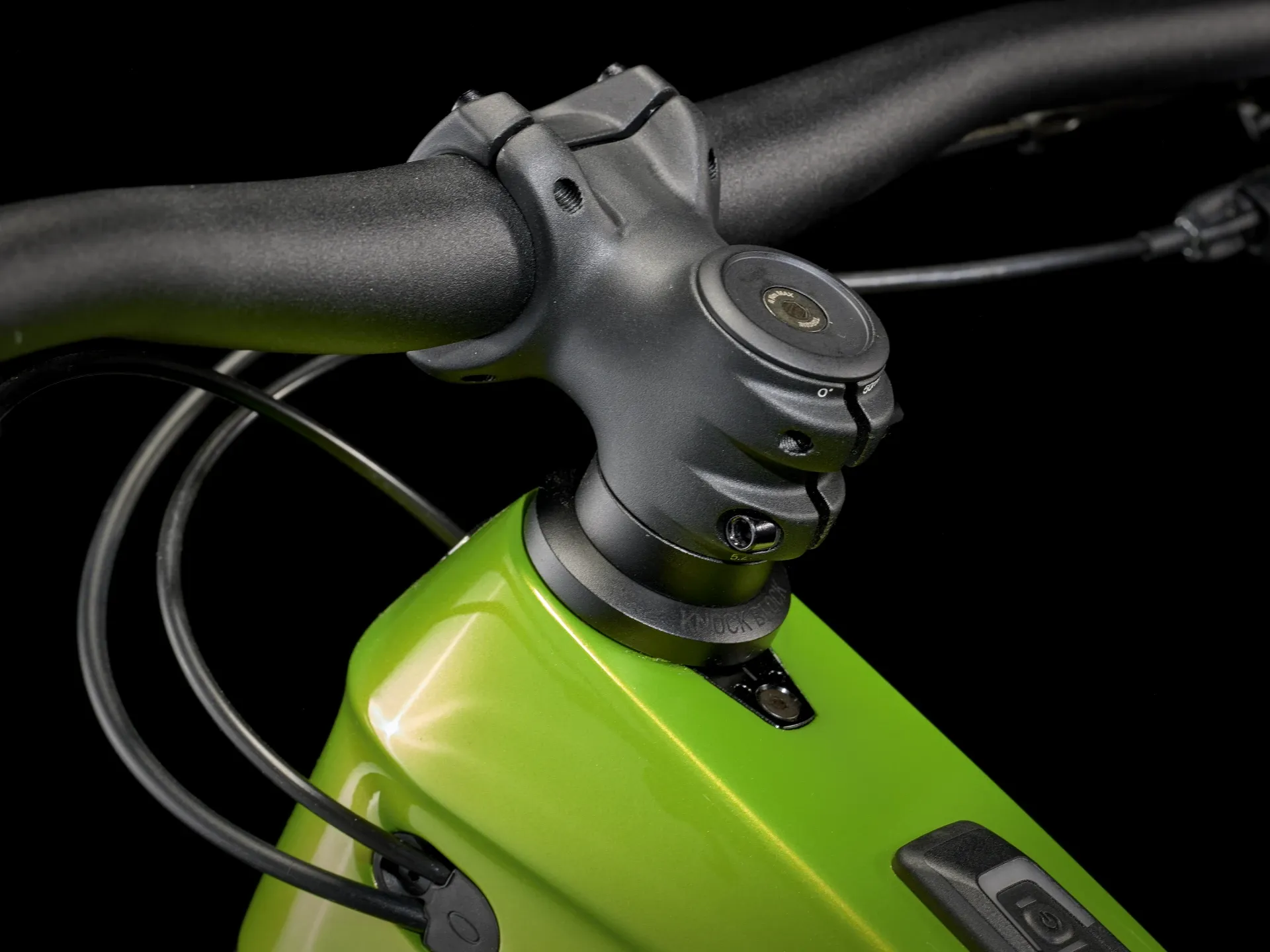

StemBontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
*BrakeSize:S, M, L, XL
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Size:S, M, L, XL
SRAM Code R 4-piston hydraulic disc
*Brake rotorSize:S, M, L, XL
Shimano RT76, 6-bolt, 203 mm
Size:S, M, L, XL
SRAM CentreLine, 6-bolt, round edge, 200 mm
Brake SetSRAM Code R 4-piston hydraulic disc
Rotor sizeMax brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
Weight
WeightM - 24.10 kg / 53.14 lbs (with TLR sealant, no tubes)
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Sizing Information
size-table
SizeRider HeightInseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"
