*Please note – spec applies to all sizes unless listed separately
Frameset

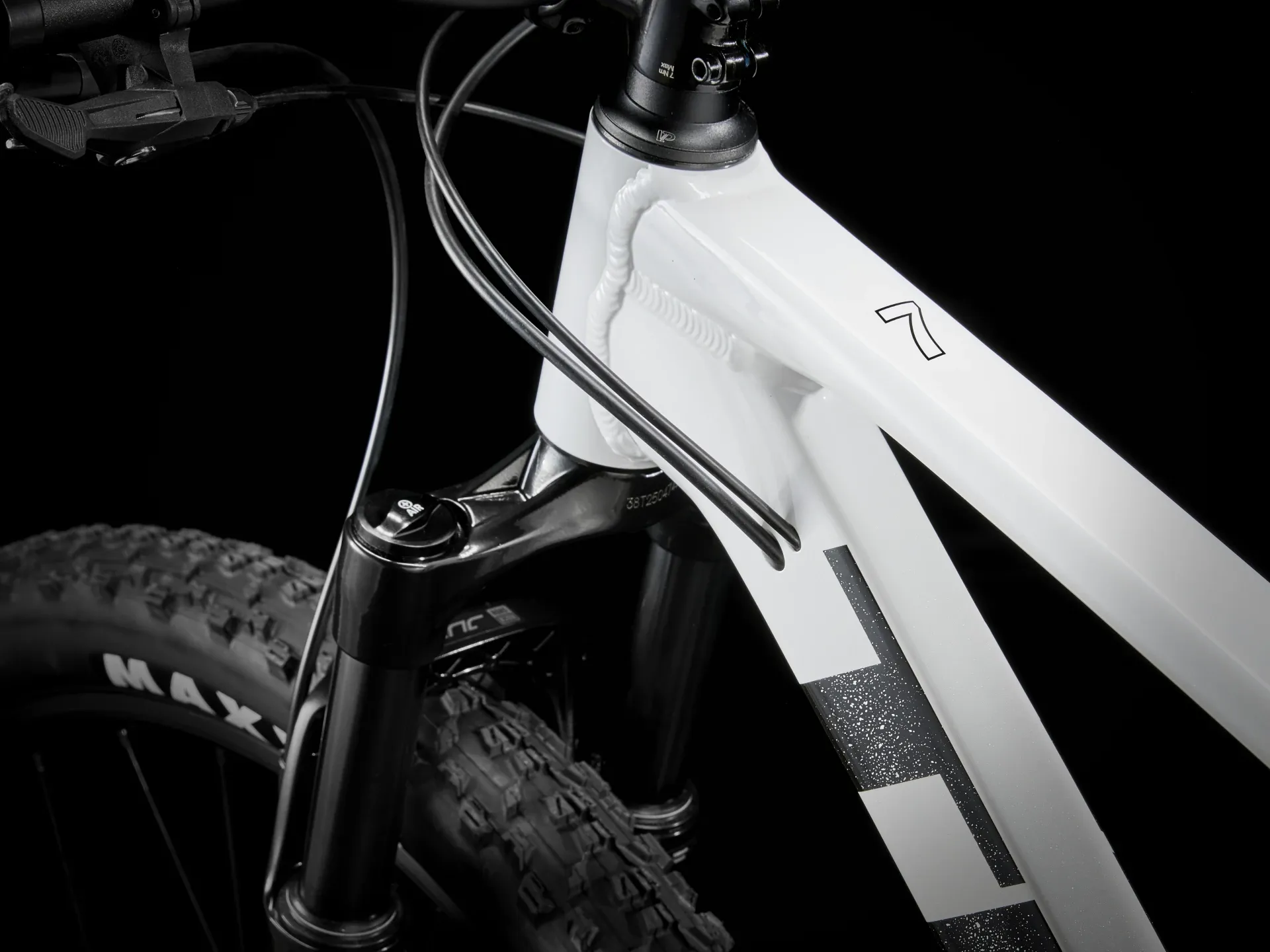

Frame:

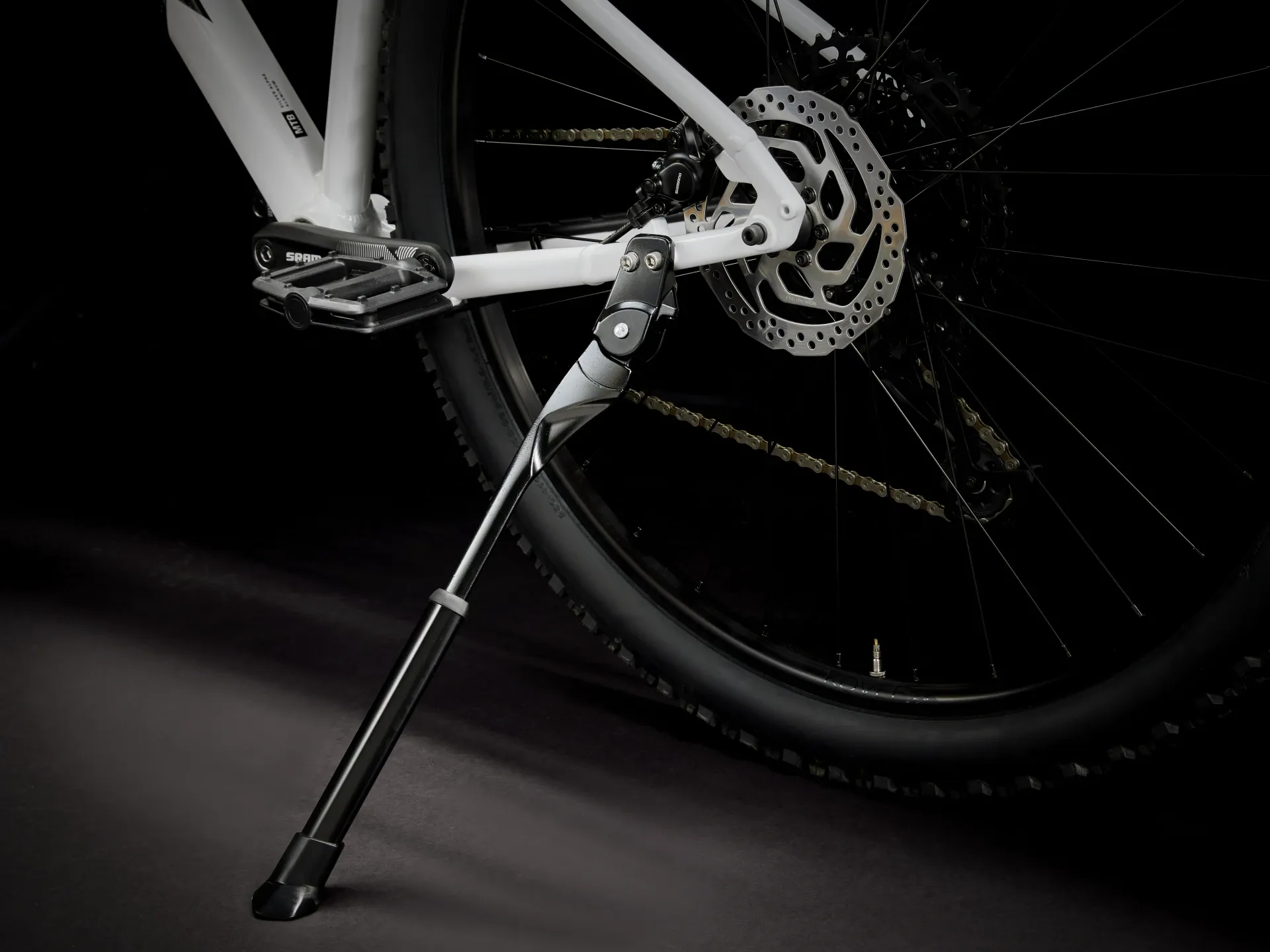

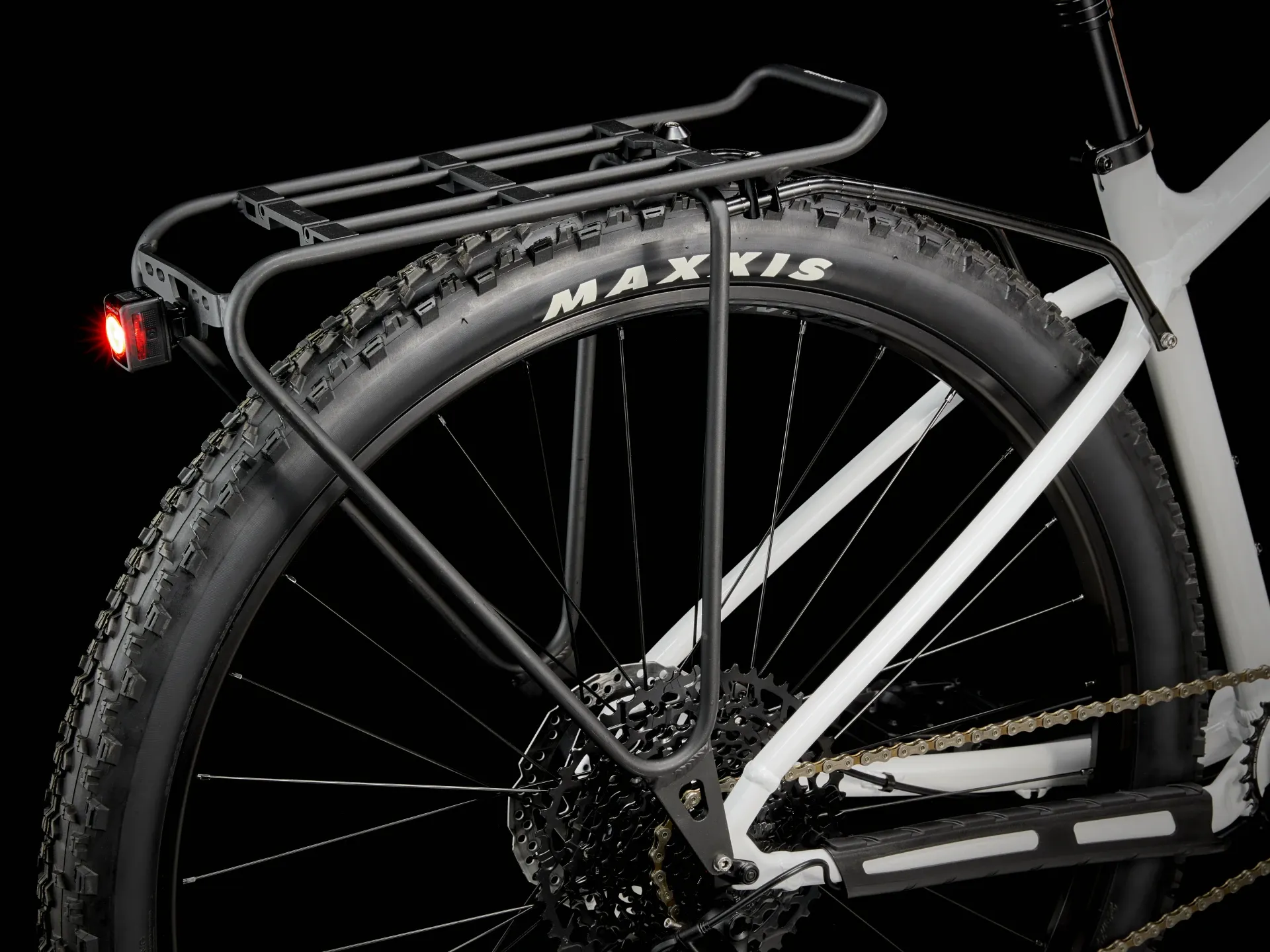

Size: XXS, XS – Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S, M, ML, L, XL, XXL – Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

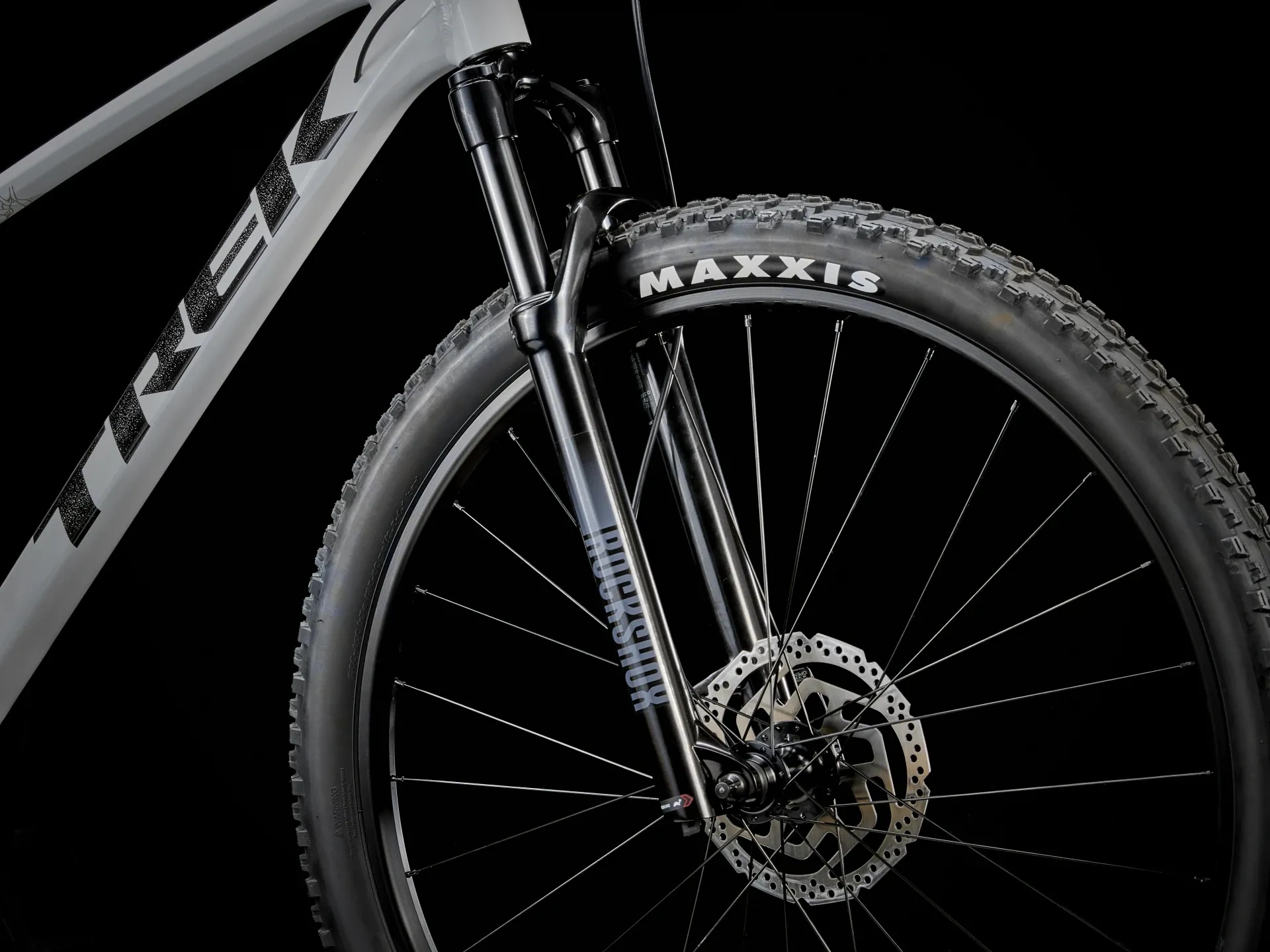

Fork:
Size: XXS – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS, S – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M, ML, L, XL, XXL – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel: 120 mm, XXS: 80 mm
Wheels
Hub (front): Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub (rear): Formula DC-22 LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 173x5 mm QR
Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Tyre:
Size: XXS – Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60 tpi, 26x2.40"
Size: XS, S – Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40"

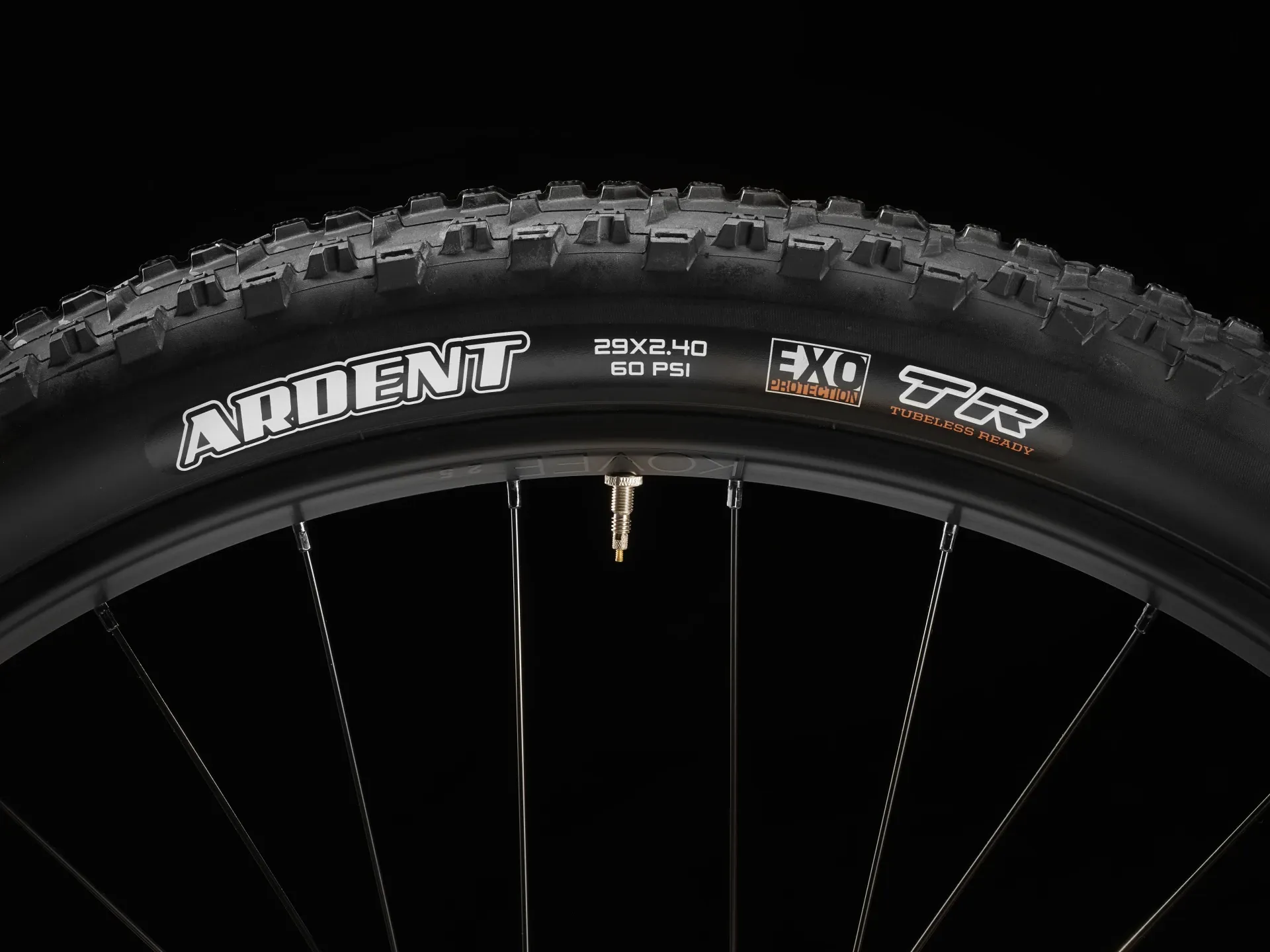

Size: M, ML, L, XL, XXL – Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40"
Max tyre size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Drivetrain
Shifter: SRAM SX Eagle, 12-speed

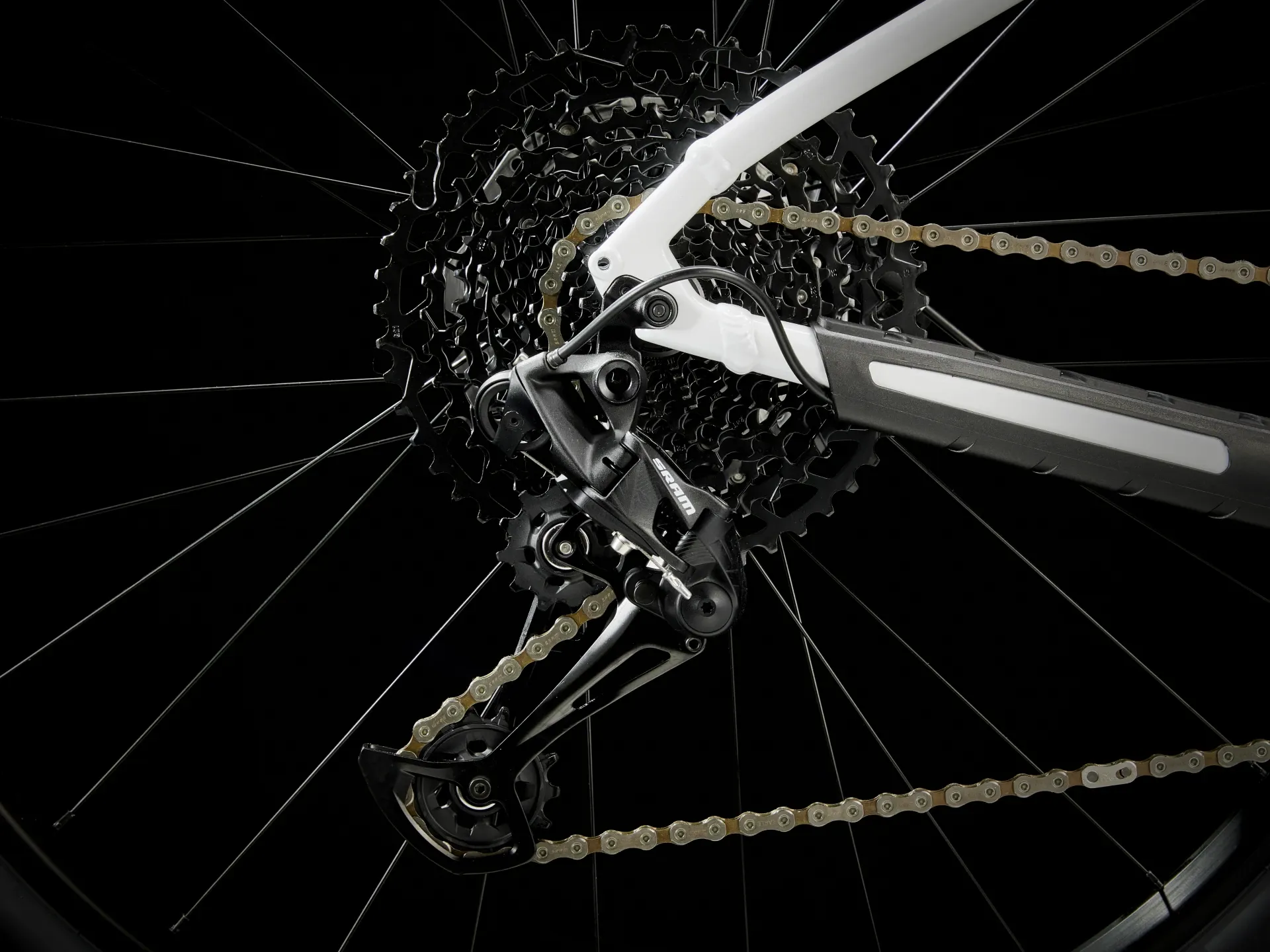

Rear derailleur: SRAM SX Eagle

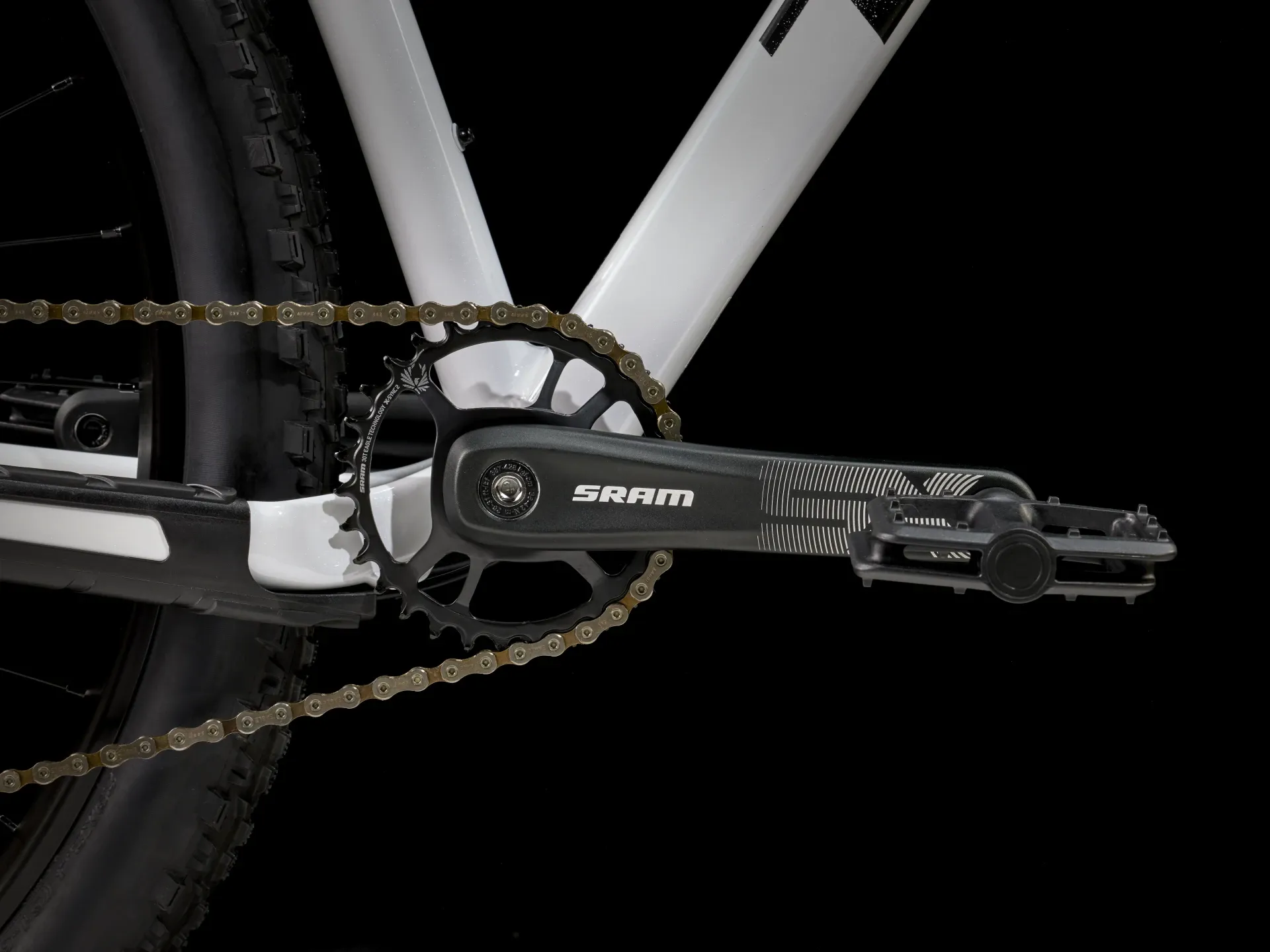

Crank:
Size: XXS – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm length
Size: XS, S, M – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
Size: ML, L, XL, XXL – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket: Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle

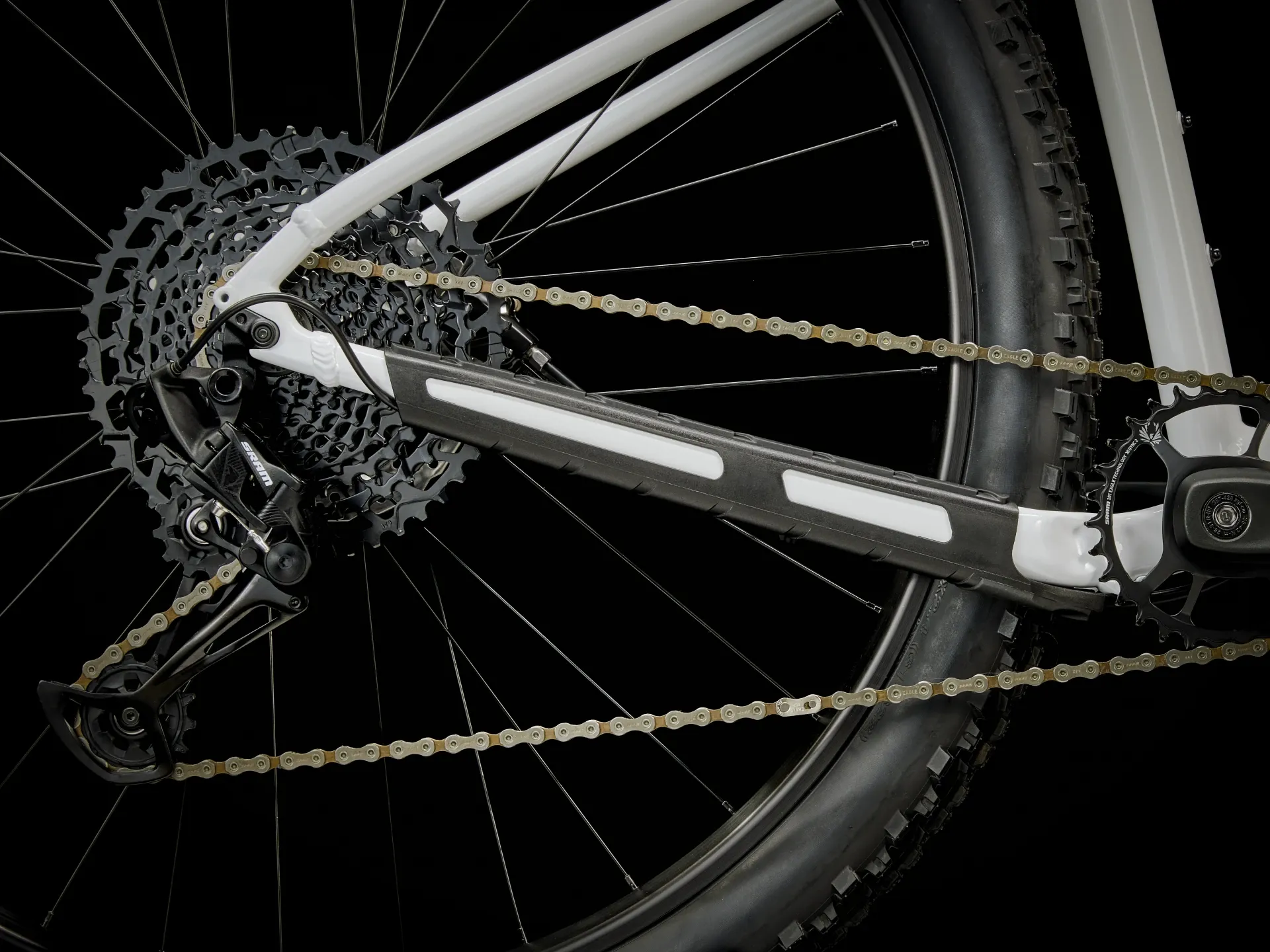

Cassette: SRAM PG-1210 Eagle, 11-50, 12-speed
Chain: SRAM SX Eagle, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 34T, 2x: 36/22
Components
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: XXS, XS, S – TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M – TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
Size: ML, L, XL, XXL – TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar:
Size: XXS, XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem:
Size: XXS, XS, S – Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M, ML, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Headset: Semi-integrated, 1-1/8"
Brakes

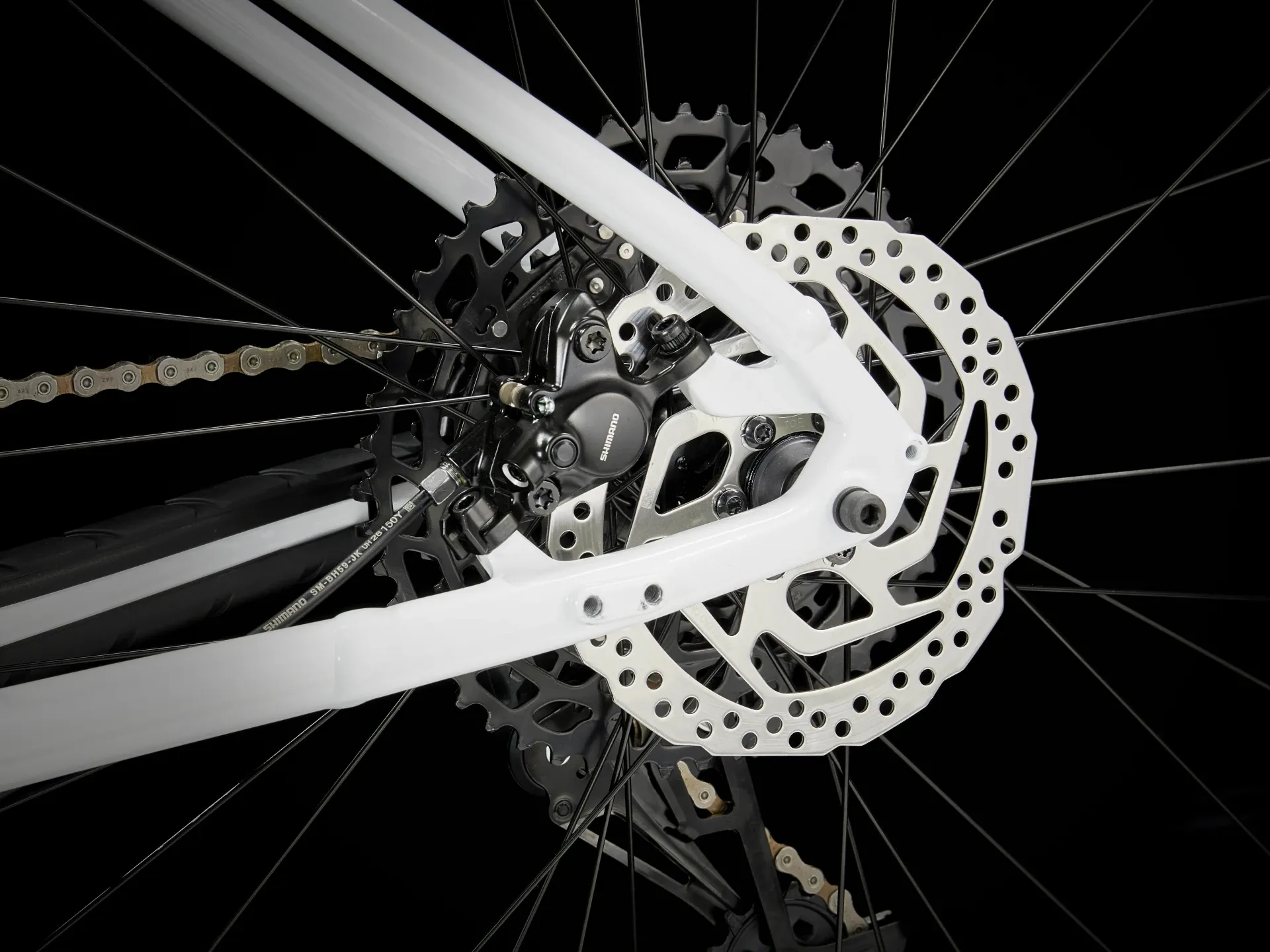

Brake set: Shimano MT200 hydraulic disc
Brake rotor:
Size: XXS, XS, S, M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 160 mm
Size: M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 180 mm
Rotor size: Max brake rotor sizes – Frame: 180 mm (XXS: 160 mm), Fork: see fork manufacturer
Weight
Weight: M – 14.85 kg / 32.74 lbs (with TLR sealant, no tubes)
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
