Please note – spec applies to all sizes unless listed separately.
Frameset

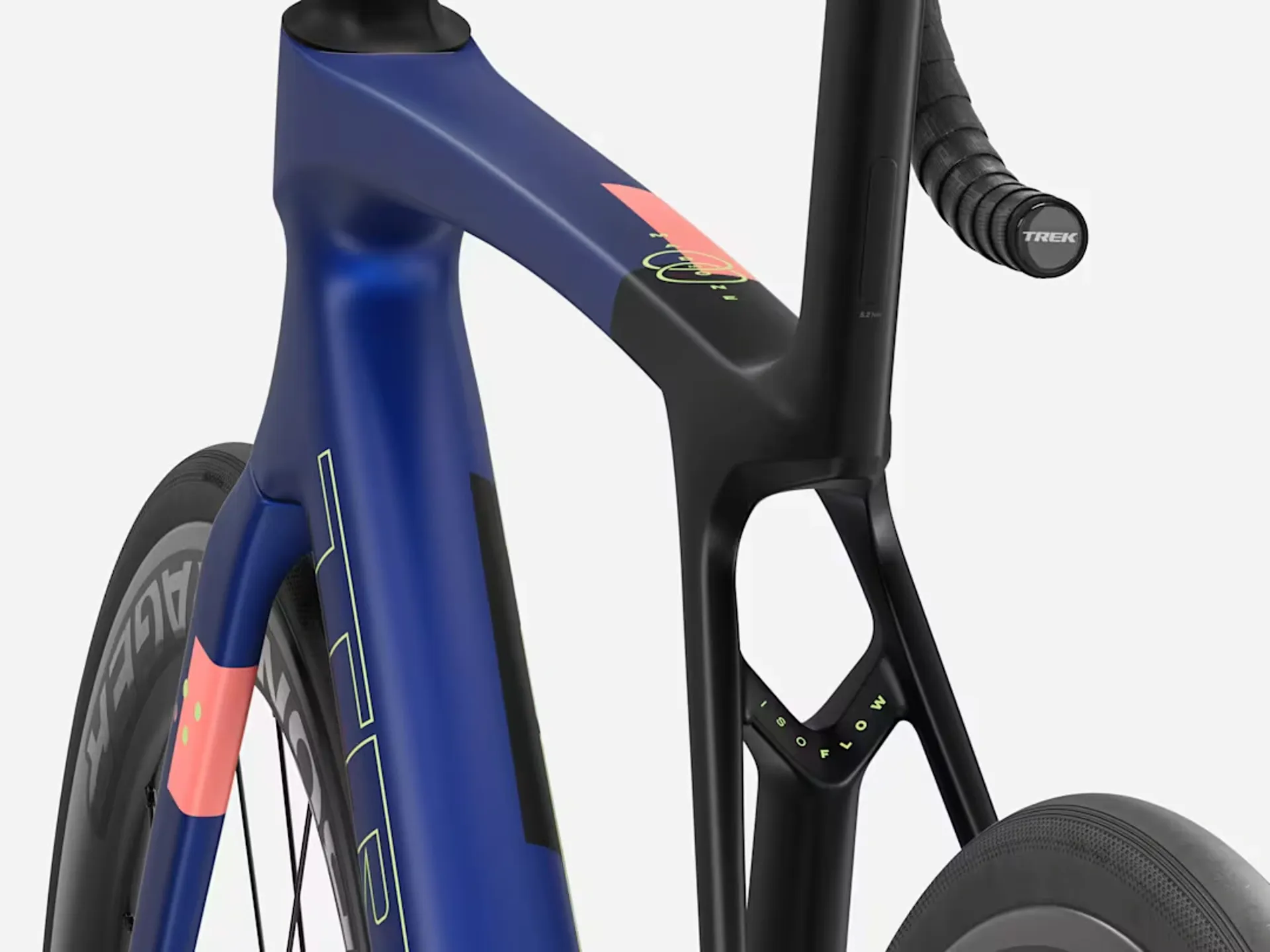

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Sizes XS, S, M, ML, L and XL: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight
Weight: Size ML – 8.11 kg / 17.88 lb, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 125 kg / 275 lb.
E-system
Battery: SRAM AXS battery pack with charger

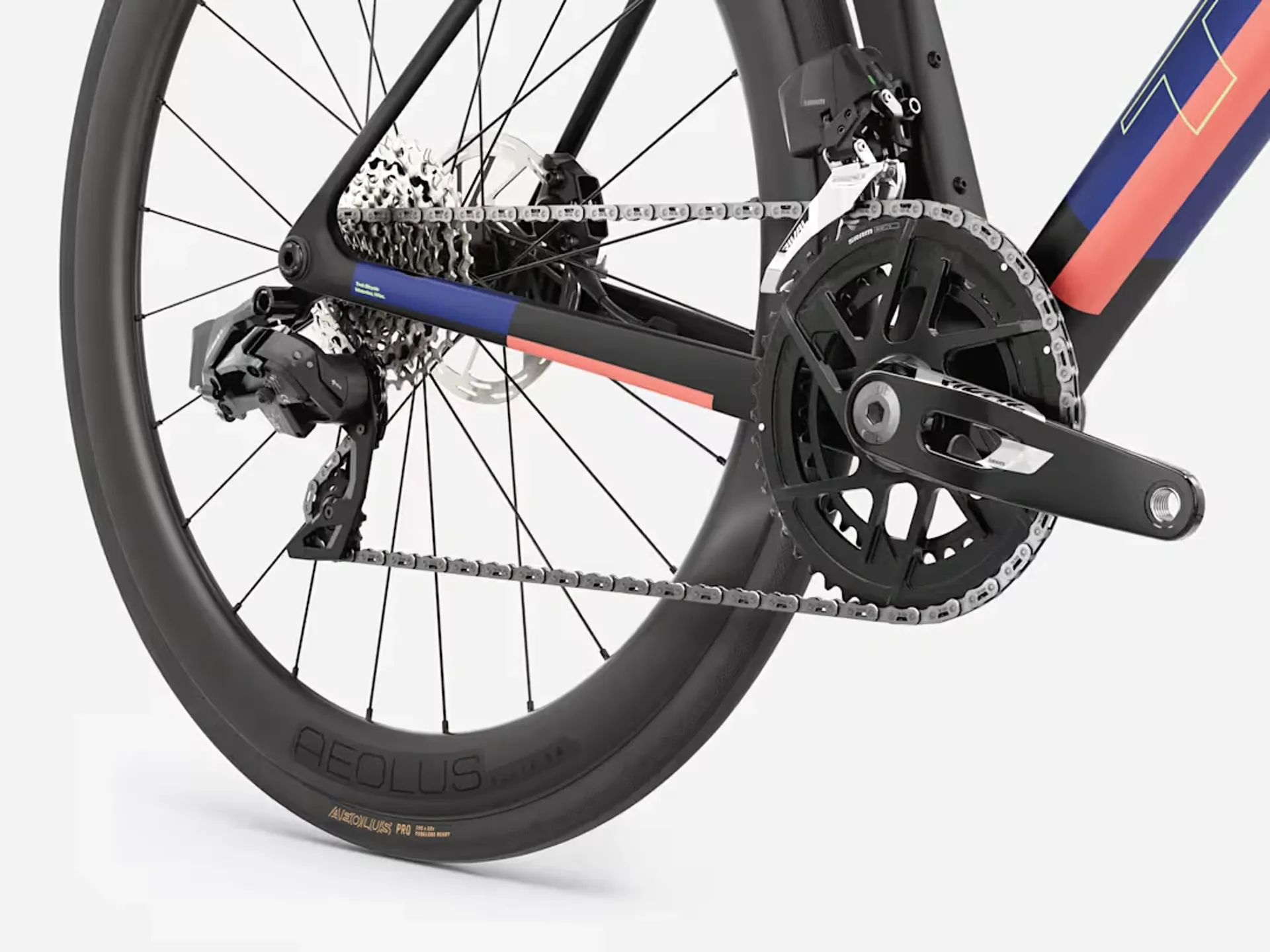

Drivetrain and brakes
Shifter: Sizes XS, S, M, ML, L and XL: SRAM Rival AXS E1 or SRAM Rival AXS, 12-speed
Front derailleur: SRAM Rival AXS, braze-on
Rear derailleur: SRAM Rival AXS, 36T max cog
Cassette: SRAM XG-1250, 10-36, 12-speed
Maximum chainring size: 1x: 54T, 2x: 56/43
Brake rotors: SRAM Paceline, rounded, CentreLock, 160 mm
Maximum brake rotor size: 180 mm front, 160 mm rear
Wheels and tyres
Front wheel: Sizes XS, S, M, ML, L and XL: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle or Bontrager Aeolus Elite 48, Tubeless Ready, 6-bolt, 100x12 mm thru axle, 700C
Rear wheel: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, SRAM XDR freehub, 142x12 mm thru axle
Front skewer: Bontrager Switch chamfered thru axle
Rear skewer: Bontrager Switch chamfered thru axle, removable lever
Tyres: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
Tyre sealant: Bontrager TLR sealant, 180 ml / 6 oz
Rim strip: Bontrager TLR
Maximum tyre size: 32 mm, as measured; see manual for details

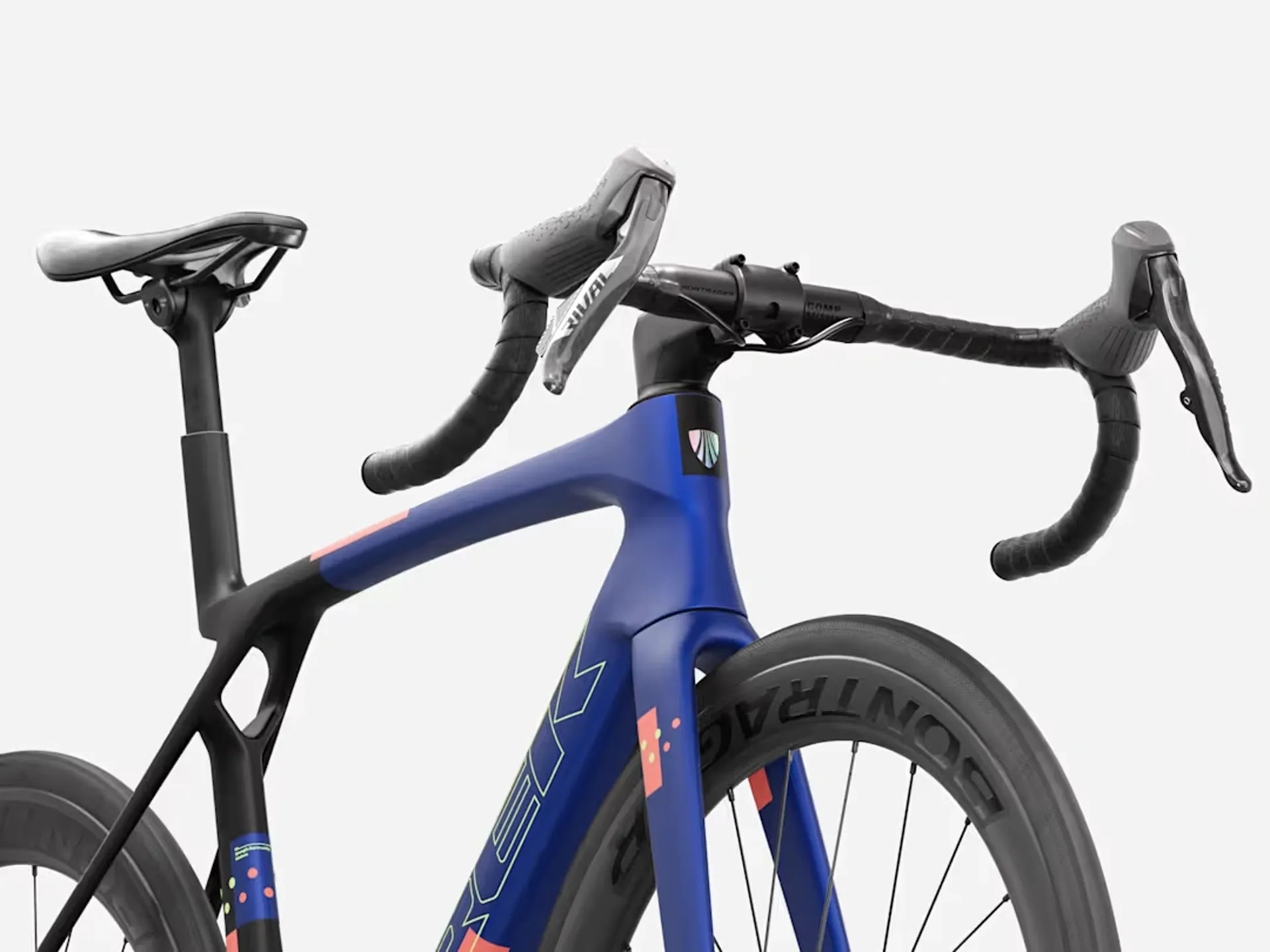

Cockpit

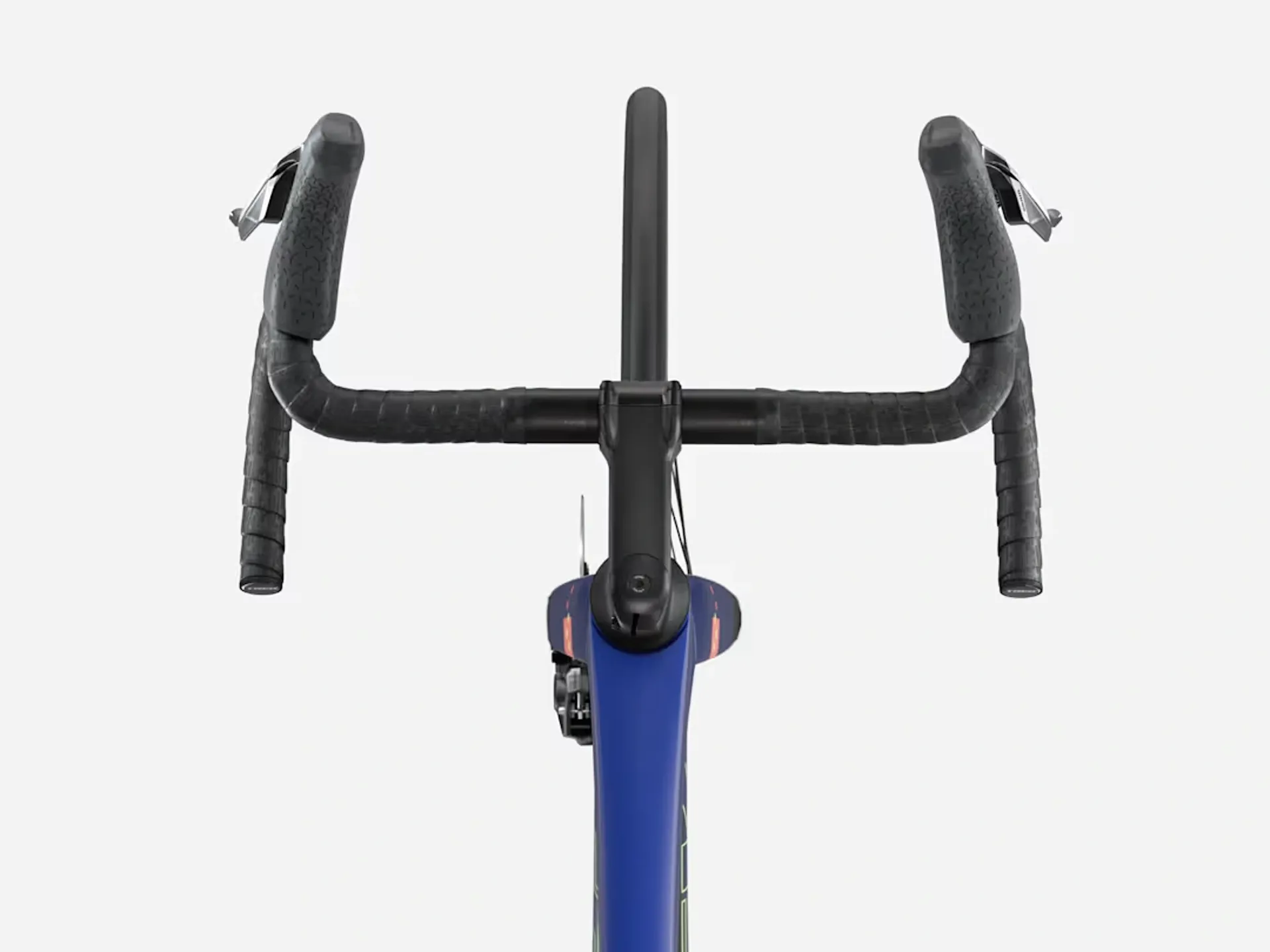

Handlebar: Size XS: Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width or Bontrager Aero Pro OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm width / Size S: Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width or Bontrager Aero Pro OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm width / Size M: Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width or Bontrager Aero Pro OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm width / Size ML, L: Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width or Bontrager Aero Pro OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm width / Size XL: Bontrager Comp alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width or Bontrager Aero Pro OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm width
Handlebar tape: Sizes XS, S, M, ML, L and XL: Trek EcoTack or Trek Gel Cork
Stem: Size XS: Trek RCS Pro or Trek RCS, -7 degree, 80 mm length / Size S, M: Trek RCS, -7 degree, 90 mm length / Size ML, L: Trek RCS, -7 degree, 100 mm length / Size XL: Trek RCS, -7 degree, 110 mm length
Additional Features
Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
