Frameset
Frame
600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
Fork
Trek Cross, full carbon, tapered carbon steerer, flat-mount disc, 12x100 mm thru axle
Weight
Weight
56 – 8.50 kg / 18.74 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg / 275 lb
Drivetrain
Shifter
SRAM Apex, 12-speed
Rear derailleur
SRAM Apex XPLR, 44T max cog
Crank
- Size 49: SRAM Apex 1, 40T, DUB Wide, 165 mm length
- Size 52: SRAM Apex 1, 40T, DUB Wide, 170 mm length
- Size 54, 56: SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
- Size 58, 61: SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12-speed
Chain
SRAM Apex, 12-speed
Max. chainring size
See service manual
Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32 mm
Max tyre size
38 mm
Components

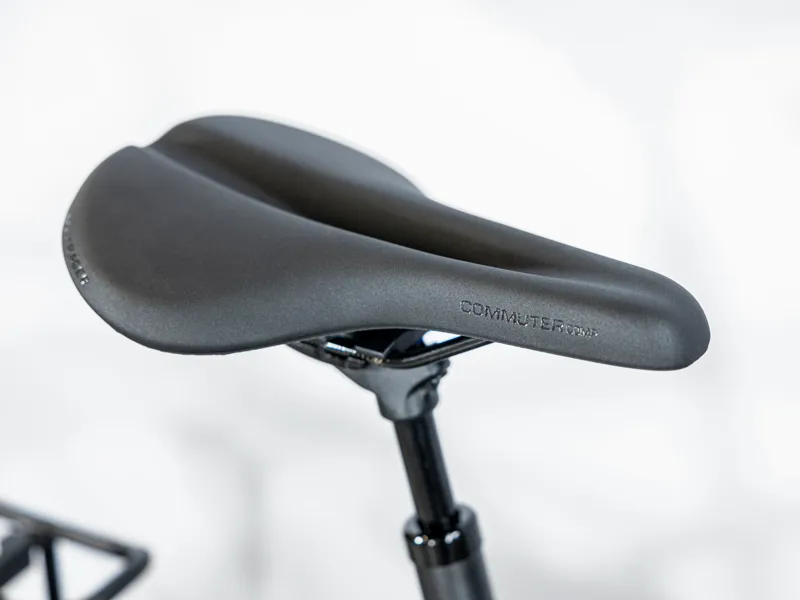

Saddle
Bontrager Commuter Comp
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Handlebar
Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Stem
- Size M: Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
- Size L, XL: Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length

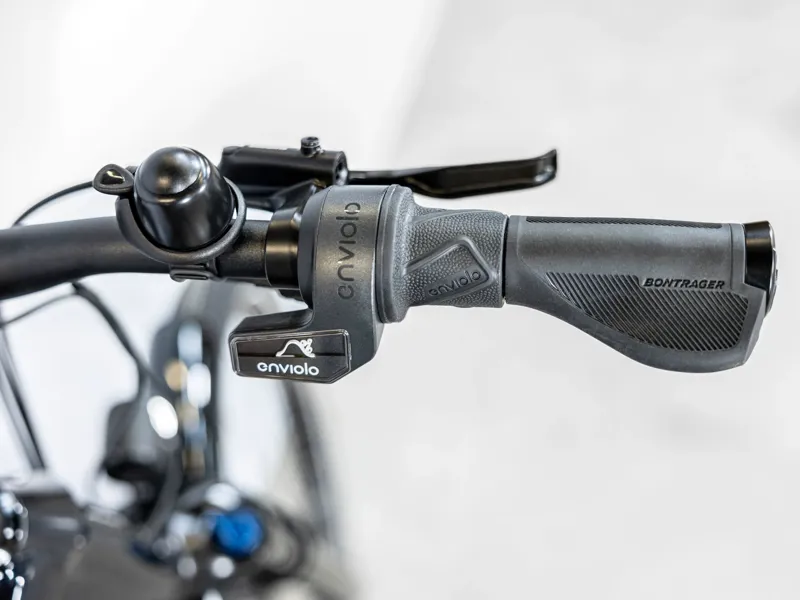

Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

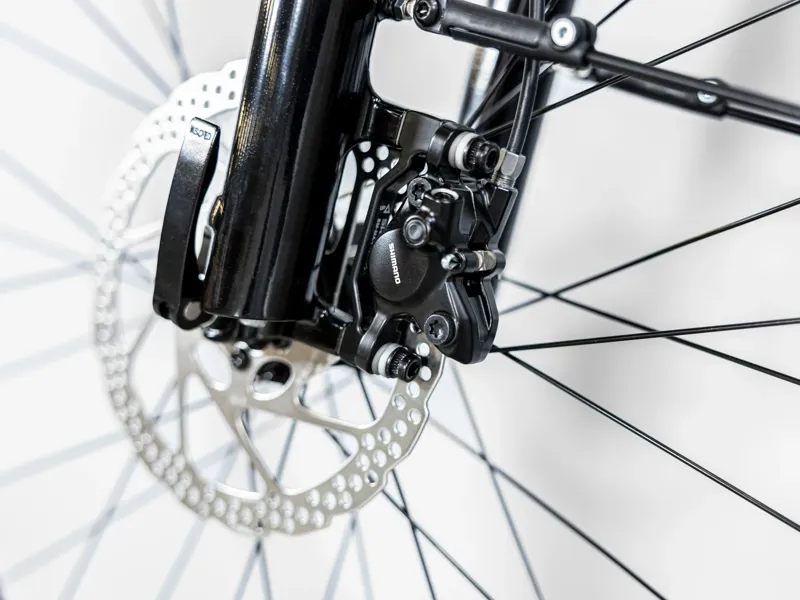

Brake Set
Tektro HD-M275 hydraulic disc
Brake Rotor
Shimano RT56, 6-bolt, 180 mm
Max Rotor Size
180 mm front and rear
Accessories
Light

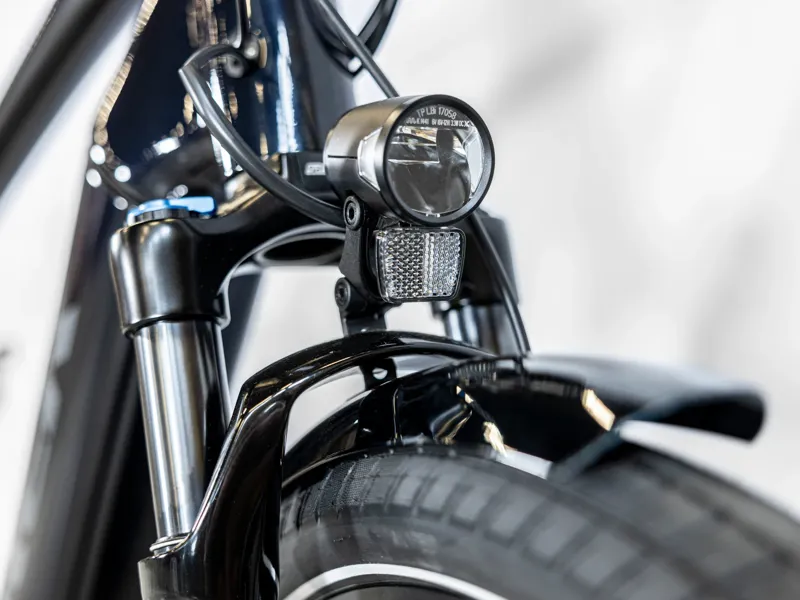

Spanninga SOLO for e-bike; Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight
Kickstand
Pletscher Comp Flex 18

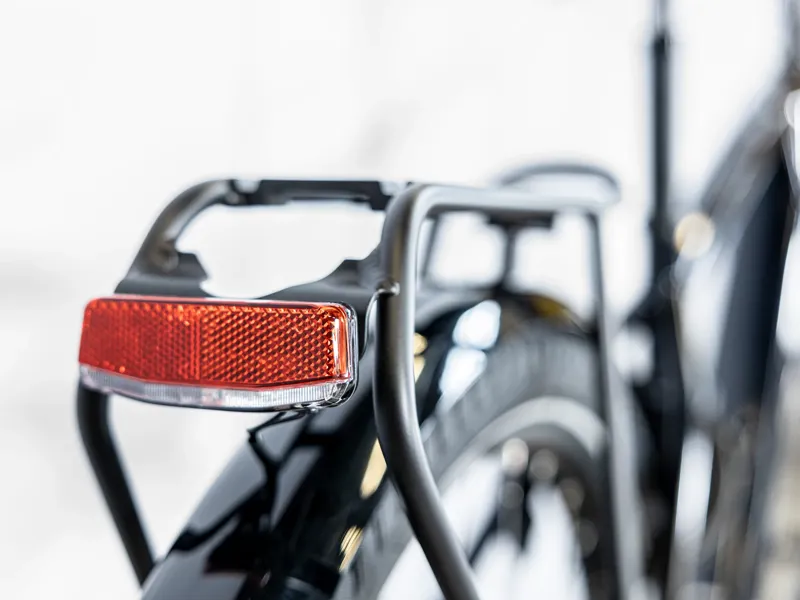

Cargo Rack
MIK-compatible alloy rear rack, maximum load 25 kg
Mudguard
SKS plastic, front and rear
Notes
We reserve the right to make changes to product information without notice, including equipment, specifications, models, colors, materials, and pricing. Bike and frame weights are based on pre-production painted frames at time of publication; actual weights may vary.
