*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Platinum Aluminium, internal cable routing, removable battery, rack and mudguard mounts, post mount disc, kickstand mount
Fork: FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle
Wheels
Hub front: Formula alloy, CenterLock disc, 100x12 mm thru-axle
Skewer front: Bontrager Switch thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch thru axle
Rim: Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40 mm
Max tyre size: 42 mm
E-system
Battery: TQ 360Wh
Charger: TQ 4A charger
Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR50, 50 Nm, 250 W maximum continuous rated power, 300 W peak power

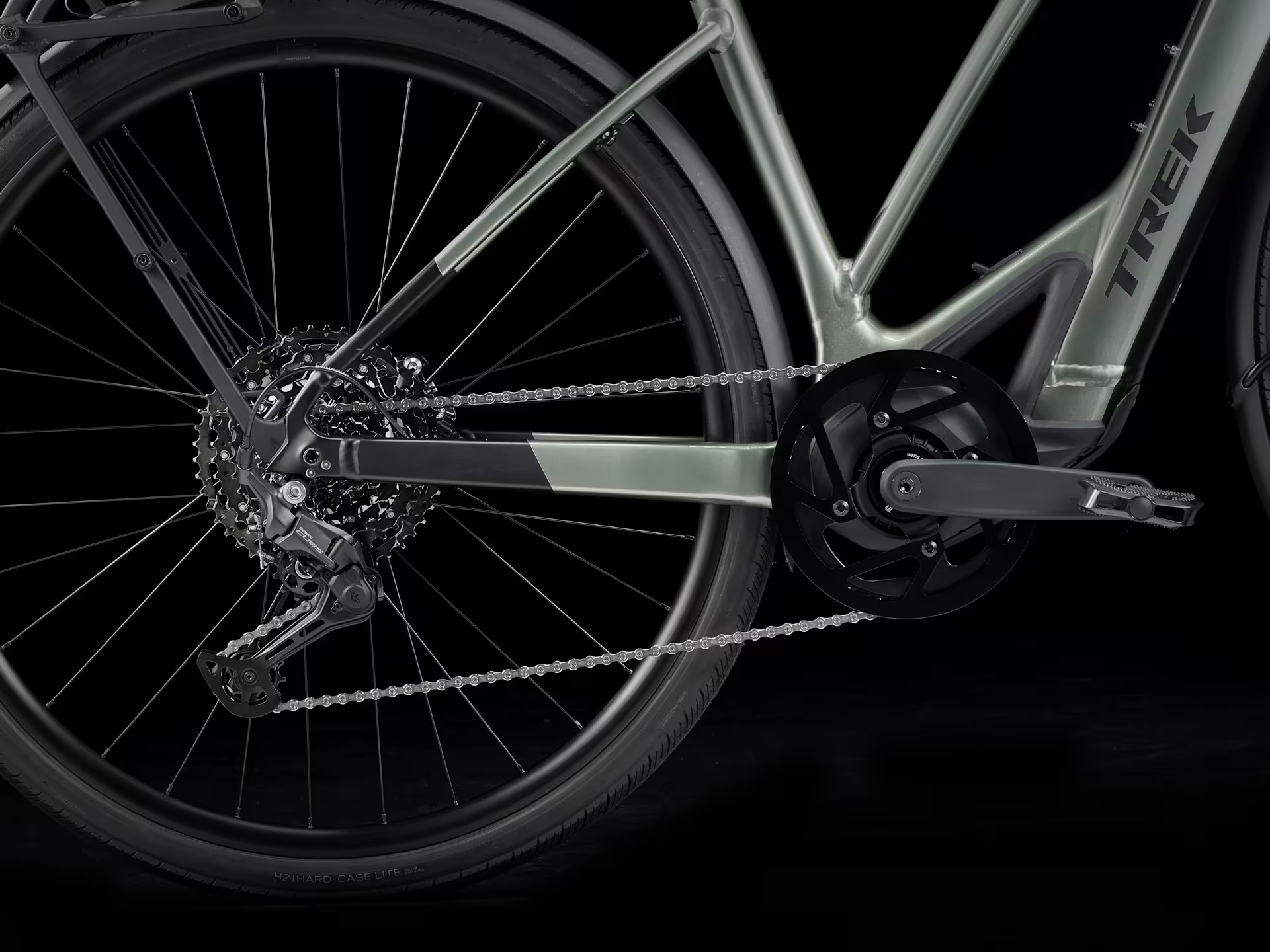

Drivetrain
Shifter: Shimano U6000, 10-speed
Rear derailleur: Shimano CUES U6000 GS
Crank: ProWheel Alloy, 46T narrow-wide chain ring, 170 mm arm length, ISIS spline
Cassette: Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500, 9/10/11-speed
Pedal: Bontrager City pedals
Max. chainring size: 1x: 46T
Components
Saddle: Bontrager Verse Comp, steel rails, 165 mm width
Seatpost: Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
Handlebar/stem (integrated):
Size: XS, S, M – Bontrager Integrated handlebar/stem, 15 mm virtual handlebar rise, 640 mm width, 0-degree stem rise, 90 mm stem (virtual) length
Size: L – Bontrager Integrated handlebar/stem, 15 mm virtual handlebar rise, 680 mm width, 0-degree stem rise, 90 mm stem (virtual) length
Grips: Bontrager Satellite Elite, alloy lock-on
Brakes
Brake: Shimano hydraulic disc, RS600 lever, RS405 calliper
Brake rotor:
Size: XS, S, M, L – Shimano RT-MT800, CenterLock, 180 mm
Size: XS, S, M, L – Shimano EM810, CenterLock, 160 mm
Max brake rotor sizes: 180 mm front and rear
Accessories

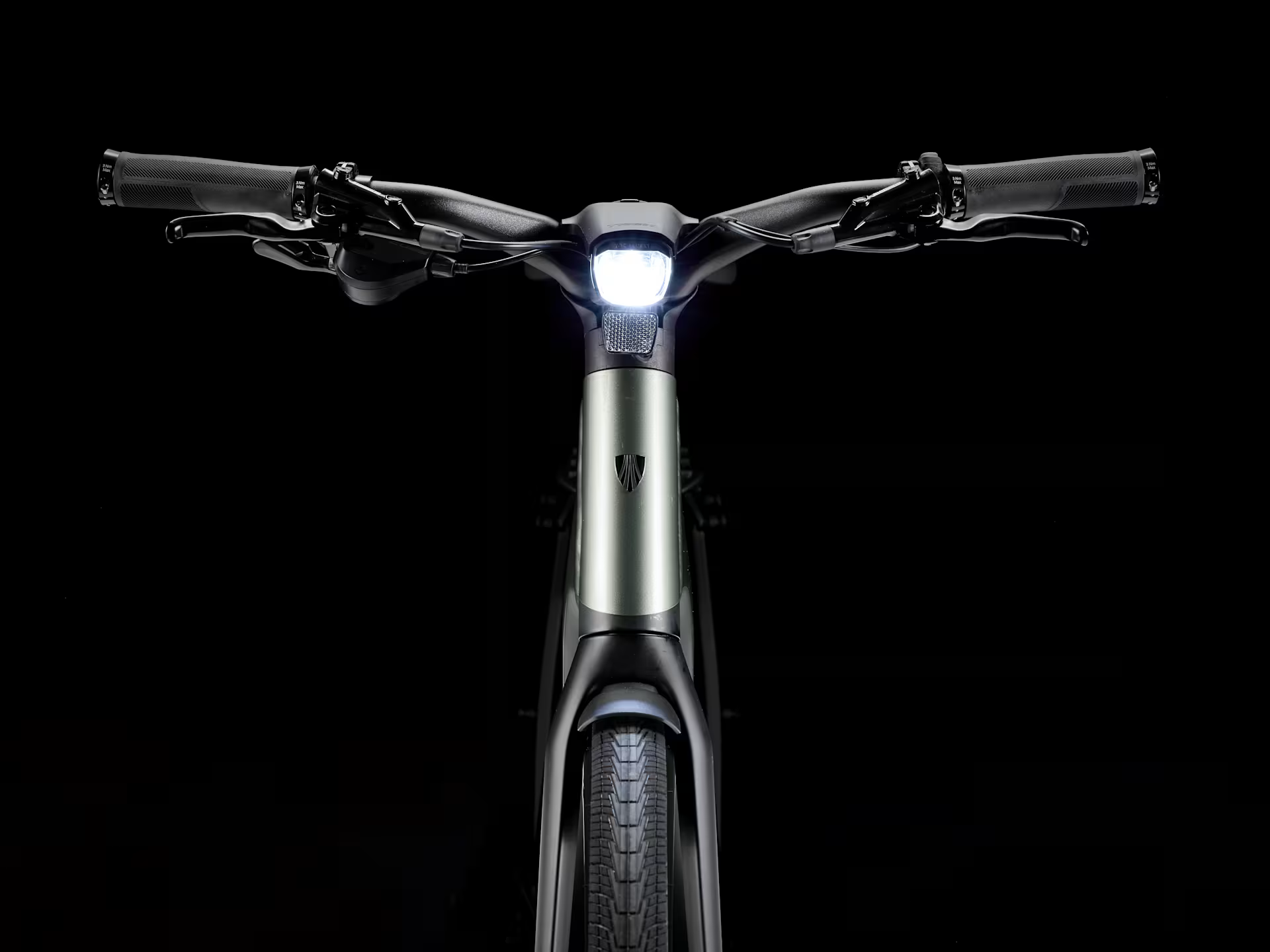

Light:
Size: XS, S, M, L – Spanninga GLOW XE for e-bike
Size: XS, S, M, L – Herrmans H-Black MR9-E
Kickstand: Pletscher Comp 18
Cargo rack: MIK-compatible alloy rear rack
Weight
Weight: L – 19.30 kg / 42.55 lb
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
