*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: 300 Series Alpha Aluminium, TQ drive system, hidden mudguard mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
Fork: Domane ALR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, chamfered 12x100 mm thru axle
Weight: ML - 14.39 kg / 31.73 lbs (with TLR sealant, no tubes)
Weight limit: 125 kg (275 lb)
E-system
Computer: TQ LED display with Bluetooth & ANT+ connectivity

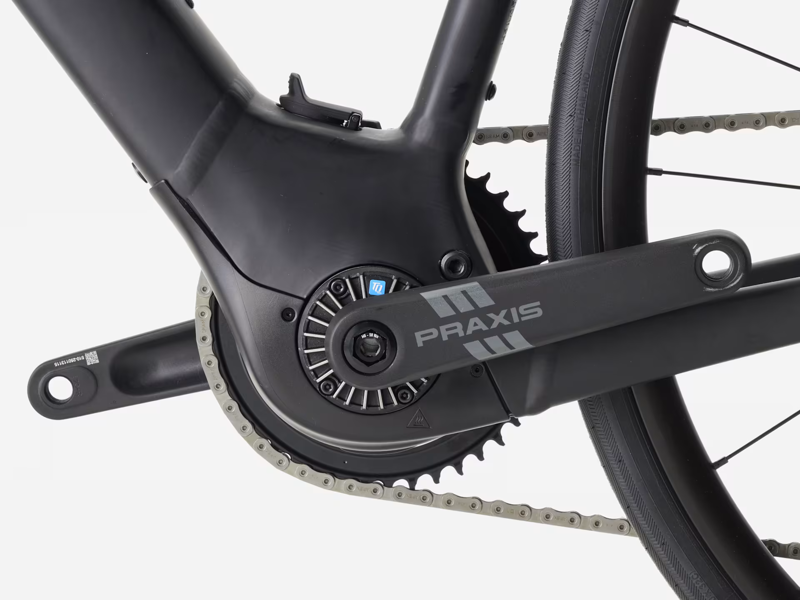

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

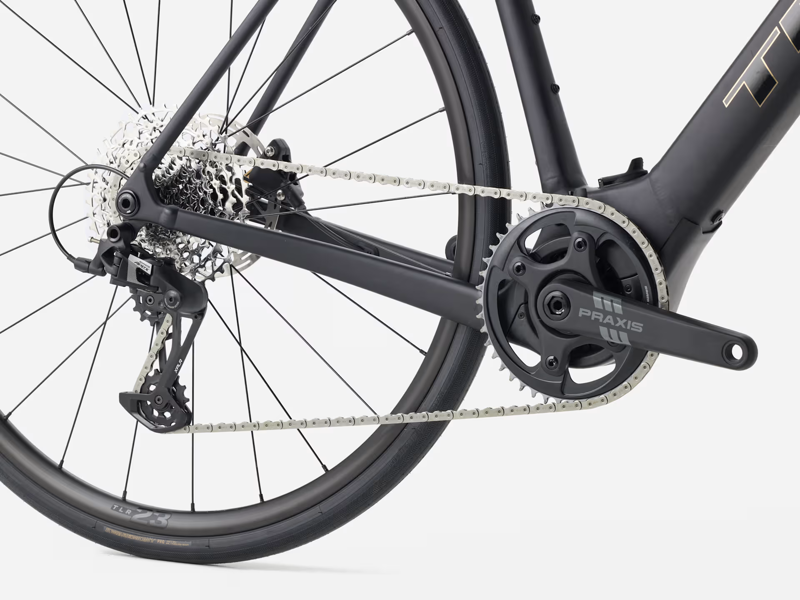

Drivetrain
Shifter: SRAM Apex, 12-speed
Rear derailleur: SRAM Apex XPLR, 44T max cog
*Crank:
Size:XS, S – Praxis Alloy, 165 mm length
Size:M, ML – Praxis Alloy, 170 mm length
Size:L, XL – Praxis Alloy, 172.5 mm length
Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
Chain: SRAM Apex, 12-speed
Max. chainring size: 1x: 46T
Wheels
Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: 38 mm without mudguards, 35 mm with mudguards
Components
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

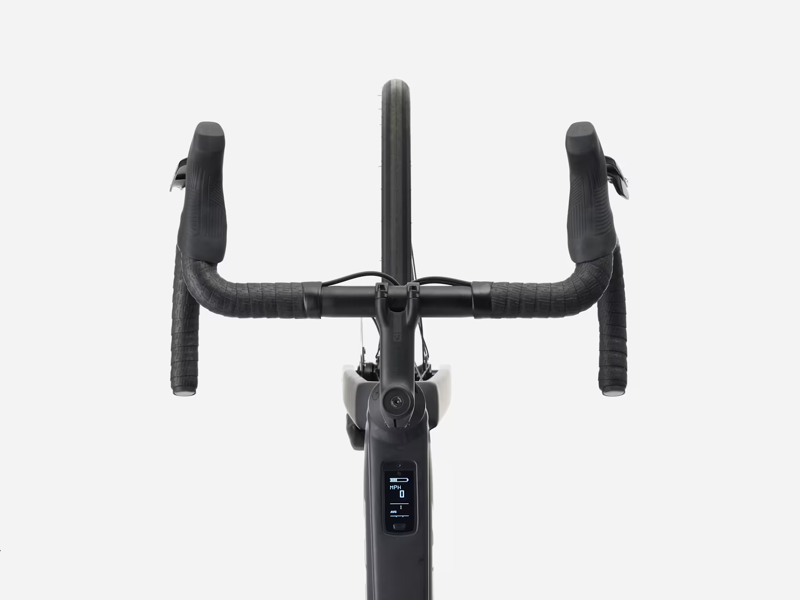

*Handlebar:
Size:XS – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size:S – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size:M, ML – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size:L, XL – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape: Trek EcoTack
*Stem:
Size:XS – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:S – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:M – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size:ML, L – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Size:XL – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110mm length
Brakes
Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever: SRAM Apex, 12 speed
Rotor size: Max brake rotor sizes: 160 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
