Frameset
Frame
500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

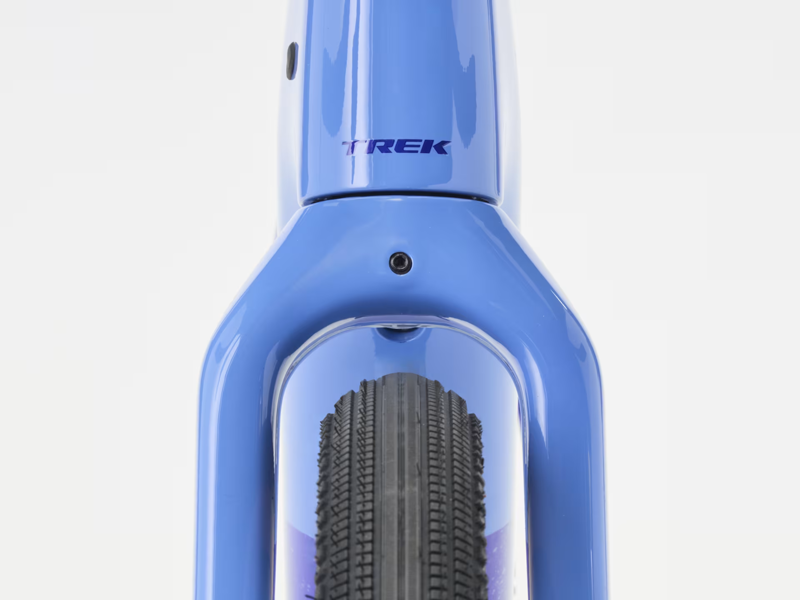

Fork
Size: XS, S, M, ML, L, XL
Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Weight
Weight
ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
E-system
Battery
TQ 360Wh
Charger
TQ 4A charger
Computer
TQ LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Drivetrain
Shifter
Shimano GRX RX820, 12-speed
Rear derailleur
Shimano GRX RX822, 51T max cog

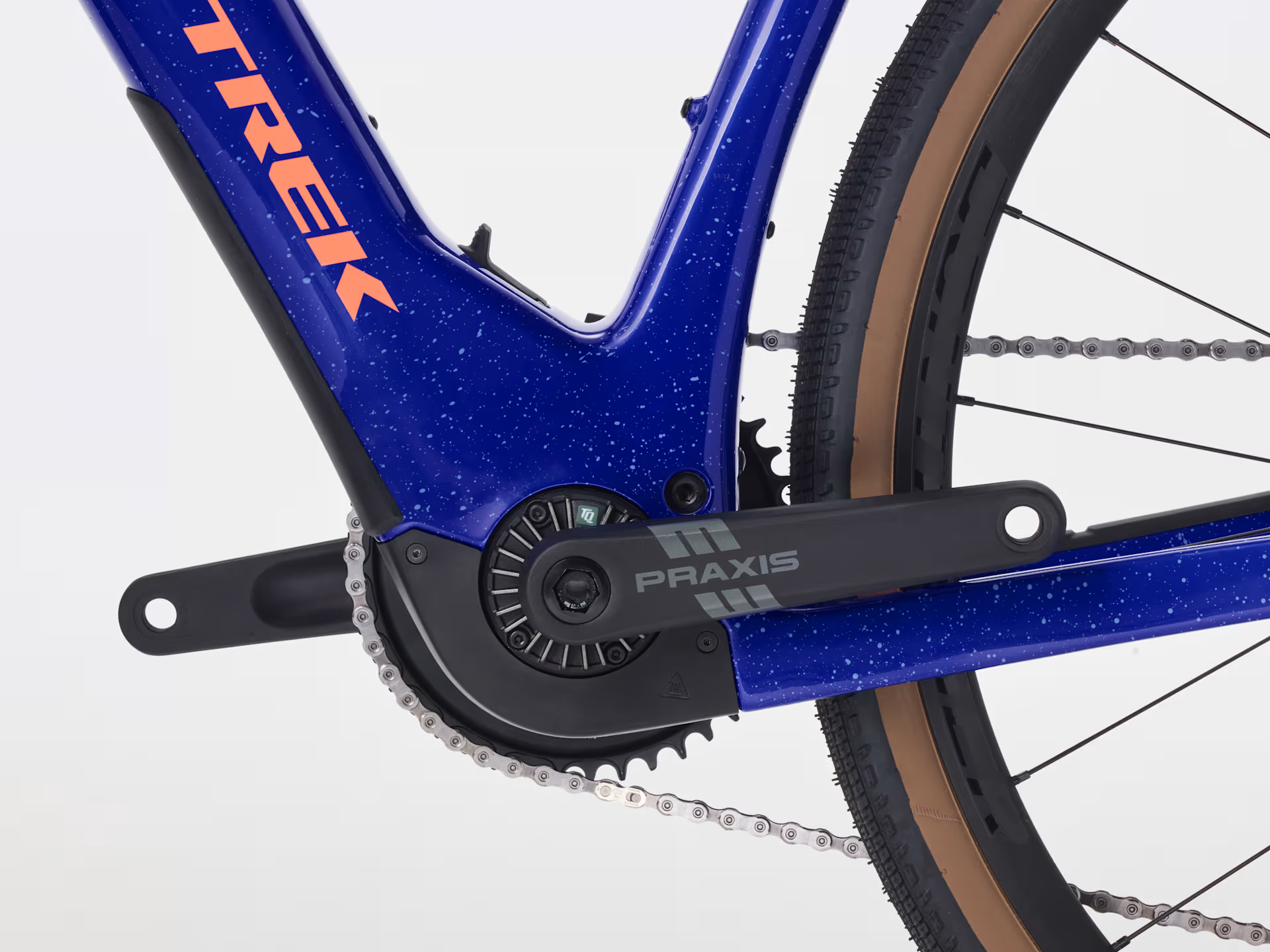

Crank
Size XS, S: Praxis Alloy, 165 mm length
Size M, ML: Praxis Alloy, 170 mm length
Size L, XL: Praxis Alloy, 172.5 mm length
Cassette
Shimano XT M8200, 10-51, 12-speed
Chain
Shimano XT M8100, 12-speed
Max. chainring size
1x: 44T
Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
Saddle
Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

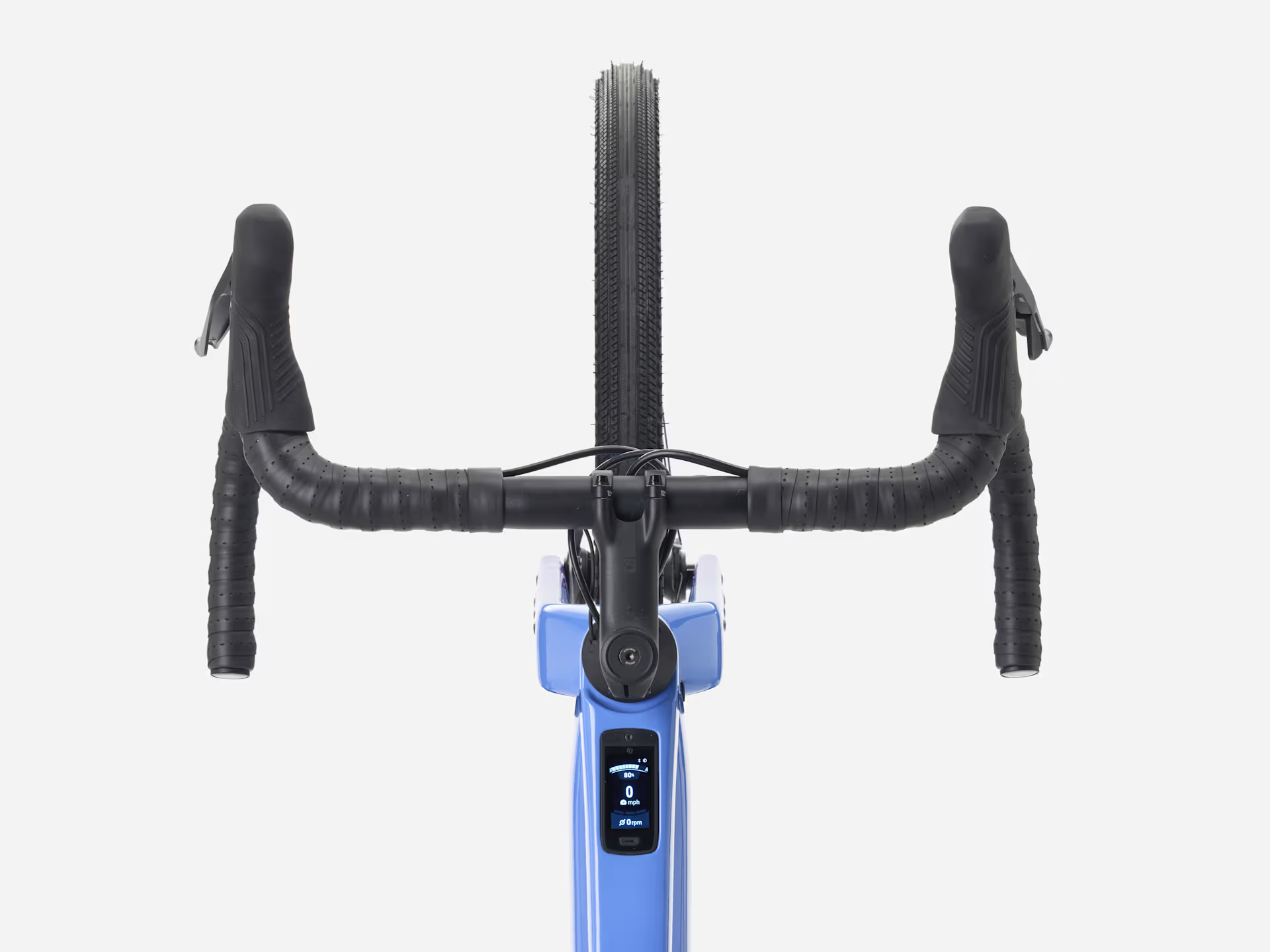

Handlebar
Size XS, S: Bontrager Elite Gravel, alloy, 40 cm width
Size M, ML: Bontrager Elite Gravel, alloy, 42 cm width
Size L: Bontrager Elite Gravel, alloy, 44 cm width
Size XL: Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
Shimano CL800, CentreLock, 160 mm
Brake lever
Shimano GRX RX820, 12-speed
Rotor size
Max brake rotor sizes: 180 mm front and rear
Notes
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
