The Checkpoint SL 6 AXS Gen 3 is a high-performance carbon gravel bike built for big days, rough terrain, and limitless exploration.
The Checkpoint SL 6 AXS Gen 3 is a high-performance carbon gravel bike built for big days, rough terrain, and limitless exploration.
Trek

TREK Checkpoint SL 6 AXS Gen 3 Gravel Bike in Dark Green and Ivy Smoke Splatter

£3,400.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Online Returns Policy

If you are not happy with any items purchased via our website, under Consumer Contracts Regulations you have the right to return any unused products for a refund or exchange within 30 days.

When the customer sends an item back to the company (or, when the company arranges for collecting from the customer), the company will process the returned item then notify the customer via email of the refund. The refund will be issued within 3 - 5 working days of the product being received by us, it may then take an additional 3 - 5 working days for the refund to be paid into the customers account.


If you’d like to return an item within the standard 30-day period and it’s in a suitable condition for resale, you have two simple options:

  1. Use Your Own Postage – Arrange your own return shipping back to us.

  2. Use Our Easy In-House Returns System

    • £10 for parts, accessories, and clothing

    • £50 for bikes

To start your return, please contact us at [email protected] and we’ll send you a returns label.

Please Note: Returns will only be accepted if they arrive back to us in original new condition, with all original packaging and tags still attached.

Return Address:

Team Cycles LTD
Studio 11B
Second Avenue
Team Valley Trading Estate
Gateshead
NE11 0NF

For items returned within the cooling off period...

  • By law, customers have the right to withdraw from the purchase of an item within 14 working days of the date on which the item is delivered.
  • Where you are withdrawing from your purchase within the cooling-off period, and there has been no error on our part, we will refund the cost of the item.
  • The company will not refund the cost of delivery or other services provided to the customer in connection with the purchase.
  • The cost of delivery back to the company is the responsibility of the customer.
  • Where we collect an item from you, we reserve the right to recover the costs of collection from you.
TERMS AND CONDITIONS
  • Returned goods should be unused, in a saleable condition and in their original packaging with all labels still attached. Team Cycles is entitled to refuse the return or deduct from a refund as a result of the product not being in the above condition.
  • We are only able to exchange like for like products. If you require a different item, you will need to opt for a refund and place a new order. All returns must have a completed returns form.
  • We will refund you to your original payment method.
  • Customised items cannot be returned. *
  • Please do not send your purchase back to the manufacturer unless you have been advised to.
  • Team Cycles customers have 30 days from date of delivery to return their orders.
  • Once we have received the returned goods we will refund you, by the method you used to pay for your order. This may take 5-7 working days to appear as cleared funds.

*Faulty customised goods (or goods that have been altered in any way) will need to be returned for inspection as customisation may void your warranty and therefore faults may not be covered.

WARRANTY

All products ordered from Team Cycles come with a full warranty which covers manufacturing faults and defects in workmanship. If you feel that your purchase has developed a fault, please contact our store for an assessment. To do this you will need proof of purchase.

If taking your product in store is not an option then please email our team on [email protected]. Please include photographs of your product (please keep below 20mb), your web order number (or copy of receipt) so we can immediately start to assess the issue.

PLEASE NOTE:

In some cases, the manufacturer/supplier may require to see the item(s) before repair or replacement can take place. If this is the case, we will inform you and arrange how to do this. All used items being returned to us must be cleaned for hygiene purposes.

On receipt of your goods we will carry out a full inspection and contact you within three working days of receipt.

Finance

Team Cycles (North East) Limited acts as a broker and not the lender and offers finance from Secure Trust Bank PLC T/A V12 Retail Finance. Team Cycles (North East) Limited is authorised and regulated by the Financial Conduct Authority, Registration Number 623982. Not all products offered by Secure Trust Bank T/A V12 Retail Finance are regulated by the FCA. Subject to age, status and affordability, minimum spend applies.

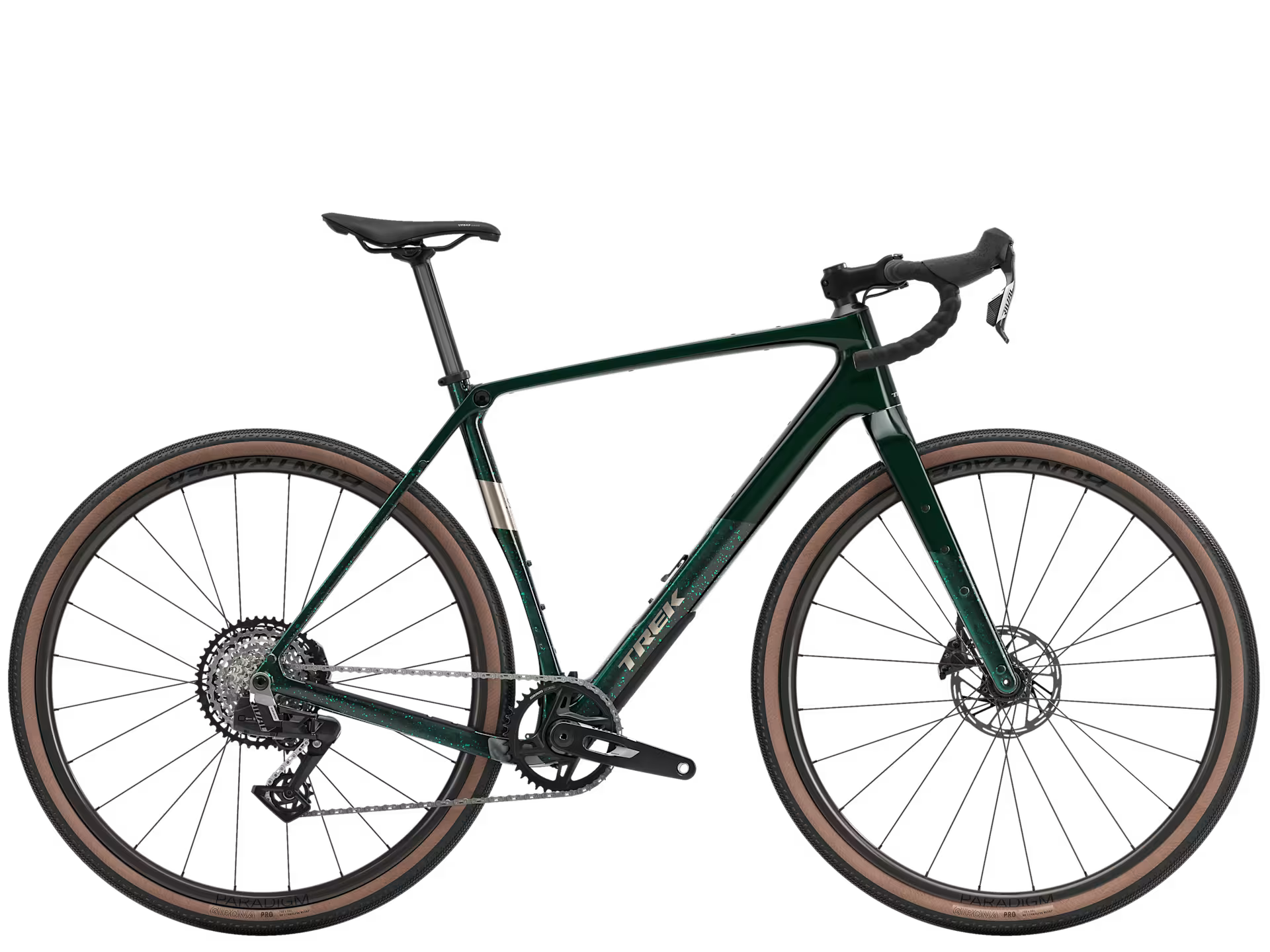

TREK Checkpoint SL 6 AXS Gen 3 Gravel Bike in Dark Green and Ivy Smoke Splatter

Season:2026

Brand:Trek

Code:55098GRN

The Checkpoint SL 6 AXS Gen 3 is a high-performance carbon gravel bike built for big days, rough terrain, and limitless exploration. Designed with Trek’s Gravel Endurance geometry for all-day comfort, it features IsoSpeed technology to smooth out harsh roads, massive tyre clearance for up to 50 mm (measured), and frame/fork mounts for full bikepacking capability.

Outfitted with a SRAM Rival AXS E1 13-speed wireless drivetrain, this bike delivers smooth, reliable shifting with zero cables to fuss over. Add internal storage and tubeless-ready Bontrager wheels, and you've got a machine built for backroad epics, bikepacking missions, and the unexpected.


Key Features:

  • 500 Series OCLV Carbon Frame
    Lightweight, responsive, and adventure-ready with internal frame storage and full mounting options.

  • Gravel Endurance Geometry
    More upright with a shorter reach for comfort over long distances on rough roads or trails.

  • IsoSpeed Decoupler
    Smooths out bumps and chatter, reducing fatigue over washboard roads and gravel miles.

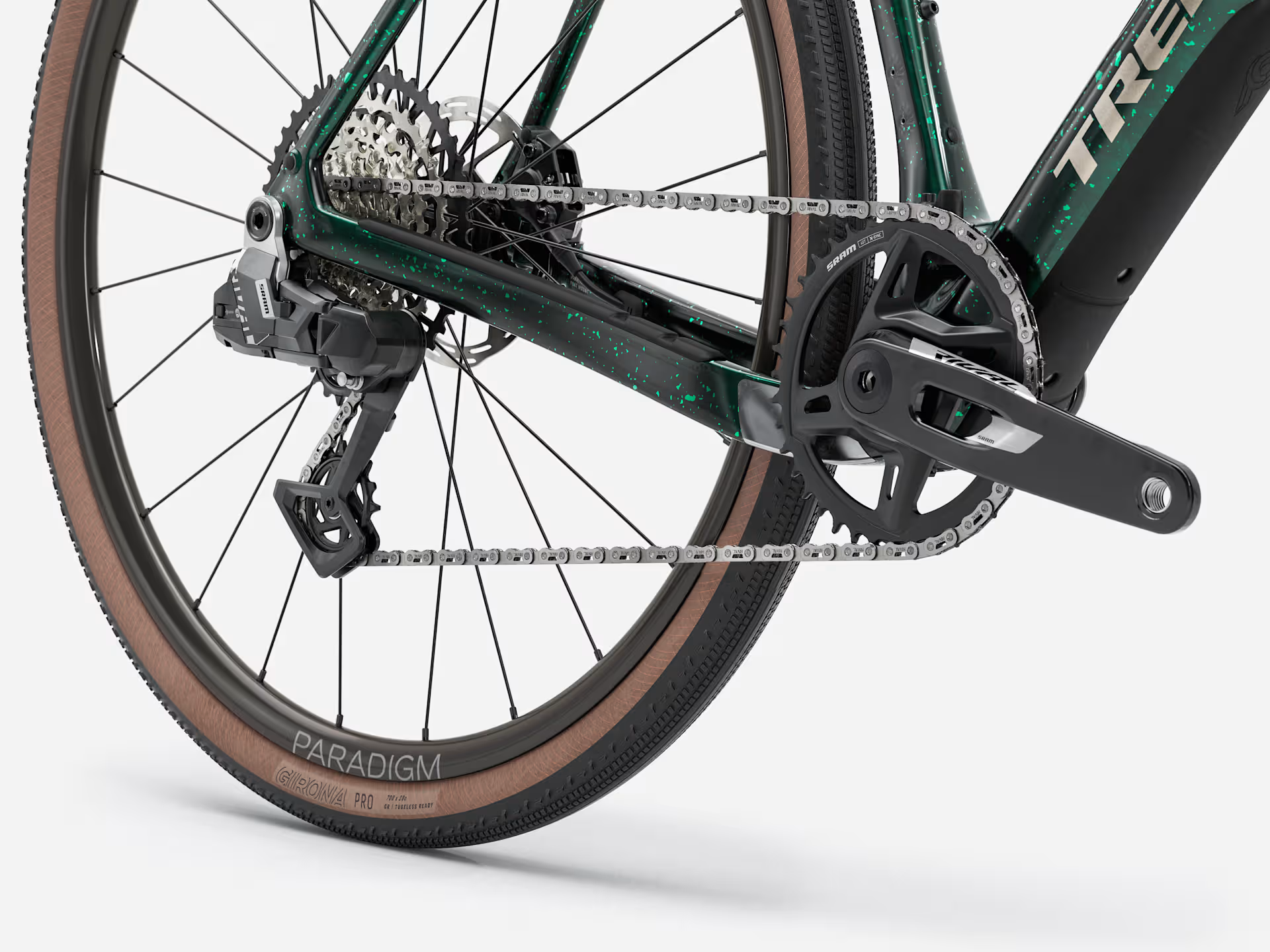

  • SRAM Rival AXS E1 Wireless Drivetrain
    Fully wireless, crisp 13-speed shifting that handles steep climbs and fast descents with ease.

  • Bontrager Paradigm Comp Tubeless Ready Wheels
    Tough, dependable wheels paired with wide 42 mm tyres for control, grip, and comfort—plus clearance for up to 50 mm.

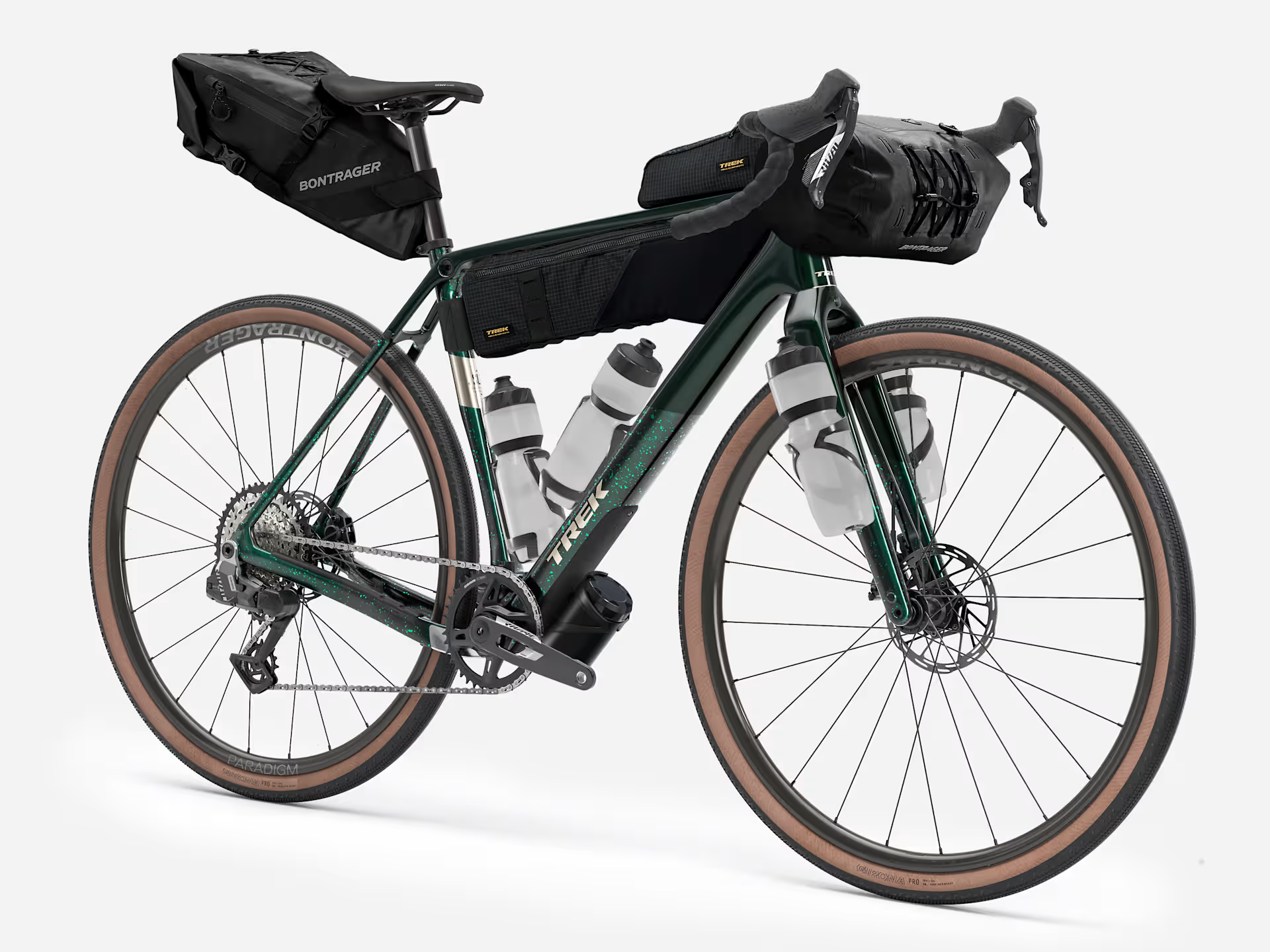

  • Adventure-Ready Mounting Points
    Multiple frame and fork mounts for hydration, gear, racks, and Trek’s custom-fit Adventure Bags.

  • Internal Downtube Storage
    Stash your tools, snacks, or spares right in the frame—neatly and securely.


Who It's For

Riders seeking a dependable carbon gravel bike that blends comfort, cutting-edge drivetrain tech, and true adventure versatility. Whether you're exploring local gravel loops, multi-day bikepacking routes, or rough singletrack connectors, the Checkpoint SL 6 AXS Gen 3 is your go-anywhere, do-everything companion.

Technical Information

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Max compatible fork travel40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options
Weight
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
BatterySRAM eTap battery pack (with charger)
Drivetrain
Rear derailleurSRAM Rival XPLR AXS, 46T max cog
CassetteSRAM Rival XPLR XG-1351, 10-46, 13-speed
Max. chainring size1x:44 2x: 46/30
Wheels
Wheel frontBontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rearBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer frontBontrager Switch chamfered thru axle, removable lever
Skewer rearBontrager Switch chamfered thru axle, removable lever
TyreBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre partBontrager TLR sealant, 180 ml/6 oz
Rim stripBontrager TLR
Max tyre size50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
SaddleVerse Short Comp, steel rails, 145 mm width
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*HandlebarSize:XS, S
Bontrager Elite Gravel, alloy, 40 cm width
Size:M, ML
Bontrager Elite Gravel, alloy, 42 cm width
Size:L
Bontrager Elite Gravel, alloy, 44 cm width
Size:XL
Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tapeBontrager Supertack Perf tape
*StemSize:XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:S, M
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length
Size:ML, L
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size:XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Rotor sizeMax brake rotor sizes: 180 mm front and rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing Information
SizeRider HeightInseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S (49cm)

158 - 164 cm

5'2" - 5'5"

74 - 77 cm

29" - 30"

M (52-54cm)

164 - 177 cm

5'5" - 5'10"

77 - 83 cm

30" - 33"

ML (56cm)

177 - 188 cm

5'10" - 6'2"

83 - 88 cm

33" - 35"

L (58cm)

188 - 194 cm

6'2" - 6'4"

88 - 91 cm

35" - 36"

XL (61cm)

194 - 203 cm

6'4" - 6'8"

91 - 95 cm

36" - 37"
