Frameset
Frame
500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

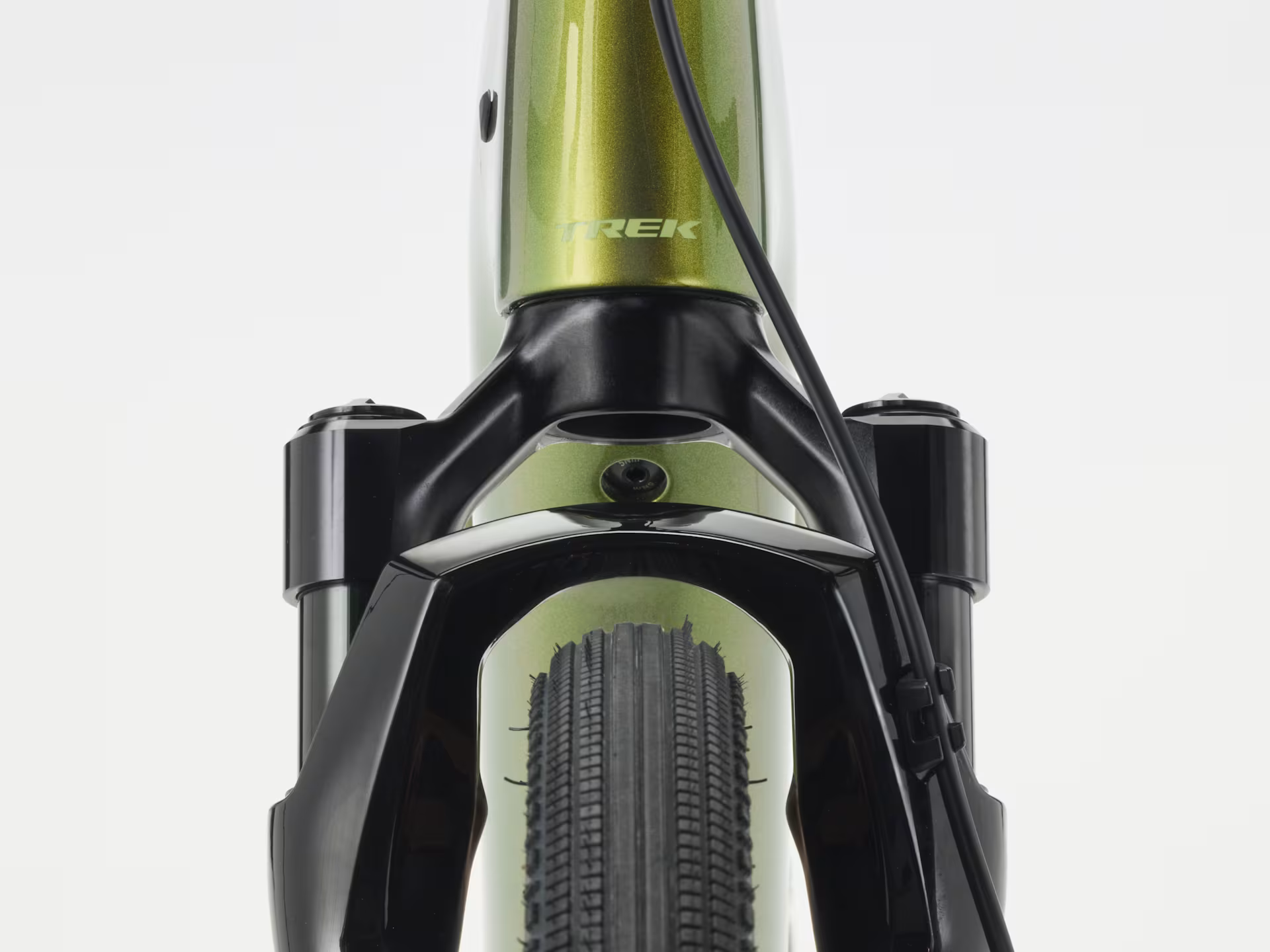

Fork
RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel
Weight
Weight
ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
E-system
Battery
TQ 360Wh
Charger
TQ 4A charger
Controller
TQ color LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM X0 Eagle AXS, T-Type

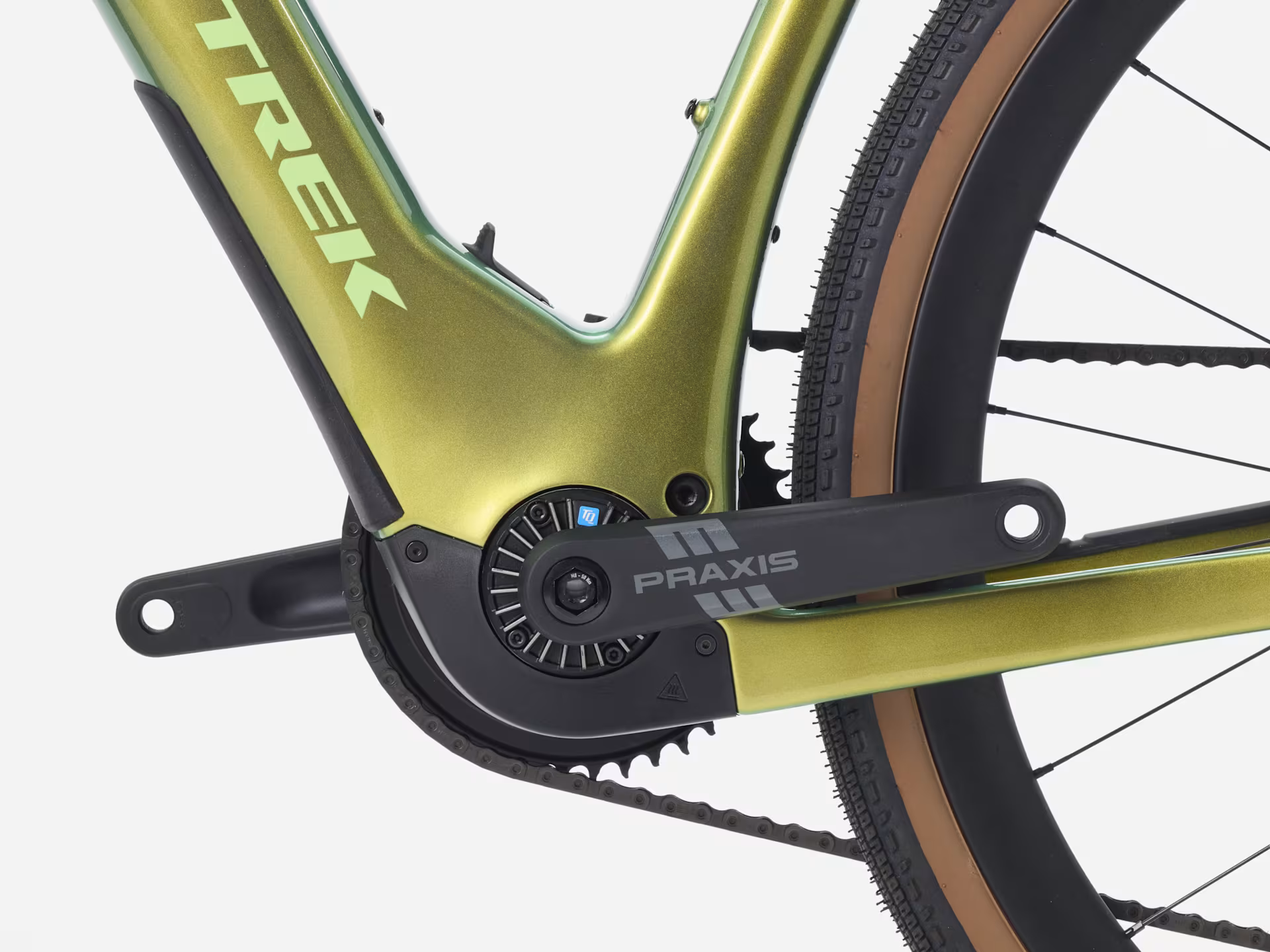

Crank
Size S: Praxis Alloy, 165 mm length
Size M, ML: Praxis Alloy, 170 mm length
Size L, XL: Praxis Alloy, 172.5 mm length
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain
SRAM X0 Eagle, T-Type, 12-speed
Max. chainring size
1x: 44T
Wheels
Wheel front
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Rim strip
Bontrager TLR
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
Saddle
Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

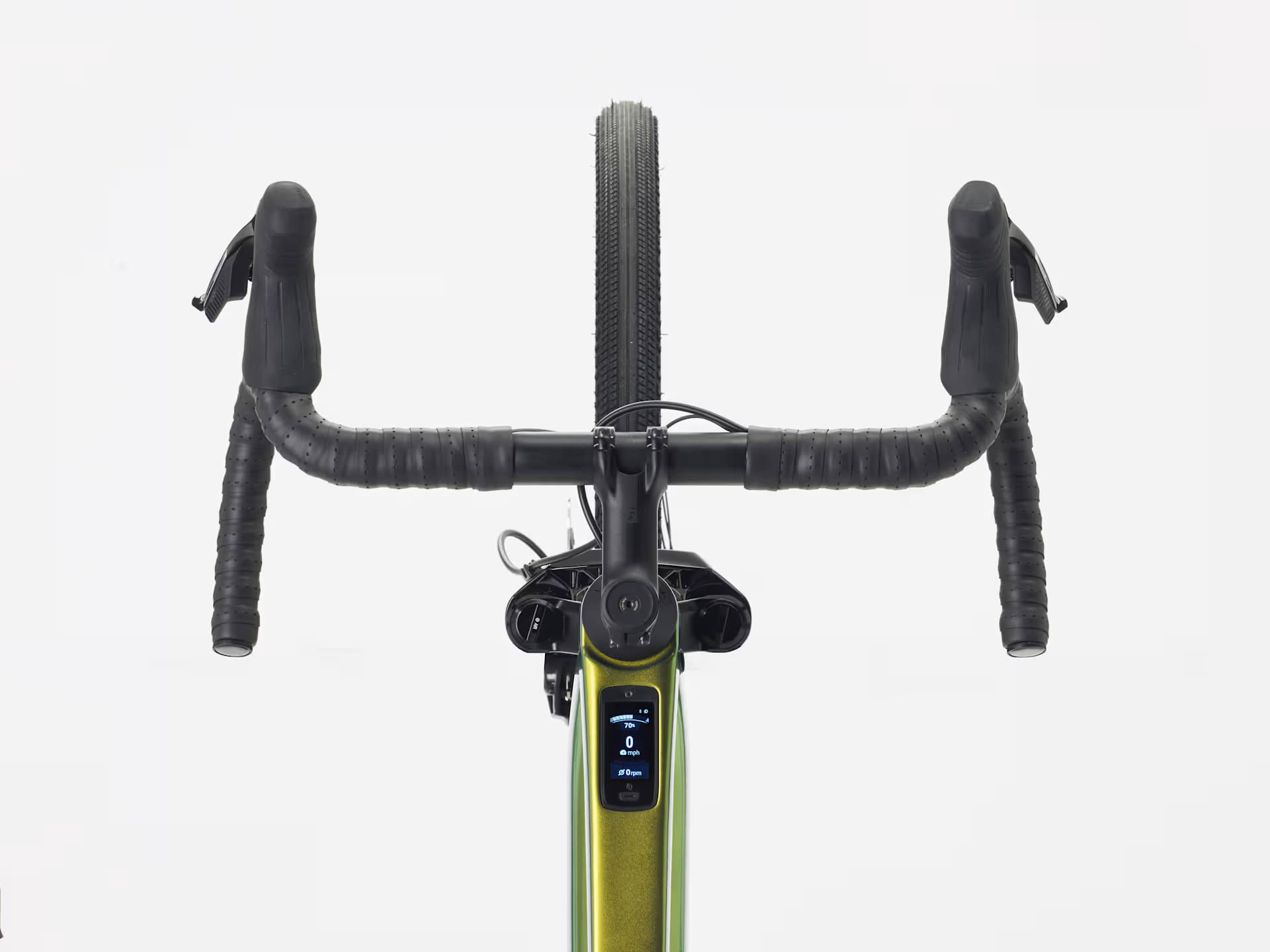

Handlebar
Size S: Bontrager Pro Gravel, 40 cm width
Size M, ML: Bontrager Pro Gravel, 42 cm width
Size L: Bontrager Pro Gravel, 44 cm width
Size XL: Bontrager Pro Gravel, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size S, M: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size ML, L: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size XL: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
Notes
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
