Frameset
Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Max compatible fork travel
40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options
Weight
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
E-system
Battery
SRAM eTap battery pack (with charger)
Drivetrain

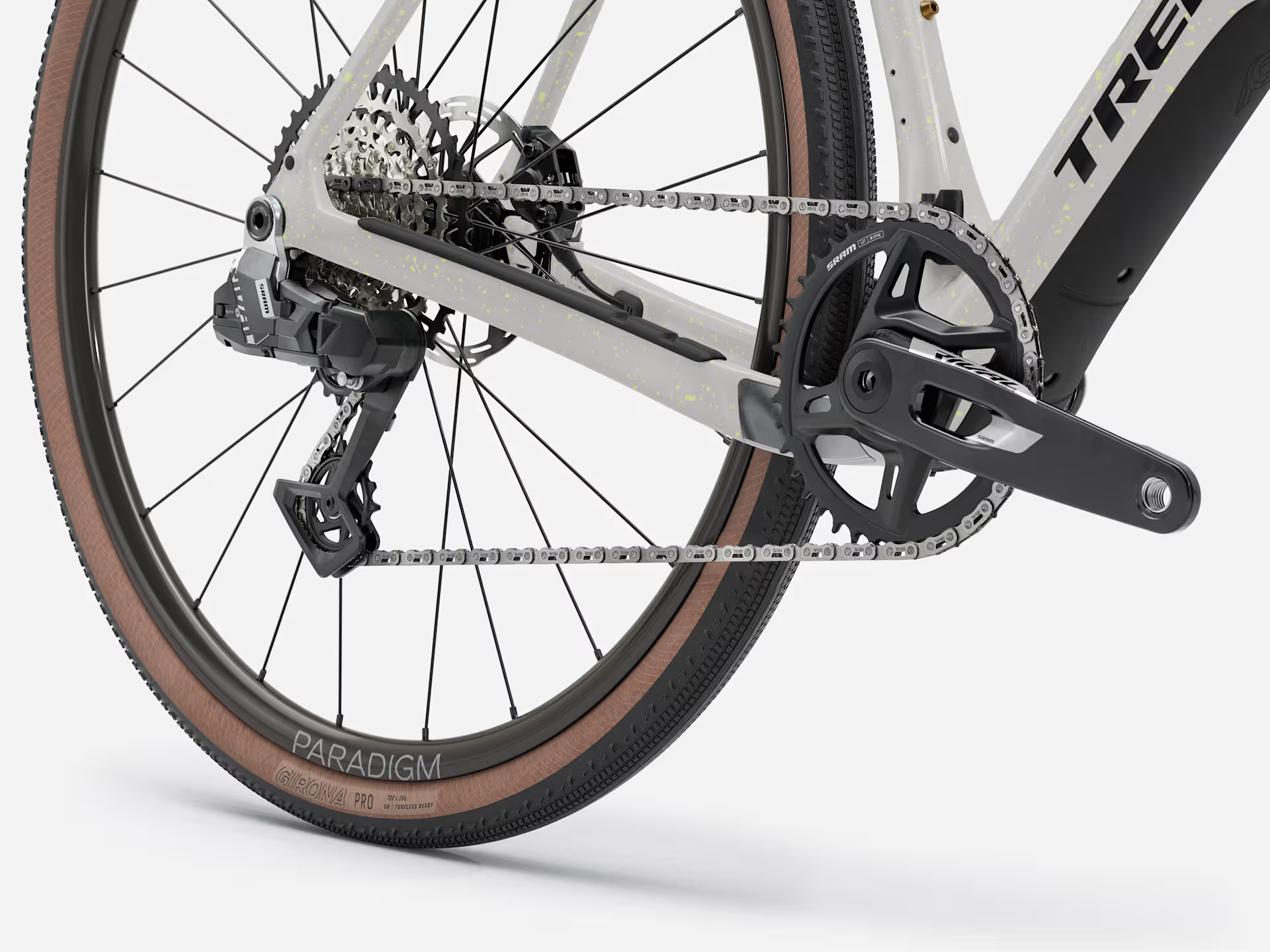

Rear derailleur
SRAM Rival XPLR AXS, 46T max cog
Cassette
SRAM Rival XPLR XG-1351, 10-46, 13-speed
Max. chainring size
1x:44 2x: 46/30
Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front
Bontrager Switch chamfered thru axle, removable lever
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Components
Saddle
Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar
- Size XS, S: Bontrager Elite Gravel, alloy, 40 cm width
- Size M, ML: Bontrager Elite Gravel, alloy, 42 cm width
- Size L: Bontrager Elite Gravel, alloy, 44 cm width
- Size XL: Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem
- Size XS: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Size S, M: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Size ML, L: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Size XL: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Rotor size
Max brake rotor sizes: 180 mm front and rear
Notes
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
