*Please note – spec applies to all sizes unless listed separately
Frameset

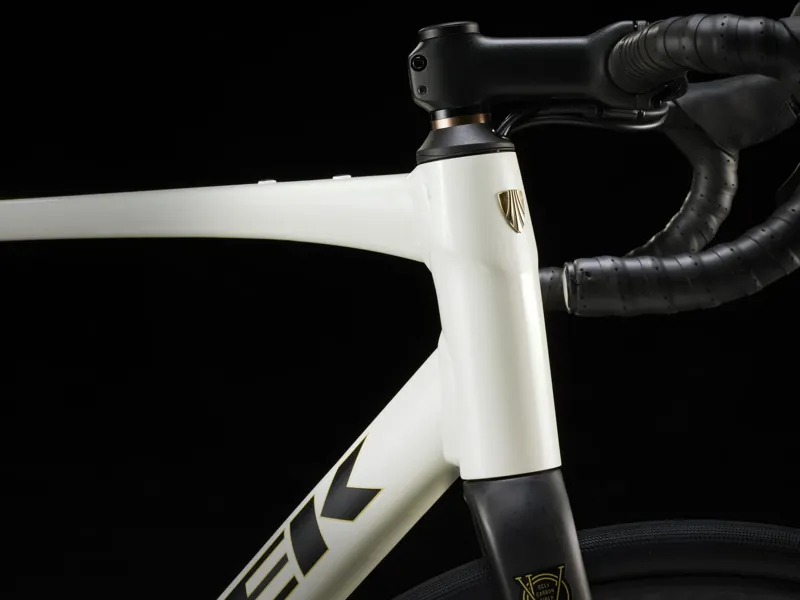

Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle

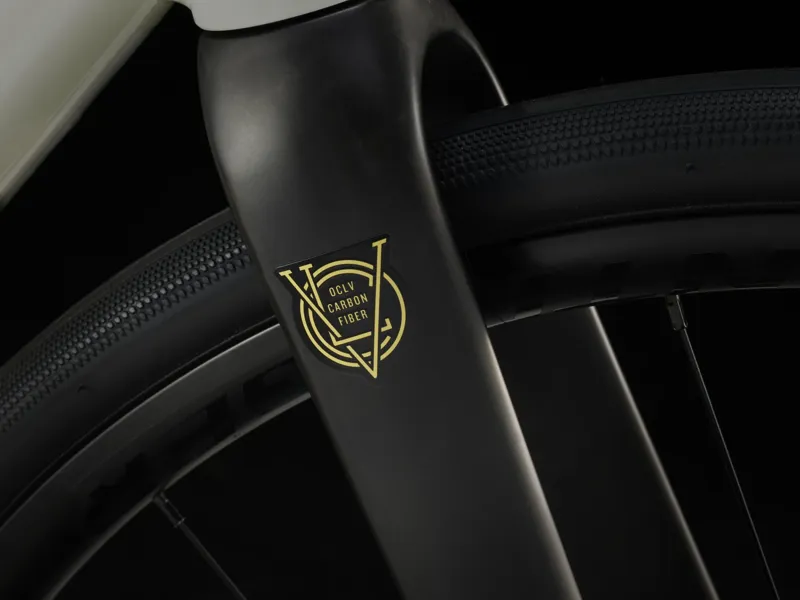

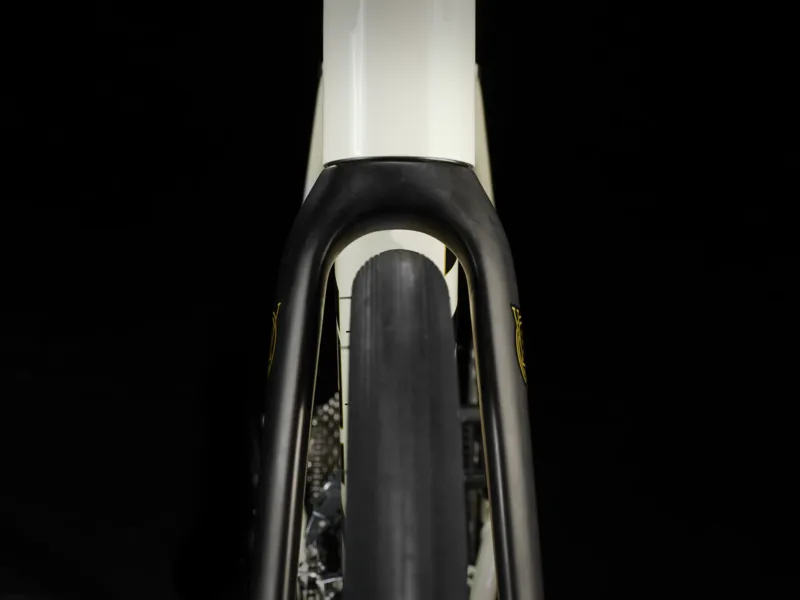

Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheels
Hub front: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Hub rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch thru axle
Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size: 38 mm without mudguards, 35 mm with mudguards

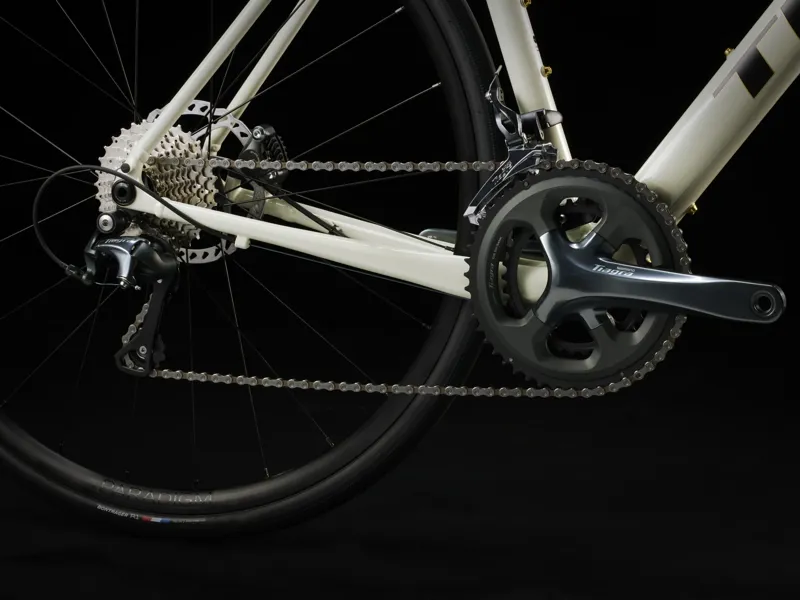

Drivetrain
*Shifter:
Size:44-61 – Shimano Tiagra R4725, short-reach lever, 10-speed (right)
Size:44-61 – Shimano Tiagra R4720, 10-speed (left)
Front derailleur: Shimano Tiagra 4700, 31.8 mm clamp
Rear derailleur: Shimano Tiagra 4700, long cage, 34T max cog
*Crank:
Size:44 – Shimano Tiagra 4700, 50/34, 165 mm length
Size:49,52 – Shimano Tiagra 4700, 50/34, 170 mm length
Size:54,56 – Shimano Tiagra 4700, 50/34, 172.5 mm length
Size:58,61 – Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket: Shimano RS501 BSA
Cassette: Shimano 10-speed, 11-32T
Chain: Shimano Tiagra HG54, 10-speed
Max. chainring size: 1x: 50T, 2x: 50/34
Components
Saddle: Verse Short, steel rails, 145 mm width
*Seatpost:
Size:44,49 – Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size:52-61 – Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

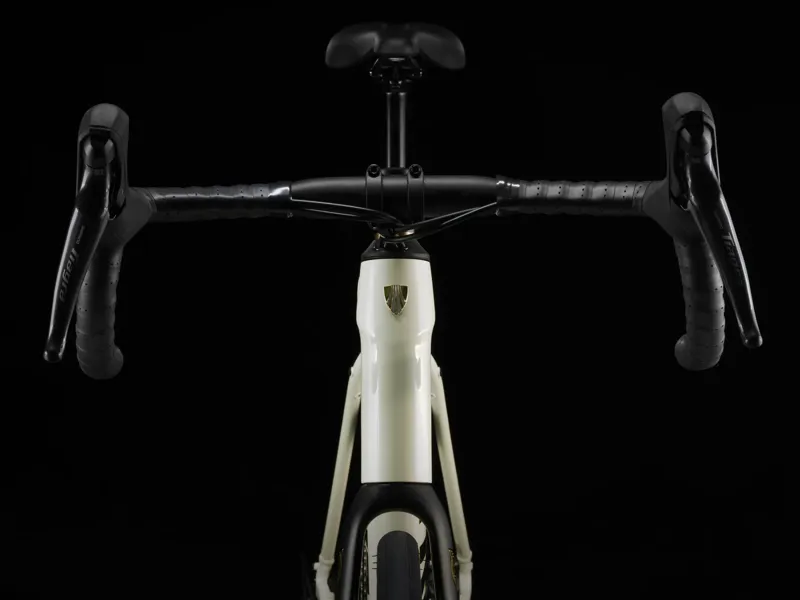

*Handlebar:
Size:44 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drops width
Size:44-49 – Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size:49 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drops width
Size:52 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drops width
Size:52 – Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size:54,56 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drops width
Size:54,56 – Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size:58,61 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
Size:58,61 – Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem:

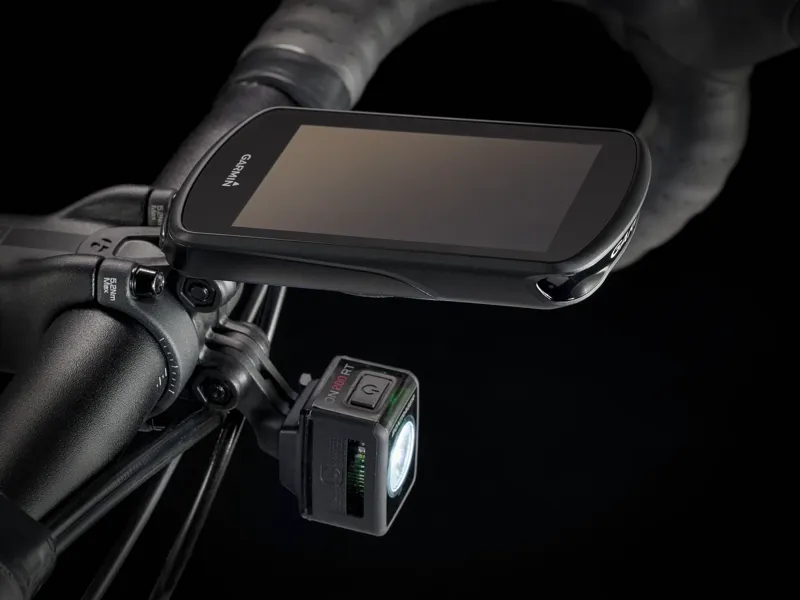

Size:44 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:49 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52,54 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56,58 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:61 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brakes

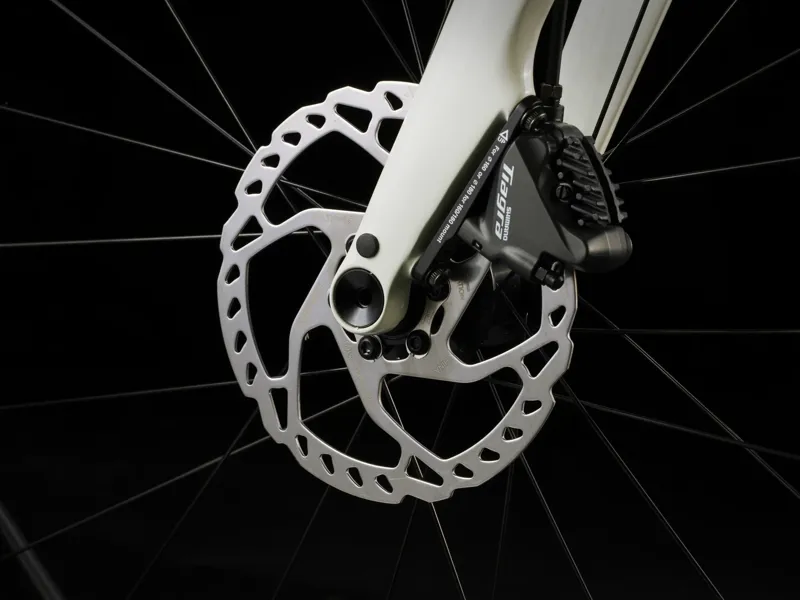

Brake rotor: Shimano RT66, 6-bolt, 160 mm
Rotor size: Max brake rotor sizes: 160 mm front and rear
Weight
Weight: 56 – 10.35 kg / 22.82 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
