Frameset

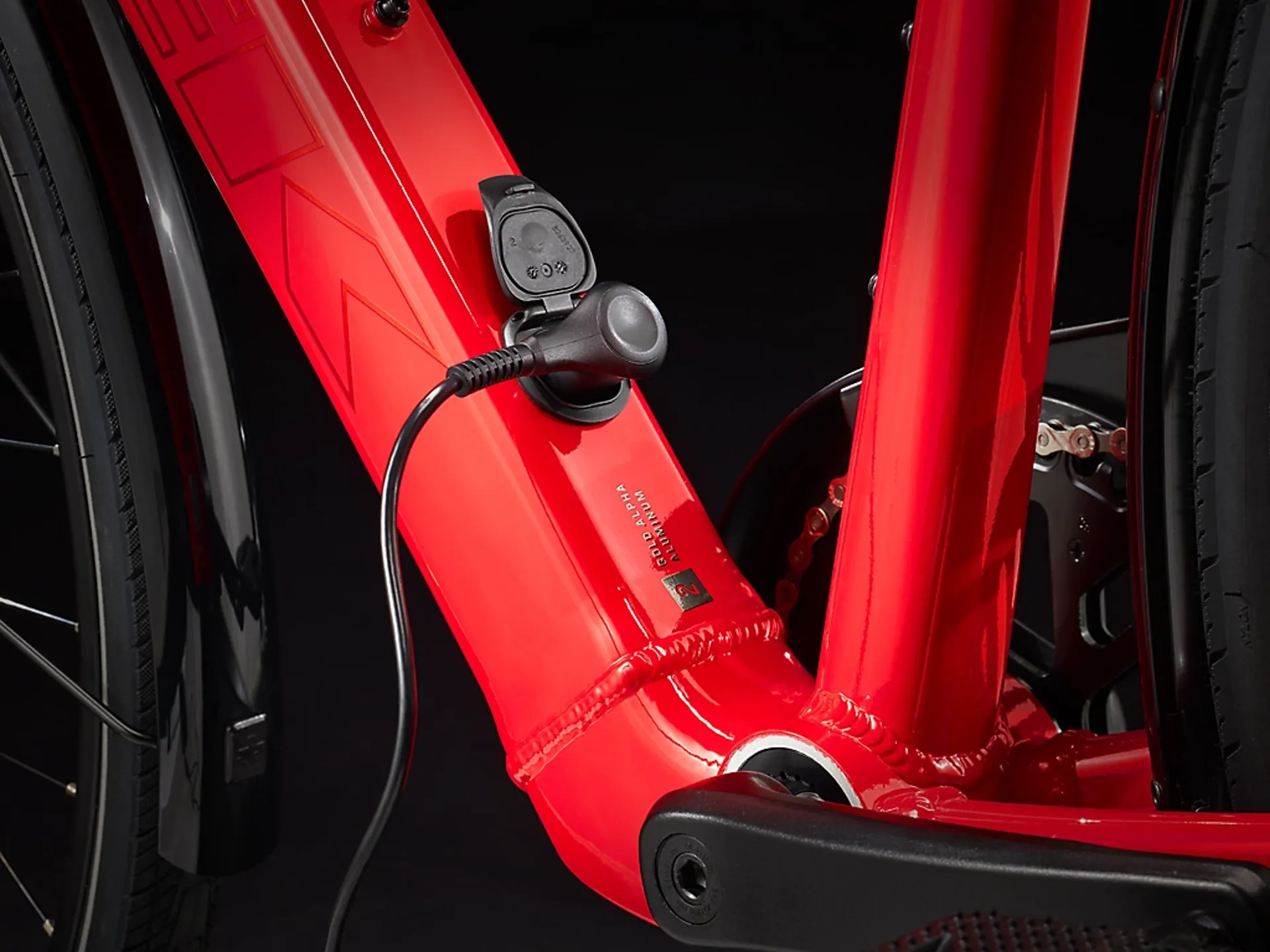

Frame: Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
Fork: FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
Wheels & Tyres
Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Front Skewer: 132x5 mm QR

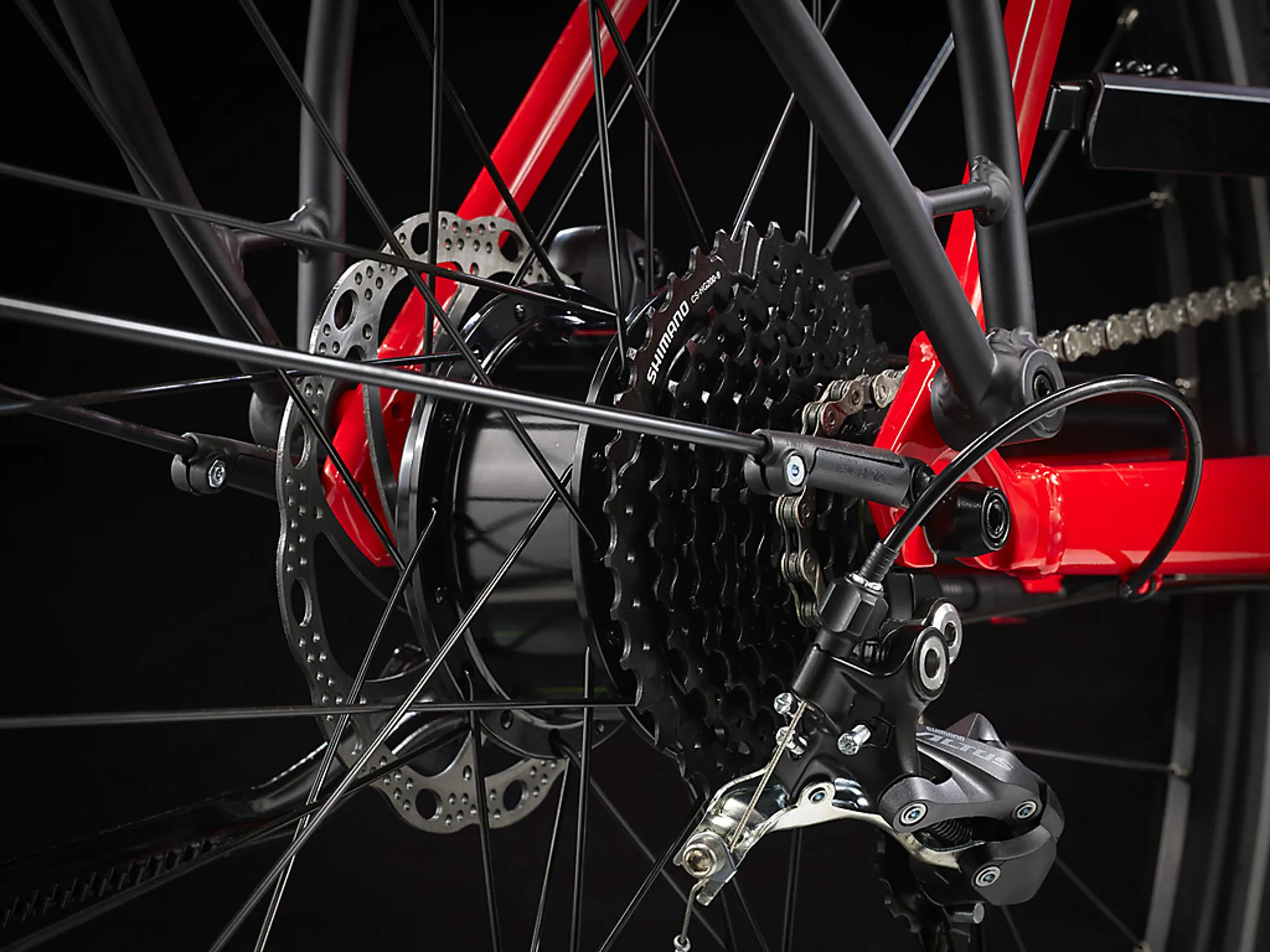

Rear Hub: HyDrive hub drive motor, 40 Nm, 250 W
Rim: Bontrager Connection, double-wall, 36-hole, 20 mm width, Presta valve
Spokes: 14 g stainless steel
Tyre: Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
Max Tyre Size: 50c without mudguards, 45c with mudguards
Drivetrain
Shifter: Shimano Altus M2010, 9-speed
Rear Derailleur: Shimano Altus M2000, long cage

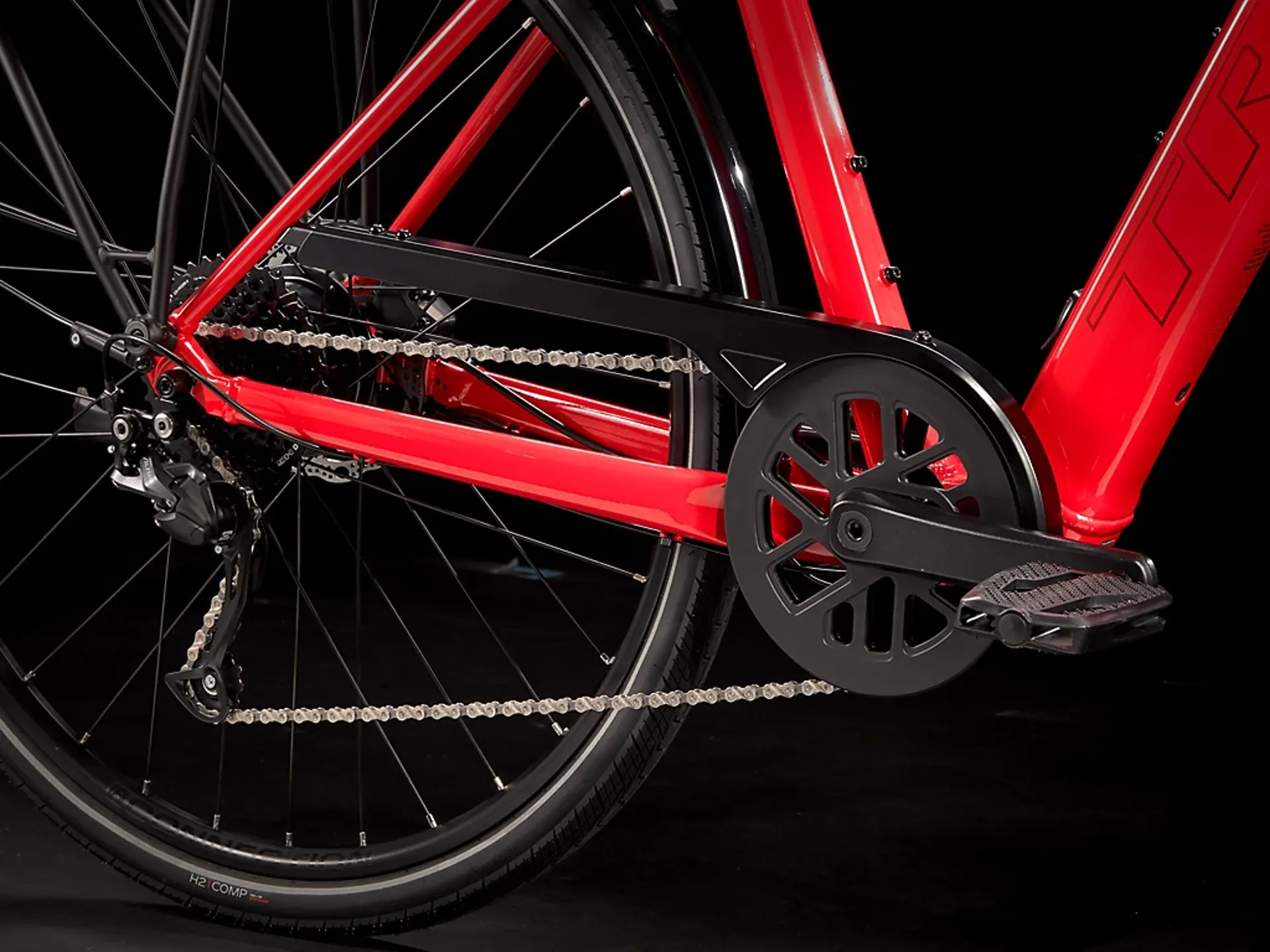

Crank: Size S,M: ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm; Size L,XL: ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm
Bottom Bracket: Torque sensor, threaded, 122.5 mm spindle
Cassette: Shimano HG200, 11-36, 9-speed
Chain: KMC E9S, 9-speed
Pedal: VPE-857
Max Chainring Size: 42T
Components
Saddle: Bontrager Sport
Seatpost: Size S,M: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm; Size L,XL: Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm

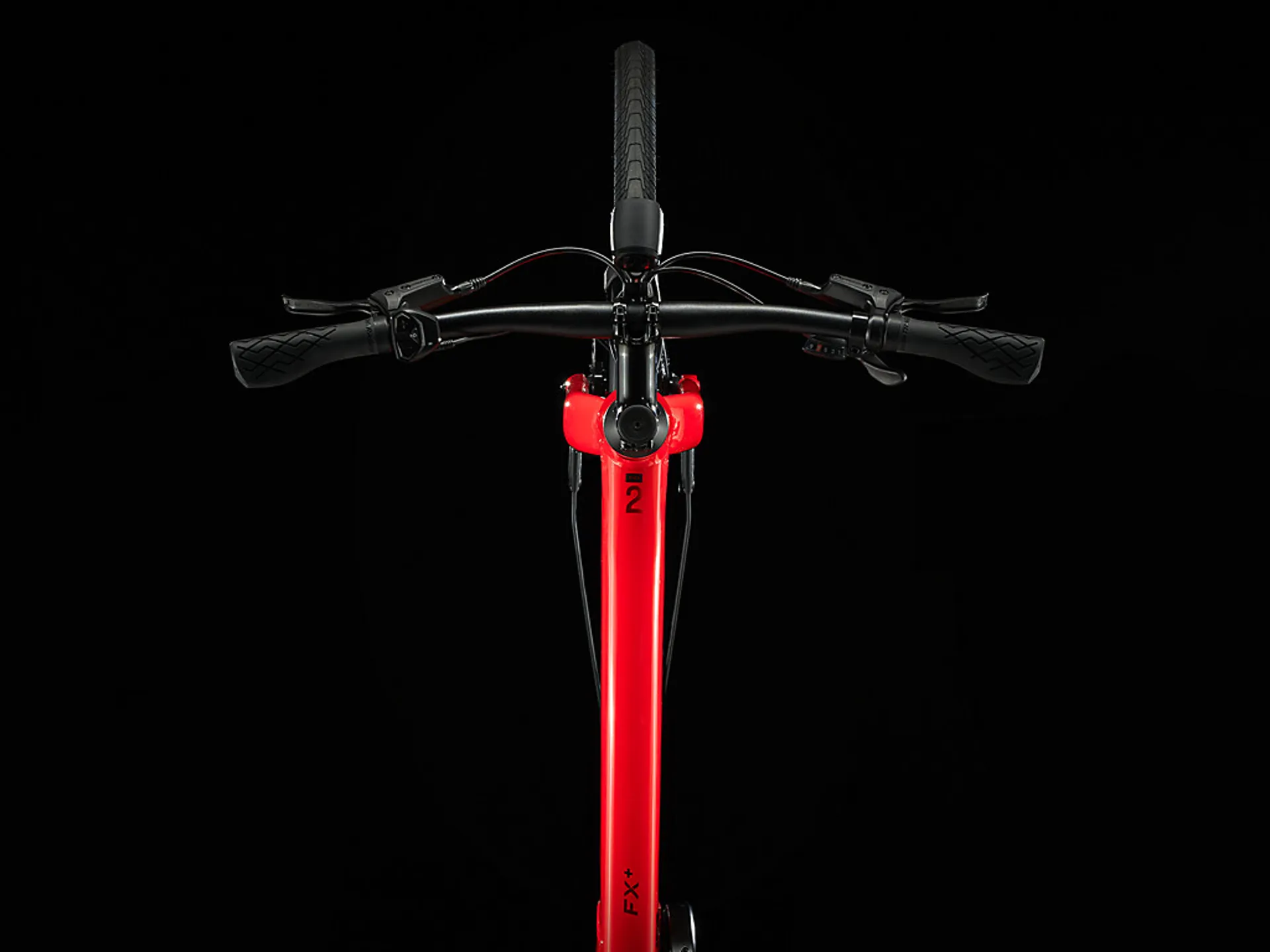

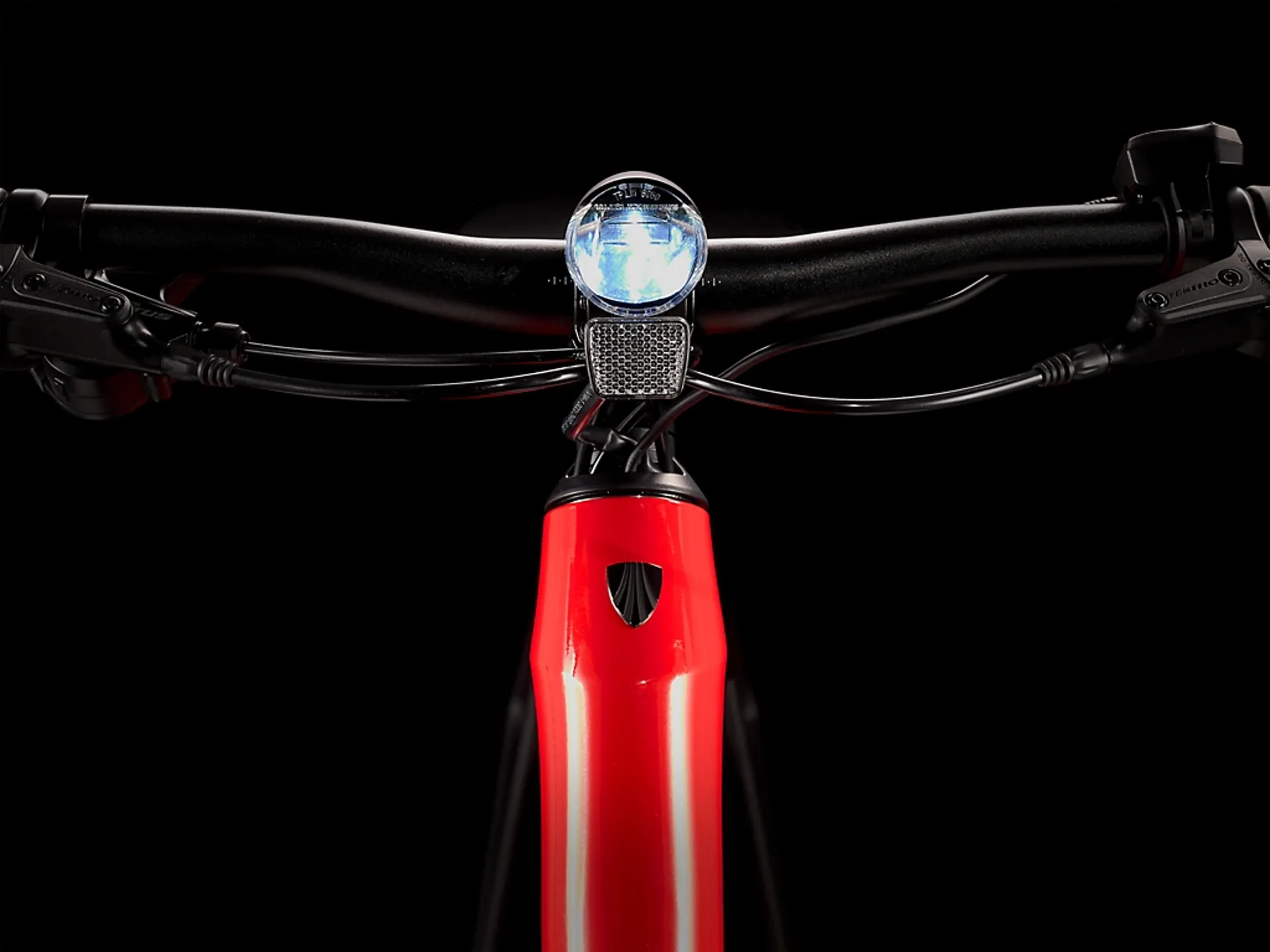

Handlebar: Size S,M: Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width; Size L,XL: 31.8 mm, 15 mm rise, 660 mm width
Grips: Bontrager XR Endurance Comp, lock-on
Stem: Size S,M: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm; Size L,XL: 100 mm
Brakes

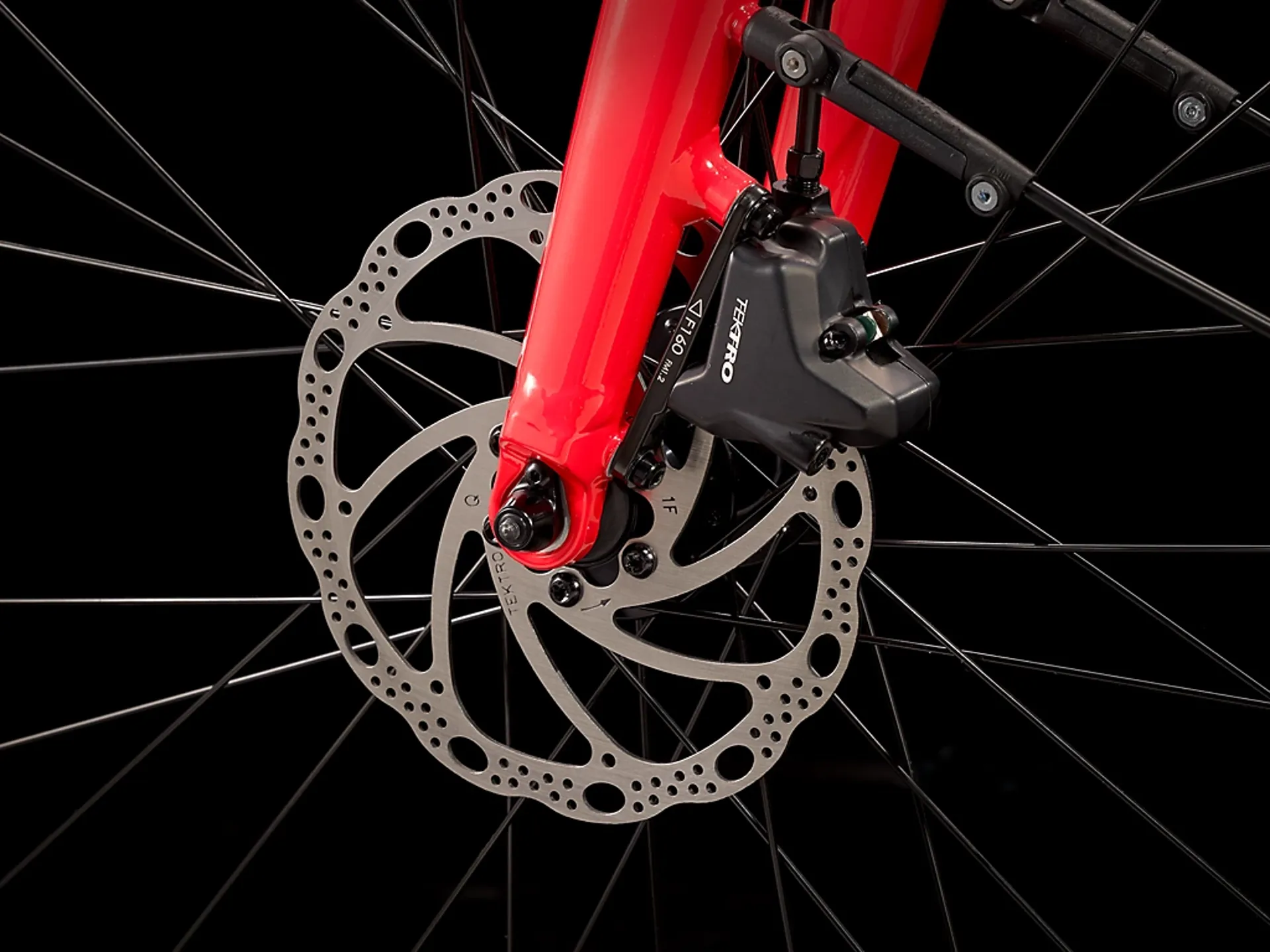

Brake Set: Promax DSK-927 hydraulic disc, flat mount, 160 mm rotor
Brake Rotor: Shimano RT26, 6-bolt, 160 mm
Max Brake Rotor Size: 160
