*Please note – spec applies to all sizes unless listed separately
Frameset

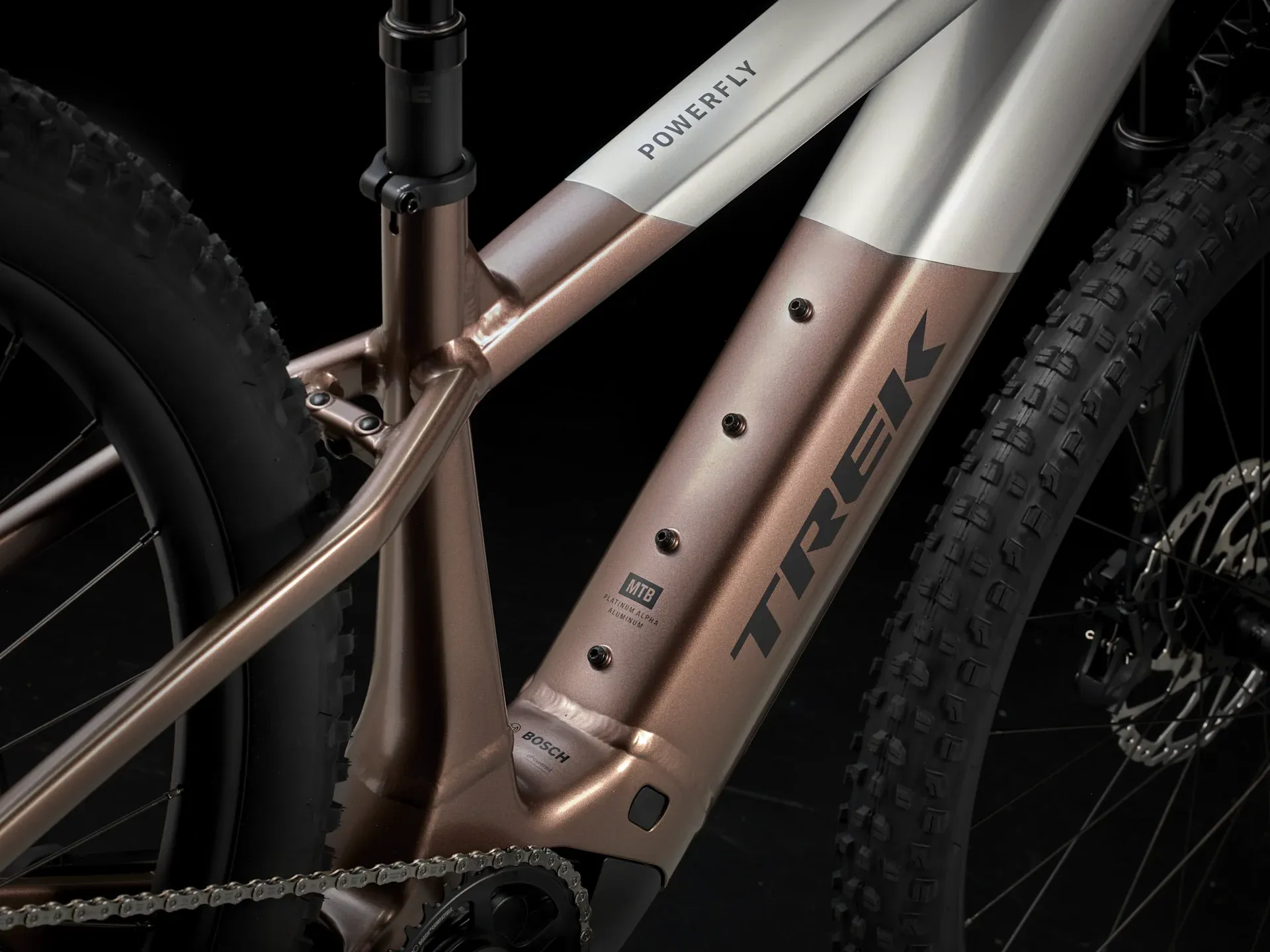

Frame: Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle

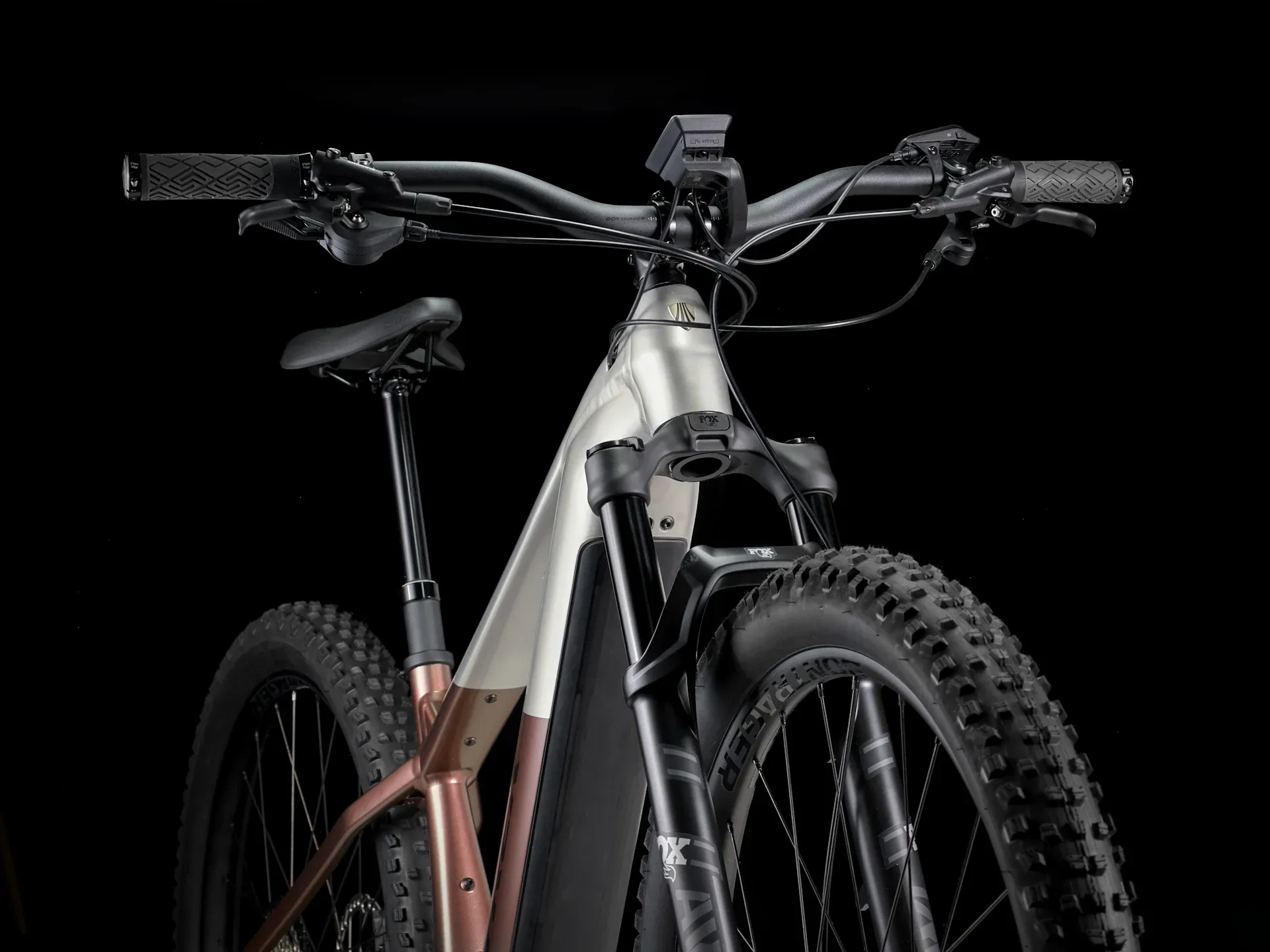

Fork:
- S: Fox AWL Rail, Rail 2.0 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 180 mm direct mount, 100 mm travel, 27.5"
- M, L, XL: Fox AWL Rail, Rail 2.0 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 180 mm direct mount, 120 mm travel, 29"
Max compatible fork travel: See service manual
Wheels
Wheel front:
- S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
- M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5"
Skewer rear: Bontrager Switch thru axle, removable lever
Max tyre size: See service manual
Tyre:
- S: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
- M, L, XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
E-system
Battery: Bosch PowerTube 800 Wh, smart system
Charger: Bosch standard 4A, 230V, smart system
Computer:
- S, M, L, XL: Bosch Kiox 300, smart system
- S, M, L, XL: Bosch LED remote, smart system
Motor: Bosch Performance Line CX, 20 mph (25 km/h in Europe)

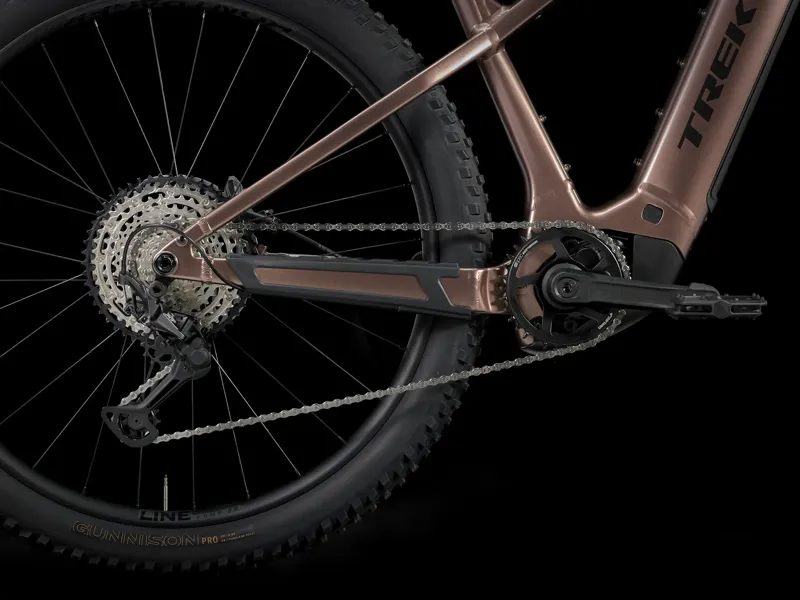

Drivetrain
Shifter: Shimano SLX M7100, 12-speed
Rear derailleur: Shimano XT M8100, long cage
Cassette: Shimano SLX M7100, 10-51T, 12-speed
Chain: Shimano SLX M7100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 42T
Components
Saddle: Bontrager Commuter Comp
Seatpost:
- S: Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
- M, L, XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length

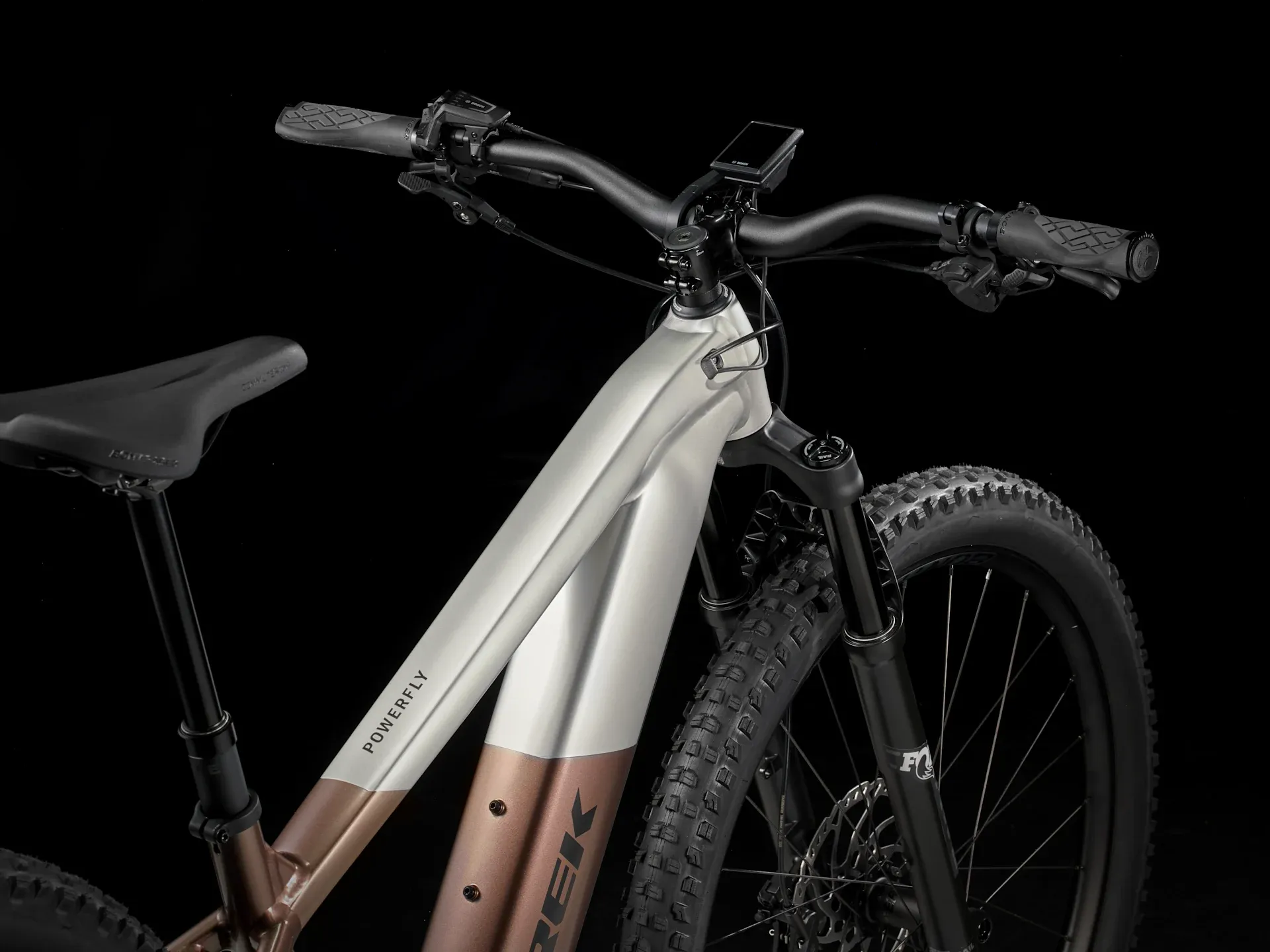

Handlebar: Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips: Bontrager XR Endurance Elite
Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Brakes
Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor: Shimano RT66, 6-bolt, 203 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, fork: see fork manufacturer
Accessories
Tool: Bontrager Switch Lever, w/tool
Weight
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
