*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: FX alloy, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 152x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm

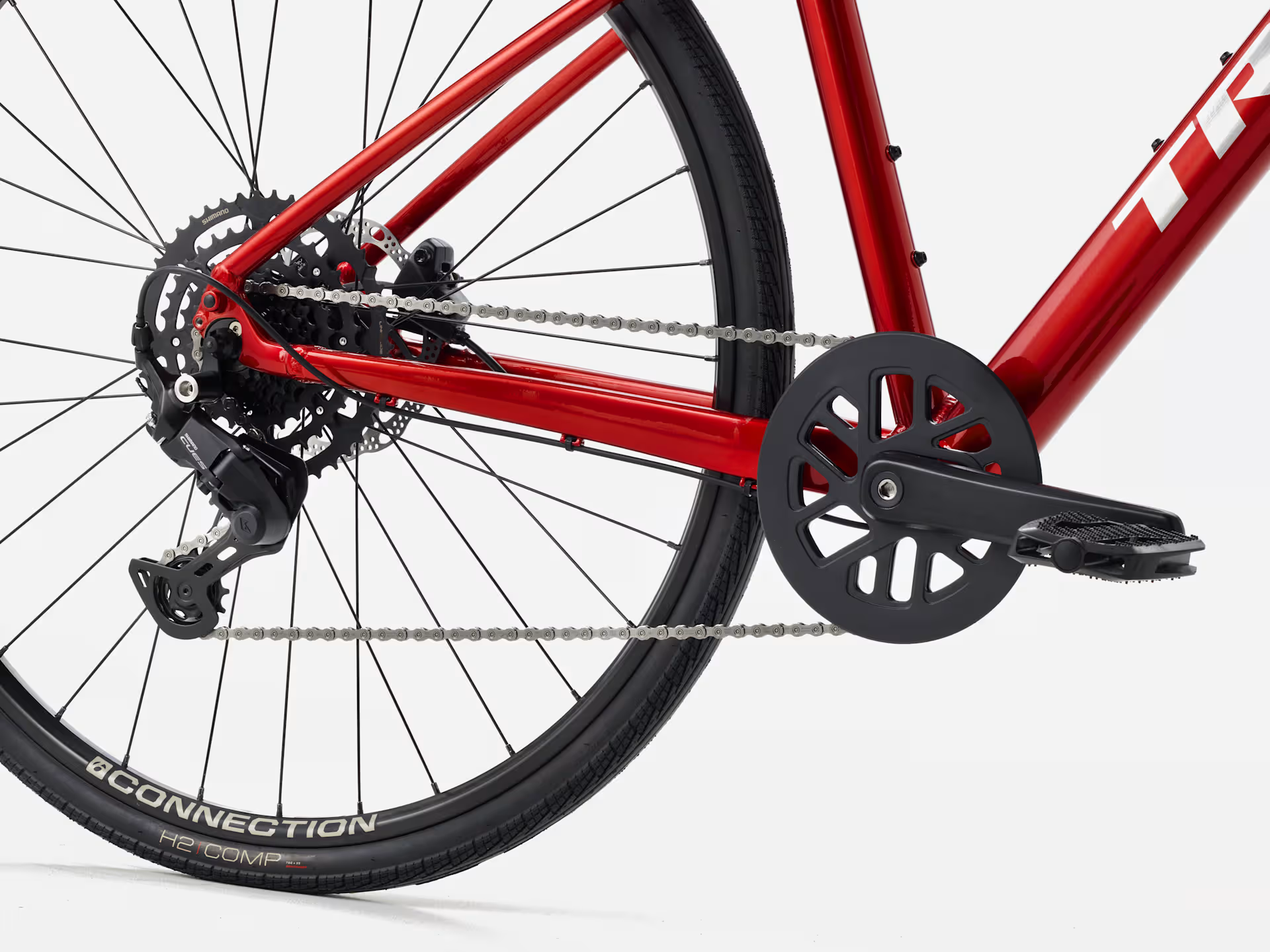

Drivetrain
Shifter: Shimano U4000, 9-speed
Rear derailleur: Shimano CUES U4000
Crank arm: ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length
Bottom bracket: Sealed cartridge, 68 mm
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500
Pedal: Bontrager City pedals
Components
Saddle: Bontrager Sport
Seatpost:
Size: XS, S, M – Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size: L, XL – Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
Handlebar:
Size: XS, S, M – Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L, XL – Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips: Trek Line Ergonomic Comp, lock-on
Stem:
Size: XS, S, M – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: L, XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brakes
Brake Set: Tektro HD-R280 hydraulic disc, 160 mm rotor
Brake rotor: Tektro wave, 6-bolt, 160 mm
Weight
Weight: M – 12.10 kg / 26.68 lbs
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
