*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: Dual Sport carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5mm QR
Weight
Weight: M – 11.10 kg / 24.48 lbs
Weight limit: 136 kg (300 lb)

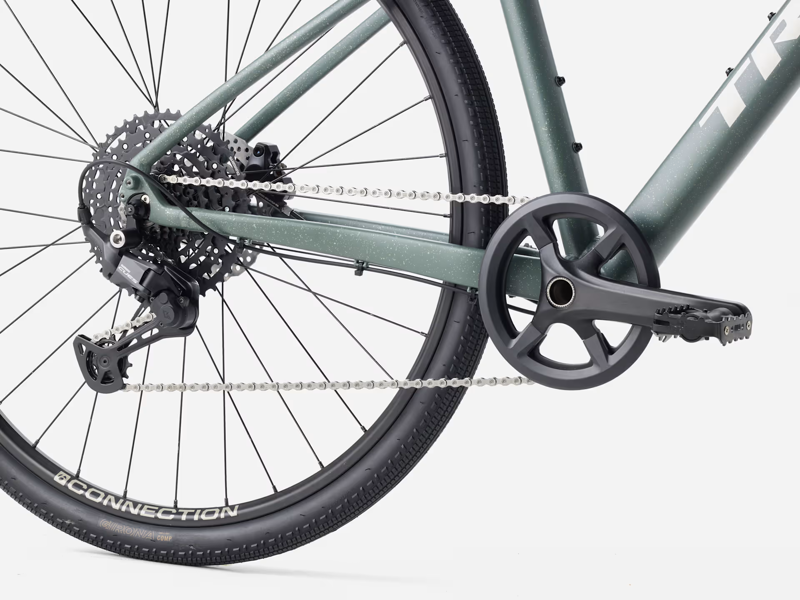

Drivetrain
Shifter: Shimano CUES U6000 w/optical gear display, 10-speed
Rear derailleur: Shimano CUES U6000 GS
Crank arm:
Size: XS, S, M – Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: L, XL – Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: Wellgo nylon body, alloy cage
Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear: 152x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre: Bontrager Girona Comp, wire bead, 60 tpi, 700x42 mm
Components
Saddle: Verse Short, chromoly rails, 145 mm width
Seatpost:
Size: XS, S, M – Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size: L, XL – Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length

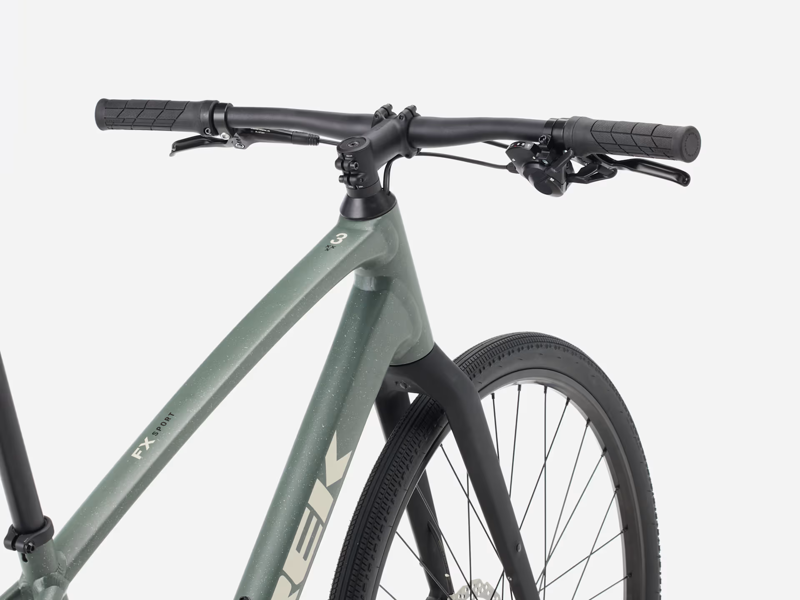

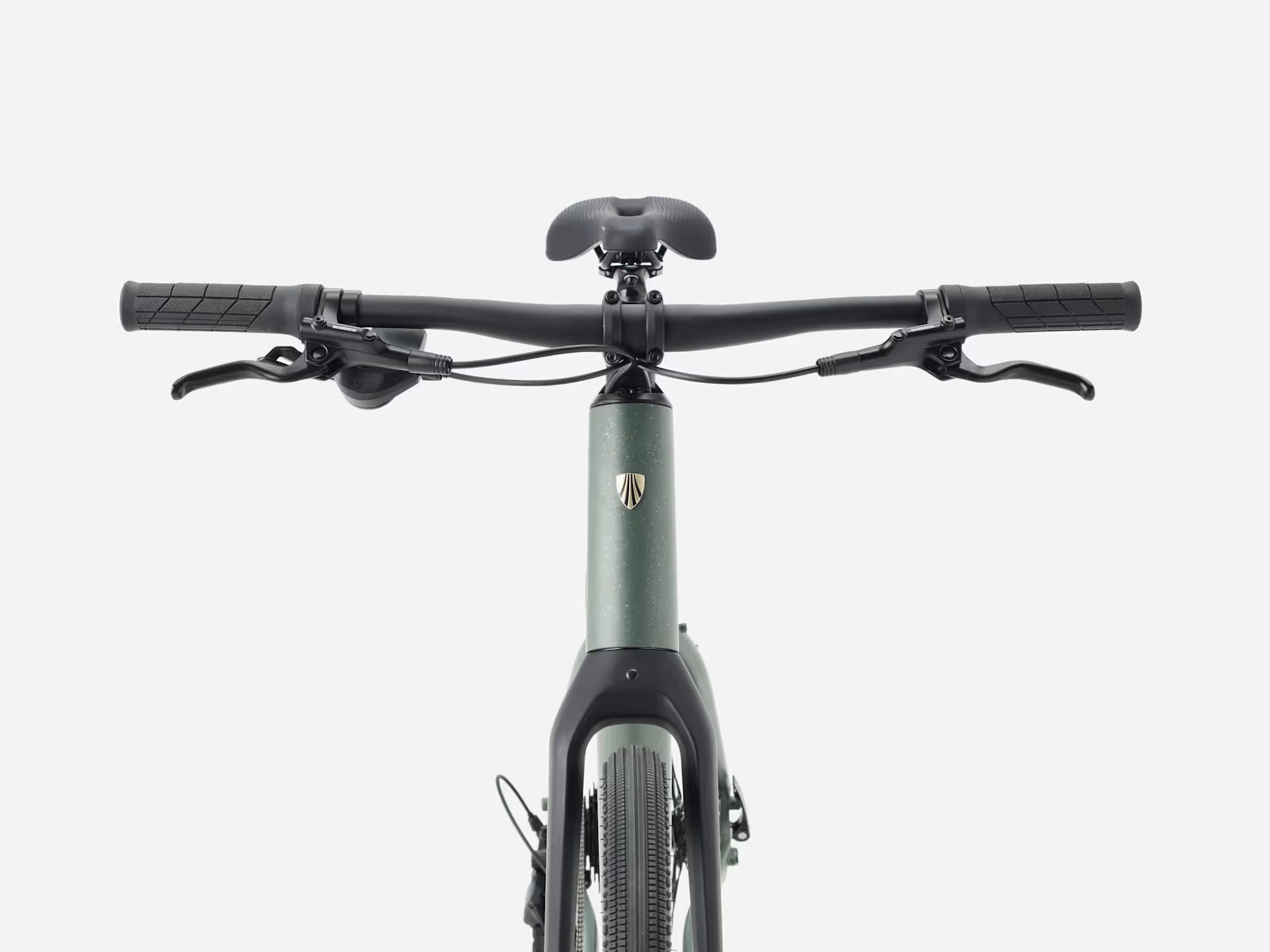

Handlebar:
Size: XS, S – Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M, L – Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Size: XL – Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
Size: XS, S – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M, L – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Brakes
Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor: Shimano RT26, 6-bolt, 160 mm
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
