*Please note – spec applies to all sizes unless listed separately
Frameset

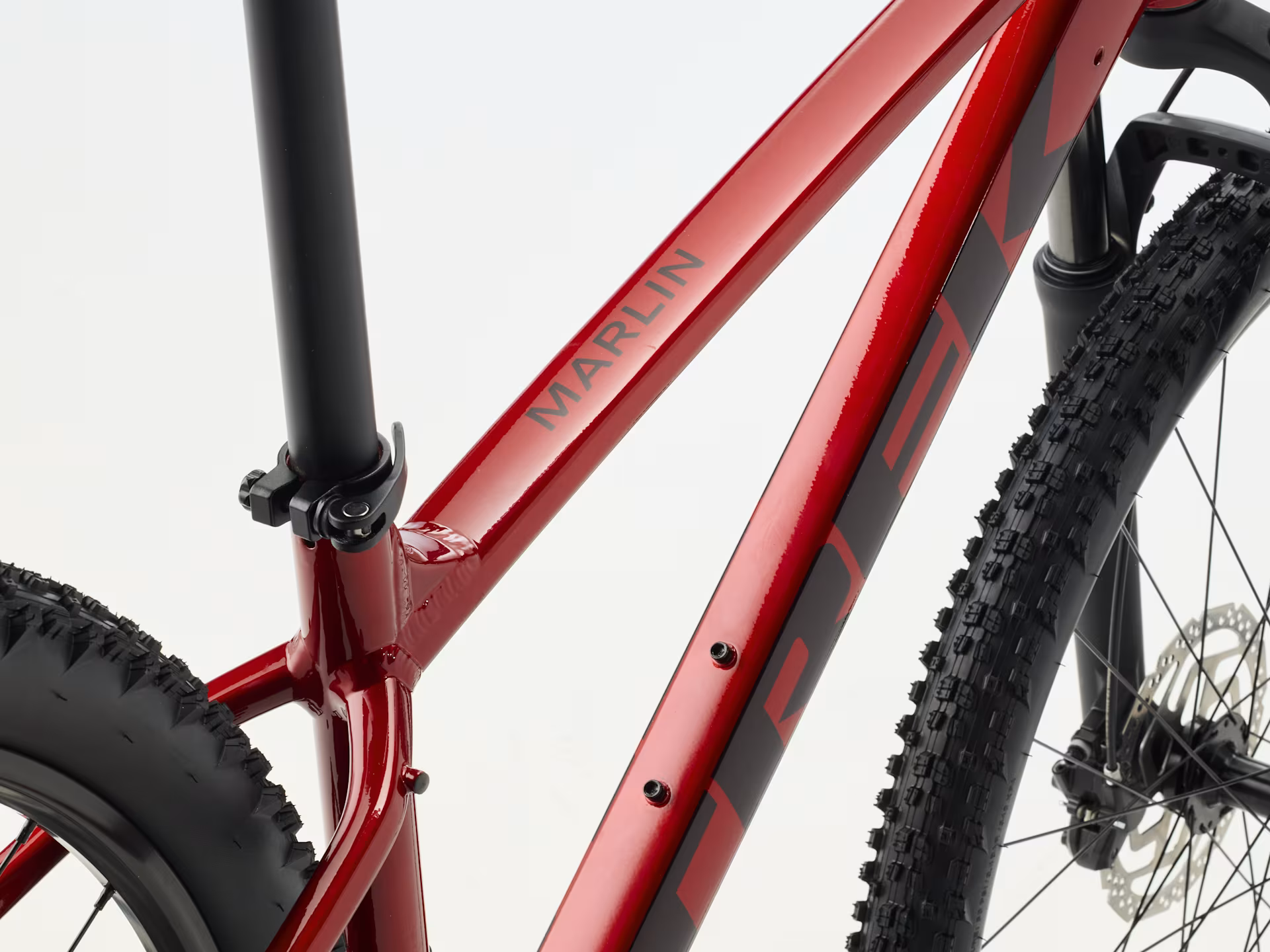

Frame:
Size: XS – Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S, M, ML, L, XL, XXL – Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

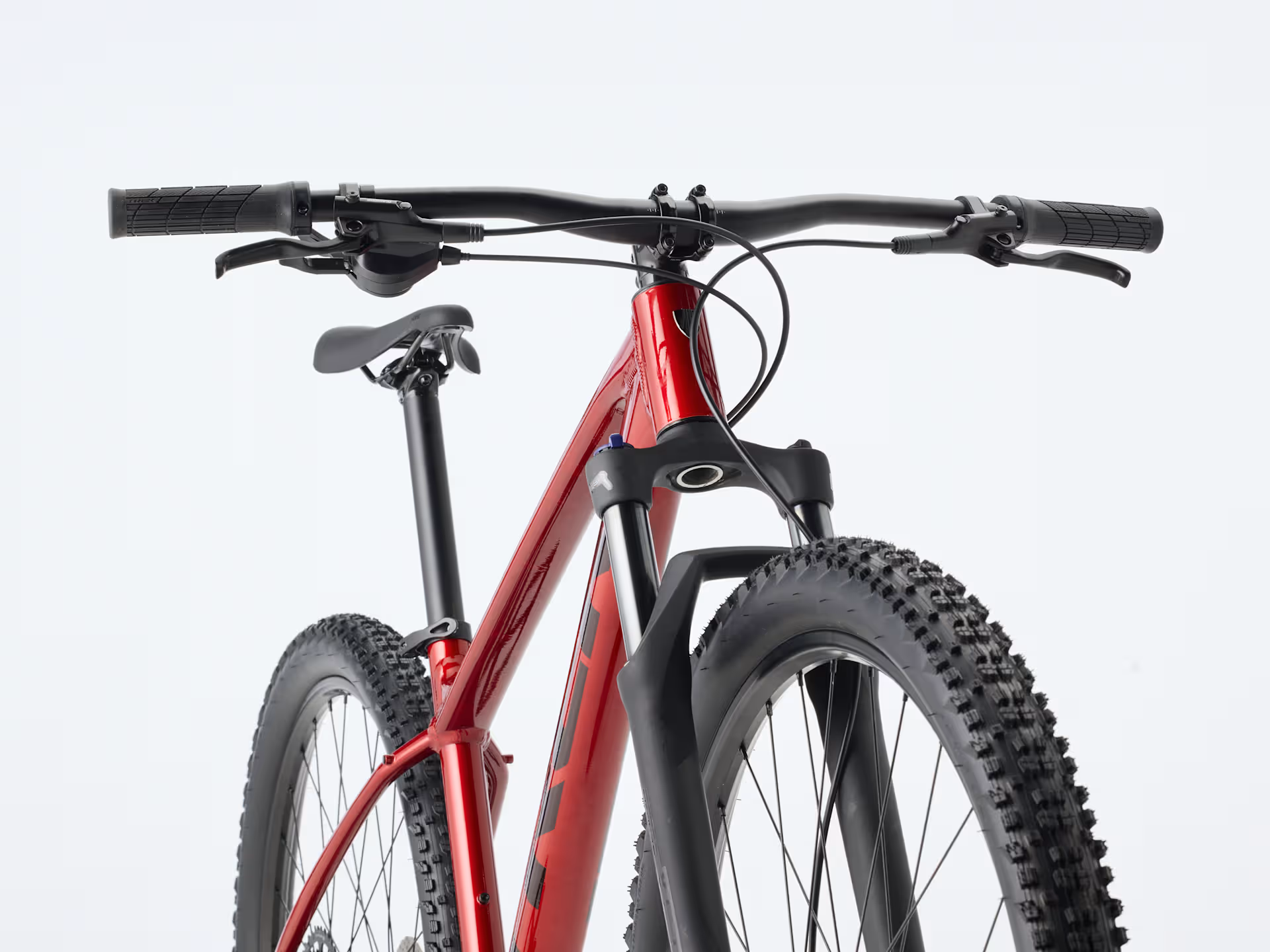

Fork:
Size: XS – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M, ML, L, XL, XXL – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Wheels
Hub (front): Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub (rear): Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rear skewer:
Size: XS, S, M, ML, L, XL, XXL – 173x5 mm QR / Trek Thru-Skew
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel, black
Tyres:
Size: XS, S – Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M, ML, L, XL, XXL – Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

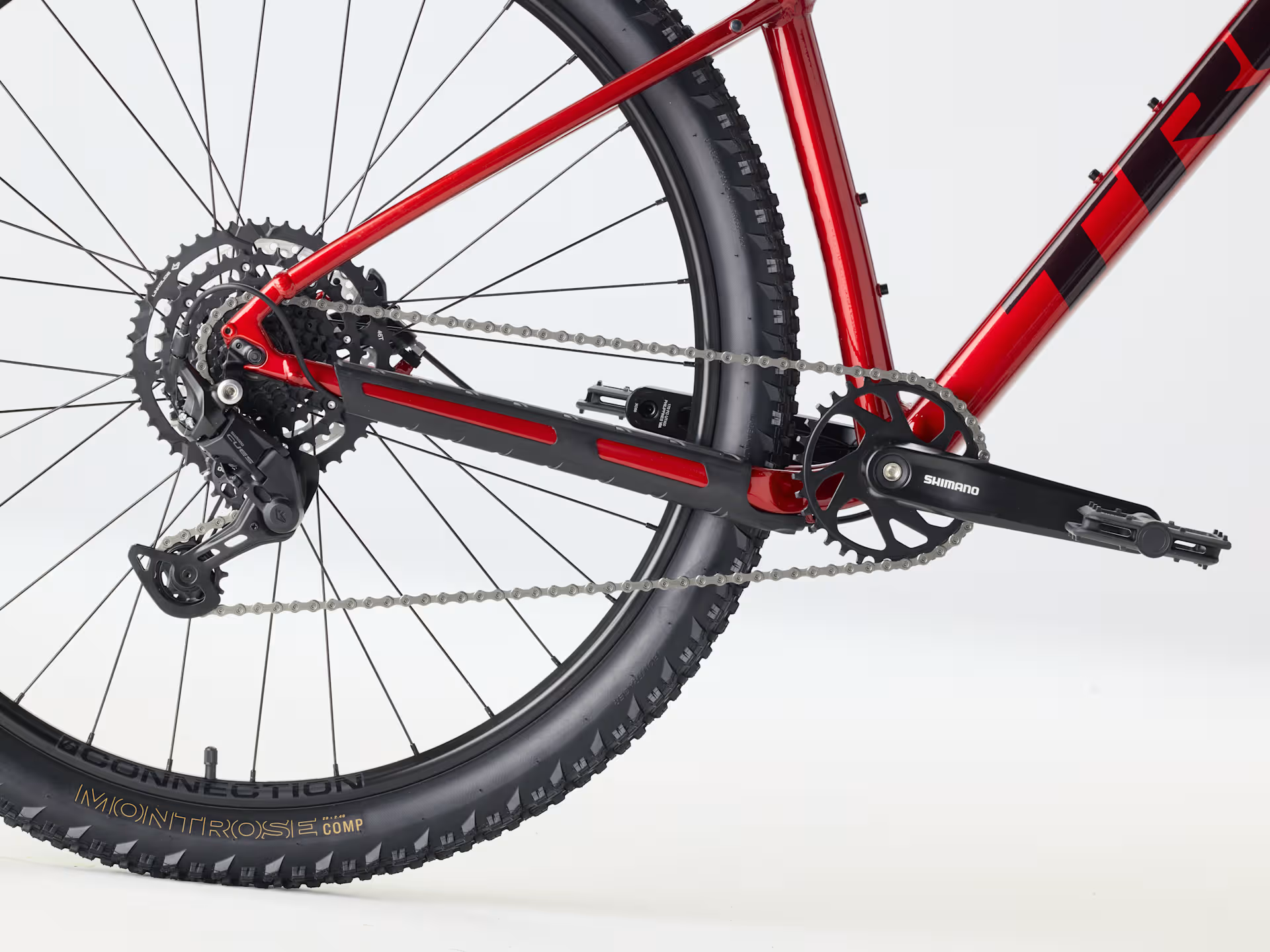

Drivetrain
Shifter: Shimano U4000, 9-speed
Rear derailleur: Shimano CUES U4000
Crank:
Size: XS, S, M, ML – Shimano CUES U4001, 32T, 52 mm chain line, 170 mm length
Size: L, XL, XXL – Shimano CUES U4001, 32T, 52 mm chain line, 175 mm length
Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Components
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost:
Size: XS, S, M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML, L, XL, XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

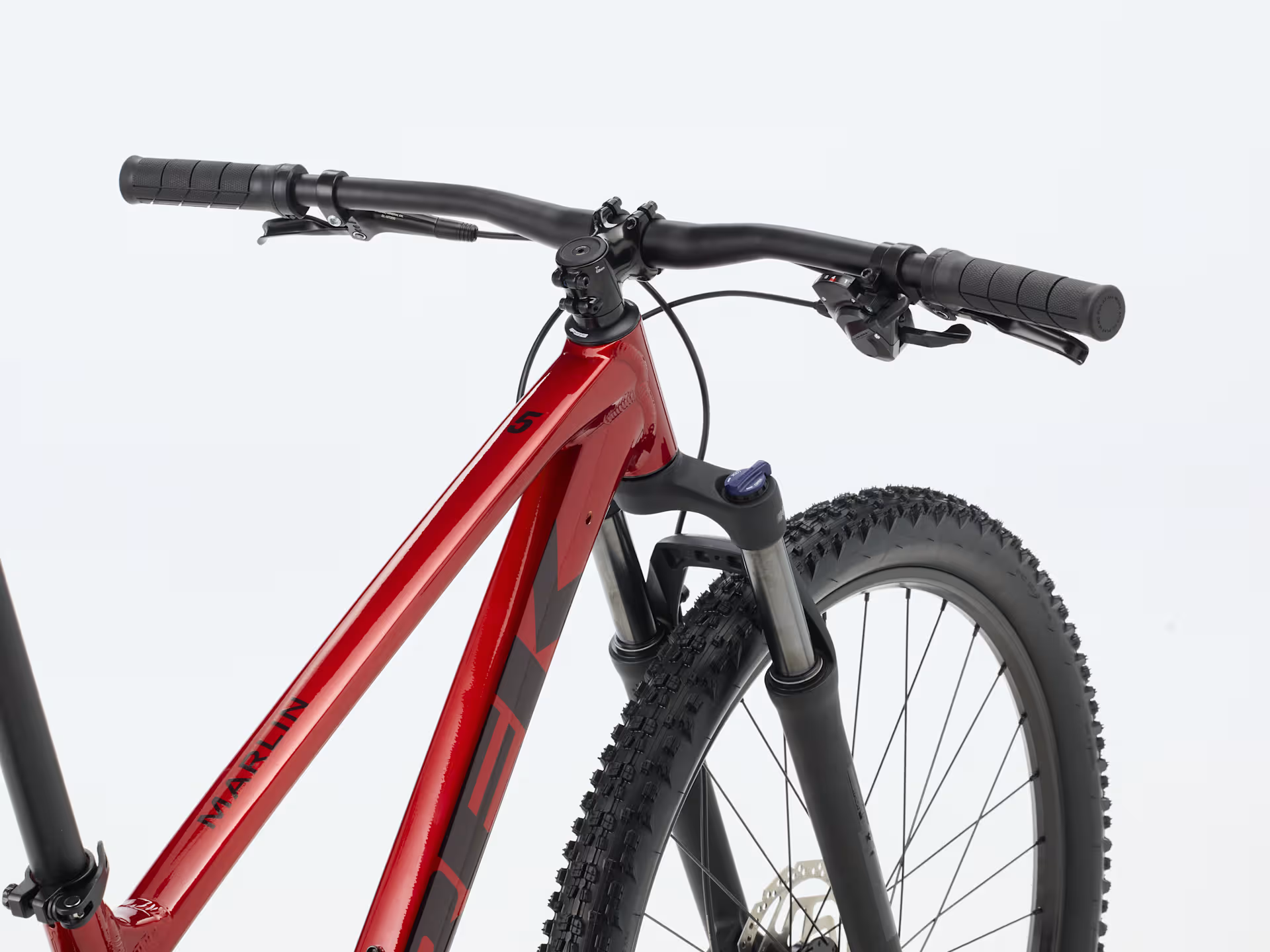

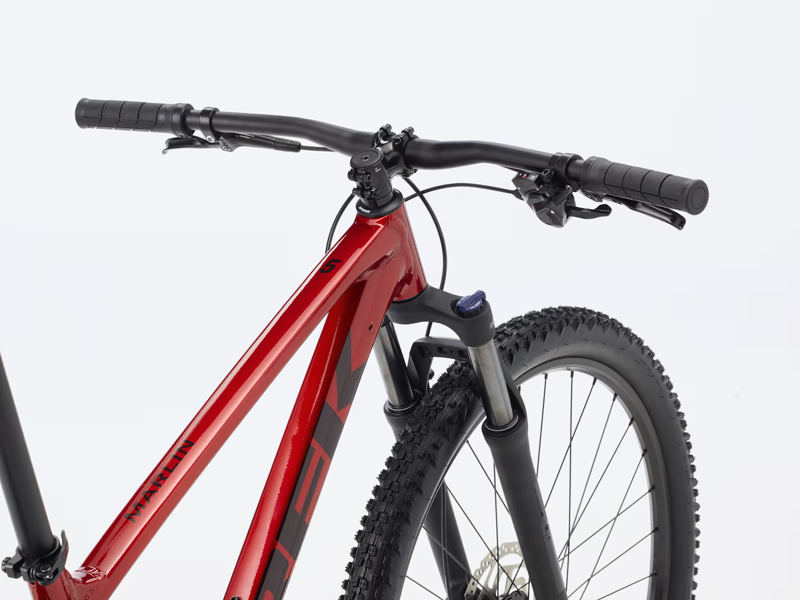

Handlebar:
Size: XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
Size: XS, S – Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M, ML, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Headset: Semi-integrated, 1-1/8"
Brakes
Brake: Shimano MT200 hydraulic disc
Brake rotor:
Size: XS, S, M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 160 mm
Size: M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 180 mm
Weight
Weight: M – 15.10 kg / 33.29 lbs
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
