Frameset

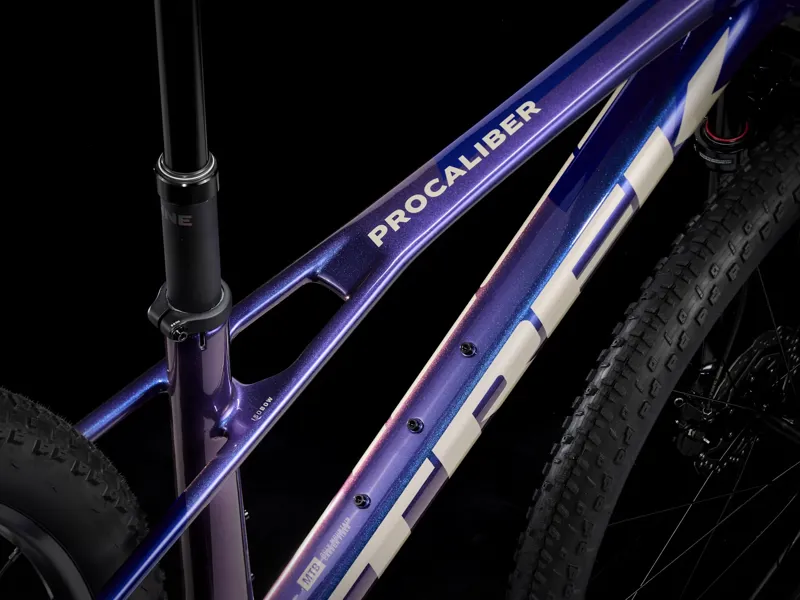

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork: RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel: 120 mm
Wheels
Hub front: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Tyre:
- Sizes S, M, ML, L, XL: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Sizes S, M, ML, L, XL: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
Max tyre size: Frame: 29x2.40", Fork: See manufacturer

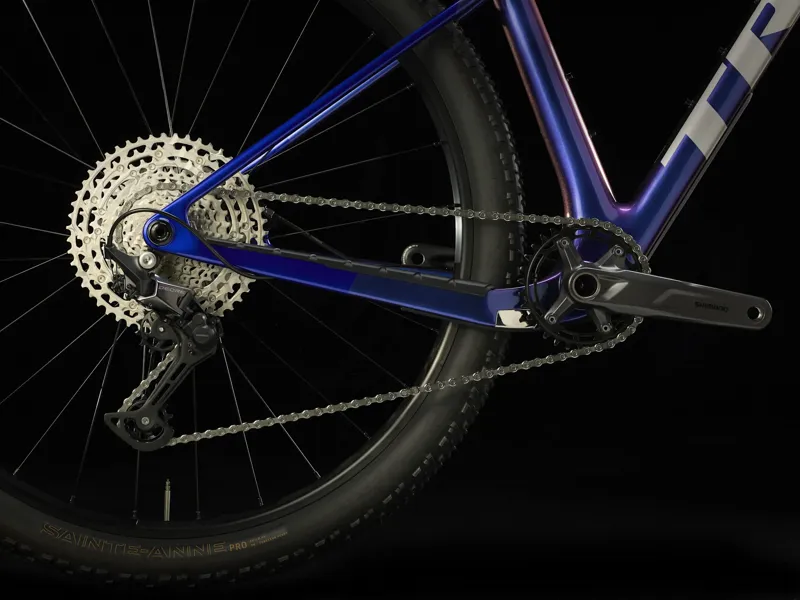

Drivetrain
Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano Deore M6100, long cage
Crank:
- Sizes S, M, ML: Shimano MT512, 32T, 55 mm chain line, 170 mm
- Sizes L, XL: Shimano MT512, 32T, 55 mm chain line, 175 mm
Bottom bracket: Shimano MT500, 92 mm, PressFit
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Max. chainring size: 1x: 38T
Components
Saddle: Verse Short, chromoly rails, 145 mm width
Seatpost:
- Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
- Sizes M, ML, L: Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
- Size XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Handlebar:
- Size S: Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
- Sizes M, ML, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips:
- Bontrager XR Trail Comp, nylon lock-on
- Trek Line Comp, nylon lock-on
Stem:
- Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
- Sizes M, ML: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
- Size L: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
- Size XL: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Head set: FSA IS-2, 1-1/8" top, 1.5" bottom
Brakes
Brake: Shimano MT200 hydraulic disc
Brake rotor:
- Sizes S, M, ML, L, XL: Shimano RT10, CenterLock, 160 mm
- Sizes L, XL: Shimano RT10, CenterLock, 180 mm
Rotor size: Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Weight
Weight: M – 12.13 kg / 26.75 lb (with TLR sealant, no tubes)
Weight limit: 136 kg (300 lb) combined rider + bike + cargo
