Please note – spec applies to all sizes unless listed separately
Frameset
Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12 mm thru axle
Fork:
Size XS: RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 37 mm offset, Boost110, Maxle Stealth, 140 mm travel
Sizes S, M, M/L, L, XL: RockShox Recon Silver RL, SoloAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel
Max compatible fork travel: 150 mm, XS: 120 mm
Wheels
Hub front: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Tyre:
Size XS: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Sizes S, M, M/L, L, XL: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
Drivetrain
Shifter: Shimano Deore M6100, 12-speed

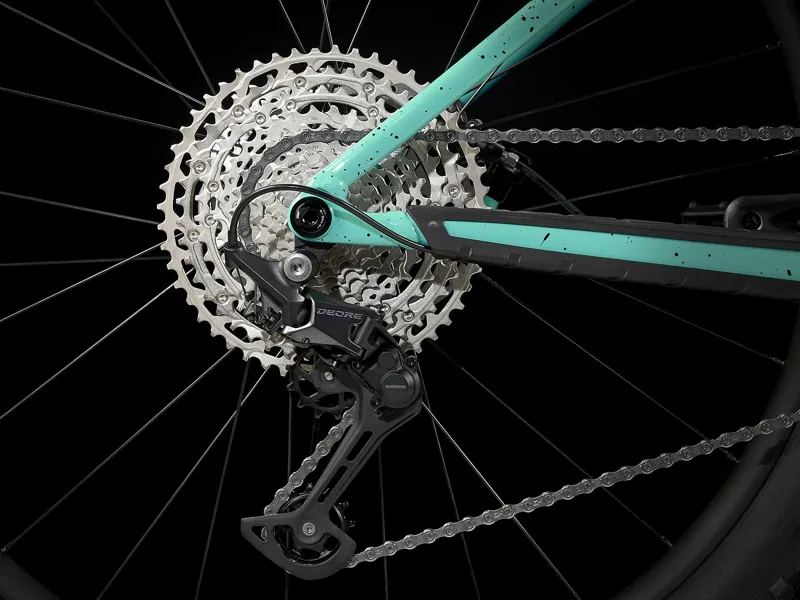

Rear derailleur: Shimano Deore M6100, long cage
Crank:
Sizes XS, S, M, M/L, L: Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length
Size XL: Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length
Bottom bracket:
Sizes XS, S, M, M/L, L, XL: Shimano SM-BB52, 73 mm, threaded external bearing
Sizes XS, S, M, M/L, L, XL: Shimano BB-MT501 BSA
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 32T (52 mm chainline), 36T (55 mm chainline)
Components
Saddle:
Sizes XS, S, M, M/L, L, XL: Bontrager Verse P3, steel rails
Sizes XS, S, M, M/L, L, XL: Bontrager Verse Short, stainless steel rails
Seatpost:
Sizes XS, S: TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size M: TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
Sizes M/L, L, XL: TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar:
Sizes XS, S: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Sizes M, M/L, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem:
Sizes XS, S: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
Sizes M, M/L, L, XL: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Head set:</str
