Please note – spec applies to all sizes unless listed separately.
Frameset

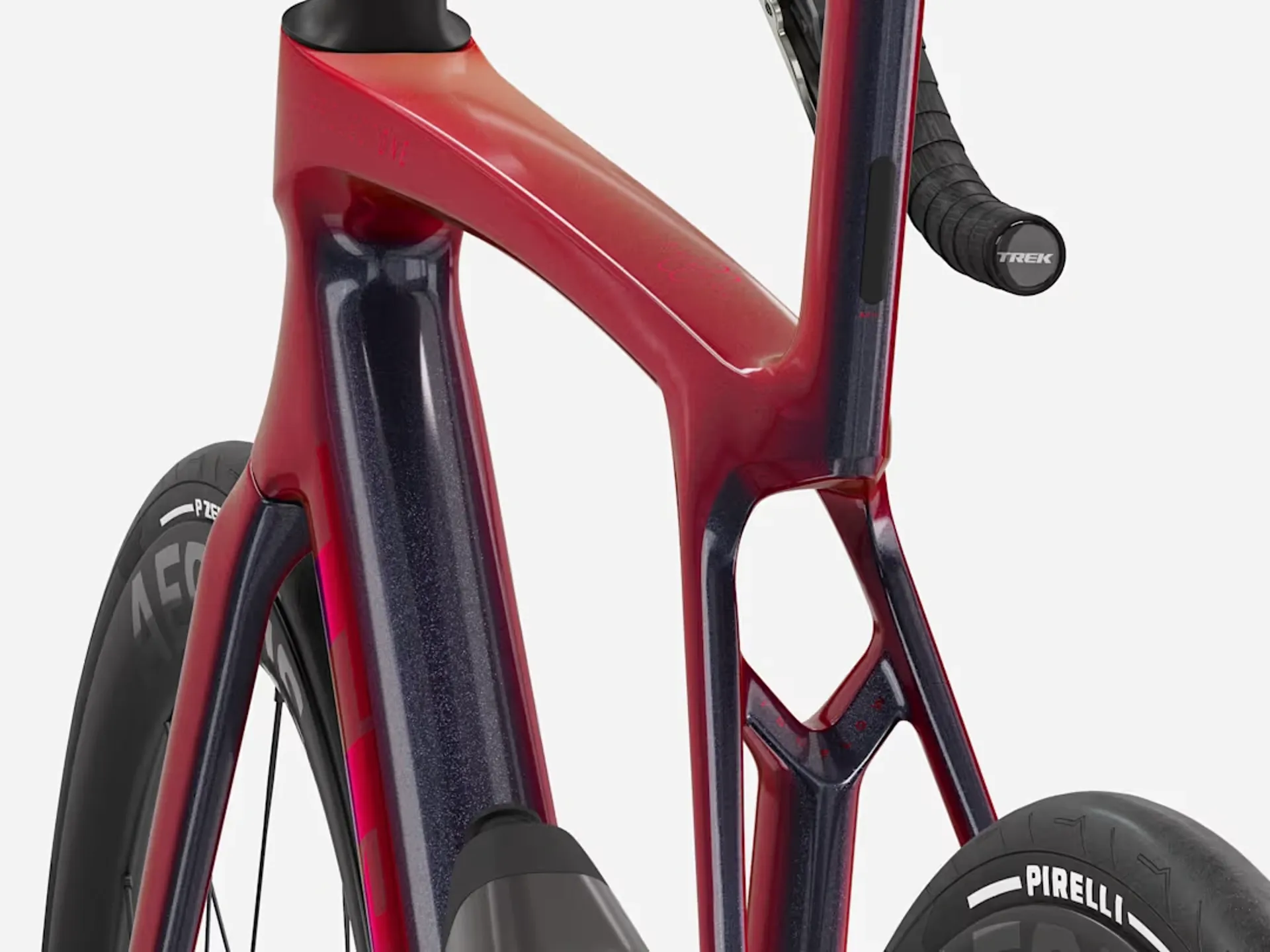

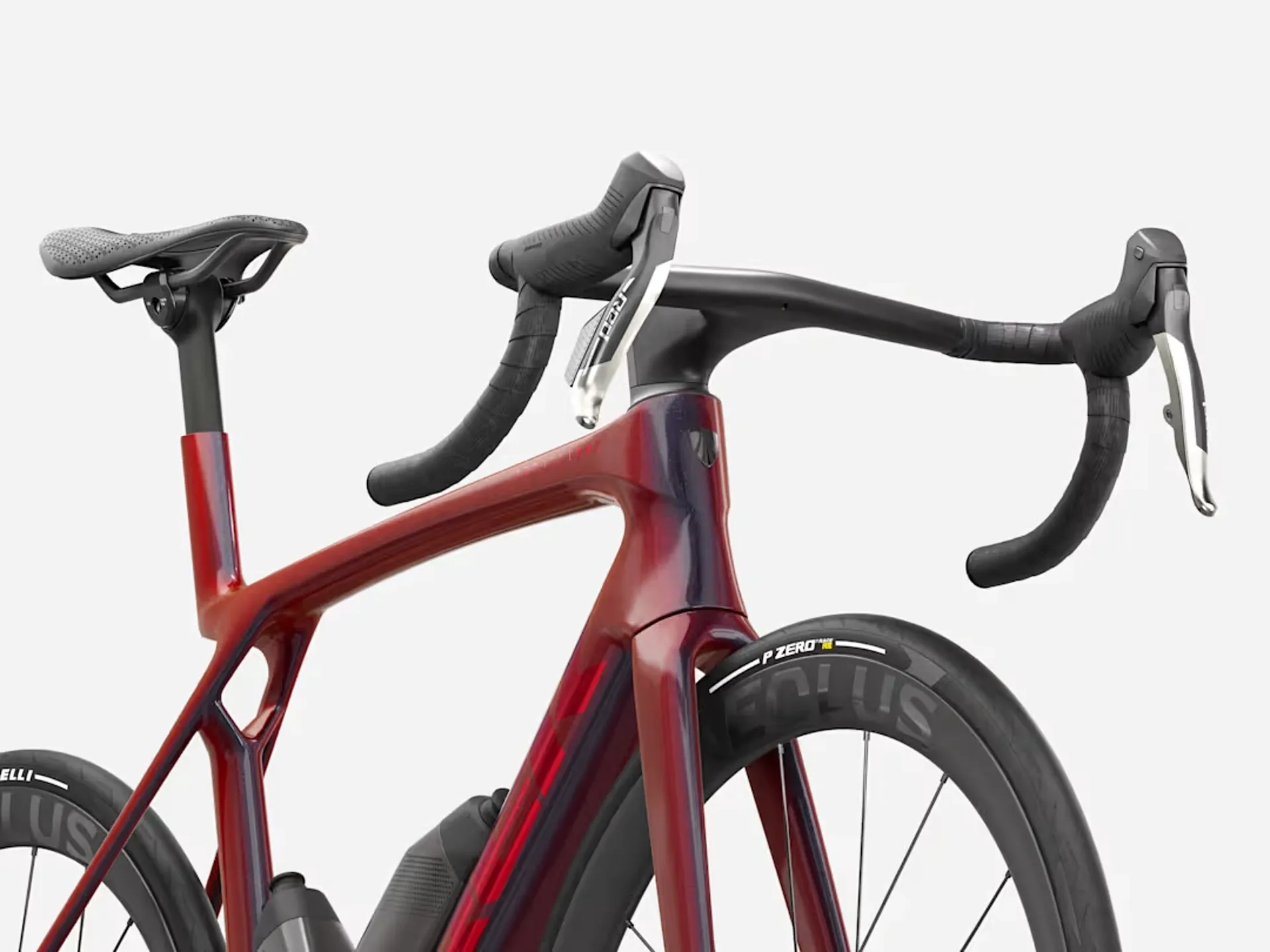

Frame with fork: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight
Weight: Size ML – 6.40 kg / 14.11 lbs
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 125 kg / 275 lb.
E-system
Battery: SRAM AXS battery pack with charger
Drivetrain and brakes

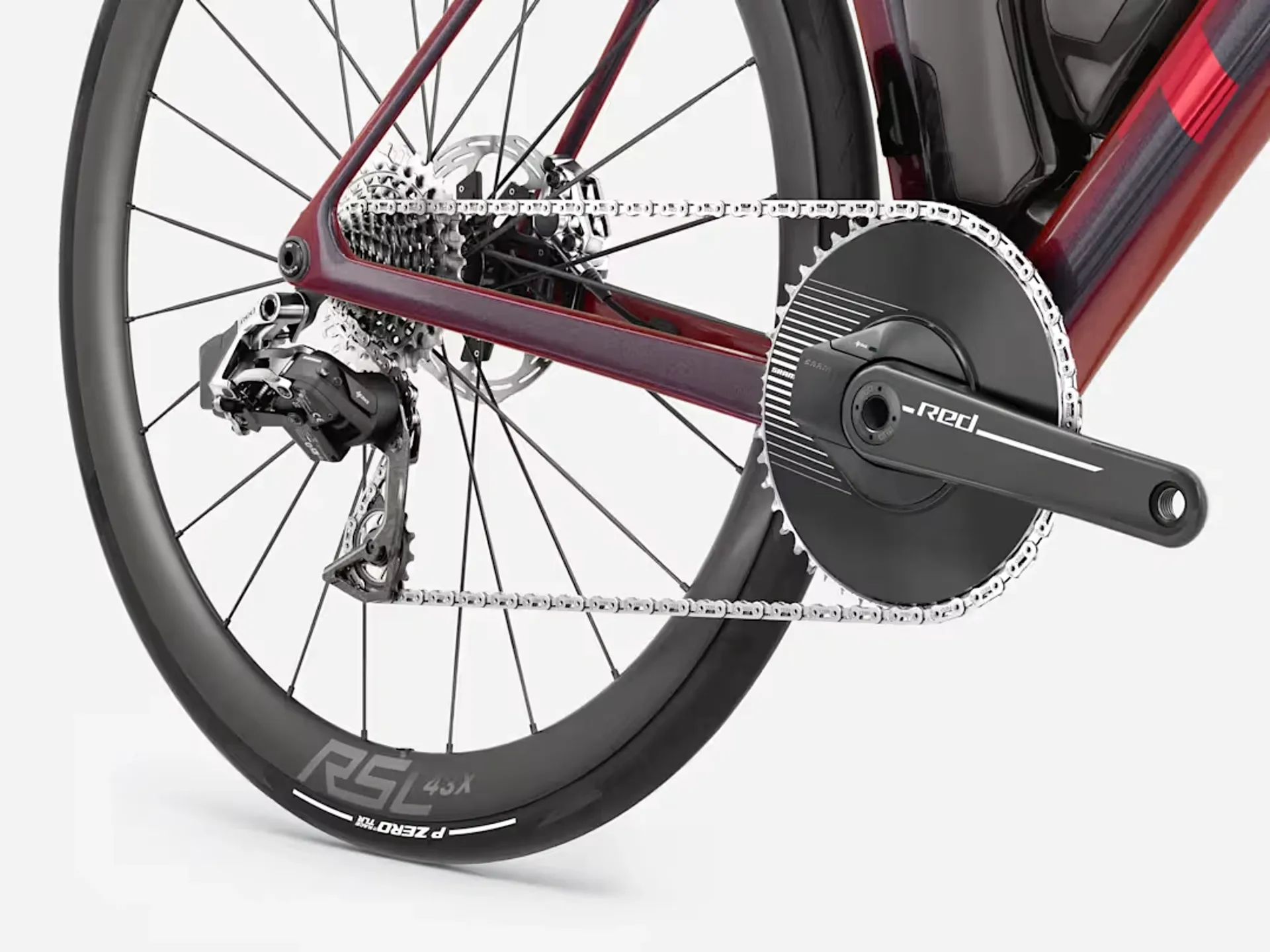

Shifter: SRAM RED AXS E1
Rear derailleur: SRAM RED AXS E1, 36T max cog
Crank: Size XS, S: SRAM Red 1 AXS E1 with power meter, 48T Aero, DUB, 160 mm length or SRAM RED E1, power meter, 48T, DUB, 165 mm length / Size M, ML: SRAM RED E1, power meter, 48T, DUB, 165 mm or 170 mm length / Size L, XL: SRAM RED E1, power meter, 48T, DUB, 170 mm or 172.5 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM RED XG-1290 E1, 10-36, 12-speed
Chain: SRAM RED E1
Maximum chainring size: 1x: 54T, 2x: 56/43
Brake: SRAM Red AXS E1 hydraulic disc, flat mount
Brake rotors: SRAM Paceline X, rounded, CentreLock, 160 mm
Maximum brake rotor size: 180 mm front, 160 mm rear
Wheels and tyres
Front wheel: Sizes XS, S, M, ML, L and XL: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle or Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 43 mm rim depth, 100x12 mm thru axle
Rear wheel: Sizes XS, S, M, ML, L and XL: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142x12 mm thru axle or Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 38 mm rim depth, 142x12 mm thru axle
Front skewer: Bontrager Switch chamfered thru axle
Rear skewer: Bontrager Switch chamfered thru axle, removable lever
Tyres: Pirelli P Zero Race RS, 120 tpi, 700x28 mm
Tubes: Pirelli P Zero SmarTube, TPU
Maximum tyre size: 32 mm, as measured; see manual for details
Cockpit

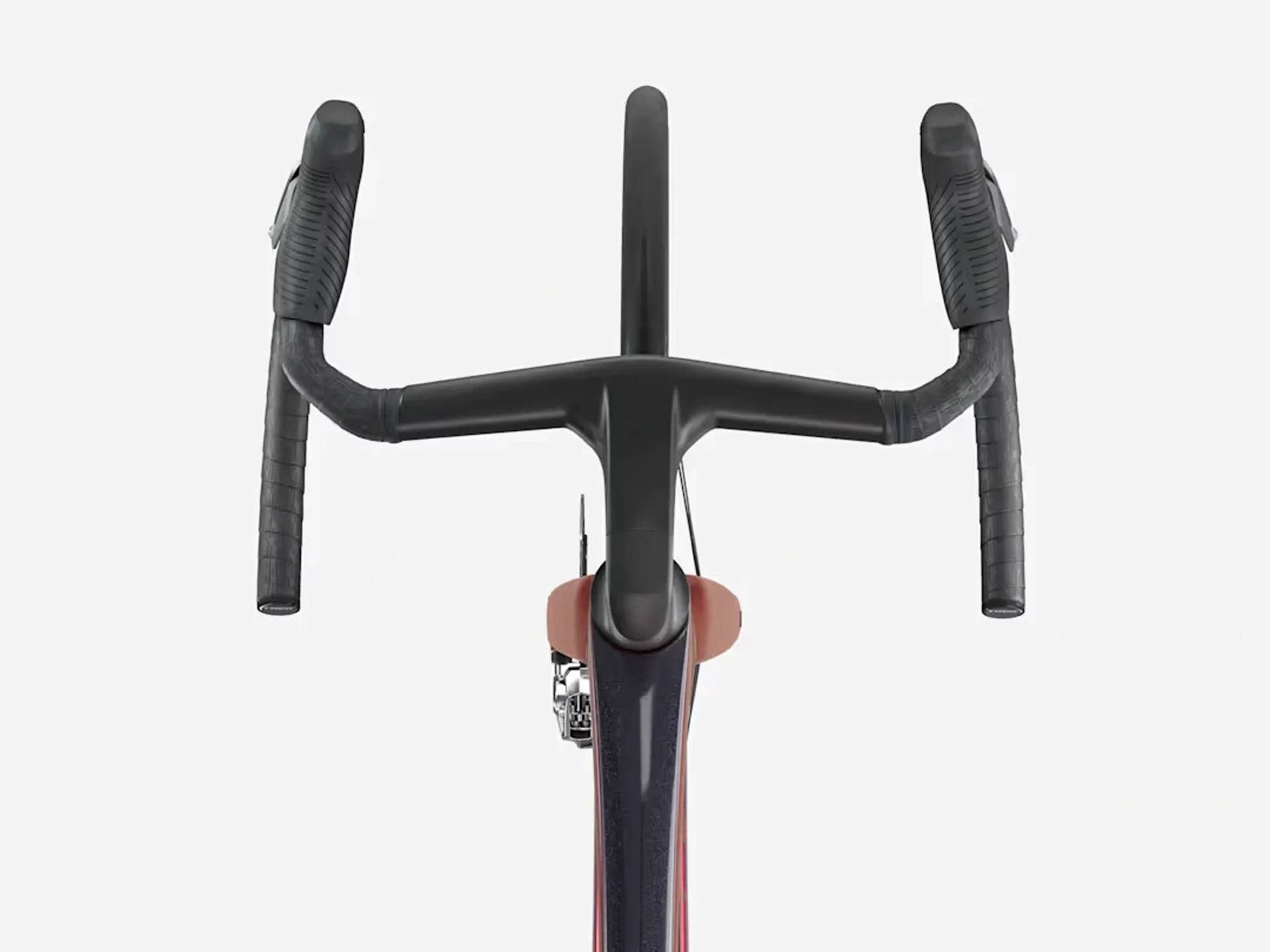

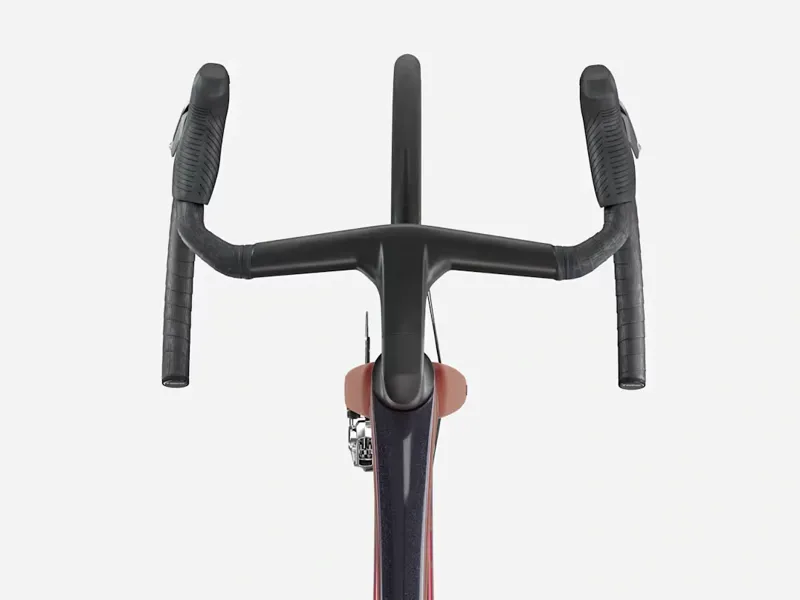

Handlebar/stem: Size XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length / Size S: 37 cm control width, 40 cm drop width, 90 mm stem length / Size M: 39 cm control width, 42 cm drop width, 90 mm stem length / Size ML, L: 39 cm control width, 42 cm drop width, 100 mm stem length / Size XL: 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape: Trek gel cork
Additional Features
Saddle: Sizes XS, S, M, ML, L and XL: Aeolus RSL, carbon rails, 145 mm width or Aeolus RSL AirLoom, carbon rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
