<p><em>*Please note – spec applies to all sizes unless listed separately</em></p>
<h2 style="color:#4587c6;">Frameset</h2>
<p>
<strong>Frame:</strong> Alpha Platinum, Removable Integrated Battery (RIB 2.0), tapered headtube, internal routing, Motor Armour, rack and mudguard mounts, ABP, Boost 148, 120 mm travel<br>
<strong>Fork:</strong> RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel<br>
<strong>Max compatible fork travel:</strong> See service manual
</p>
<hr>
<h2 style="color:#4587c6;">Wheels</h2>
<p>
<strong>Hub (front):</strong> Shimano TC500 alloy, CentreLock, 110x15 mm thru axle<br>
<strong>Hub (rear):</strong> Shimano TC500 alloy, CentreLock, 148x12 mm thru axle<br>
<strong>Skewer rear:</strong> Bontrager Switch thru-axle, removable lever<br>
<strong>Rim:</strong> Bontrager Line TLR 30, Tubeless-Ready, 28-hole (S, M, L, XL), 32-hole (S, M, L, XL), Presta valve<br>
<strong>Spokes:</strong> 14 g stainless (S, M, L, XL), black (M, L, XL)<br>
<strong>Tyre:</strong> S – Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40"<br>
M, L, XL – Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"<br>
<strong>Tyre part:</strong> Bontrager TLR sealant, 180 ml/6 oz<br>
<strong>Rim strip:</strong> Bontrager TLR<br>
<strong>Max tyre size:</strong> Frame: 29x2.50" (S: 27.5x2.50"), Fork: see manufacturer
</p>
<hr>
<h2 style="color:#4587c6;">E-system</h2>
<p>
<strong>Battery:</strong> Bosch PowerTube 600 Wh, smart system<br>
<strong>Charger:</strong> Bosch standard 2A, 230V, smart system
</p>
<hr>

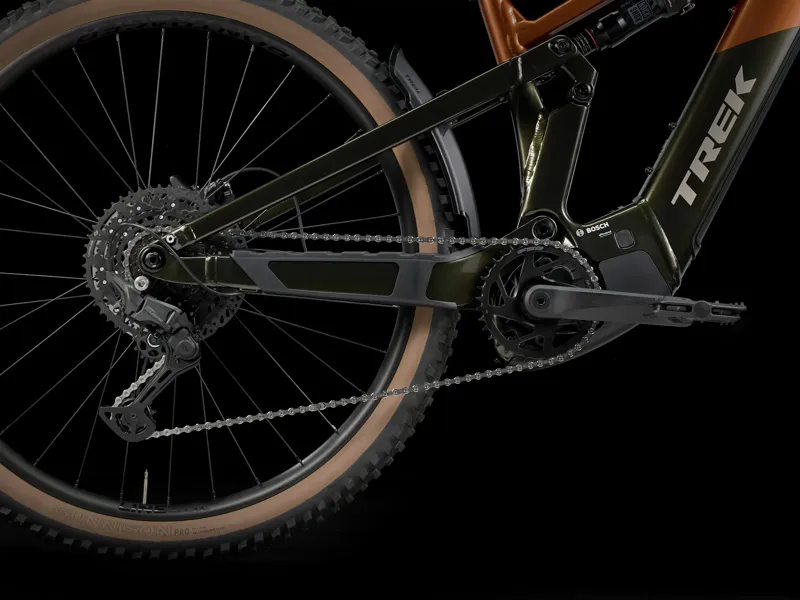

<h2 style="color:#4587c6;">Drivetrain</h2>
<p>
<strong>Shifter:</strong> Shimano U6000, 10-speed<br>
<strong>Rear derailleur:</strong> Shimano CUES U6000 GS<br>
<strong>Crank:</strong> FSA Bosch CK-220, 36T ring, 165 mm length<br>
<strong>Chainring:</strong> FSA, 36T, steel<br>
<strong>Cassette:</strong> Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed<br>
<strong>Chain:</strong> Shimano LG500, 9/10/11-speed<br>
<strong>Pedal:</strong> VP-536 nylon platform<br>
<strong>Max. chainring size:</strong> 1x: 38T
</p>
<hr>
<h2 style="color:#4587c6;">Components</h2>
<p>
<strong>Saddle:</strong> Bontrager Verse P3, steel rails<br>
<strong>Seatpost:</strong><br>
S – Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length<br>
M, L, XL – Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length<br>
<strong>Handlebar:</strong> Bontrager Comp, alloy, 31.8 mm, 40 mm rise, 780 mm width<br>
<strong>Grips:</strong> Bontrager XR Trail Comp, nylon lock-on<br>
<strong>Stem:</strong> Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length<br>
<strong>Headset:</strong> FSA IS-2, 1-1/8" top, 1.5" bottom
</p>
<hr>
<h2 style="color:#4587c6;">Brakes</h2>
<p>
<strong>Brake:</strong> Tektro Gemini SL 4 piston hydraulic brake<br>
<strong>Brake rotor:</strong> Tektro, CentreLock, 203 mm<br>
<strong>Rotor size:</strong> Max brake rotor sizes – Frame: 220 mm, min 180 mm, Fork: see fork manufacturer
</p>
<hr>
<h2 style="color:#4587c6;">Weight</h2>
<p>
<strong>Weight limit:</strong> This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
</p>
