TREK Rail+ 9.7 Gen 5 800Wh Full Suspension Electric Mountain Bike, with OCLV Mountain Carbon frame, 160mm RockShox suspension, SRAM Eagle 70 drivetrain and Shimano 4-piston brakes.
TREK Rail+ 9.7 Gen 5 800Wh Full Suspension Electric Mountain Bike, with OCLV Mountain Carbon frame, 160mm RockShox suspension, SRAM Eagle 70 drivetrain and Shimano 4-piston brakes.
Trek

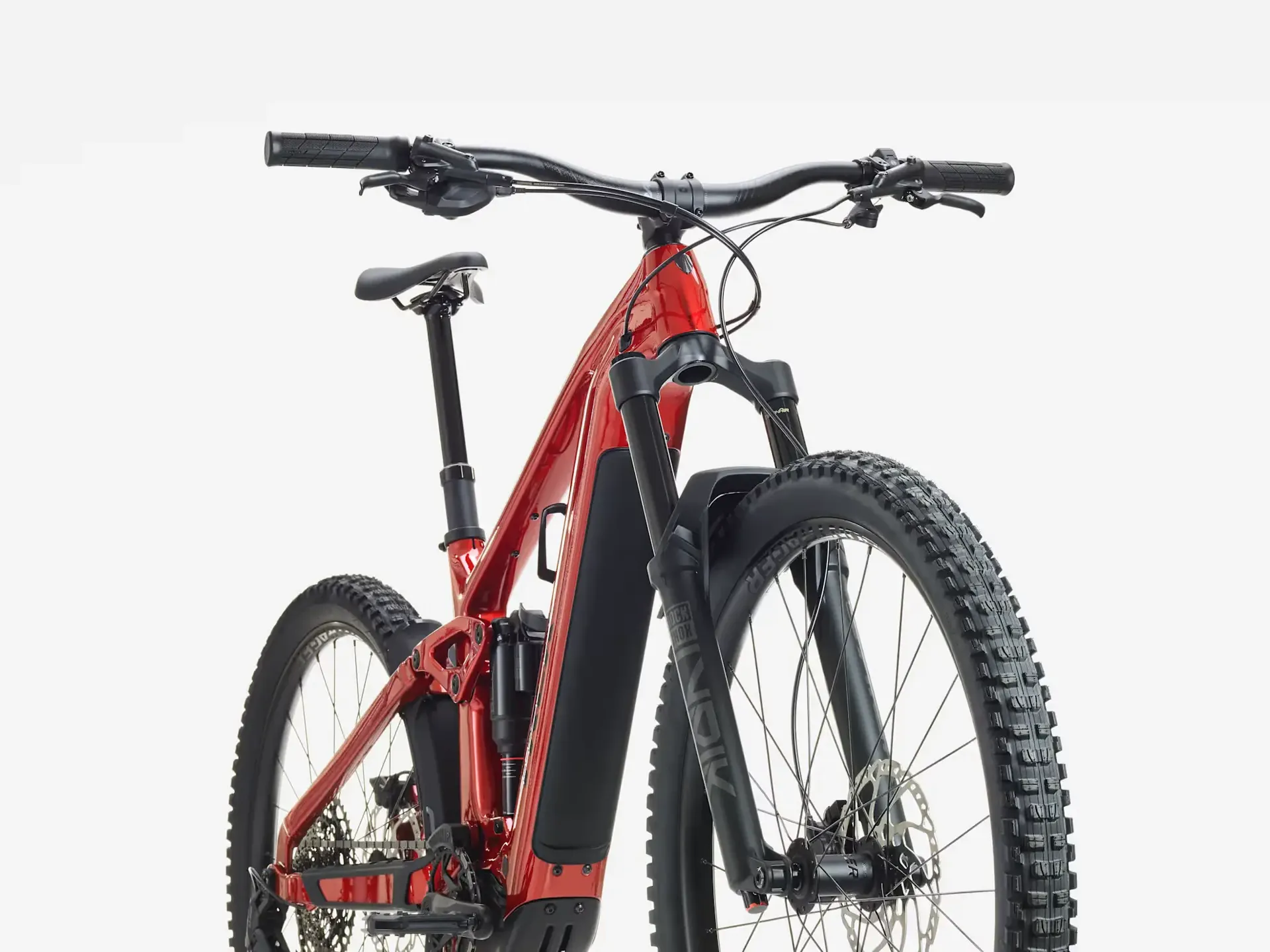

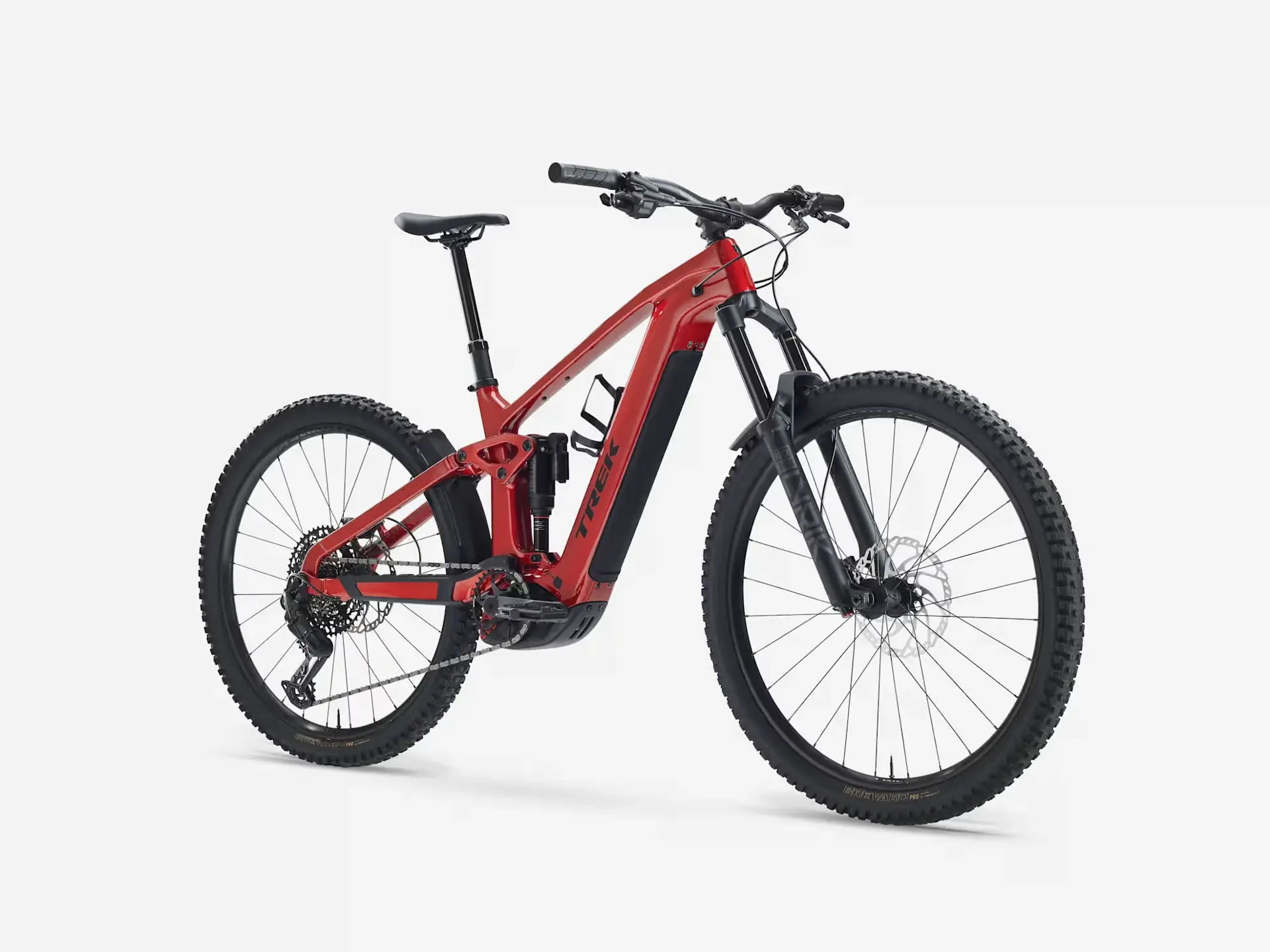

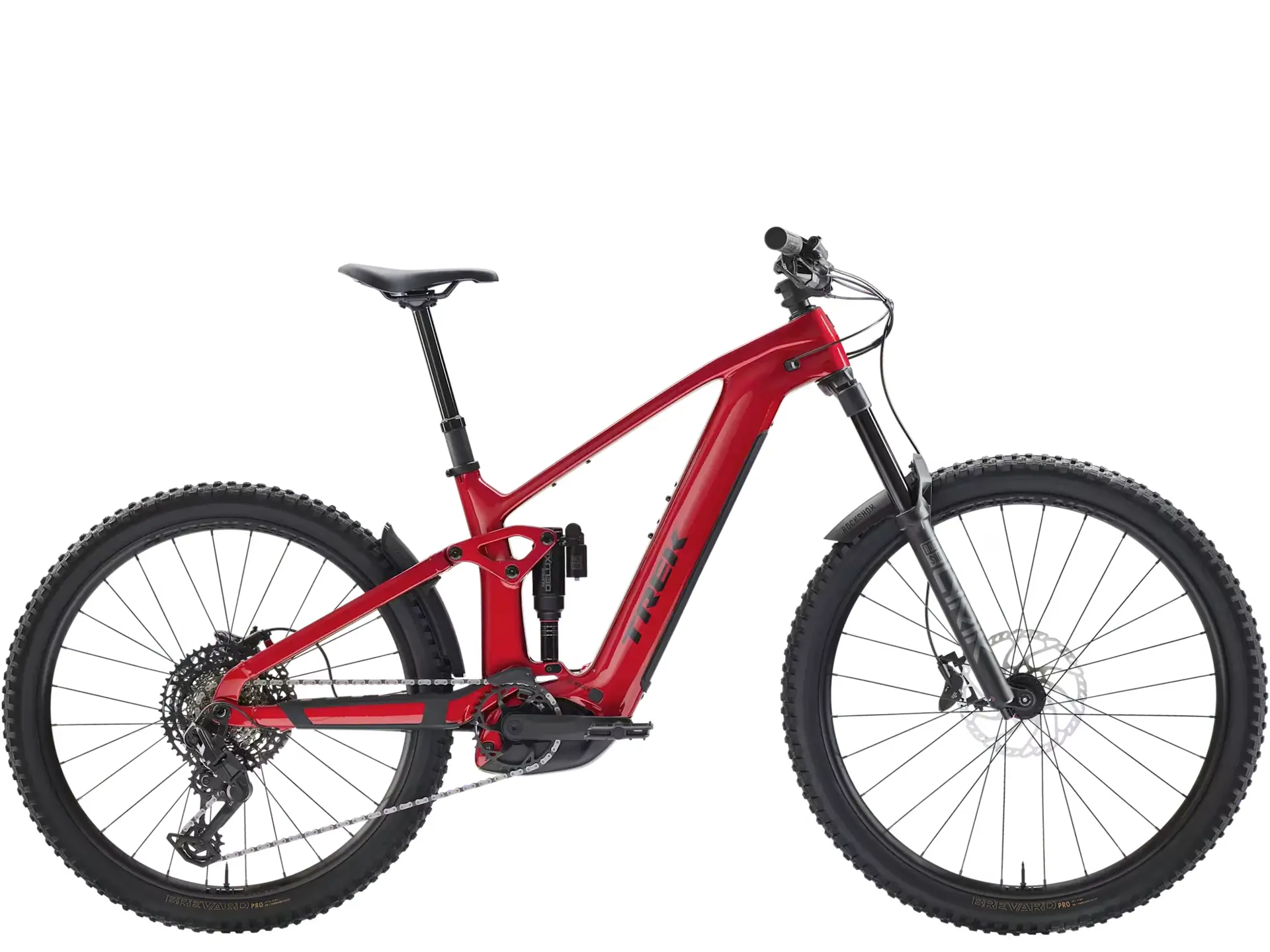

TREK Rail+ 9.7 Gen 5 800Wh Full Suspension Electric Mountain Bike in Fury Red and Dark Star

£5,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Online Returns Policy

How to Return an Item

Step 1: Complete the returns form below using the same details as you used for the original order.

Step 2: Send your return back to us using the address below. Please make sure you include a note inside the parcel with your name, email address, and order number so we can clearly identify your return.

Step 3: Once your return has been received, we will process it in line with our returns terms within 3-5 business days.

Returns Information

If you are not happy with any items purchased via our website, under Consumer Contracts Regulations you have the right to return any unused products for a refund within 30 days.

When the customer sends an item back to the company (or, when the company arranges for collecting from the customer), the company will process the returned item then notify the customer via email of the refund. The refund will be issued within 3 - 5 working days of the product being received by us, it may then take an additional 3 - 5 working days for the refund to be paid into the customers account.

Customers are responsible for arranging and paying for their own return postage. If you’d like to return an item within the standard 30-day period and it’s in a suitable condition for resale, please make sure your parcel is sent securely and includes your order details inside so we can identify your return quickly.


Please Note:

i) Returns will only be accepted if they arrive back to us in original new condition, with all original packaging and tags still attached.

ii) Any item with a factory seal, including but not limited to electronics such as GPS computers, watches, and similar products, must have that seal fully intact to be eligible for return; if the factory seal has been broken, the item will not qualify for a refund.

iii) We do not offer exchanges.


Return Address

Team Cycles LTD
Studio 11B
Second Avenue
Team Valley Trading Estate
Gateshead
NE11 0NF

For items returned within the cooling off period...

By law, customers have the right to withdraw from the purchase of an item within 14 working days of the date on which the item is delivered.

Where you are withdrawing from your purchase within the cooling-off period, and there has been no error on our part, we will refund the cost of the item.

The company will not refund the cost of delivery or other services provided to the customer in connection with the purchase.

The cost of delivery back to the company is the responsibility of the customer.

Where we collect an item from you, we reserve the right to recover the costs of collection from you.

TERMS AND CONDITIONS

Returned goods should be unused, in a saleable condition and in their original packaging with all labels still attached. Team Cycles is entitled to refuse the return or deduct from a refund as a result of the product not being in the above condition.

We are only able to exchange like for like products. If you require a different item, you will need to opt for a refund and place a new order. All returns must have a completed returns form.

We will refund you to your original payment method.

Customised items cannot be returned. *

Please do not send your purchase back to the manufacturer unless you have been advised to.

Team Cycles customers have 30 days from date of delivery to return their orders.

Once we have received the returned goods we will refund you, by the method you used to pay for your order. This may take 5-7 working days to appear as cleared funds.

*Faulty customised goods (or goods that have been altered in any way) will need to be returned for inspection as customisation may void your warranty and therefore faults may not be covered.

WARRANTY

All products ordered from Team Cycles come with a full warranty which covers manufacturing faults and defects in workmanship. If you feel that your purchase has developed a fault, please contact our store for an assessment. To do this you will need proof of purchase.

If taking your product in store is not an option then please email our team on [email protected]. Please include photographs of your product (please keep below 20mb), your web order number (or copy of receipt) so we can immediately start to assess the issue.

PLEASE NOTE:

In some cases, the manufacturer/supplier may require to see the item(s) before repair or replacement can take place. If this is the case, we will inform you and arrange how to do this. All used items being returned to us must be cleaned for hygiene purposes.

On receipt of your goods we will carry out a full inspection and contact you within three working days of receipt.

Finance

Team Cycles (North East) Limited acts as a broker and not the lender and offers finance from Secure Trust Bank PLC T/A V12 Retail Finance. Team Cycles (North East) Limited is authorised and regulated by the Financial Conduct Authority, Registration Number 623982. Not all products offered by Secure Trust Bank T/A V12 Retail Finance are regulated by the FCA. Subject to age, status and affordability, minimum spend applies.

TREK Rail+ 9.7 Gen 5 800Wh Full Suspension Electric Mountain Bike in Fury Red and Dark Star

Season:2027

Brand:Trek

Code:79287RED

The TREK Rail+ 9.7 Gen 5 800Wh Full Suspension Electric Mountain Bike is a carbon enduro e-MTB designed for big adventures and demanding terrain. With an OCLV Mountain Carbon frame, alloy chainstay and seatstay, 160mm front and rear travel, RockShox suspension, SRAM Eagle 70 12-speed shifting, Shimano MT620 4-piston brakes and Bontrager Line components, it is ready for steep climbs, rough descents and proper mountain bike days.

Key Features

  • OCLV Mountain Carbon frame – Rugged carbon frame built for enduro e-MTB riding
  • Alloy chainstay and seatstay – Adds strength and durability where it matters
  • 800Wh battery – Large capacity for bigger rides and longer trail adventures
  • 160mm front and rear travel – Built for rough trails, rowdy lines and technical terrain
  • RockShox Lyrik fork – Capable front suspension for hard-hitting riding
  • RockShox Super Deluxe Select+ RT shock – Rear suspension control for demanding trails
  • SRAM Eagle 70 drivetrain – Reliable 12-speed shifting you can count on
  • Shimano MT620 4-piston brakes – Powerful braking for steep descents and e-MTB speeds
  • Bontrager Line dropper post – Quick saddle adjustment for climbs and descents
  • Bontrager Line TLR wheels – Tubeless-ready wheels for trail-ready performance
  • Carbon enduro e-MTB platform – Built for big rides, rough terrain and confident control

The Rail+ 9.7 is made for riders who want a serious carbon e-MTB that can take on big terrain without flinching. With long-travel suspension, a large 800Wh battery and dependable trail-ready parts, it is ready for everything from all-day adventures to steep, technical descents.

Technical Information

Please note – spec applies to all sizes unless listed separately.


Frameset

Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost 148, 12 mm thru axle, 160 mm travel
Fork: RockShox Lyrik, Delta RC, DebonAir+, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
Shock: RockShox Super Deluxe, Linear XL, 205x65 mm


E-system

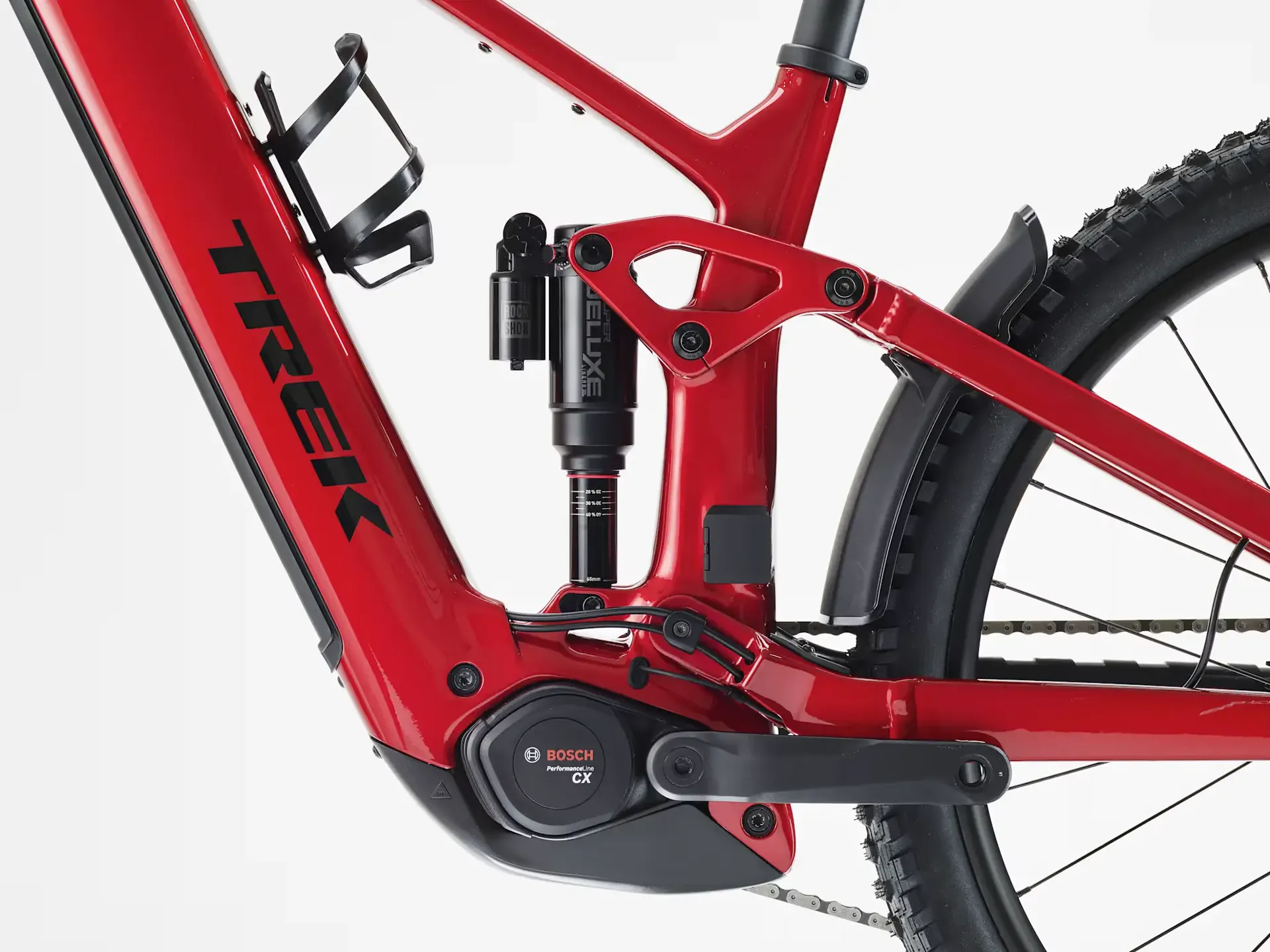

Motor: Bosch Performance Line CX, Europe and APAC: 25 km/h / US and ROW: 20 mph / 32 km/h
Battery: Bosch PowerTube 800 Wh, Smart System
Charger: Bosch standard 4A, 230V, Smart System

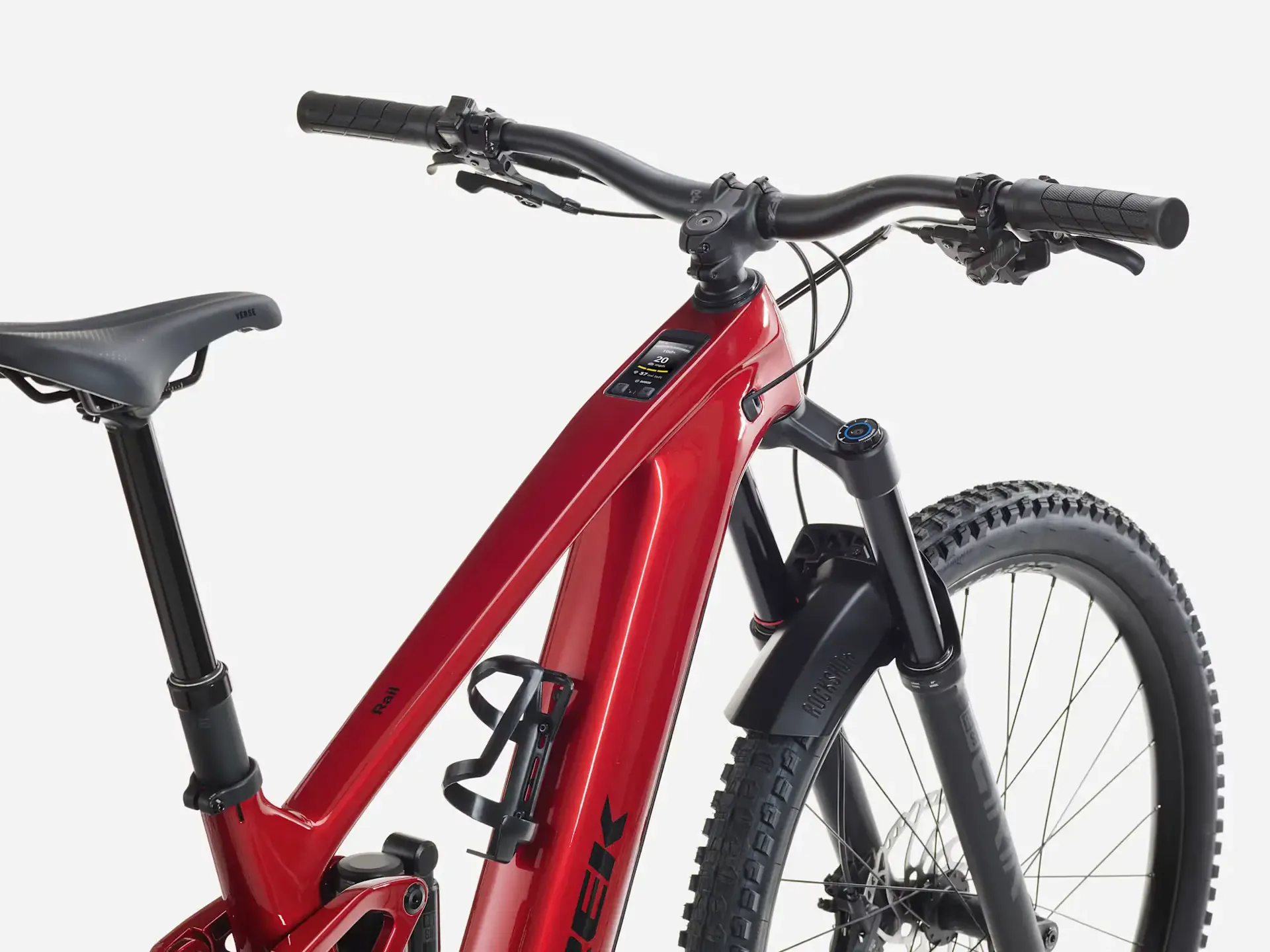

Controller: Bosch Kiox 400C, Mini Remote
Maximum assist speed: 15.5 mph


Drivetrain and brakes

Shifter: SRAM Eagle 70, 12-speed
Rear derailleur: SRAM Eagle 70, T-Type
Crank: FSA alloy, 160 mm length
Chainring: SRAM T-Type, 34T, steel
Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Chain: SRAM Eagle 70, T-Type, 12-speed
Pedals: VP-536 nylon platform
Maximum chainring size: 1x: 36T
Brakes: Shimano MT620 hydraulic disc
Brake rotors: Shimano RT66, 6-bolt, 203 mm
Maximum brake rotor size: Frame: 220 mm / Fork: see fork manufacturer


Wheels and tyres

Front hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost 110, 15 mm thru axle
Rear hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost 148, 12 mm thru axle
Rim: Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Spokes: 14 g stainless steel, black
Tyres: Sizes S, M, L and XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" / Sizes M, L and XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Maximum tyre size: Frame: 27.5x2.60" / Fork: see manufacturer


Cockpit

Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
Grips: Trek Line Elite, lock-on
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length


Additional Features

Saddle: Bontrager Verse P3, steel rails
Seatpost: Size S: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length / Size M: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length / Sizes L and XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length


Weight

Weight: Size M – 23.88 kg / 52.65 lb, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lb.


We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.

Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.

Sizing Information
SizeRider Height (in)Inseam (in)
S61" – 65"29" – 31"
M65" – 70"31" – 33"
L70" – 74"33" – 35"
XL74" – 77"35" – 36"
