Frame
Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, down tube guard, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork
RockShox Yari RC, DebonAir spring, Motion Control RC damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel

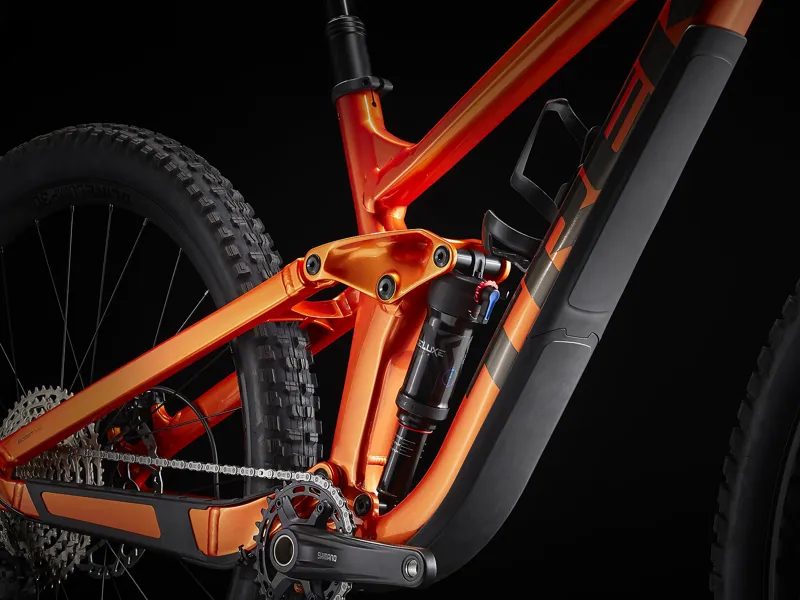

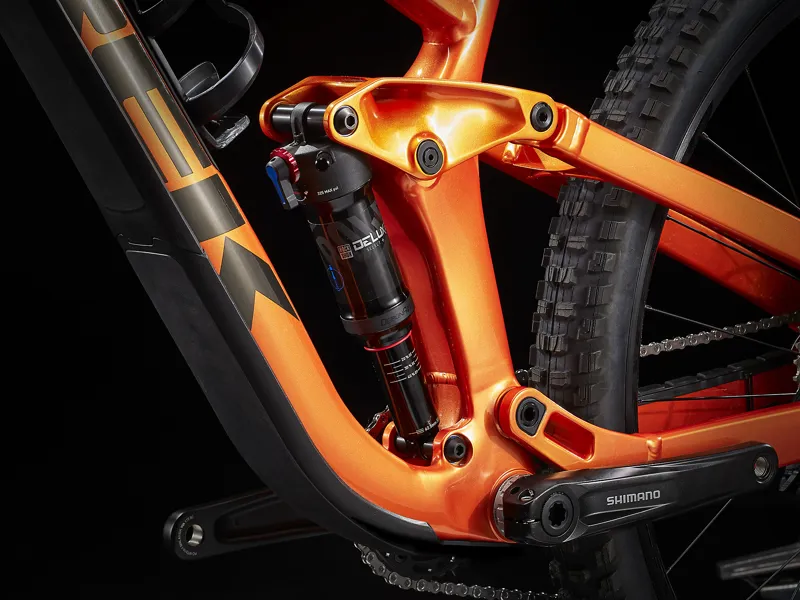

Shock
RockShox Deluxe Select+, DebonAir spring, Select+ RL damper, 230x62.5 mm
Max compatible fork travel
180mm (596mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50" Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket
Shimano SM-BB52, 73 mm, threaded external bearing
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Max. chainring size
Max: 34T, Min 28T
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size:M , ML
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size:L , XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 35 mm length
Head set
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

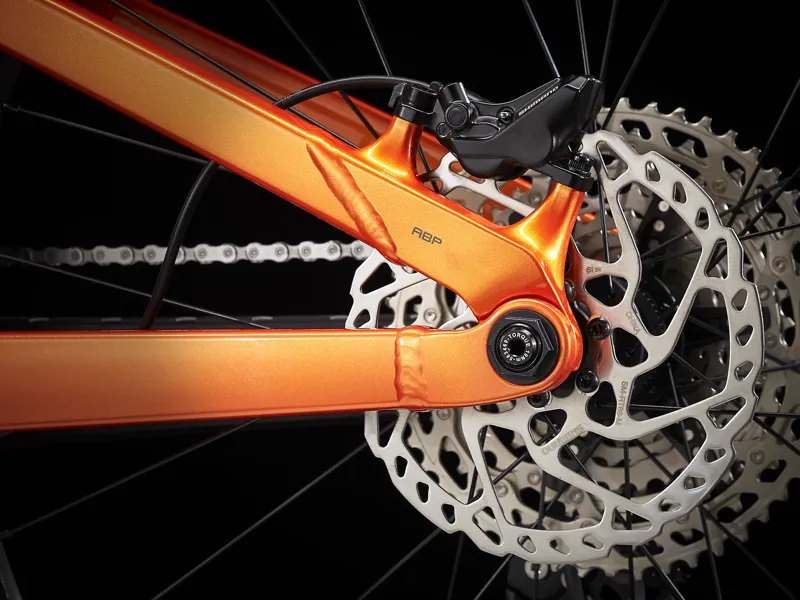

Brake
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor
Size: S , M , ML , L , XL
Shimano RT66, 6-bolt, 180 mm
Size:S , M , ML , L , XL
Shimano RT66, 6-bolt, 203 mm
Bag
Bontrager BITS Internal Frame Storage Bag
Weight
15.10 kg / 33.29 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
