Frameset

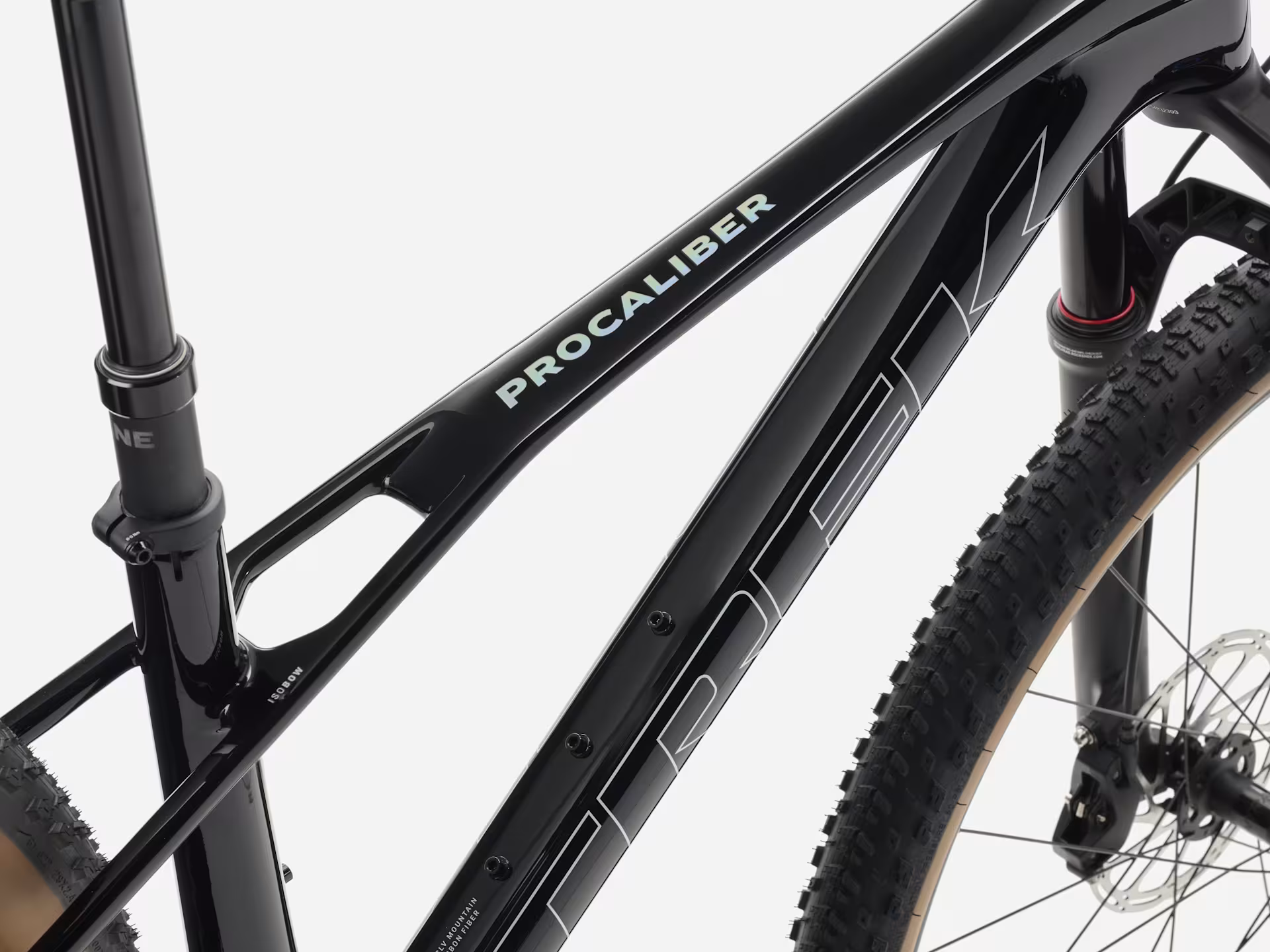

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork: RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Suspension part: Bontrager Drop Lock remote
Max compatible fork travel: 120 mm
Wheels
Wheel front: Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Skewer rear: Bontrager Switch thru axle, removable lever
Tyre: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
Tyre part: Bontrager TLR sealant, 180 ml / 6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.40", Fork: See manufacturer

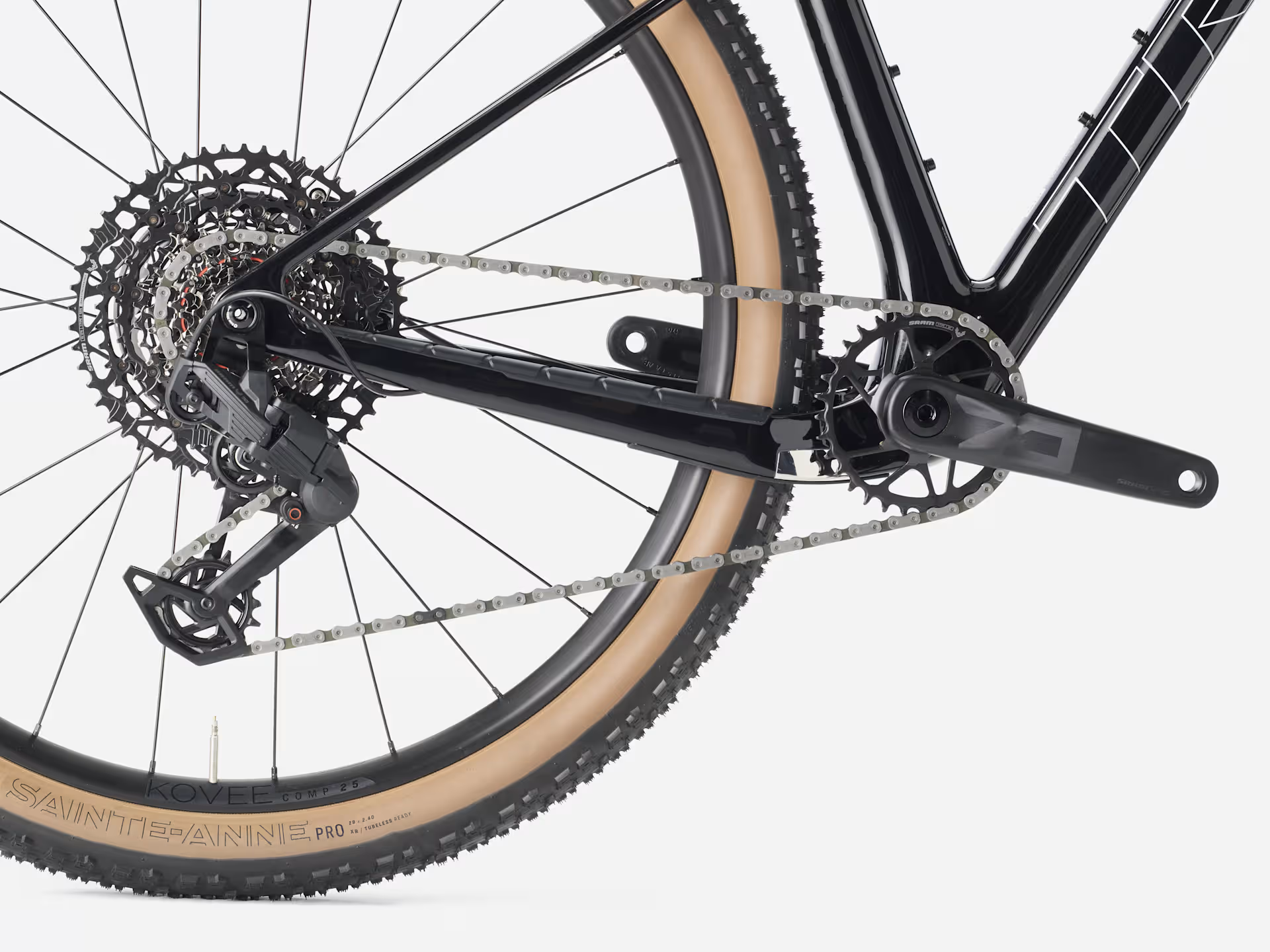

Drivetrain
Shifter: SRAM Eagle 70, 12-speed
Rear derailleur: SRAM Eagle 70, T-Type
Crank:
- Sizes S, M, ML: SRAM Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length
- Sizes L, XL: SRAM Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 175 mm length
Bottom bracket: SRAM DUB, 92 mm, PressFit
Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Chain: SRAM Eagle 70, T-Type, 12-speed
Max. chainring size: 1x: 38T
Components
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost:
- Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
- Sizes M, ML, L: Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
- Size XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Handlebar:
- Size S: Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
- Sizes M, ML, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
- Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
- Sizes M, ML: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
- Size L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
- Size XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Head set: FSA IS-2, 1-1/8" top, 1.5" bottom
Brakes
Brake rotor: SRAM CenterLine, 6-bolt, round-edge, 160 mm
Rotor size: Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer
Accessories
Tool: Bontrager Switch Lever w/tool
Weight
Weight limit: 136 kg (300 lb) combined rider + bike + cargo
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
