Please note – spec applies to all sizes unless listed separately.
Frameset

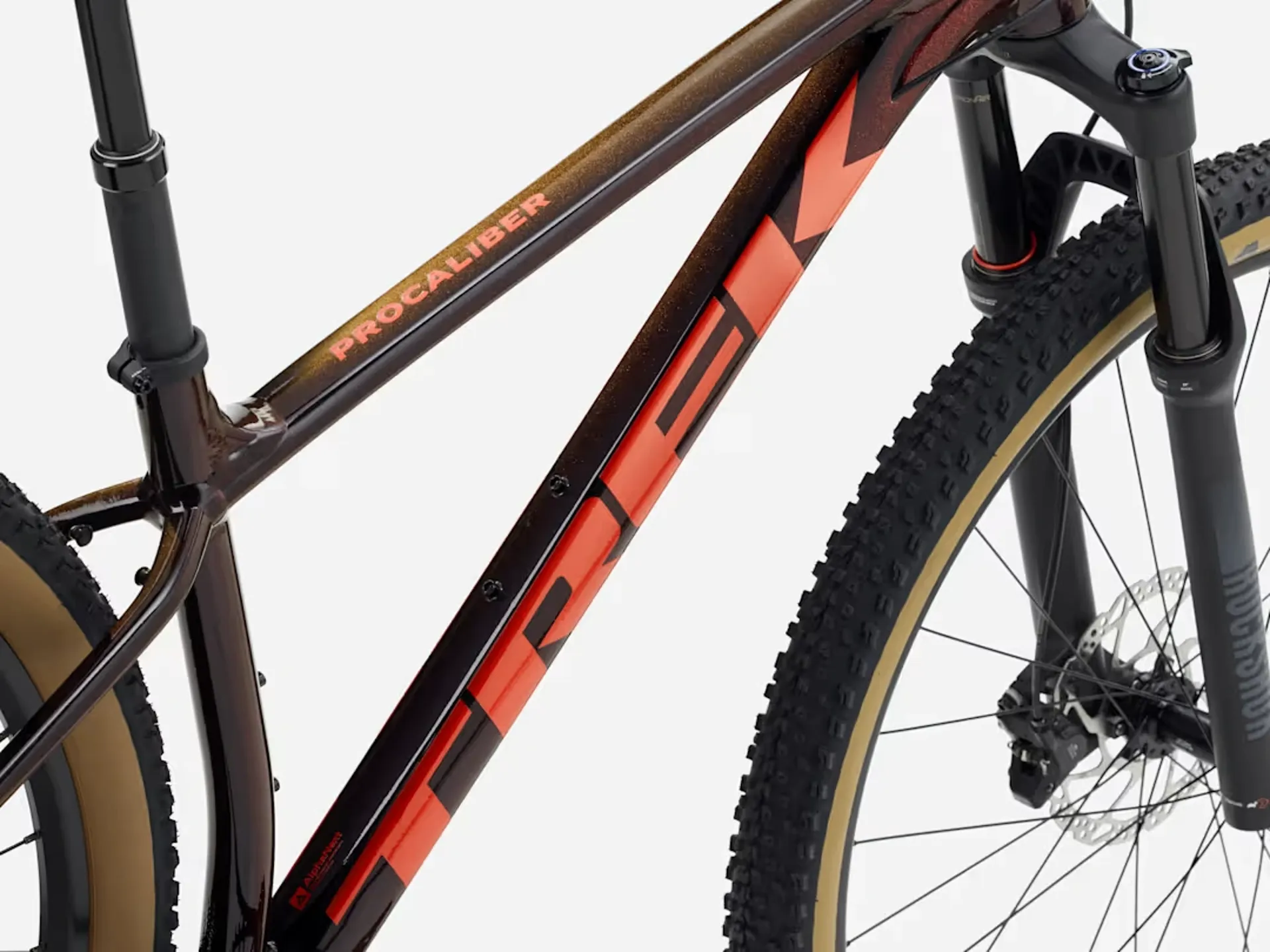

Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle
Fork: RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels and tyres
Front hub: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear hub: Shimano TC500-HG
Rear skewer: Bontrager Switch thru axle, removable lever
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyres: Maxxis Rekon Race, Tubeless Ready, EXO casing, folding bead, 60 tpi, 29x2.40"
Tyre sealant: Bontrager TLR sealant, 180 ml / 6 oz
Rim strip: Bontrager TLR
Maximum tyre size: Frame: 29x2.40" / Fork: see manufacturer

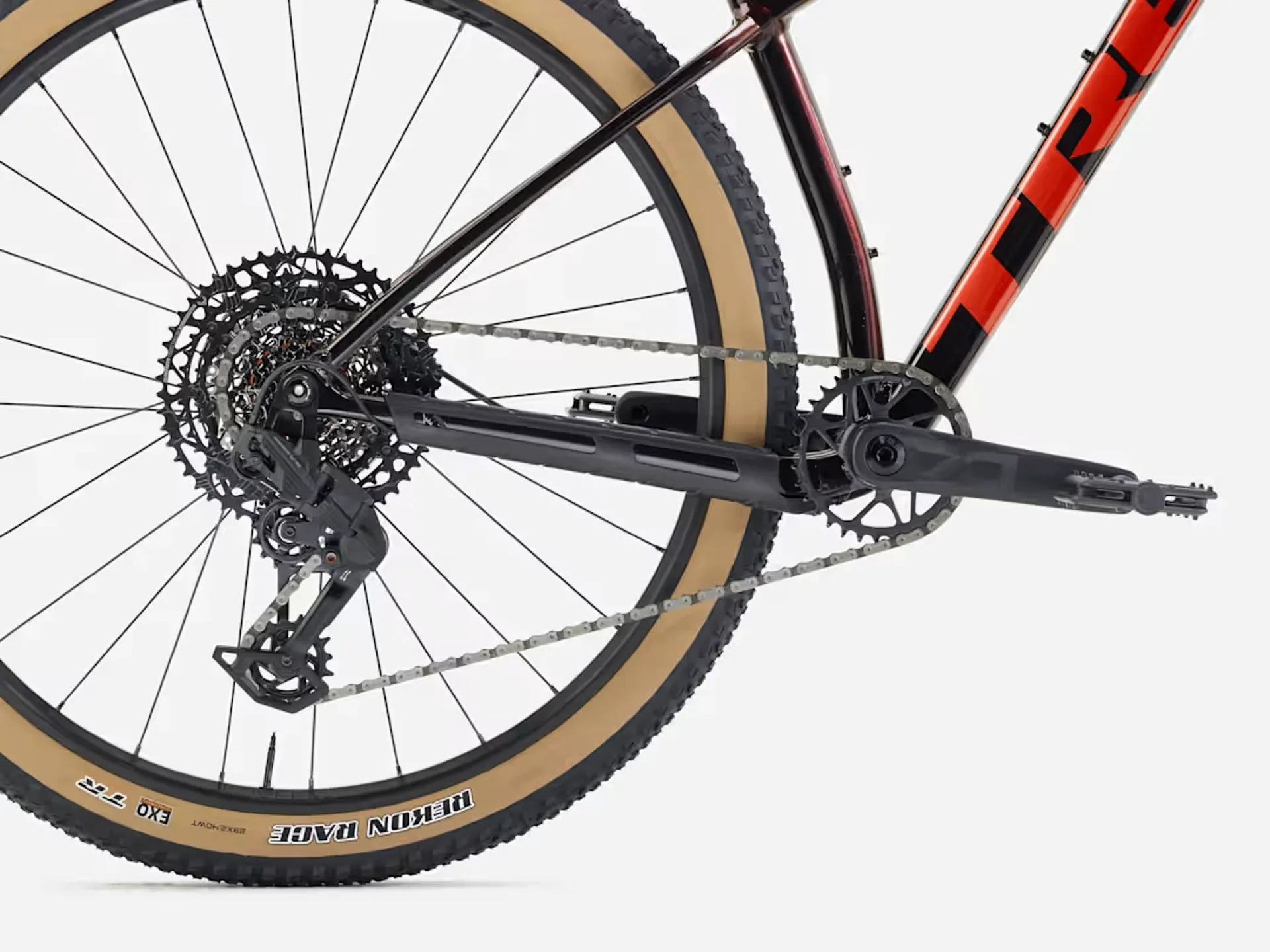

Drivetrain and brakes
Shifter: Sizes S, M, ML, L and XL: SRAM Eagle 70, 12-speed
Rear derailleur: SRAM Eagle 70, T-Type
Crank: SRAM Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length
Bottom bracket: SRAM DUB MTB Wide, 73 mm, BSA threaded
Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Chain: SRAM Eagle 70, T-Type, 12-speed
Pedals: VP-536 nylon platform
Maximum chainring size: See service manual
Brakes: Shimano hydraulic disc, MT4100 lever, MT410 calliper
Brake rotors: Sizes S, M, ML, L and XL: Shimano RT54, CenterLock, 160 mm or 180 mm
Maximum brake rotor size: Frame: 180 mm / Fork: see fork manufacturer

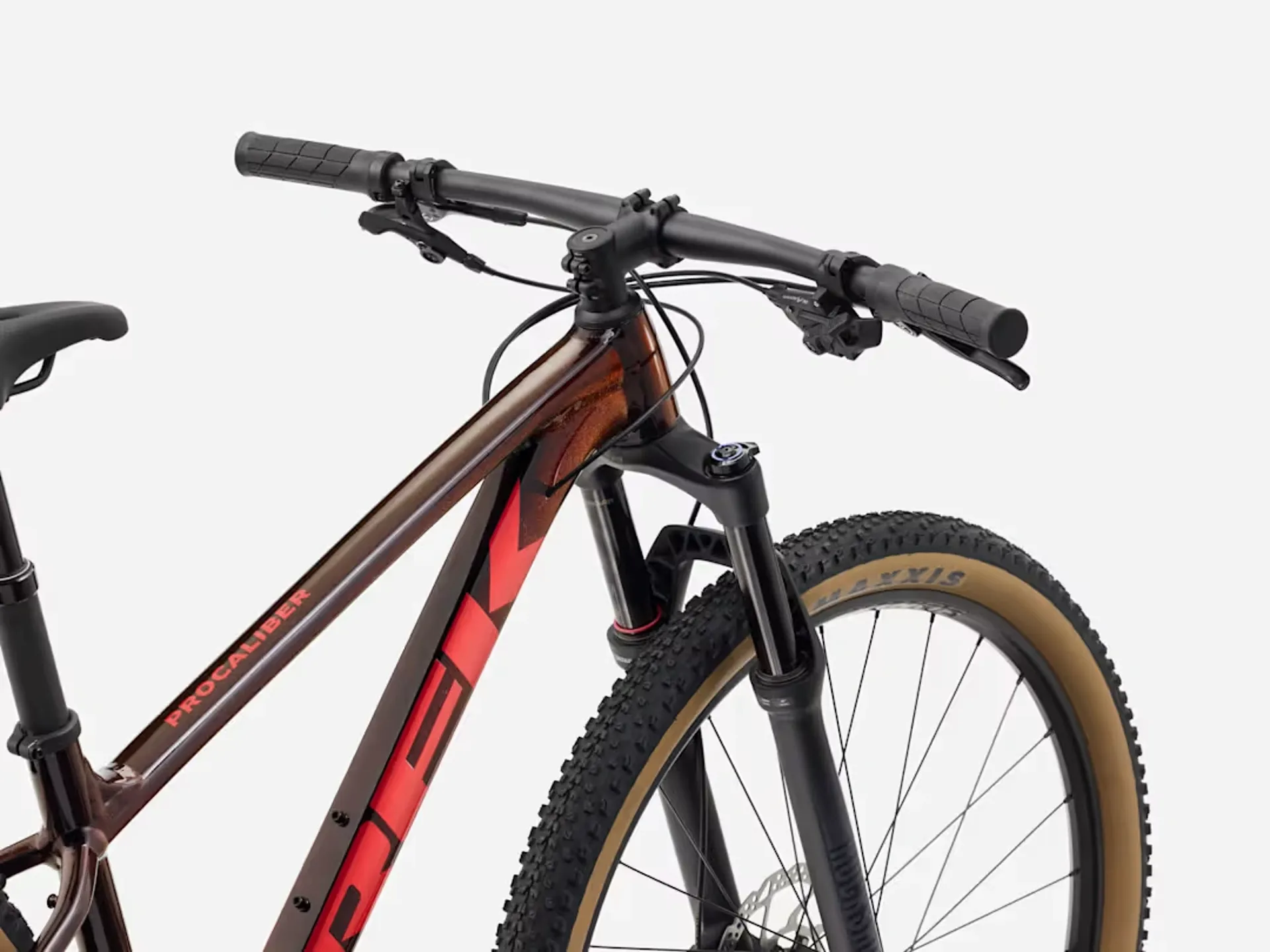

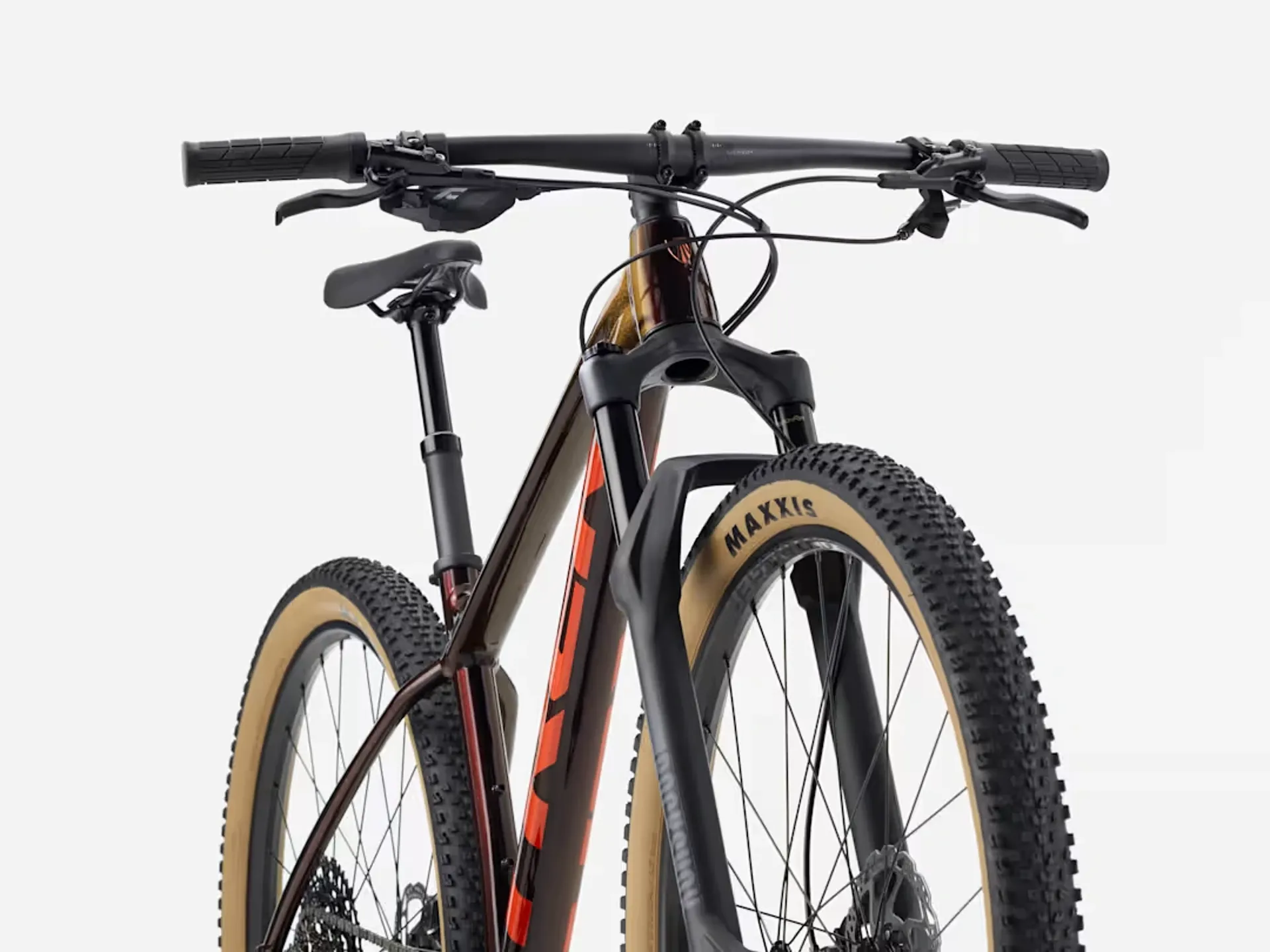

Cockpit
Handlebar: Size S, M: Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width / Size ML, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Sizes S, M, ML, L and XL: Trek Line Comp, nylon lock-on
Stem: Size S: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length / Size M, ML: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 60 mm length / Size L: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 70 mm length / Size XL: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Headset: Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Additional Features
Saddle: Verse Short, chromoly rails, 145 mm width
Seatpost: Size S, M: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length / Size ML, L: Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length / Size XL: Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length or Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
Weight
Weight: Size M – 13.73 kg / 30.27 lbs, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lbs.
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
