Please note – spec applies to all sizes unless listed separately.
Frameset

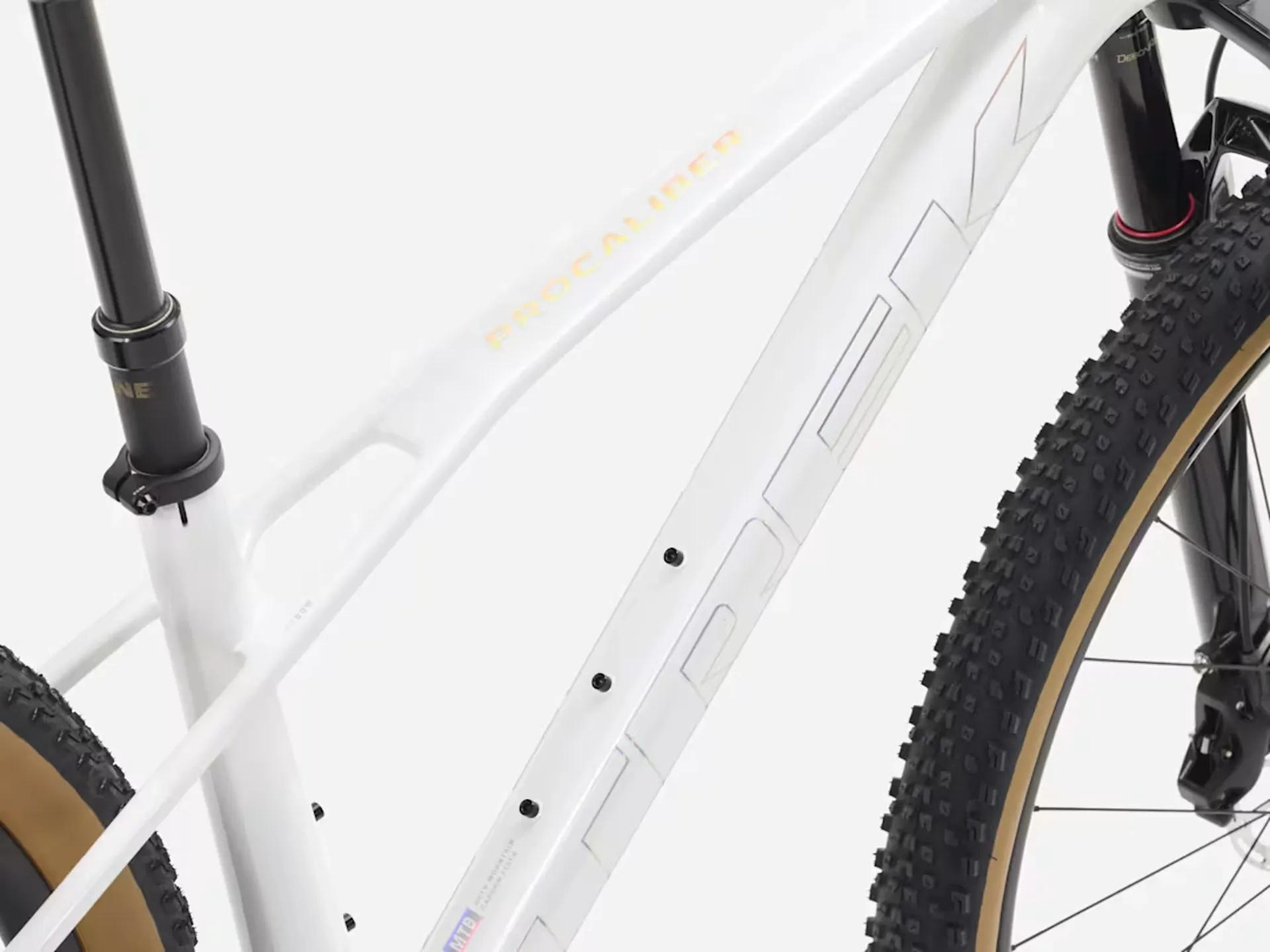

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, guided internal routing, rack and accessory mounts, balanced post mount brake, UDH, Boost148
Fork: RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels and tyres
Front wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Rear wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
Tyres: Maxxis Rekon Race, Tubeless Ready, EXO casing, folding bead, 60 tpi, 29x2.40"
Rim strip: Bontrager TLR
Maximum tyre size: Frame: 29x2.40" / Fork: see manufacturer
E-system
Battery: SRAM AXS battery pack with charger

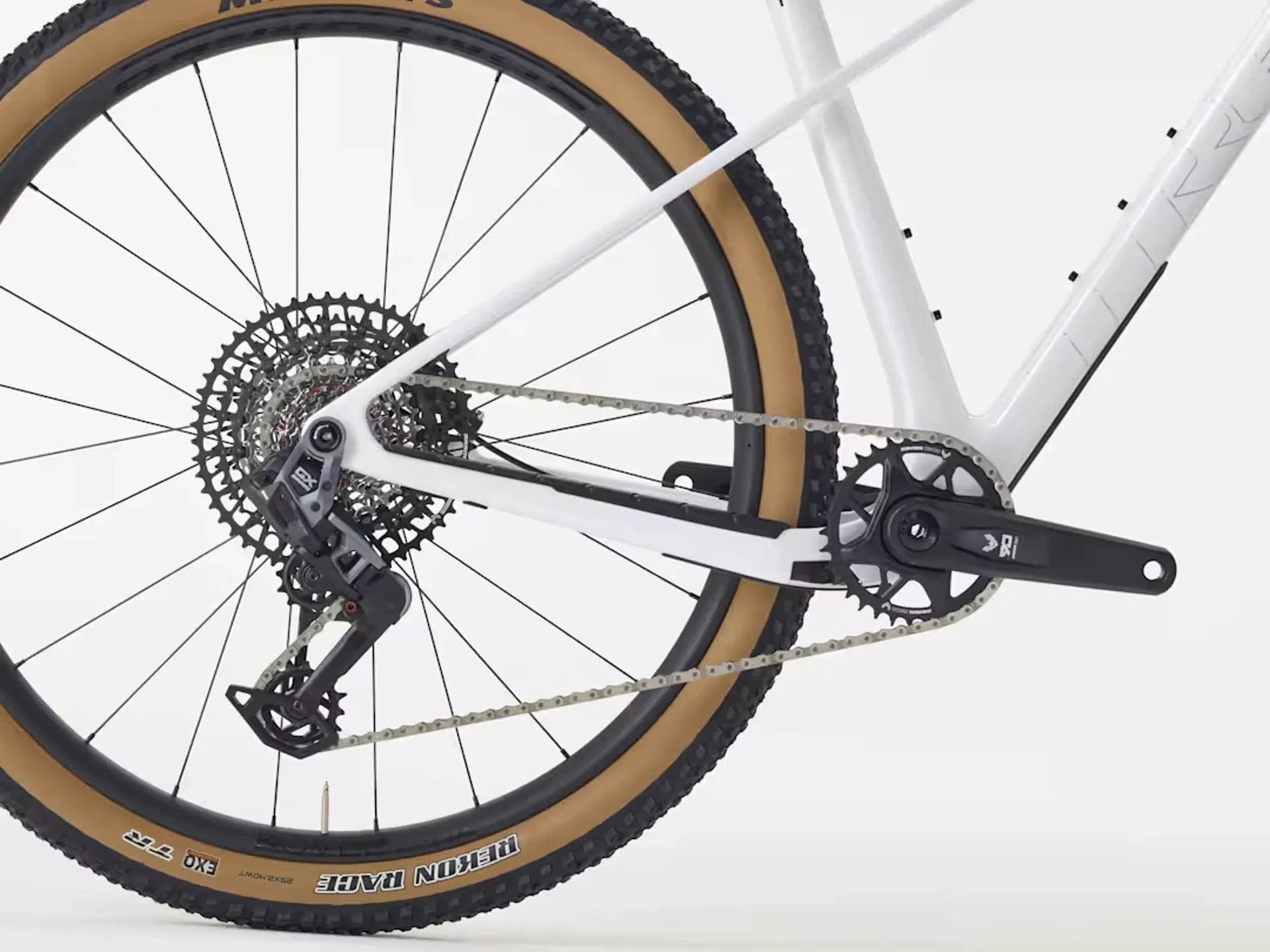

Drivetrain and brakes
Shifter: SRAM AXS Pod
Rear derailleur: SRAM GX Eagle AXS, T-Type
Crank: Size S, M, ML: SRAM Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 170 mm length / Size L, XL: SRAM Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 175 mm length
Bottom bracket: SRAM DUB, 92 mm, PressFit
Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain: SRAM GX Eagle, T-Type, 12-speed
Maximum chainring size: 1x: 38T
Brakes: SRAM Motive Bronze, 4-piston hydraulic disc
Brake rotors: Sizes S, M, ML, L and XL: SRAM CenterLine, 6-bolt, round-edge, 160 mm or SRAM CenterLine 2.0, 6-bolt, 180 mm
Maximum brake rotor size: Frame: 180 mm / Fork: see fork manufacturer
Cockpit

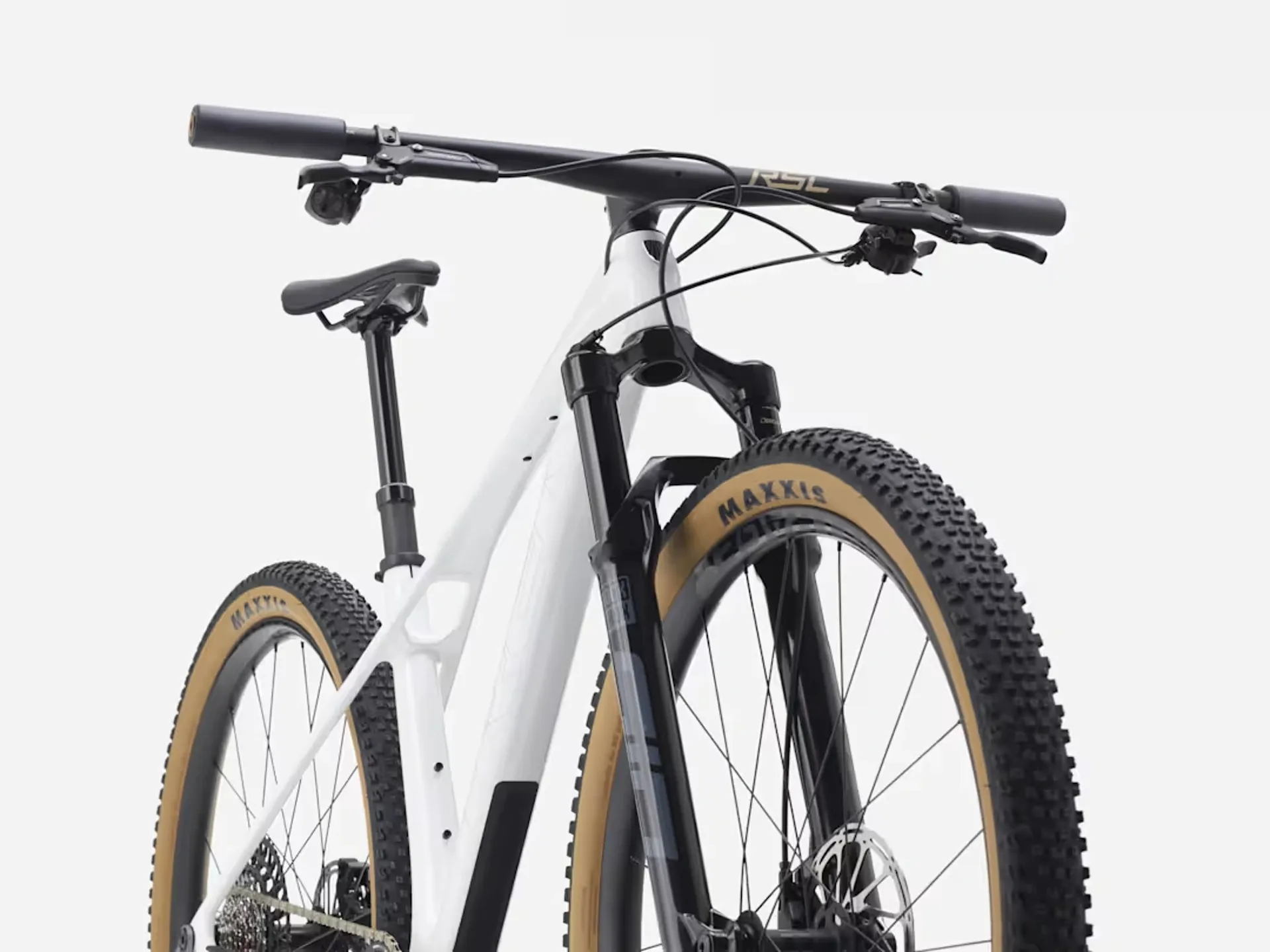

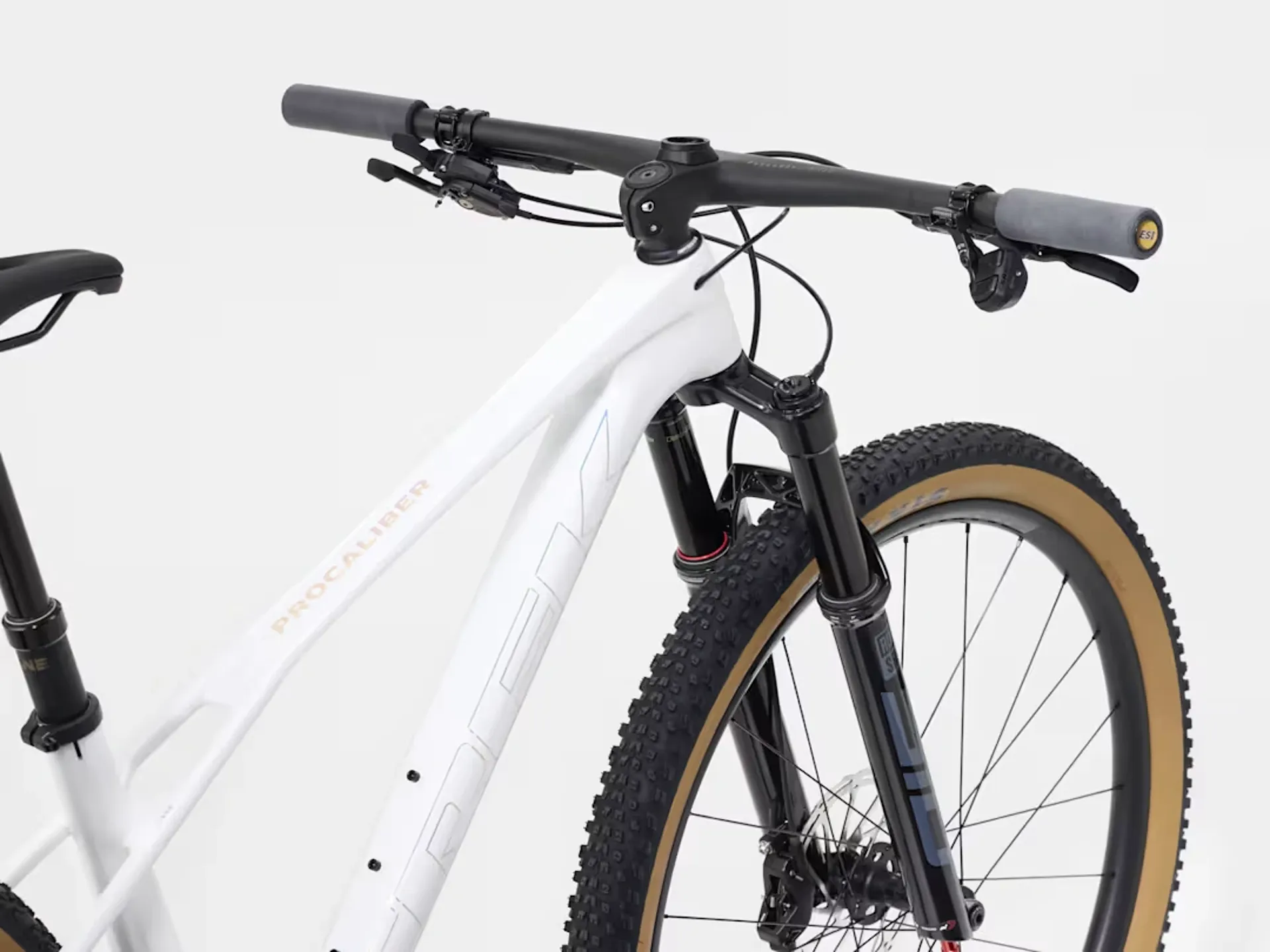

Handlebar/stem: Size S: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 60 mm length / Size M, ML, L: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm or 80 mm length / Size XL: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Grips: ESI Chunky
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Additional Features
Saddle: Sizes S, M, ML, L and XL: Bontrager Arvada Pro, carbon rails, 138 mm width or Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost: Size S: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length / Size M, ML, L: Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length / Size XL: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length or Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Weight
Weight: Size M – 11.38 kg / 25.09 lbs, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lbs.
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
