Please note – spec applies to all sizes unless listed separately.
Frameset
Frame: Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost 148, adaptable travel 145–160 mm
Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost 110, 15 mm Maxle Stealth, 150 mm travel

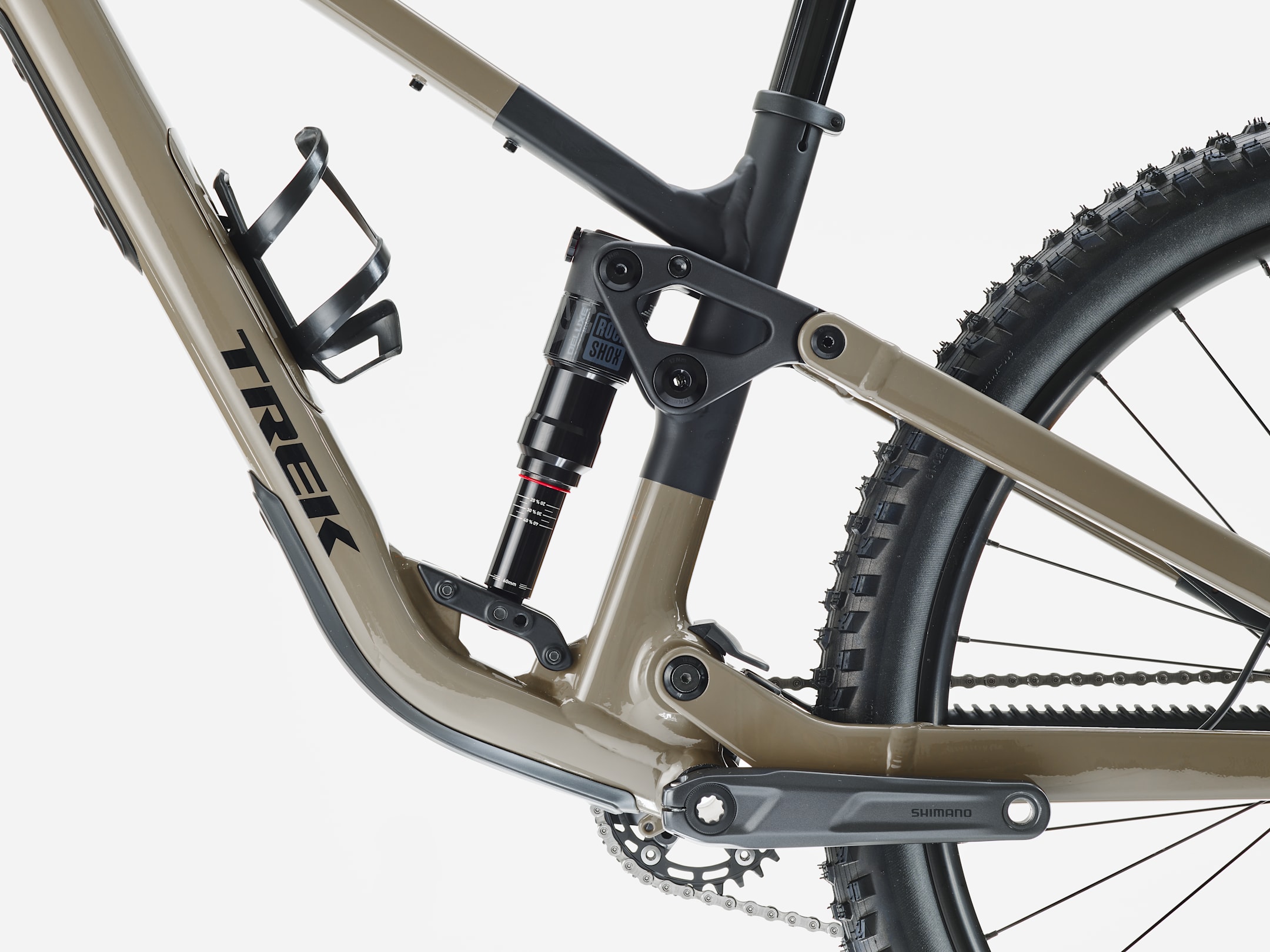

Shock: RockShox Deluxe Select, 205x60 mm
Drivetrain and brakes
Shifter: Shimano Deore M6200
Rear derailleur: Shimano Deore M6200, long cage
Crank: Shimano MT520 Deore, 30T chainring, 55 mm chainline, 165 mm length
Bottom bracket: Shimano BB-MT501 BSA
Cassette: Shimano M6200, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Maximum chainring size: Max. 34T / oval 32T; min. 30T / oval 32T
Brakes: Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotors: Shimano RT10, CenterLock, 180 mm
Maximum brake rotor size: Frame: 203 mm / Fork: see fork manufacturer
Wheels and tyres
Front hub: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear hub: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rear skewer: Bontrager Switch thru axle, removable lever
Rims: Sizes S, M, L and XL: Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve or Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Spokes: 14 g stainless steel, black
Tyres: Sizes S, M, L and XL: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" / Size S: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Rim strip: Bontrager TLR
Maximum tyre size: Frame: 29x2.50" / Fork: see manufacturer
Cockpit
Handlebar: Bontrager Comp, alloy, 31.8 mm, 40 mm rise, 780 mm width
Grips: Trek Line Comp, nylon lock-on
Stem: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Headset: FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5" crown
Additional Features
Saddle: Bontrager Verse Short, stainless steel rails
Seatpost: Size S: TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm / Sizes M, L and XL: TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm
Weight
Weight: Size M – 16.88 kg / 37.22 lbs, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lbs.
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
