Please note – spec applies to all sizes unless listed separately.
Frameset
Frame: Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost 148, adaptable travel 145–160 mm

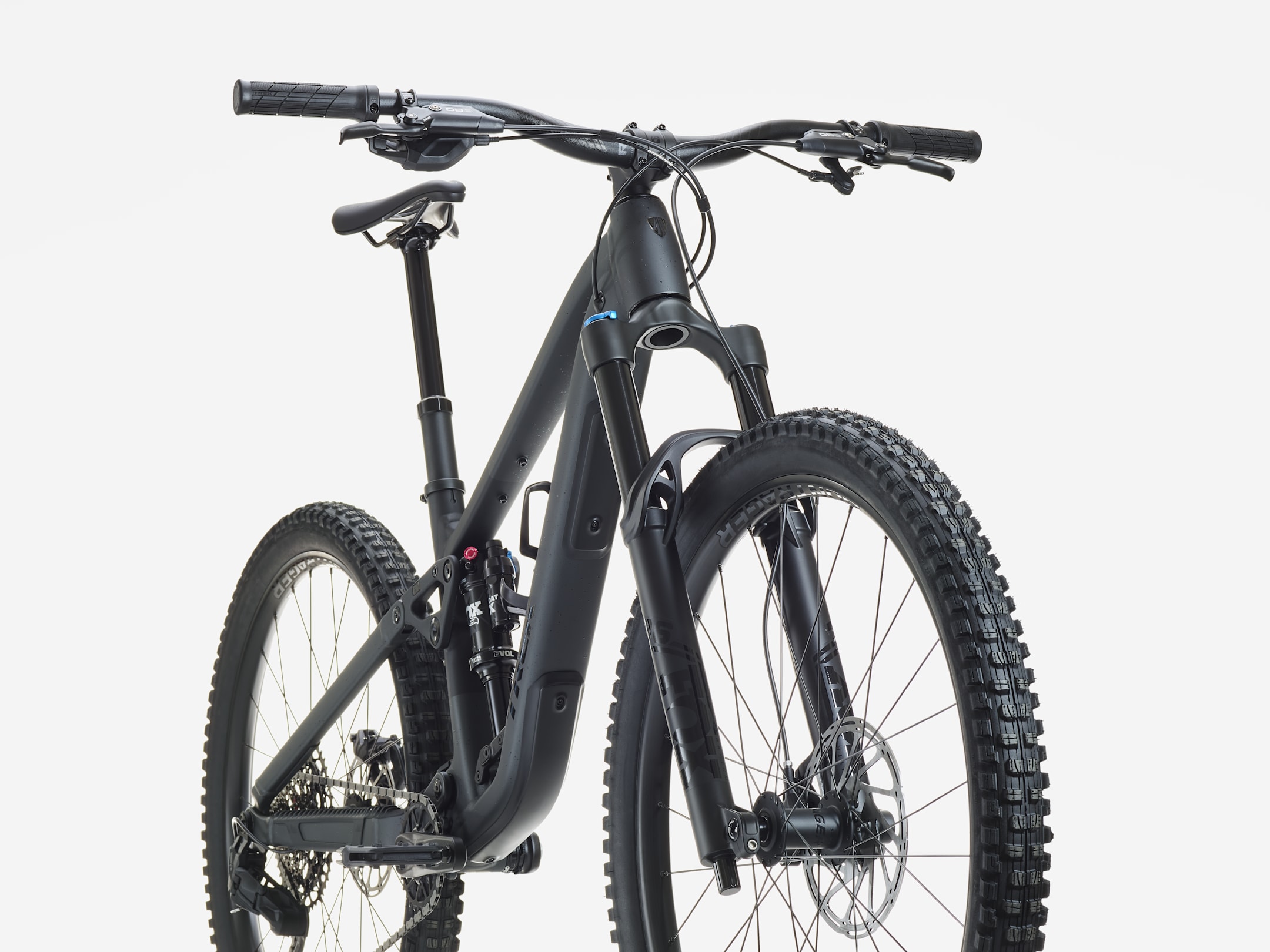

Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel

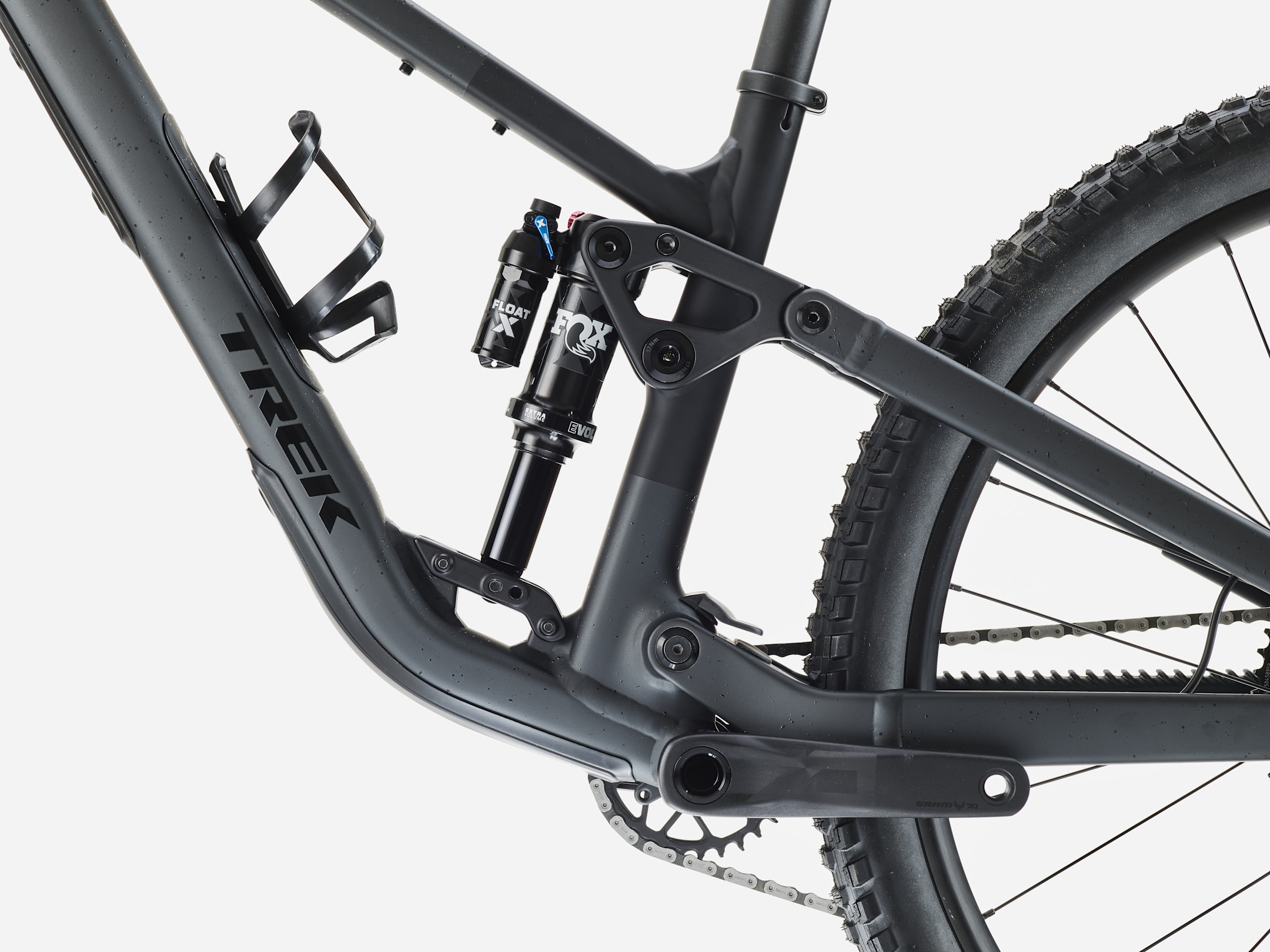

Shock: Fox Float X, 205x60 mm
Drivetrain and brakes
Shifter: SRAM Eagle 70, 12-speed
Rear derailleur: SRAM Eagle 70, T-Type
Crank: SRAM Eagle 70, DUB, 30T, T-Type, 55 mm chainline, 165 mm length
Bottom bracket: SRAM DUB MTB Wide, 73 mm, BSA threaded
Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Chain: SRAM Eagle 70, T-Type, 12-speed
Maximum chainring size: Max. 34T / oval 32T; min. 30T / oval 32T
Brake rotors: Sizes S, M, L and XL: SRAM CenterLine 2.0, 6-bolt, 200 mm or SRAM CenterLine 2.0, 6-bolt, 180 mm
Maximum brake rotor size: Frame: 203 mm / Fork: see fork manufacturer
Wheels and tyres
Front hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost 110, 15 mm thru axle
Rear hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost 148, 12 mm thru axle
Rim: Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Spokes: Sizes S, M, L and XL: 14 g stainless steel, black or 14 g stainless steel
Tyres: Size S: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" / Sizes S, M, L and XL: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Maximum tyre size: Frame: 29x2.50" / Fork: see manufacturer
Cockpit

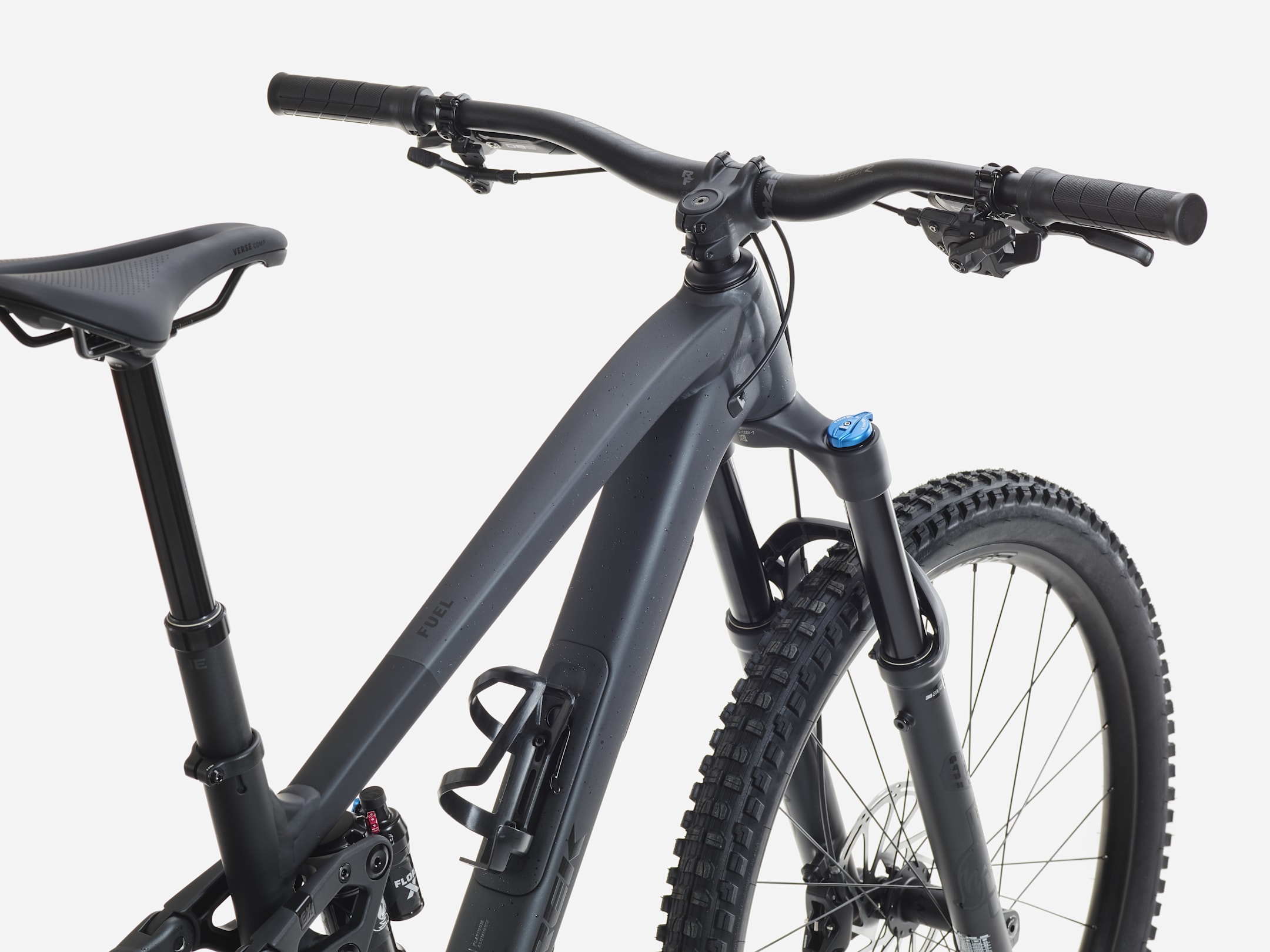

Handlebar: Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width
Grips: Trek Line Comp, nylon lock-on
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Headset: FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5" crown
Additional Features
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Size S: Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length / Size M: Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length / Sizes L and XL: Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Weight
Weight: Size M – 16.58 kg / 36.56 lbs, with TLR sealant and no tubes
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 136 kg / 300 lbs.
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
