*Please note – spec applies to all sizes unless listed separately
Frameset
Mainframe: Size: S, XL, L, M – Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork: Size: S, XL, L, M – Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

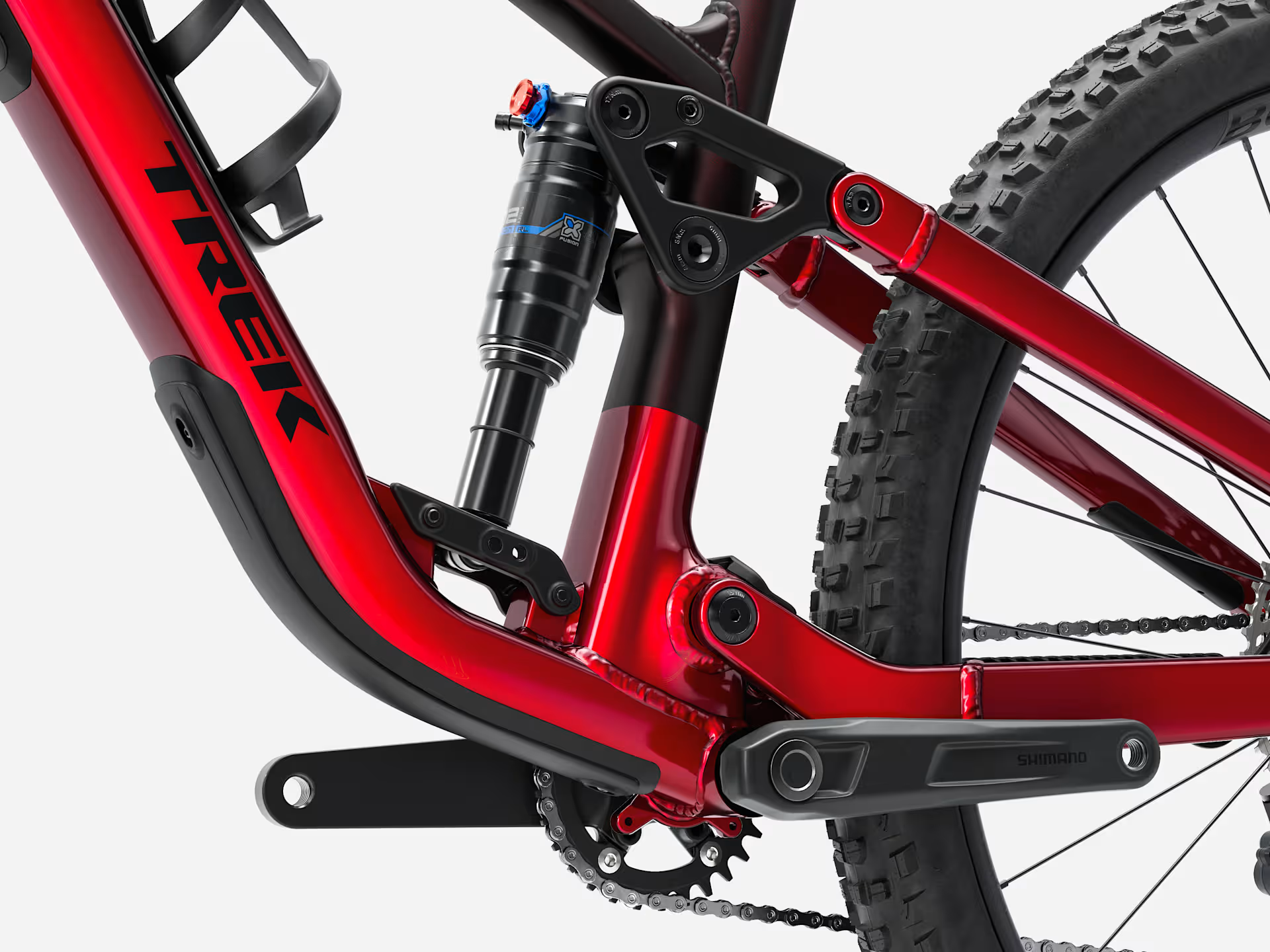

Shock: Size: S, XL, L, M – X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
Wheels
Front Hub: Size: S, XL, L, M – Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Rear Hub: Size: S, XL, L, M – Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Rear Skewer: Size: S, XL, L, M – Bontrager Switch thru-axle, removable lever
Rim: Size: S, XL, L, M – Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Size: S, XL, L, M – Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Tire: Size: S – Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
Size: S, XL, L, M – Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"
Tire Part: Size: S, XL, L, M – Bontrager TLR sealant, 180 ml/6 oz
Rim Strip: Size: S, XL, L, M – Bontrager TLR
Max tyre size: Frame: 29x2.50", Fork: See manufacturer

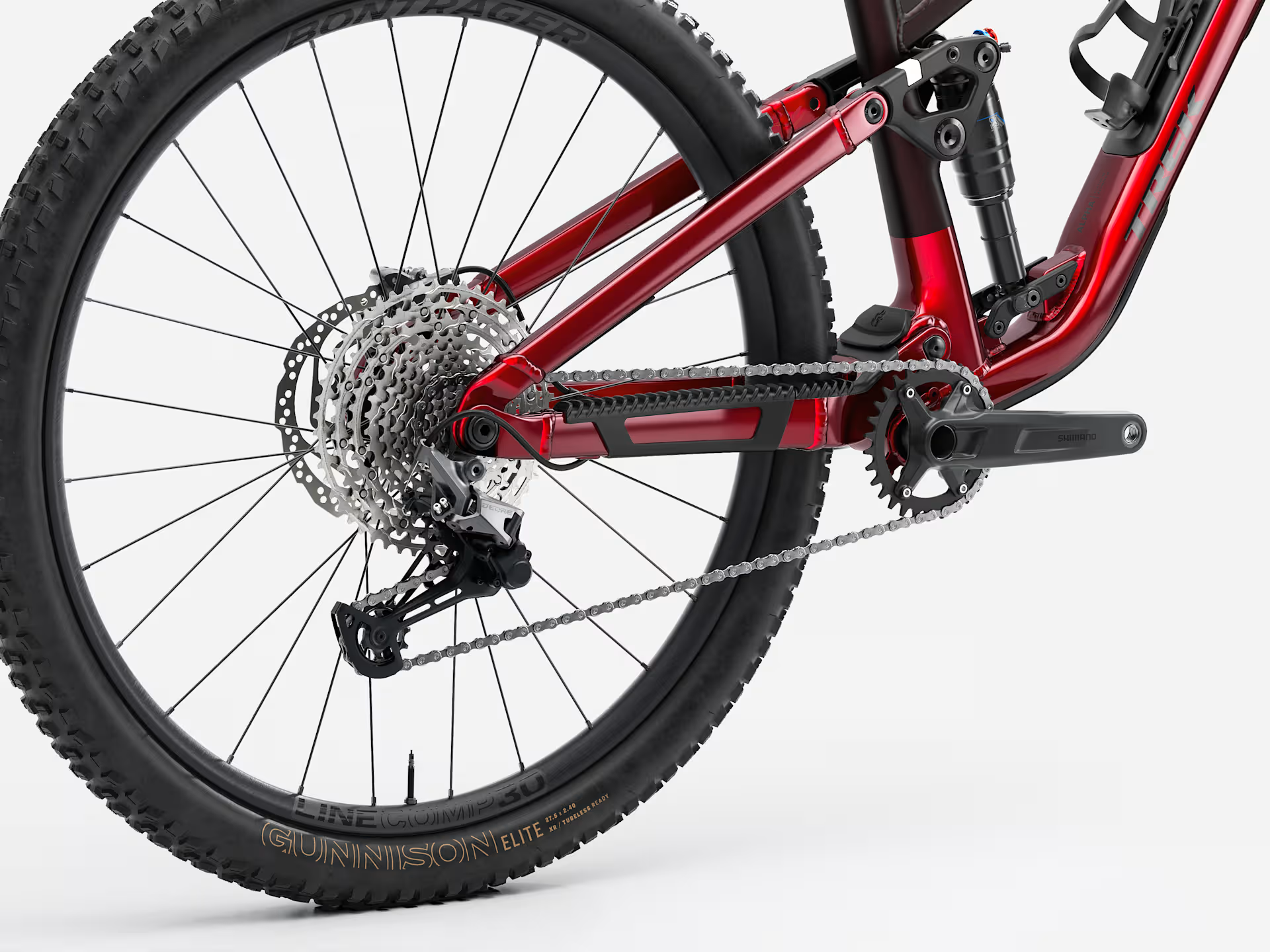

Drivetrain
Shifter: Size: S, XL, L, M – Shimano Deore M6100, 12-speed
Rear Derailleur: Size: S, XL, L, M – Shimano Deore M6100, long cage
Crank: Size: S, XL, L, M – Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Bottom Bracket: Size: S, XL, L, M – Shimano BB-MT501 BSA
Cassette: Size: S, XL, L, M – Shimano Deore M6100, 10-51, 12-speed
Chain: Size: S, XL, L, M – Shimano Deore M6100, 12-speed
Max. chainring size: Max: 34T (oval – 32T) Min: 30T (oval – 32T)
Components
Saddle: Size: S, XL, L, M – Bontrager Verse Short, stainless steel rails
Seatpost: Size: S – TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
Size: XL, L, M – TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm
Handlebar: Size: S, XL, L, M – Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips: Size: S, XL, L, M – Trek Line Comp, nylon lock-on
Stem: Size: S, XL, L, M – Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Headset: Size: S, XL, L, M – FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Brakes
Brake: Size: S, XL, L, M – Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake Rotor: Size: S, XL, L, M – Shimano RT10, CenterLock, 180 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
Weight
Weight: M – 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
