*Please note – spec applies to all sizes unless listed separately
Frameset
Frame:
Size: XS – Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Size: S, M, L, XL – Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
Fork:
Size: XS – RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size: S – RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Size: M, L, XL – RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel: 120 mm, XS: 100 mm
Wheels
Hub (front): Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub (rear): Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim:
Size: XS, S, M, L, XL – Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Size: XS, S, M, L, XL – Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Spokes: 14 g stainless steel, black
Tyre:
Size: XS, S – Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Size: M, L, XL – Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: Frame: 29x2.6" (XS: 27.5x2.6"), Fork: See manufacturer
E-system

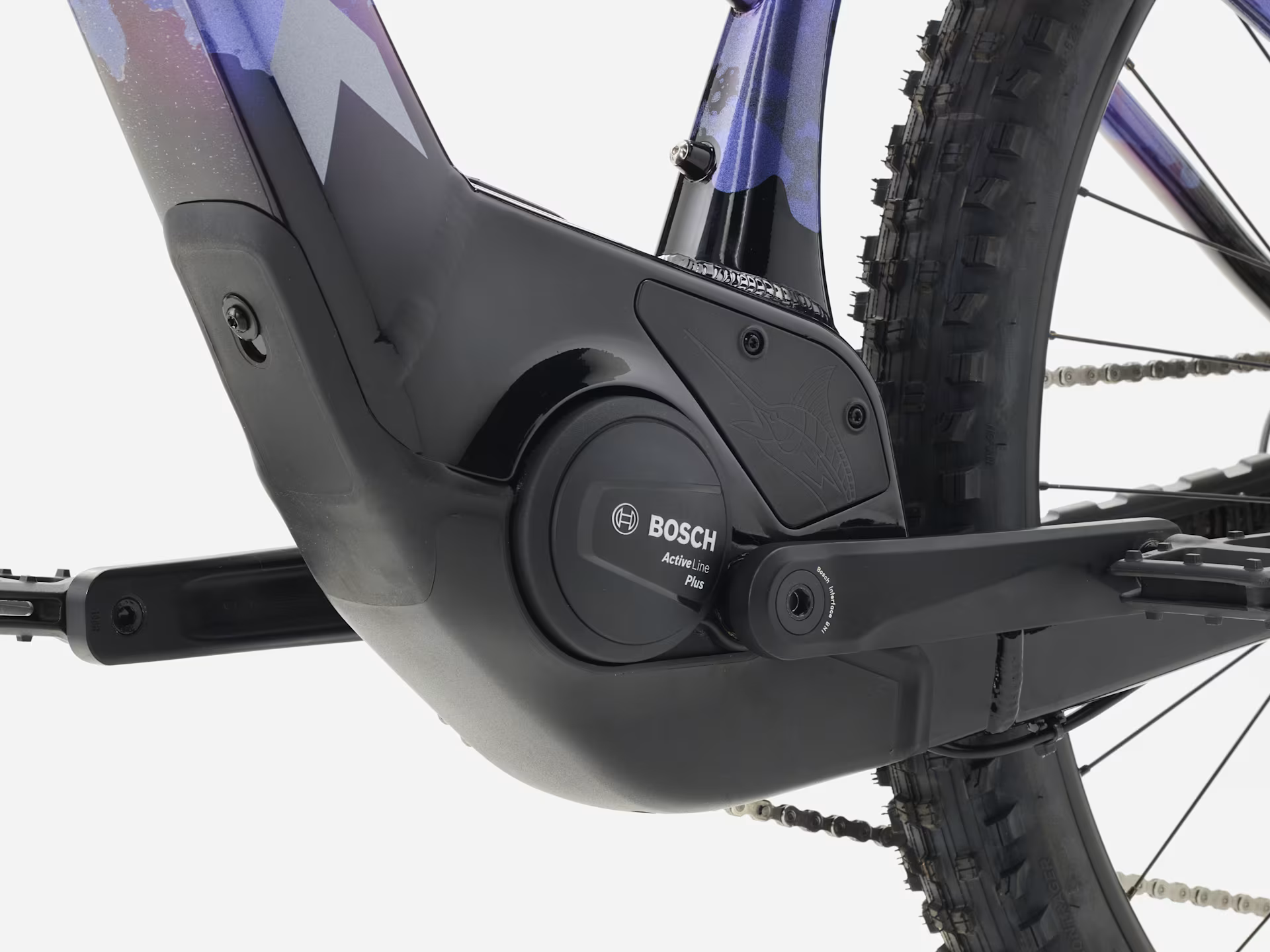

Battery: Bosch CompactTube 400 Wh
Charger: Bosch standard 2A, 230V, smart system
Computer: Bosch Purion 200

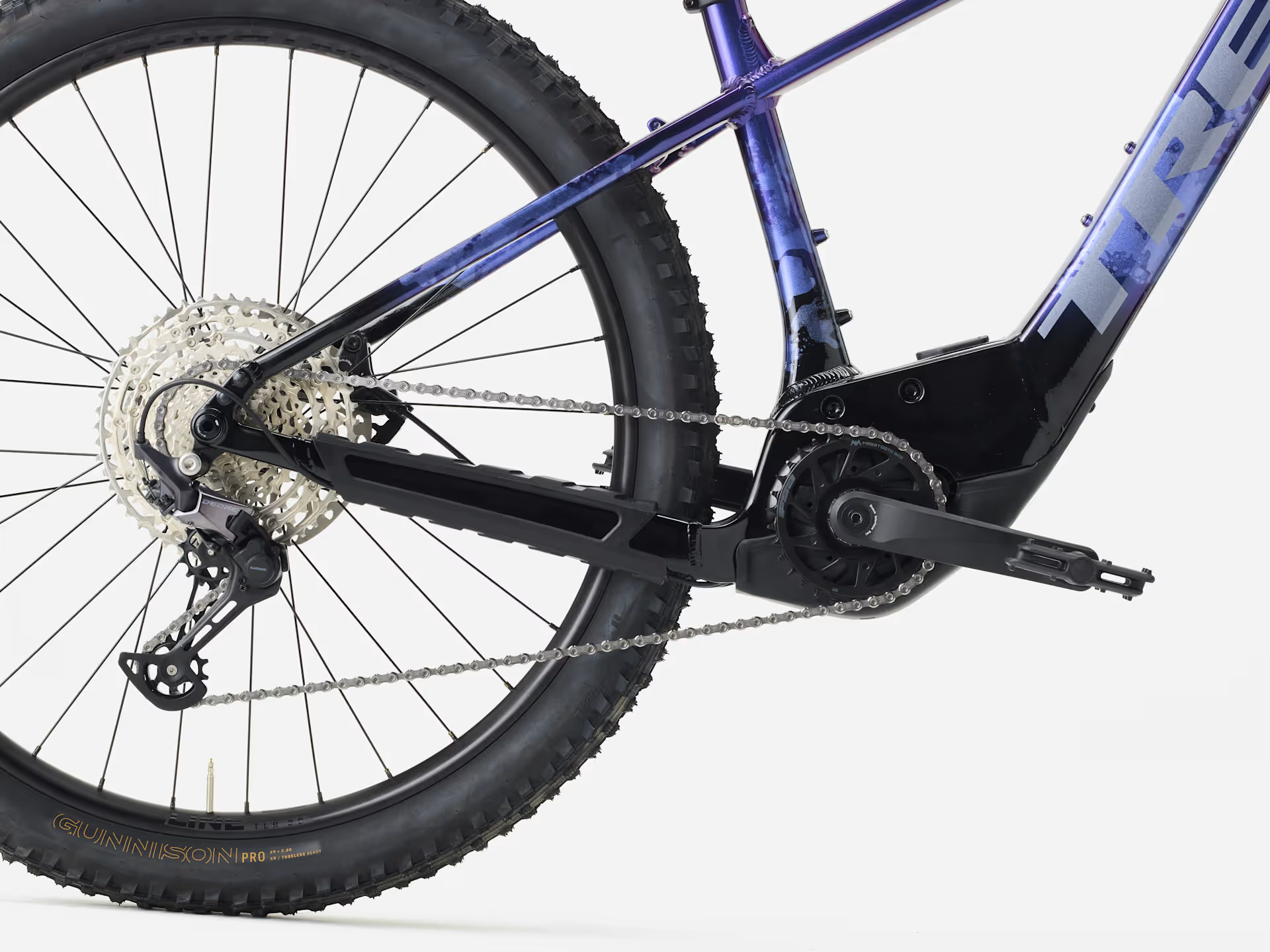

Drivetrain
Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: FSA CK-220, 165 mm length
Chainring: FSA, 32T, steel
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 36T, min 32T
Components
Saddle: Bontrager Verse P3, steel rails
Seatpost:
Size: XS, S – TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL – TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar:
Size: XS, S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M, L, XL – Bontrager Comp, alloy, 31.8 mm, 40 mm rise, 780 mm width
Grips: Trek Line Comp, nylon lock-on
Stem:
Size: XS, S – Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Headset: Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brakes
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor: Shimano RT64, CentreLock, 203 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
Weight
Weight: M – 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
Weight limit: 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
