*Please note – spec applies to all sizes unless listed separately
Frameset
Frame 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle

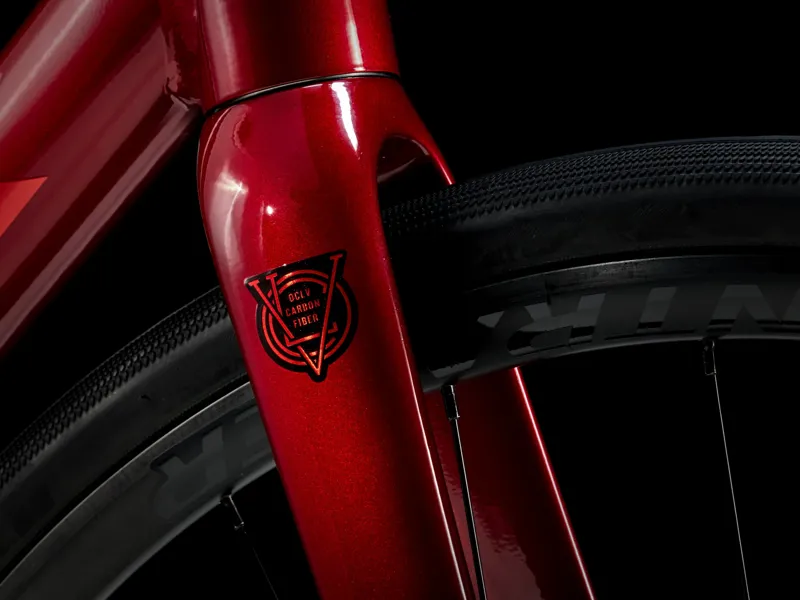

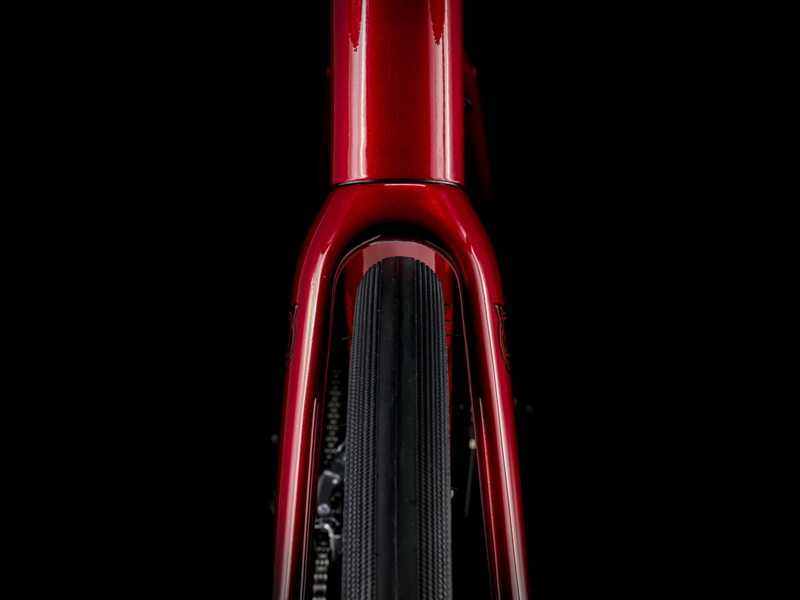

Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheels
Hub front Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru axle
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size 38 mm without mudguards, 35 mm with mudguards

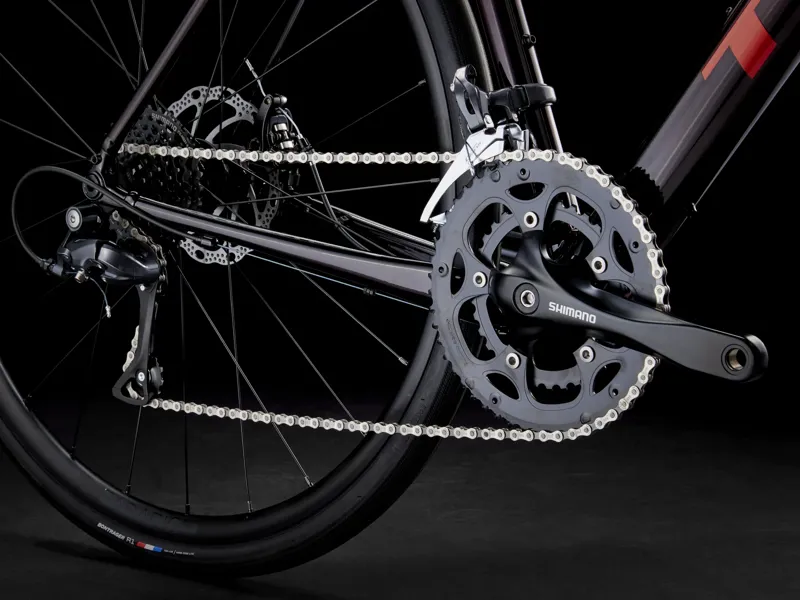

Drivetrain
*Shifter
Size:44-61 – Shimano Claris ST-R2000-R, 8 speed, right
Size:44-61 – Shimano Claris ST-R2000-L, 8 speed, left
Front derailleur Shimano Claris R2000, 31.8 mm clamp
Rear derailleur Shimano Claris R2000, medium cage, 34T max cog
*Crank
Size:44 – Shimano RS200, 50/34 (compact), 165 mm length
Size:49-54 – Shimano RS200, 50/34 (compact), 170 mm length
Size:56-61 – Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette Shimano HG31, CS-HG31, 11-32, 8 speed
Chain Shimano Sora HG71, 8 speed
Max. chainring size 1x: 50T, 2x: 50/34
Components
Saddle Verse Short, steel rails, 145 mm width
*Seatpost
Size:44, 49 – Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size:52-61 – Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

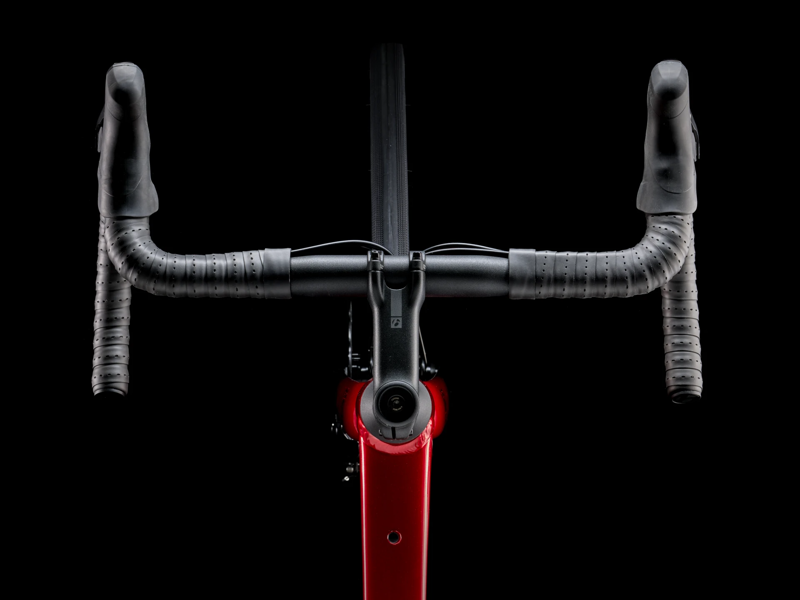

*Handlebar
Size:44 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drops width
Size:44-49 – Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38-40 cm width
Size:49-52 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38-40 cm control width, 42-44 cm drops width
Size:54-61 – Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42-44 cm control width, 46-48 cm drops width
Size:54-61 – Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42-44 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem
Size:44 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:49 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52-54 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56-58 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:61 – Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brakes

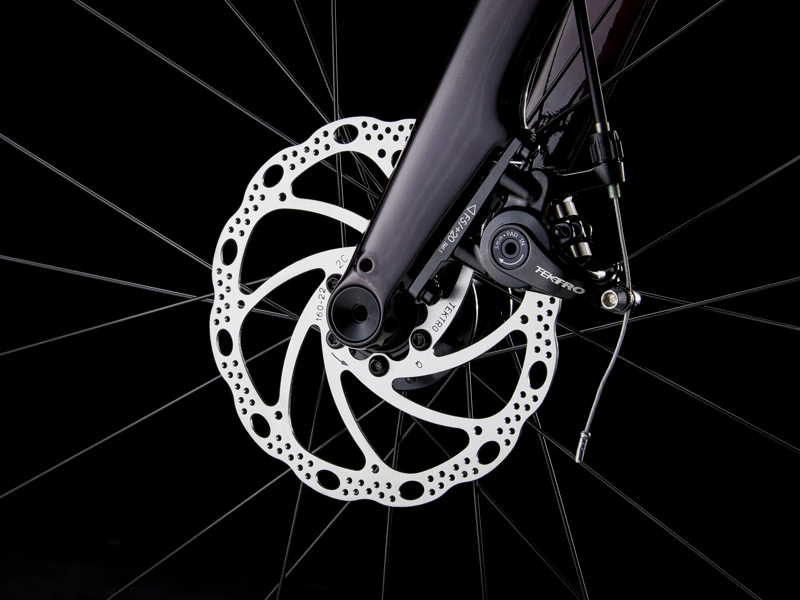

Brake Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor Tektro wave, 6-bolt, 160 mm
Rotor size Max brake rotor sizes: 160 mm front and rear
Weight
Weight 56 – 10.55 kg / 23.26 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
