Please note – spec applies to all sizes unless listed separately.
Frameset
Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Weight
Weight: Size 56 – 10.35 kg / 22.82 lbs
Weight limit: This bike has a maximum total weight limit, including the bicycle, rider and cargo, of 125 kg / 275 lb.

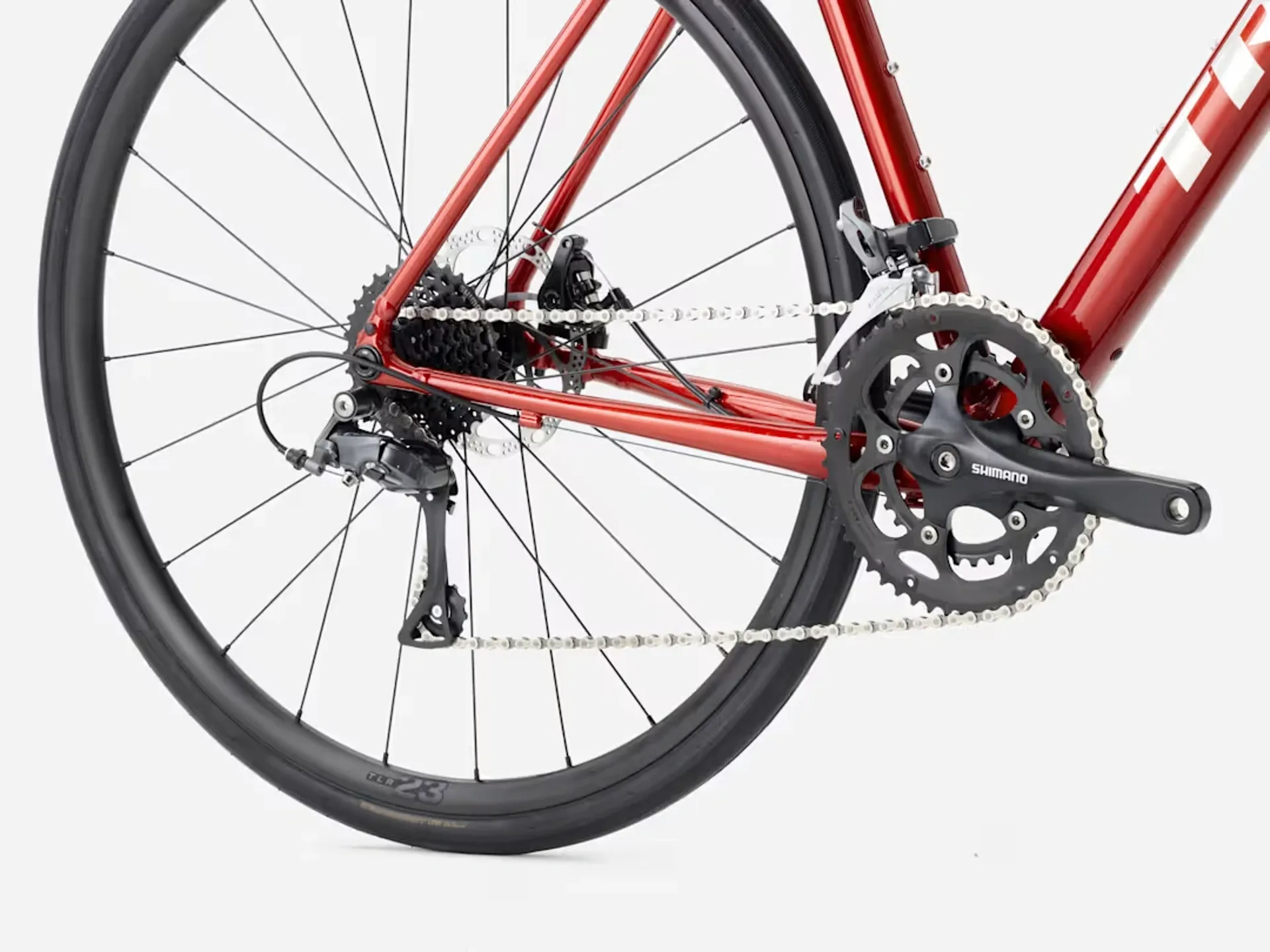

Drivetrain and brakes
Shifters: Sizes 44, 49, 52, 54, 56, 58 and 61: Shimano Claris ST-R2000-L, 8-speed, left and Shimano Claris ST-R2000-R, 8-speed, right
Front derailleur: Shimano Claris R2000, 31.8 mm clamp
Rear derailleur: Shimano Claris R2000, medium cage, 34T max cog
Crank: Sizes 44, 49, 52, 54 and 56: Shimano RS200, 50/34 compact, 165 mm length / Sizes 58 and 61: Shimano RS200, 50/34 compact, 175 mm length
Bottom bracket: Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette: Shimano HG31, 11-32, 8-speed
Chain: Shimano Sora HG71, 8-speed
Maximum chainring size: 1x: 50T, 2x: 50/34
Brakes: Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotors: Tektro wave, 6-bolt, 160 mm
Maximum brake rotor size: 160 mm front and rear
Wheels and tyres
Front hub: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Front skewer: Bontrager Switch chamfered thru axle
Rear hub: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Rear skewer: Bontrager Switch chamfered thru axle, removable lever
Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Tyres: Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm

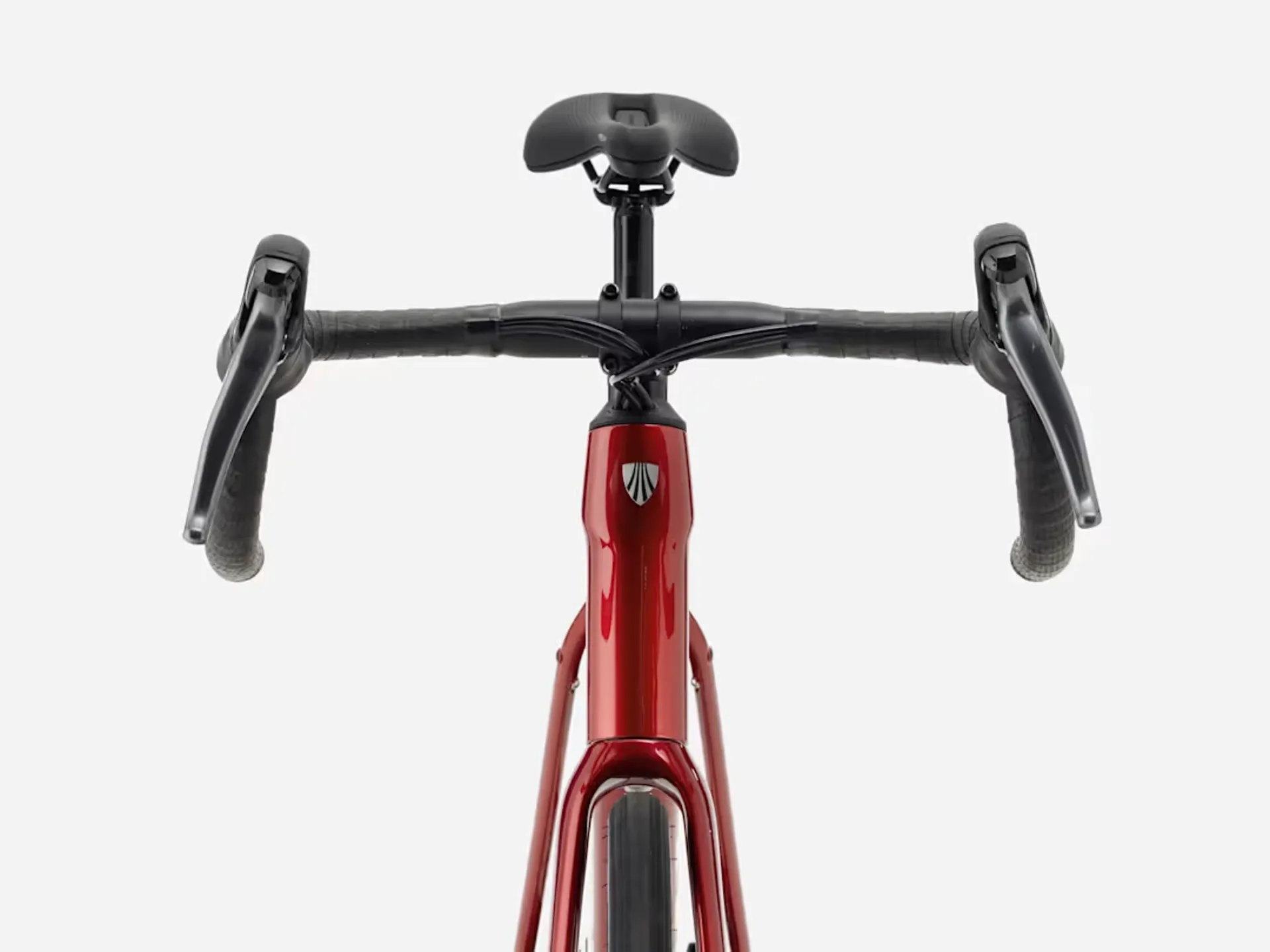

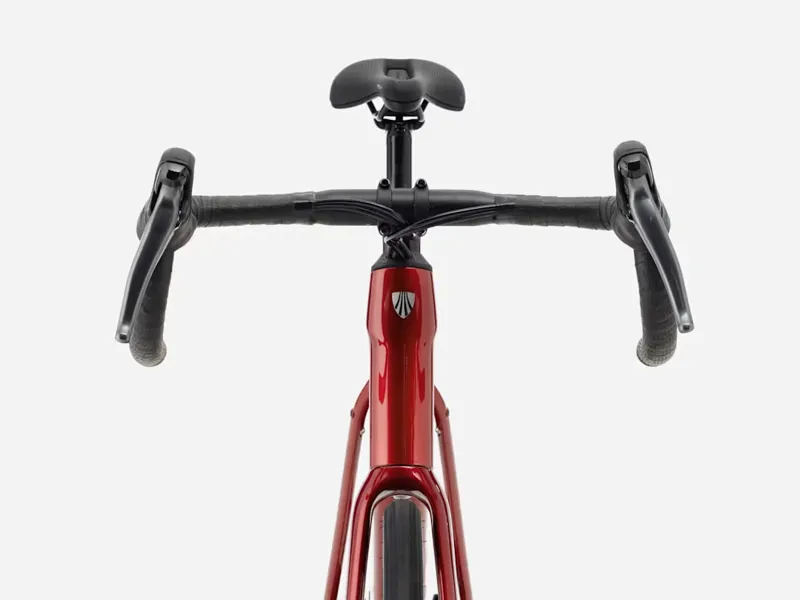

Cockpit
Handlebar: Size 44: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width / Sizes 49 and 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width / Sizes 54, 56 and 58: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width / Size 61: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape: Trek gel cork
Stem: Size 44: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 70 mm length / Size 49: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 80 mm length / Sizes 52 and 54: Bontrager Elite, 31.8 mm, Blendr compatible, 7-degree, 90 mm length / Sizes 56 and 58: Bontrager Elite, 31.8 mm clamp, Blendr compatible, 7-degree, 100 mm length / Size 61: Bontrager Elite, 31.8 mm clamp, Blendr compatible, 7-degree, 110 mm length
Additional Features
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost: Sizes 44 and 49: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length / Sizes 52, 54, 56, 58 and 61: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Care Instructions
We reserve the right to make changes to the product information at any time without notice, including equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted without notice.
Bike and frame weights are based on pre-production painted frames at the time of publication. Final production weights may vary.
