*Please note – spec applies to all sizes unless listed separately
Frameset

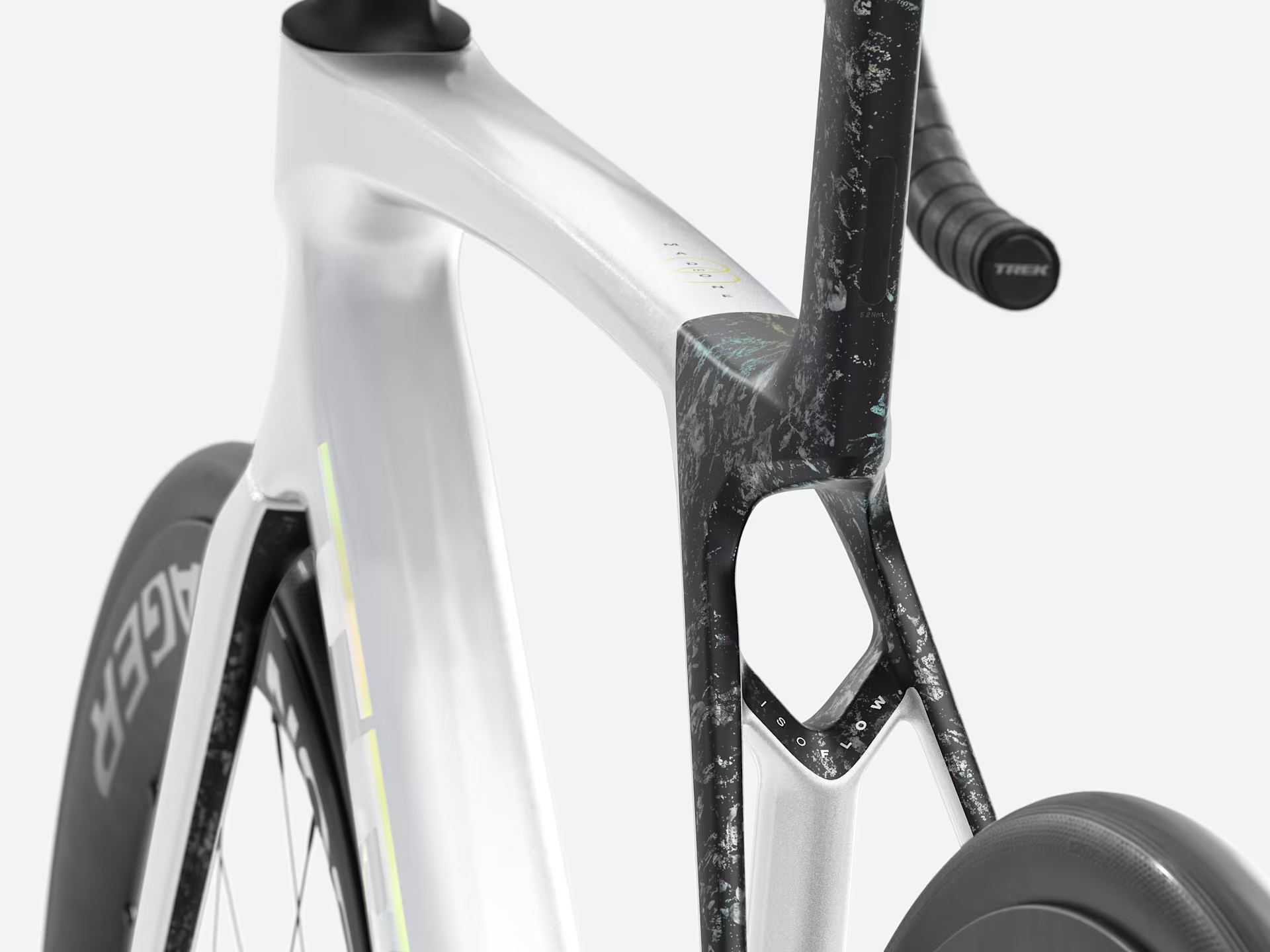

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
Weight
Weight limit: 125 kg (275 lb)
Drivetrain
Shifter:
Size: XS, S, M, ML, L, XL – Shimano Ultegra R8170 Di2, 12-speed
Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog

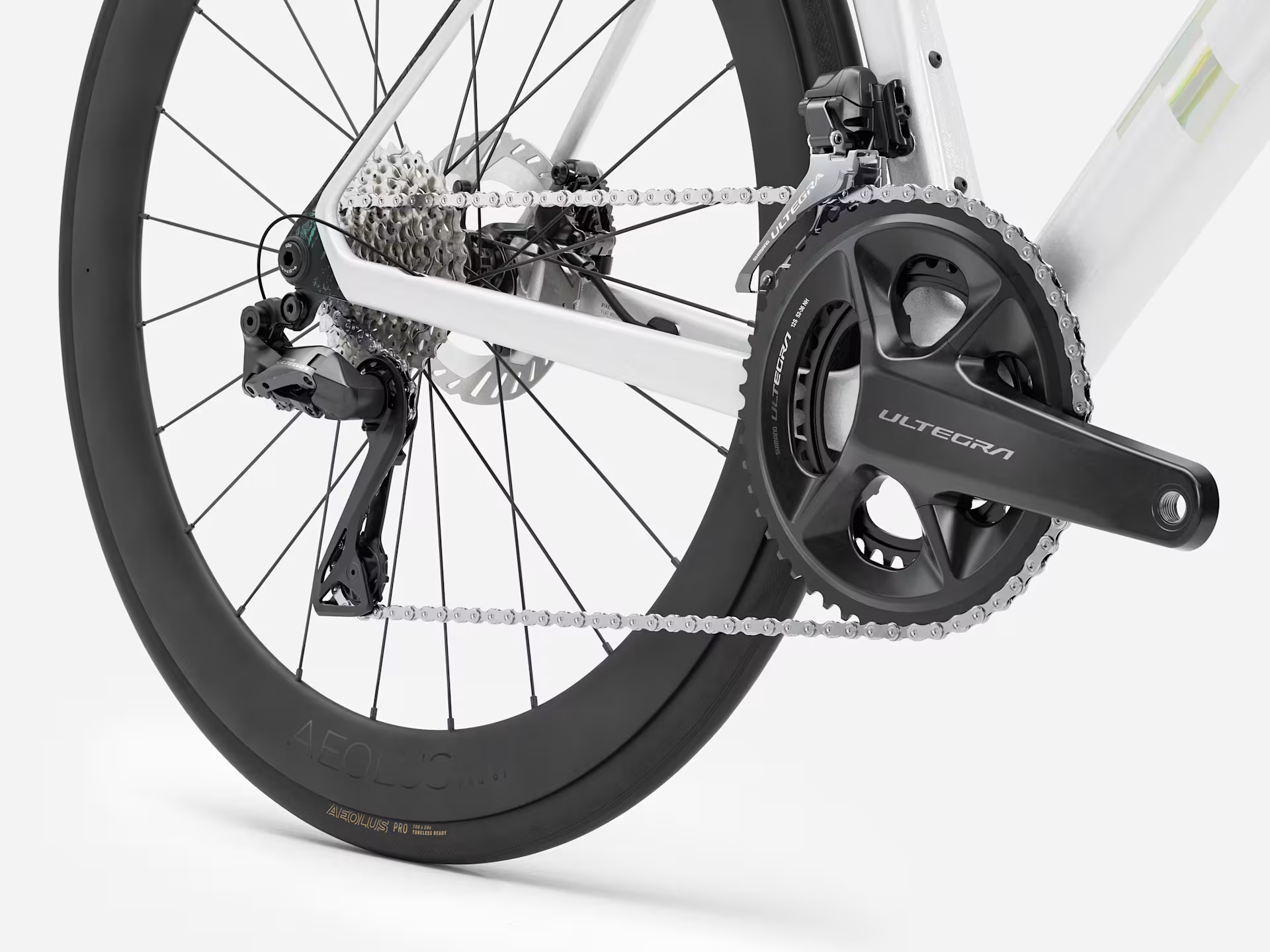

Crank:
Size: XS, S – Shimano Ultegra R8100, 50/34, 165 mm length
Size: M, ML – Shimano Ultegra R8100, 50/34, 170 mm length
Size: L, XL – Shimano Ultegra R8100, 50/34, 172.5 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Ultegra R8101, 11-34, 12-speed
Chain: Shimano XT M8100, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43
Wheels
Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Max tyre size: 32 mm
Components
Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length

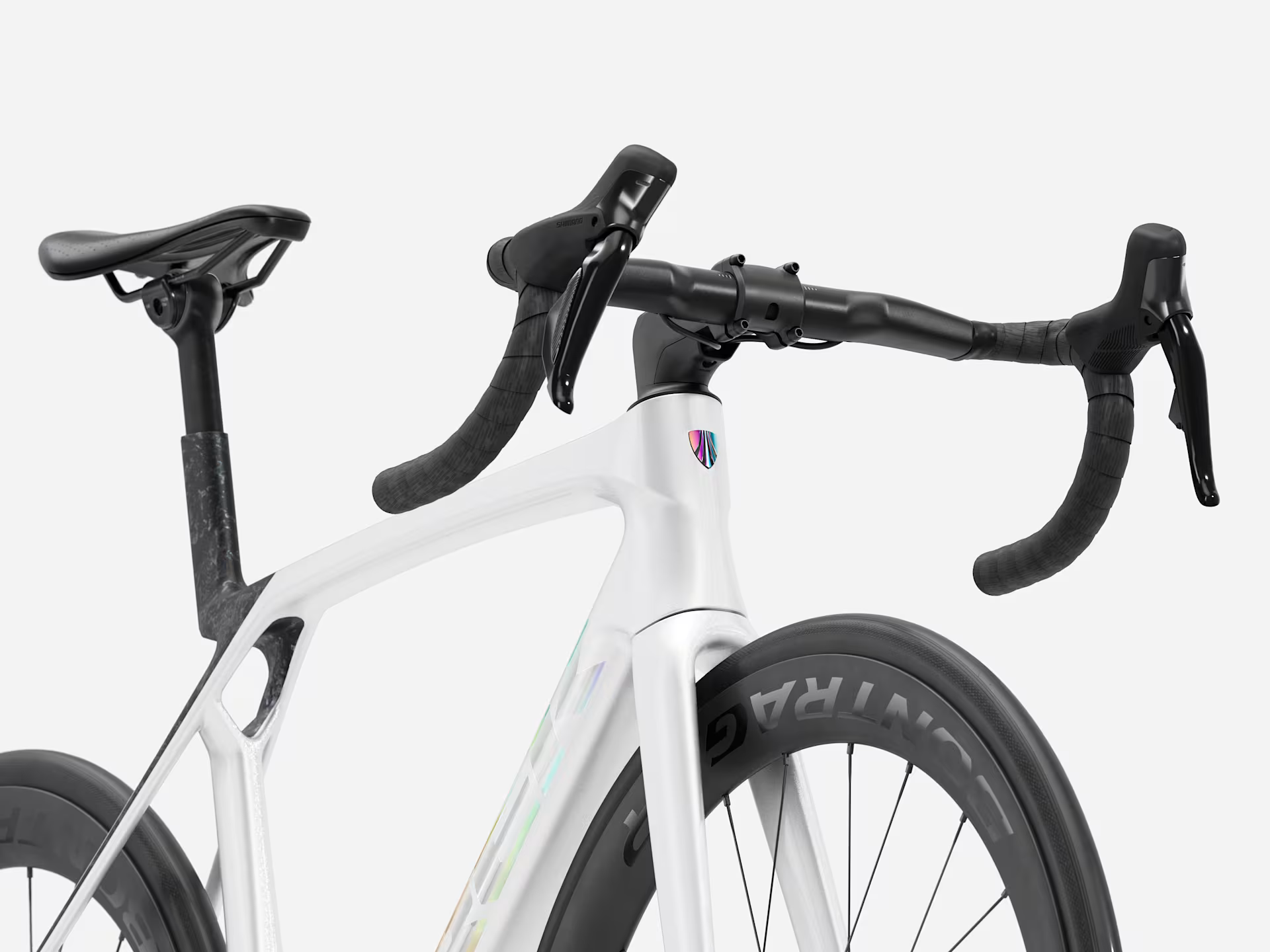

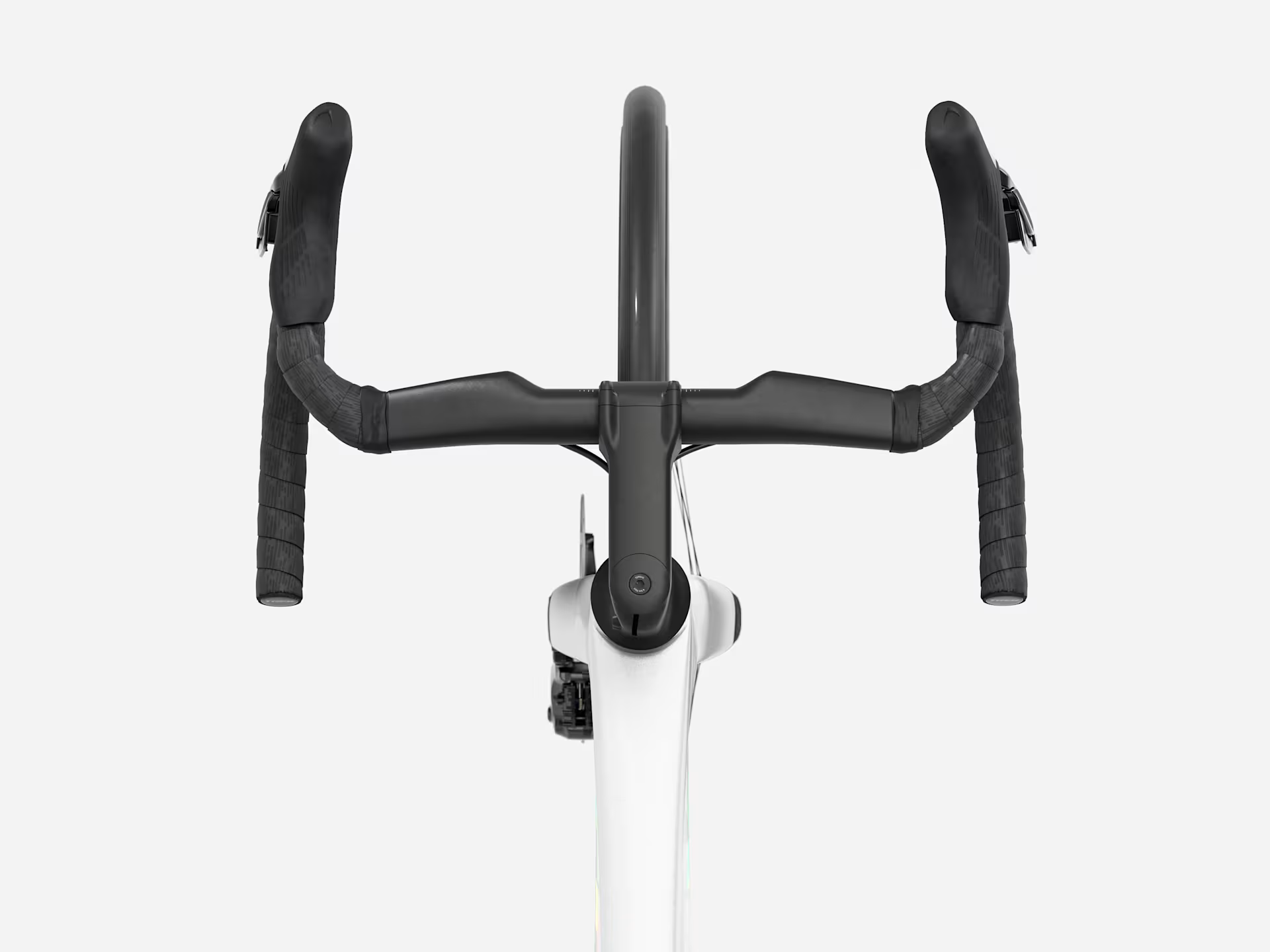

Handlebar:
Size: XS – Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 38 cm width
Size: S – Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 40 cm width
Size: M, ML, L – Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width
Size: M, ML, L – Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width
Size: XL – Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 44 cm width
Handlebar tape: Trek EcoTack
Stem:
Size: XS – Trek RCS Pro, -7-degree, 80 mm length
Size: S, M – Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L – Trek RCS Pro, -7-degree, 100 mm length
Size: XL – Trek RCS Pro, -7-degree, 110 mm length
Brakes
Brake rotor: Shimano CL800, CentreLock, 160 mm
Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
