*Please note – spec applies to all sizes unless listed separately
Frameset
Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight
Weight: ML – 7.43 kg / 16.39 lbs (with TLR sealant, no tubes)
Weight limit: 125 kg (275 lb)
E-system
Battery: SRAM eTap battery pack (with charger)
Drivetrain

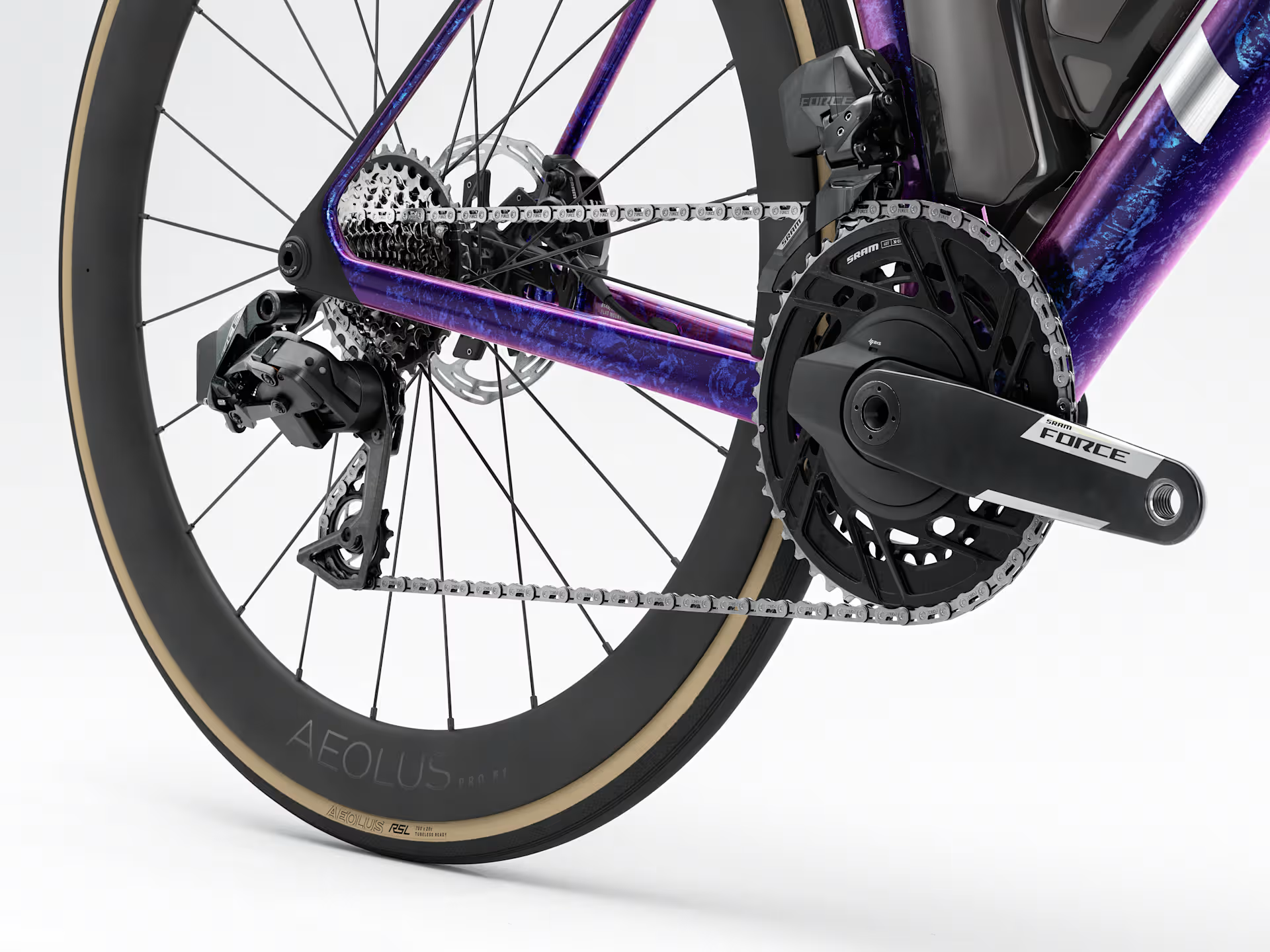

Shifter: SRAM Force AXS D2, 12-speed
Front derailleur: SRAM Force AXS D2, braze-on
Rear derailleur: SRAM Force AXS D2, 36T max cog
Crank:
Size: XS, S – SRAM Force AXS D2, power meter, 48/35, DUB, 165 mm length
Size: M – SRAM Force AXS D2, power meter, 48/35, DUB, 170 mm length
Size: ML, L – SRAM Force AXS D2, power meter, 48/35, DUB, 172.5 mm length
Size: XL – SRAM Force AXS D2, power meter, 48/35, DUB, 175 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM Force XG-1270, 10-33, 12-speed
Chain: SRAM Force, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43
Wheels
Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle, removable lever
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Rim strip / sealant: Bontrager TLR sealant, 180 ml / 6 oz
Max tyre size: 32 mm
Components
Saddle:
Size: XS, S – Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
Size: M, ML, L, XL – Bontrager Aeolus Pro, carbon rails, 145 mm width
Seatpost:
Size: XS, S, M – Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L, XL – Madone aero carbon seat post, 0 mm offset, long length
Handlebar/stem (integrated):
Size: XS – Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S – Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M – Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L – Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL – Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Brakes
Brake rotor: SRAM CentreLine X, CentreLock, round edge, 160 mm
Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
