Please note – spec applies to all sizes unless listed separately
Frameset

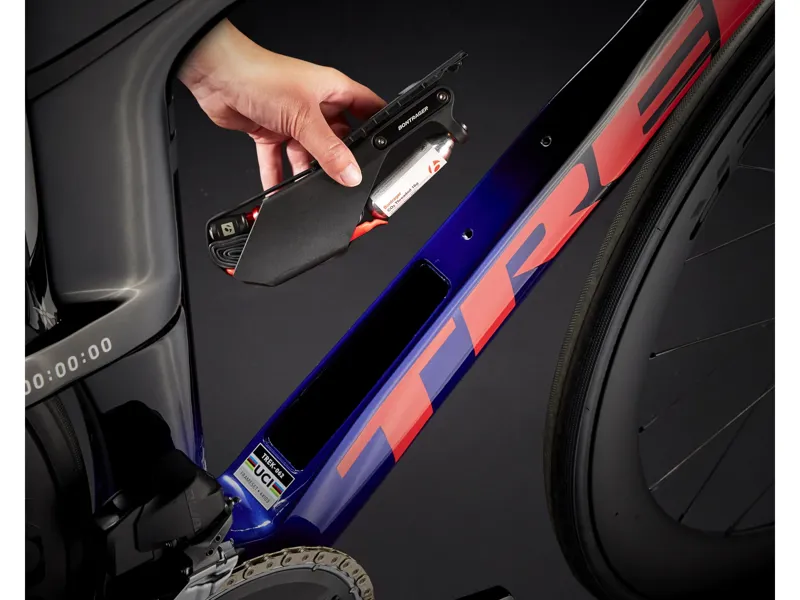

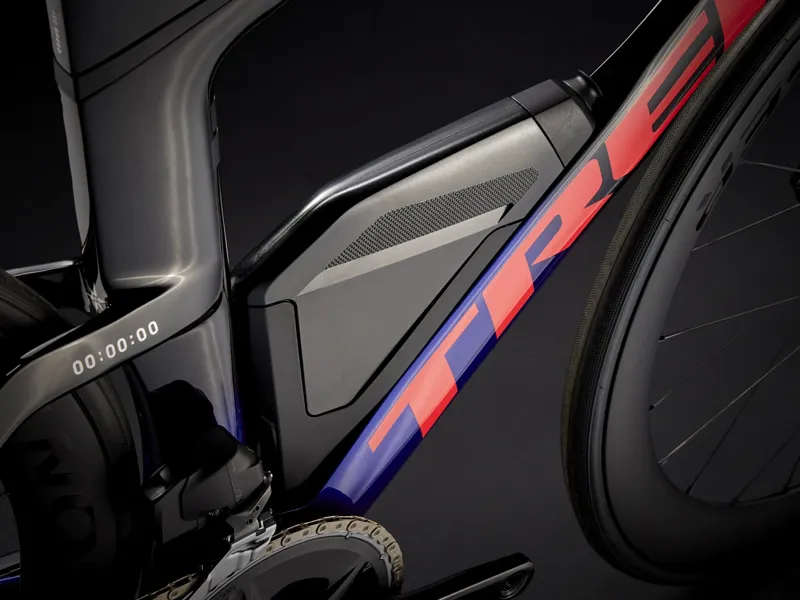

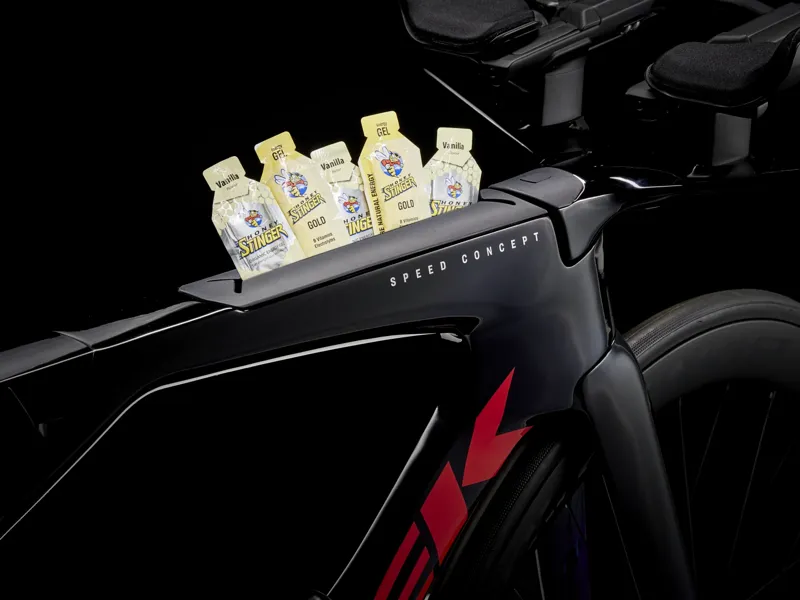

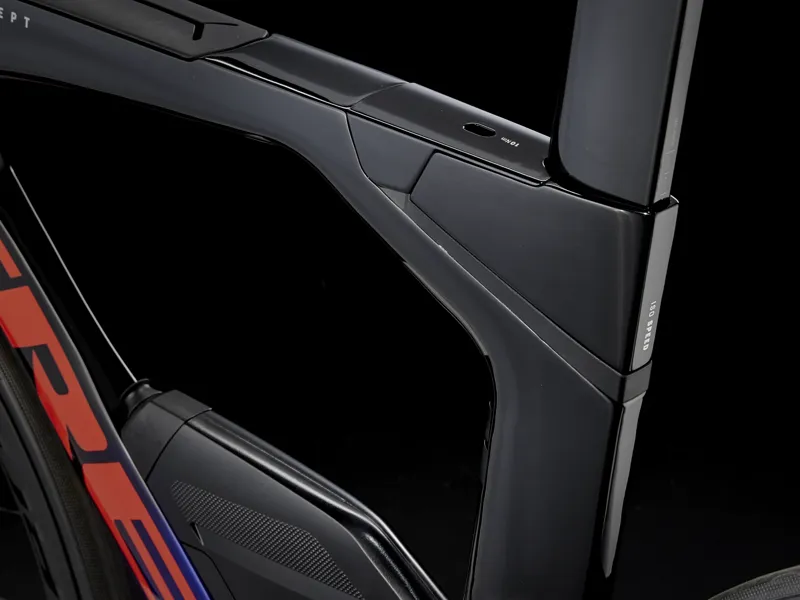

Frame: 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Fork: SC full foil carbon, integrated brake & stem
Frame fit: Triathlon
Weight
Weight: M – 9.55 kg / 21.06 lb
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
E-system
Battery: SRAM AXS battery pack (with charger)

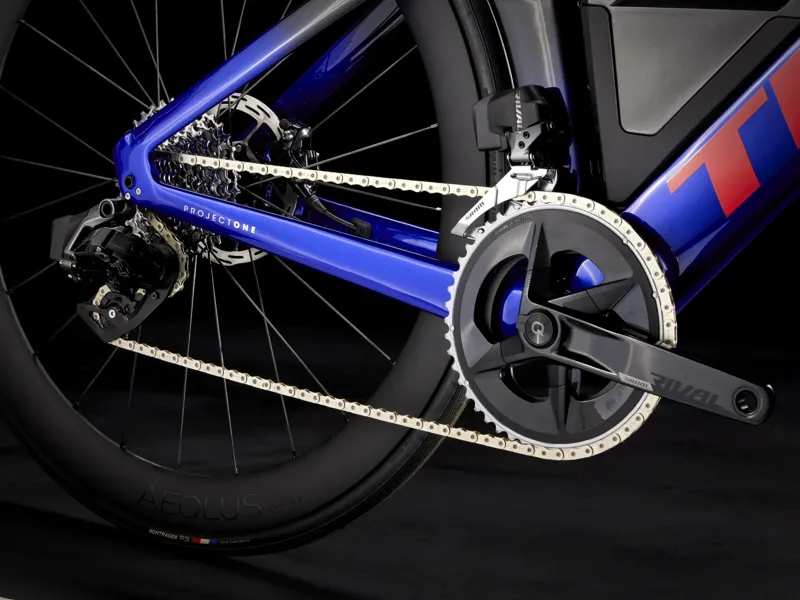

Drivetrain
Shifter:
Sizes S, M, L, XL: SRAM eTap Clics, extension-mounted
Sizes S, M, L, XL: SRAM eTap AXS BlipBox
Sizes S, M, L, XL: SRAM AXS Wireless Blips, basebar and extension-mounted
Front derailleur: SRAM Rival D1 AXS, braze-on
Rear derailleur: SRAM Rival AXS
Crank:
Size S: SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm length
Size M, L: SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm length
Size XL: SRAM Rival AXS Power Meter, 48/35, DUB, 175 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM XG-1250, 10-36, 12-speed
Chain: SRAM Rival, 12-speed
Max. chainring size: 1x: 58T, 2x: 55/44
Wheels
Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle
Skewer front: Bontrager Switch thru-axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Tyre: Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
Max tyre size: 28mm rear, 25mm front
Components
Saddle: Bontrager Hilo Comp, hollow chromoly rails
Seatpost:
Size S: Speed Concept SLR, 11.5 mm or -20 mm offset, short length
Sizes M, L, XL: Speed Concept SLR, 11.5 mm or -20 mm offset, tall length
Handlebar part:
Size S: Speed Concept Cockpit Tower Topper Near
Sizes S, M, L, XL: Speed Concept 45 mm Base Tower
Sizes S, M: Speed Concept 30 mm Base Tower
Sizes M, L, XL: Speed Concept Cockpit Tower Topper Mid
Sizes L, XL: Speed Concept 60 mm Base Tower

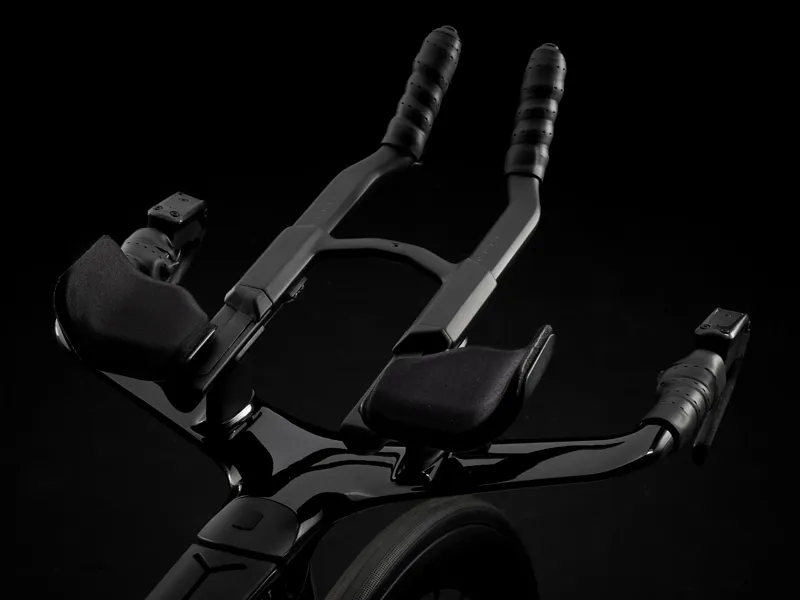

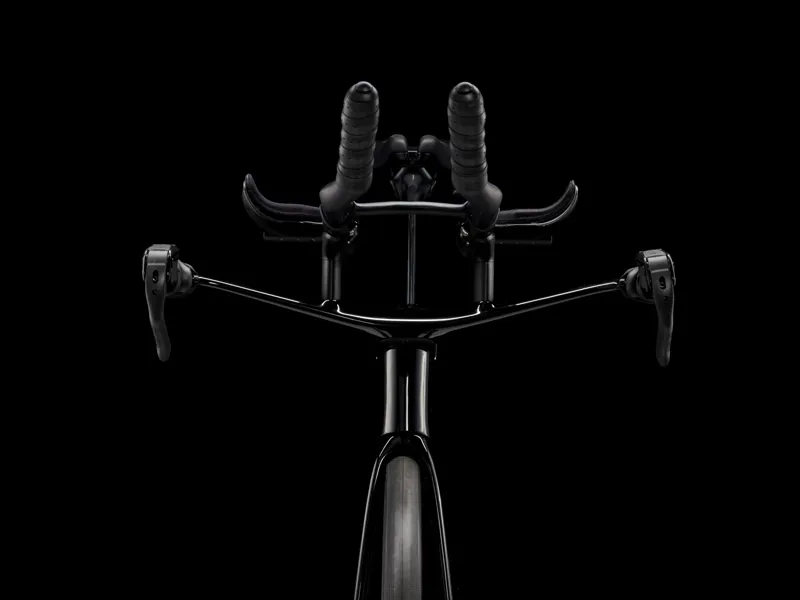

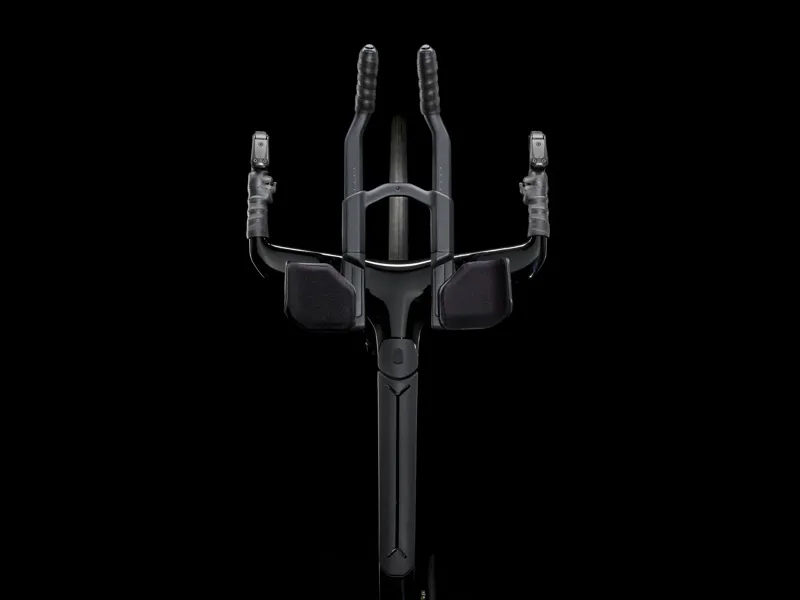

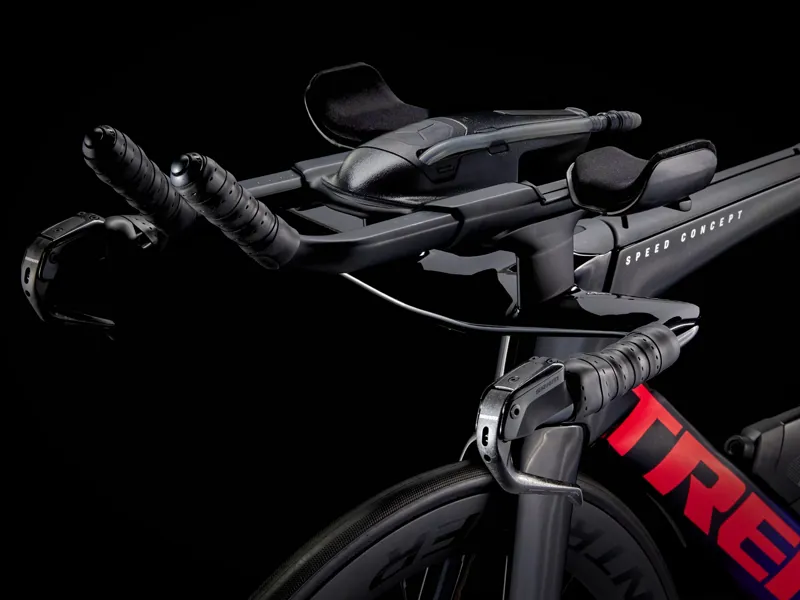

Handlebar/stem (integrated): Speed Concept mid-rise bar/stem
Handlebar tape: Bontrager Supertack Perf tape

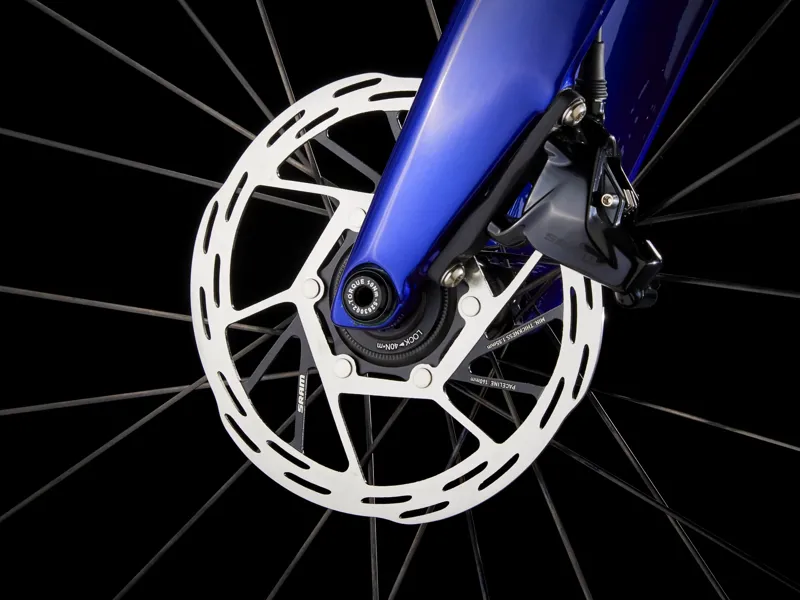

Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever: SRAM S-900 Aero
Rotor size: Max brake rotor sizes: 160mm front & rear
Accessories
Cage: Speed Concept Downtube Bottle Cage
Bottle: Speed Concept Downtube Bottle
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
