Frameset
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

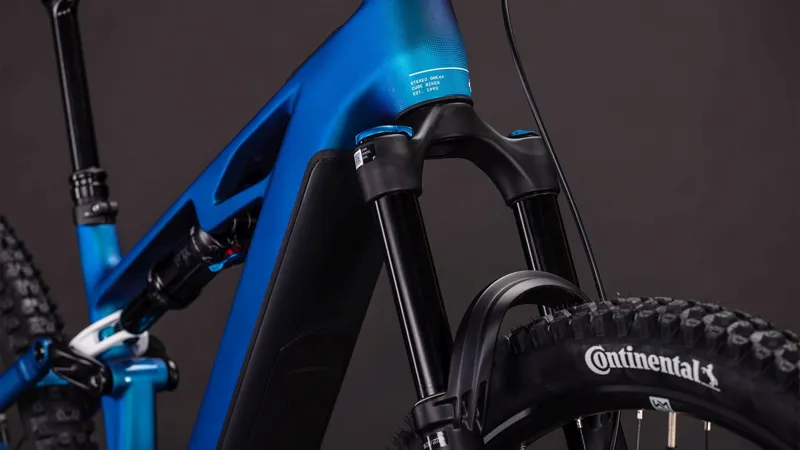

Fork: Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm

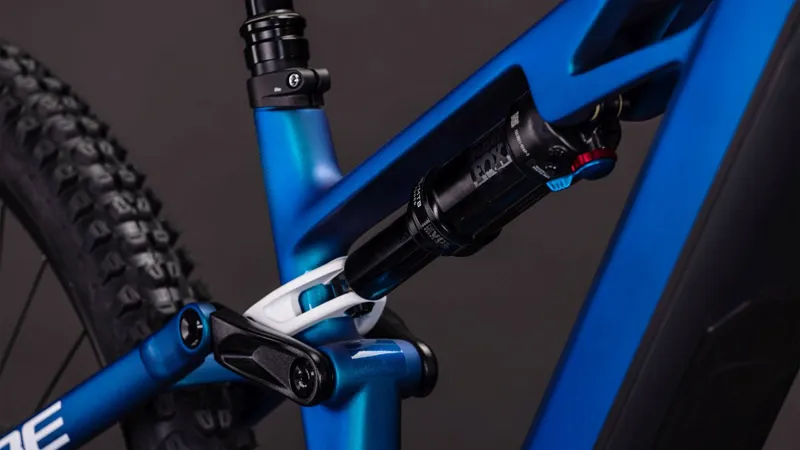

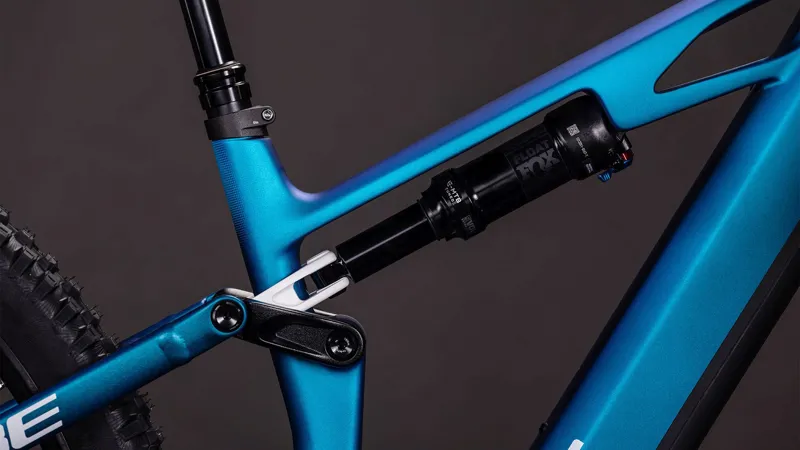

Shock: Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever
E-Bike System
Engine: Bosch Drive Unit Performance Line CX, max. 100 Nm (BDU38)
Battery: Bosch PowerTube 800

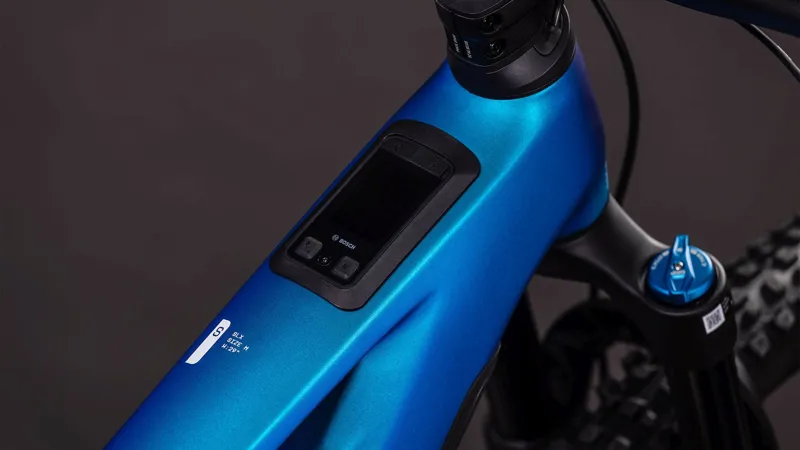

Display: Bosch Kiox 400C
Drivetrain & Brakes
Front Brake: Shimano XT BR-M8220, Hydraulic Disc Brake (203/203)
Rear Brake: Shimano XT BR-M8220, Hydraulic Disc Brake (203/203)
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano XT SL-M8100-IR, 12-Speed

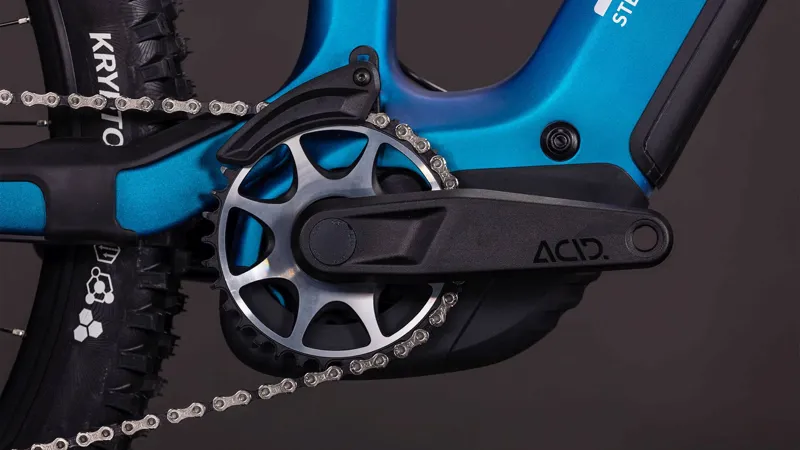

Crankset: Acid MTB Hybrid Pro, 27.5: 36T // 29: 34T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Cockpit
Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Handlebar: Cube Rise Trail Bar 35
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Handlebar Tape/Grips: Acid Disrupt
Wheels & Tyres
Wheels: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Continental Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4"
Other Components
Saddle: Acid Venec EMTB Trail 140
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost Clamp: Cube Semi-Integrated
Pedals: Acid PP MTB
