Frameset
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

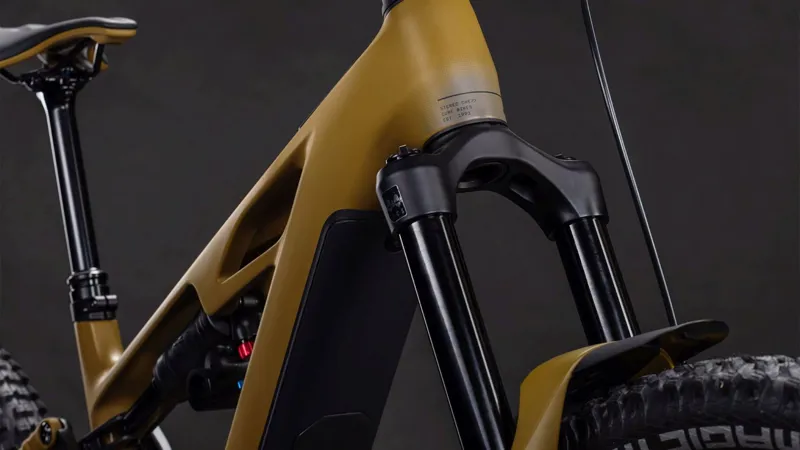

Fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

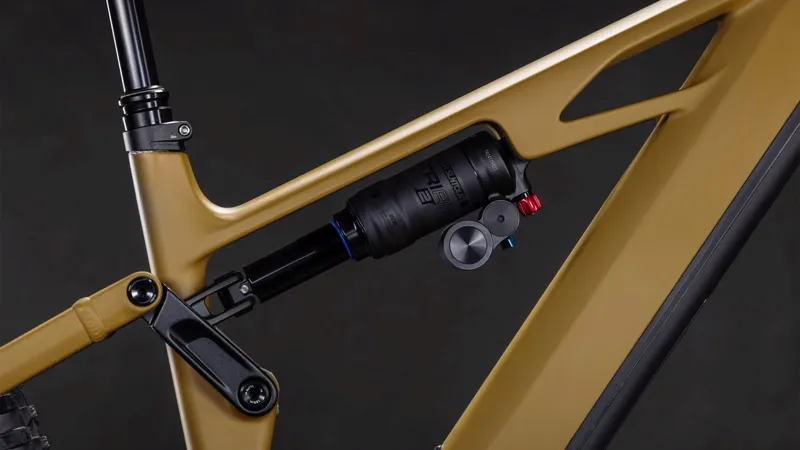

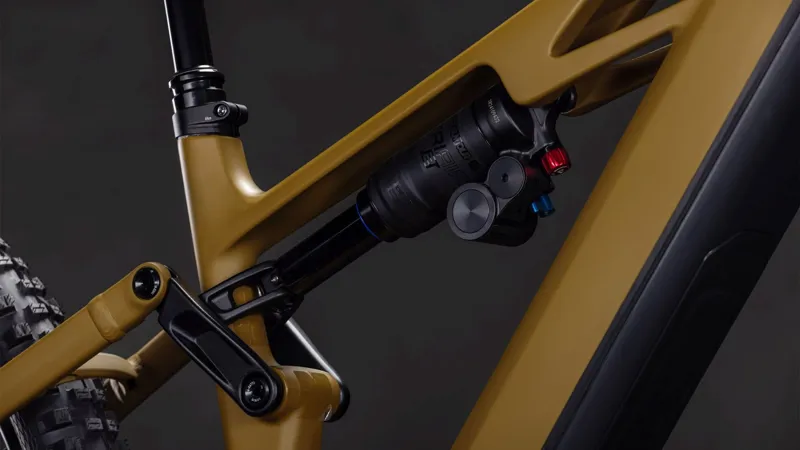

Shock: SR Suntour TRIAir 2CR, 230x65mm
E-bike System
Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

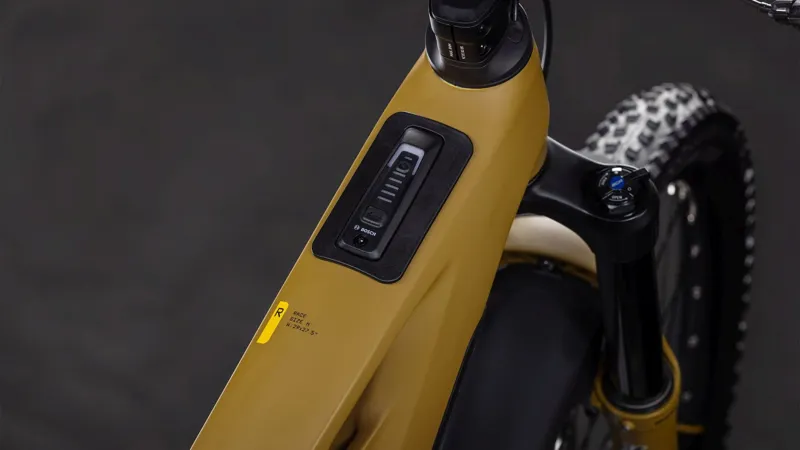

Battery: Bosch PowerTube 800
Drivertrain and brakes
Front brake: Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear brake: Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

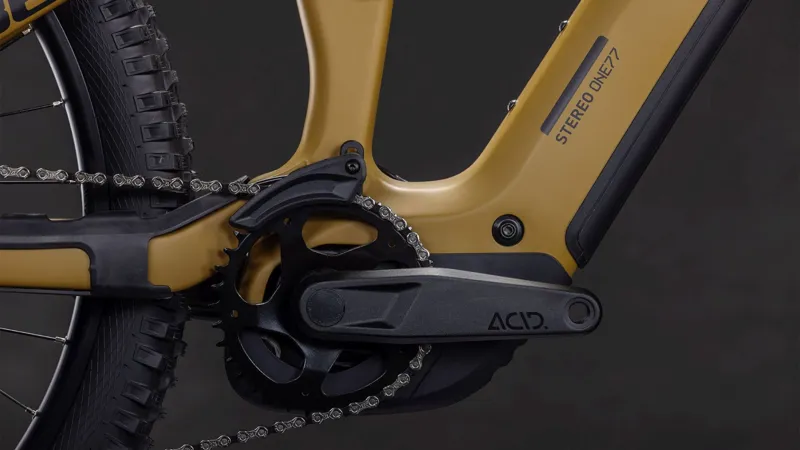

Crankset: Acid MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Cockpit
Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Handlebar: Cube Rise Trail Bar 35
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Grips: Acid Disrupt, Soft Compound
Wheels
Wheels: Acid SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre: Schwalbe Magic Mary, Performance, 2.4
Other parts
Saddle: Acid Venec EMTB Trail 140
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp: Cube Semi-Integrated
Pedals: Acid PP MTB
