*Please note – spec applies to all sizes unless listed separately
Frameset

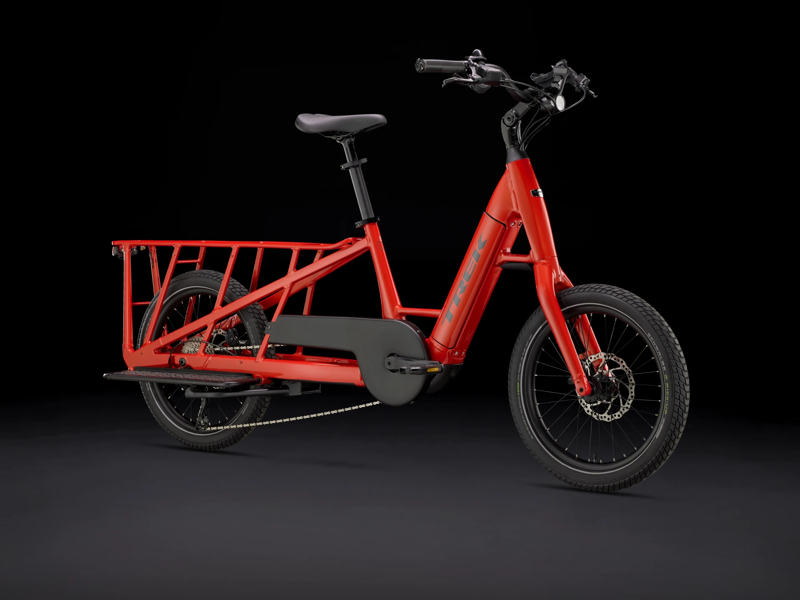

Frame: High-performance hydroformed alloy, low-step, Removable Integrated Battery, internal cable routing, Motor Armor, post-mount disc, 148x12 thru axle
Wheels
Hub front: Formula DC-71 alloy, sealed bearing, 6-bolt, 15x100mm thru axle
Skewer front: Bontrager Switch thru axle
Hub rear: Formula EHL-148S, sealed bearing, 6-bolt, Shimano 10 freehub, 148x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Alloy double-walled, 32-hole
Tyre: Schwalbe Pick-Up, Addix E-Compound, ECE-R75 approved, wire bead, 20x2.35"
Drivetrain
Shifter: Shimano Deore M4100, 10-speed
Rear derailleur: Shimano Deore M6000, mid cage, 42T max cog
Crank: ProWheel alloy, 165mm length
Chainring: ProWheel, 46T narrow/wide, alloy
Chain: KMC E10
Pedal: Bontrager City pedals
Components
Saddle: Bontrager Boulevard
Seatpost: Bontrager alloy, telescoping, 34.9 mm

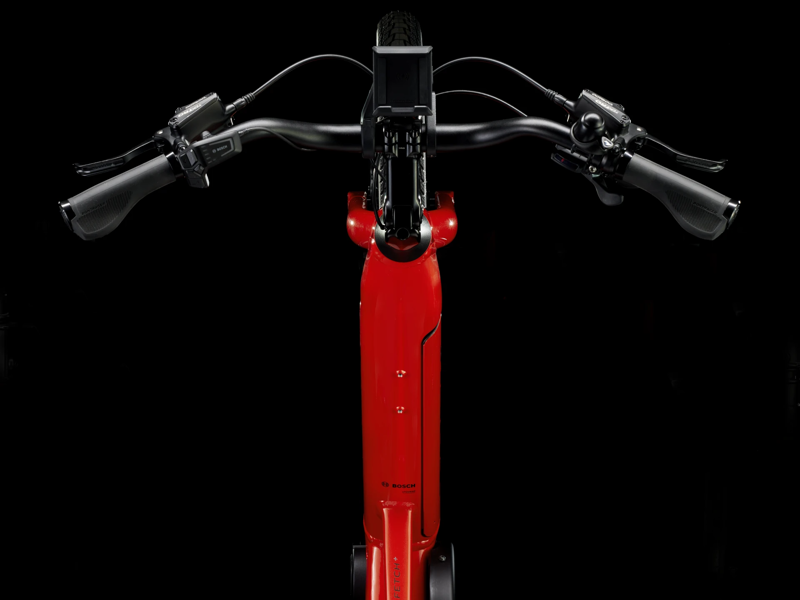

Handlebar: Electra Vale Go
Grips: Bontrager Satellite Elite, alloy lock-on
Stem: Adjustable aluminium, 31.8 mm, 90 mm length
Brakes

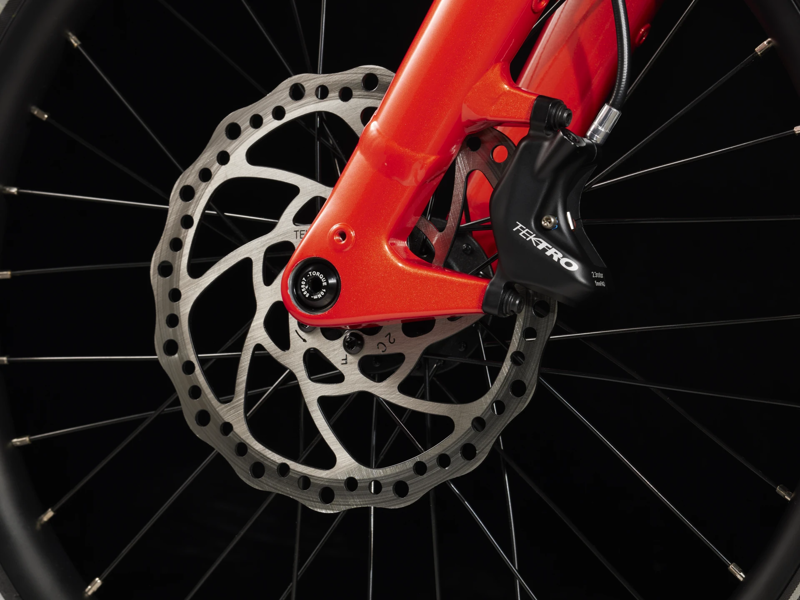

Brake: HD-T737 4-piston hydraulic disc
Brake rotor: Tektro wave, 6-bolt, 180 mm
E-system

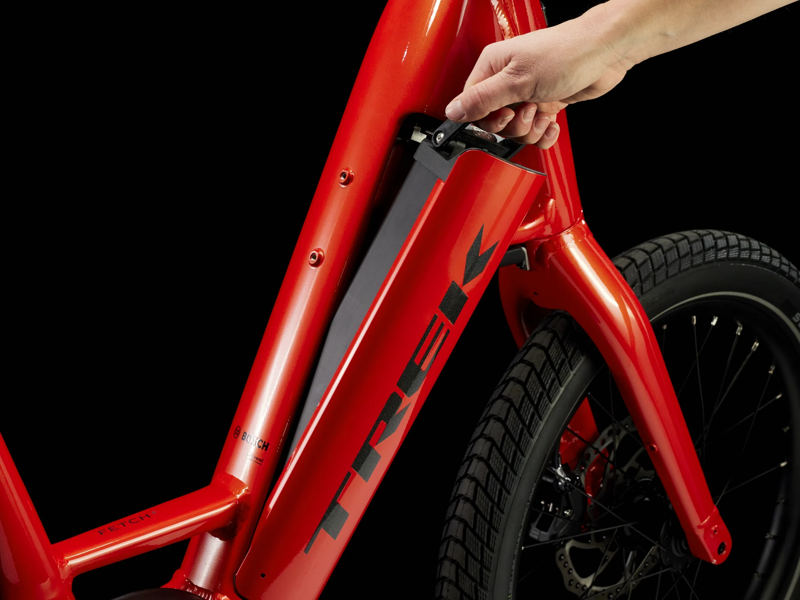

Battery: Bosch PowerTube 500Wh, smart system
Charger: Bosch standard 4A, 230V, smart system
Controller: Bosch BSP3200 smart phone grip
Motor: Bosch Performance Line Cargo, smart system, magnesium motor body, 85 Nm, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

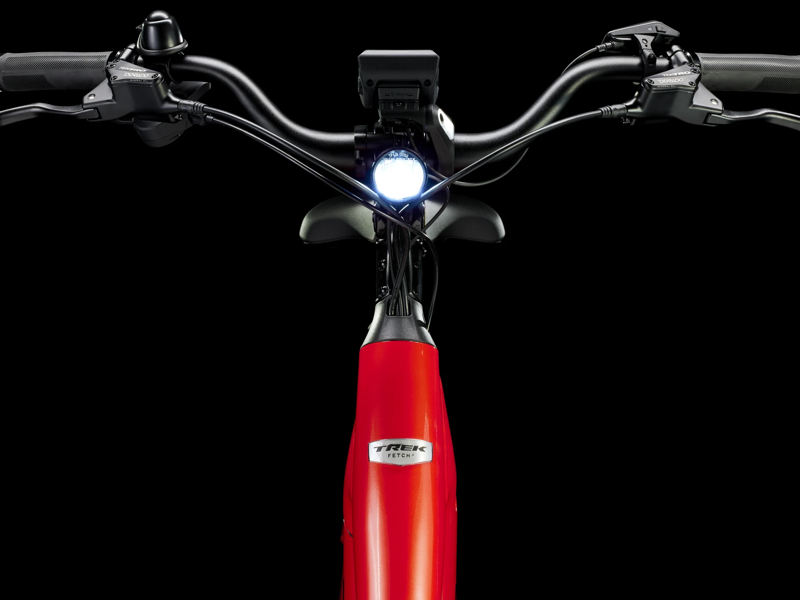

Light: Size: L – Spanninga Solo
Size: L – Herrmans MR8e front light, 180 lumen, 60 lux
Computer: Bosch LED remote, smart system
Kickstand: Trek Fetch kickstand
Weight
Weight: 31 kg / 68.35 lb
Weight limit: 200 kg (441 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
