Please note – spec applies to all sizes unless listed separately
Frameset
Frame: OCLV Mountain Carbon, removable battery, high main pivot, idler pulley, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, alloy rocker link, upper chain guide mount, 55 mm chainline, ABP, UDH, 148x12 mm thru axle, 170 mm travel
Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel

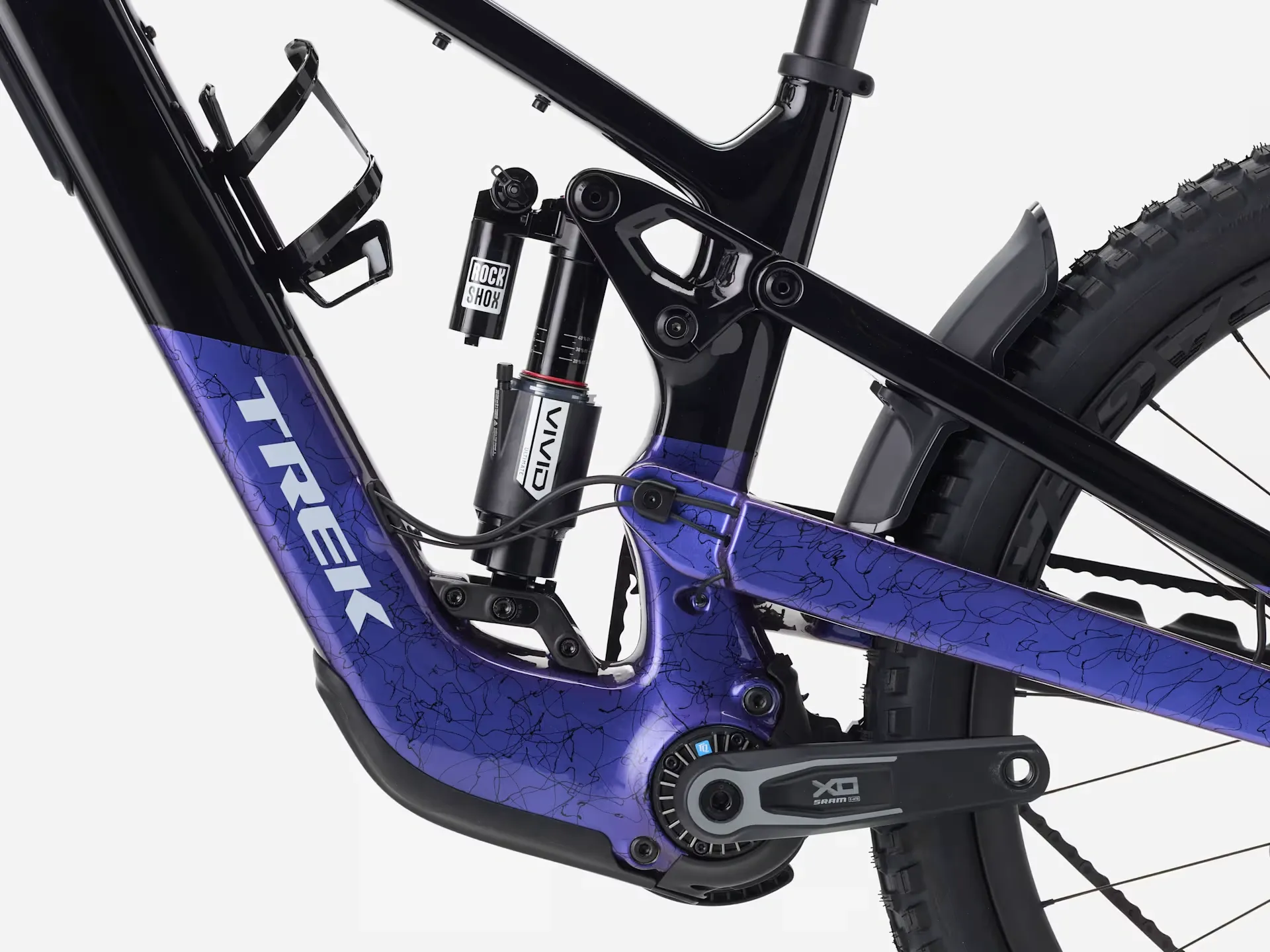

Shock: RockShox Vivid Ultimate, 230 mm x 65 mm
Wheels
Wheel front:
Size S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"
Sizes M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Wheel rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle, 27.5"
Skewer rear: Bontrager Switch thru-axle, removable lever
Tyre:
Sizes S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.5"
Sizes M, L, XL: Bontrager Galbraith RSL SE, Tubeless Ready, triple compound, folding bead, 60 tpi, 29x2.50"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 2.50", Fork: See manufacturer
E-system
Battery:
Sizes S, M, L, XL: SRAM AXS battery pack (with charger)
Sizes S, M, L, XL: TQ 580Wh
Charger: TQ 4A charger
Controller: TQ color LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Drivetrain
Shifter: SRAM AXS pod
Rear derailleur: SRAM X0 Eagle AXS, T-Type
Crank: SRAM X0 Eagle, 160 mm length
Chainring: SRAM T-Type, 32T, alloy
Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Max. chainring size: Max: 34T (oval – 32T), Min: 28T
Components
Saddle: Verse Short Comp, steel rails, 145 mm width
Seatpost:
Size S: RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 442 mm length
Size M: RockShox Reverb AXS, 175 mm travel, wireless, 34.9 mm, 492 mm length
Sizes L, XL: RockShox Reverb AXS, 200 mm travel, wireless, 34.9 mm, 542 mm length
Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
Brake: SRAM Maven Silver 4-piston hydraulic disc
Brake rotor: SRAM HS2, 6-bolt, 200 mm
Rotor size: Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
Accessories
Mudguard: Trek 27.5" custom fender
Tool: Bontrager BITS integrated multi-tool
Weight
Weight: M - 21.83 kg / 48.13 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in fi
