Frame
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Frame set
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
Fox Performance 34 Step-Cast, Float EVOL air spring, GRIP 2-position damper, dual remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 110 mm travel

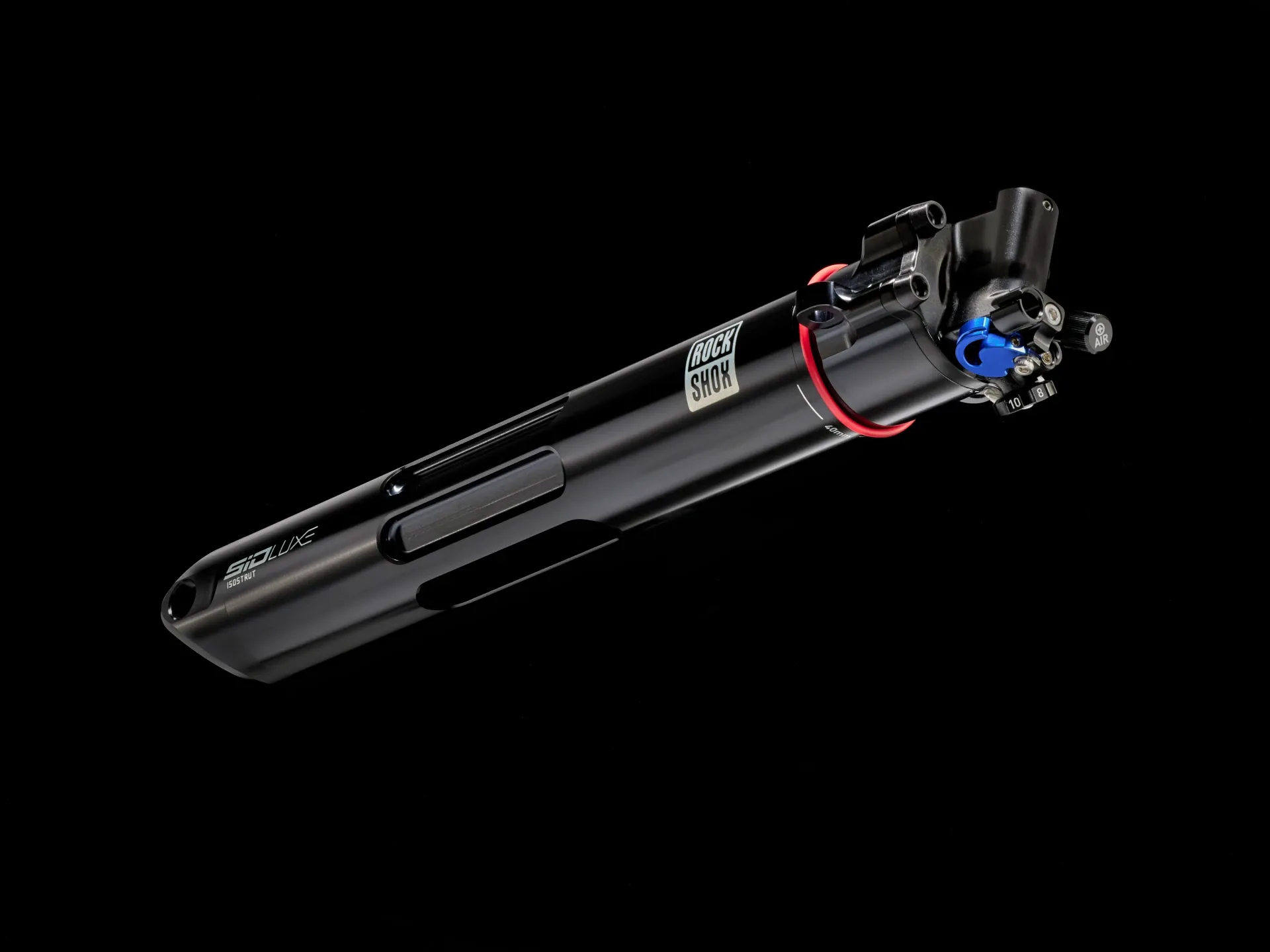

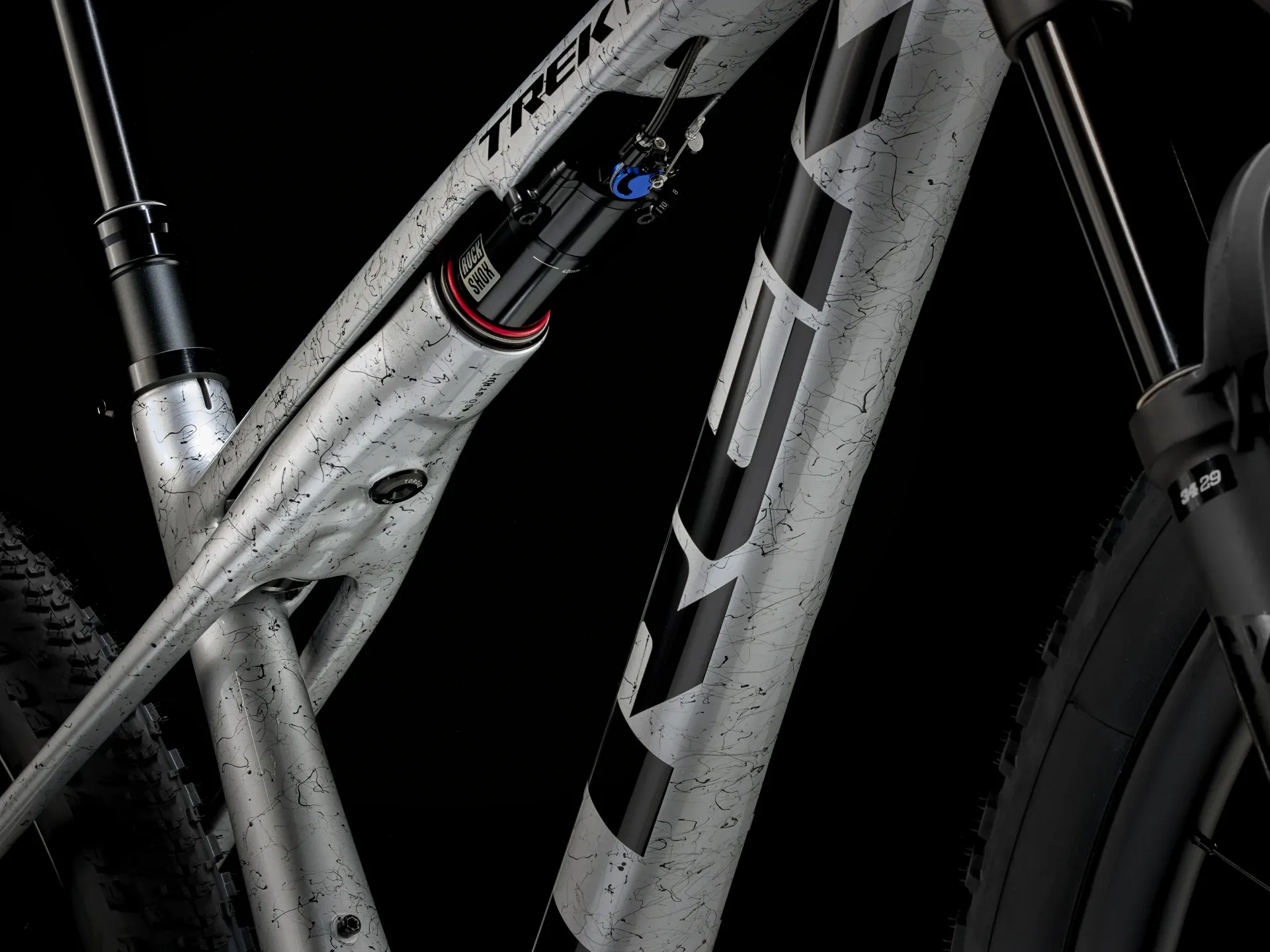

Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Max compatible fork travel
120 mm (533 mm axle-to-crown)

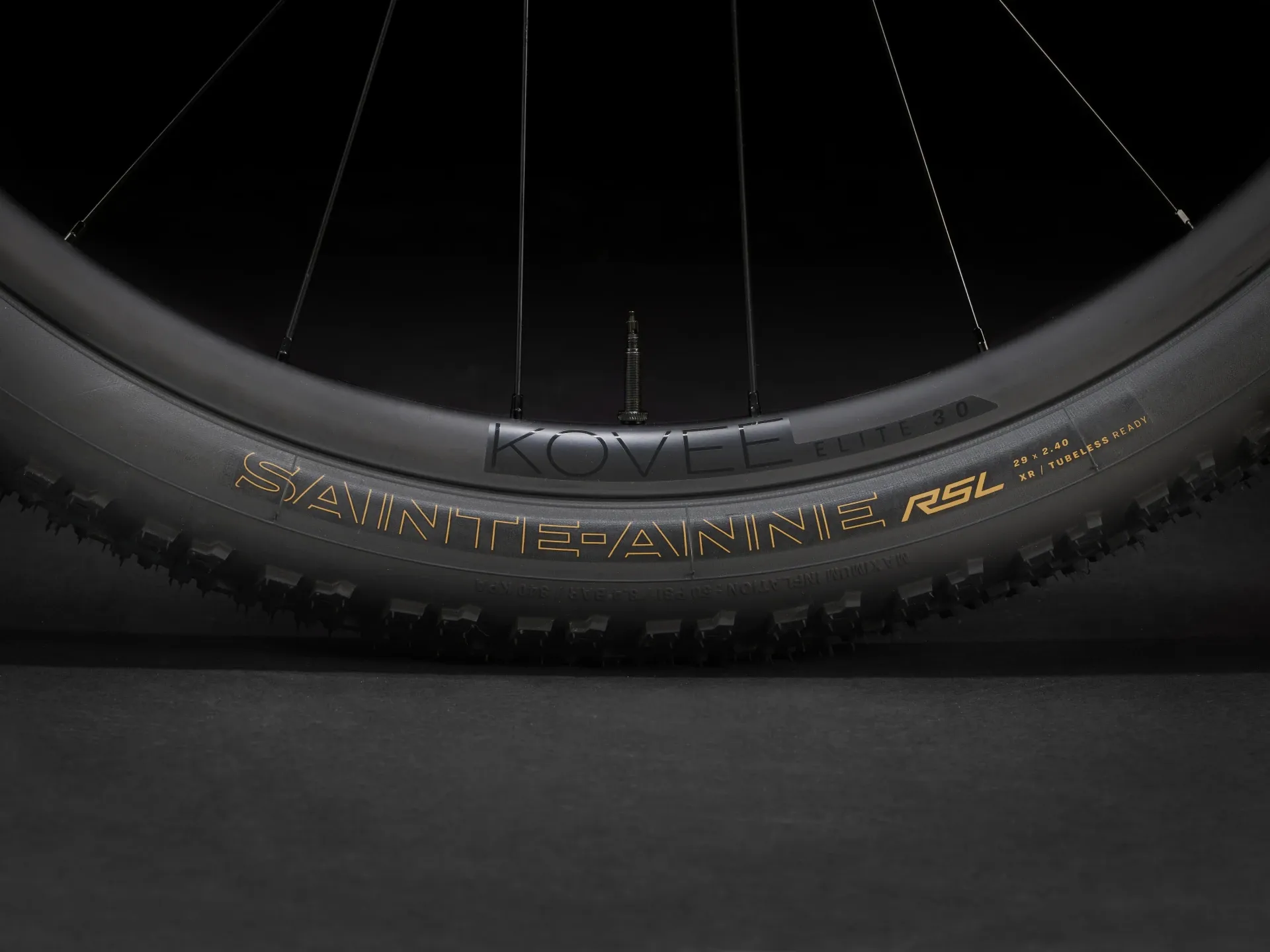

Wheel front
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
NEW Bontrager Kovee Elite 30 carbon, Tubeless Ready, 108T Rapid Drive, 6-bolt, Boost148, 12 mm thru axle
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed

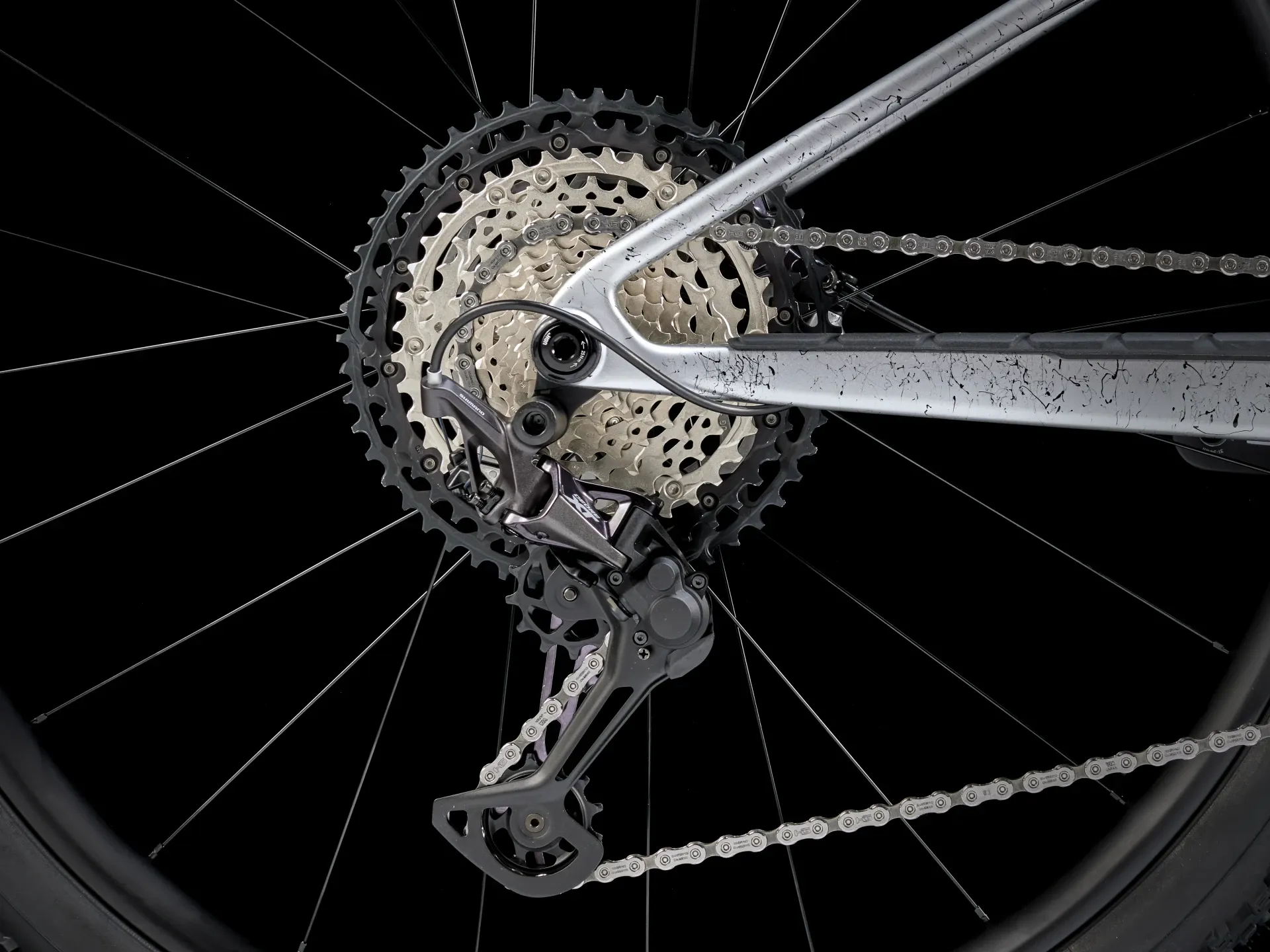

Rear derailleur
Shimano XT M8100, long cage

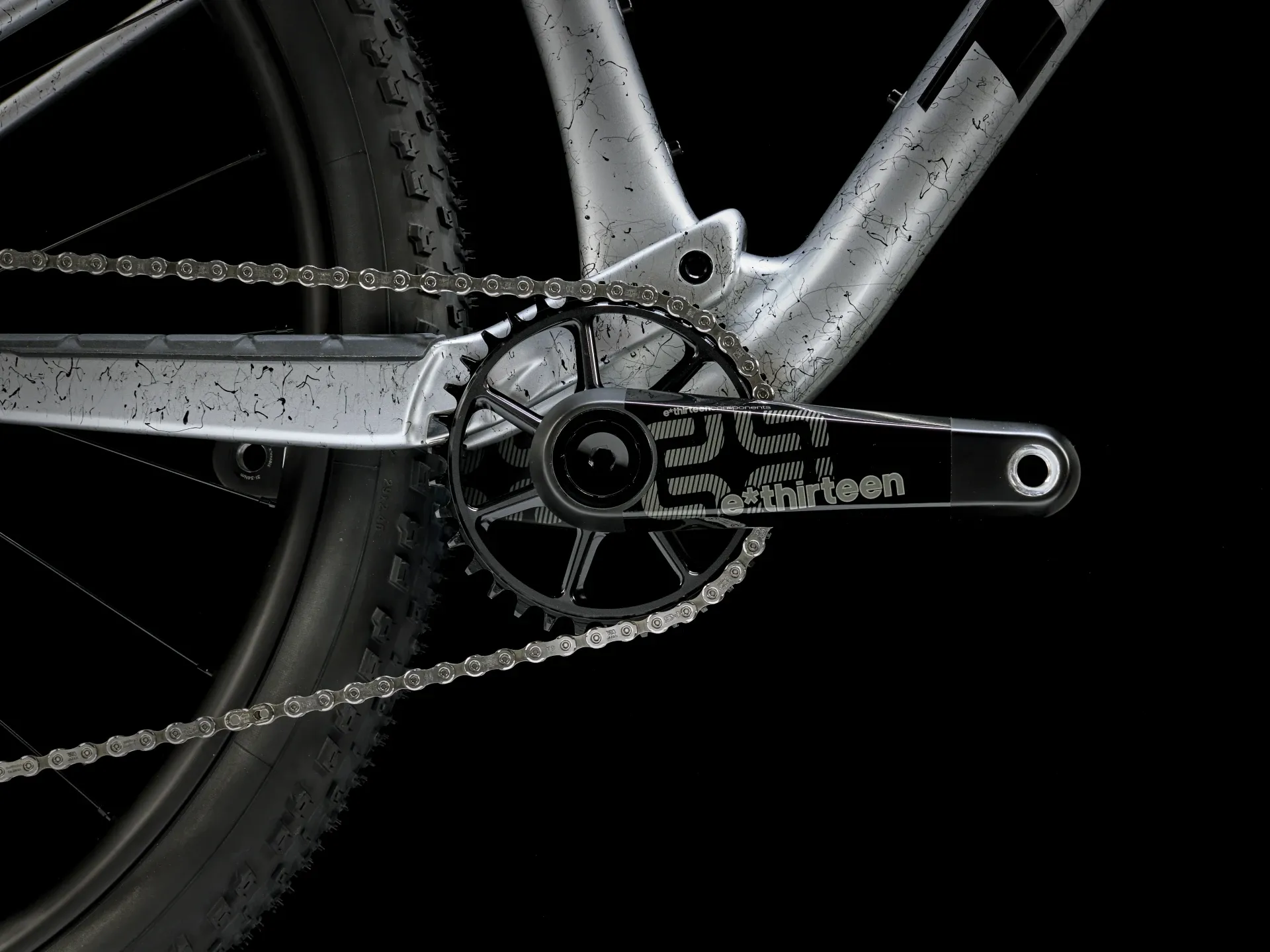

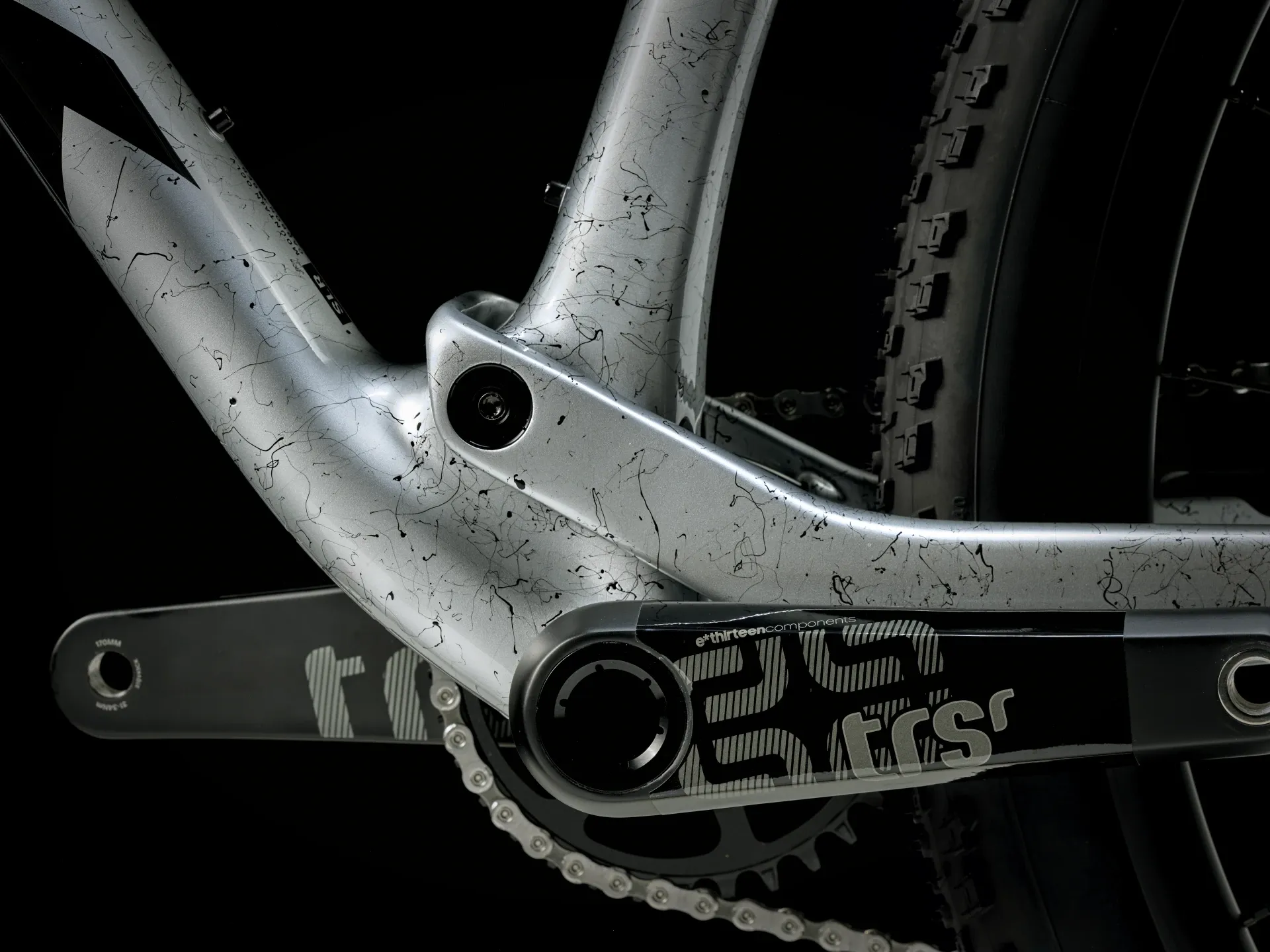

Crank
Size:S, M
E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 55 mm chain line, 170 mm length
Size:M/L, L, XL
E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 55mm chain line, 175 mm length
Bottom bracket
E*thirteen BB20-92
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano Ultegra/XT M8100, 12-speed
Max. chainring size
1x: 38T, min 30T
Saddle
Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost
Size:S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size:M, M/L
Bontrager Line Dropper, 125 mm travel, internal routing, 31.6 mm, 395mm length
Size:L, XL
Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440mm length
Handlebar/stem (integrated)
Size:S, M, M/L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
Size:L
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length
Size:XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips
ESI Chunky

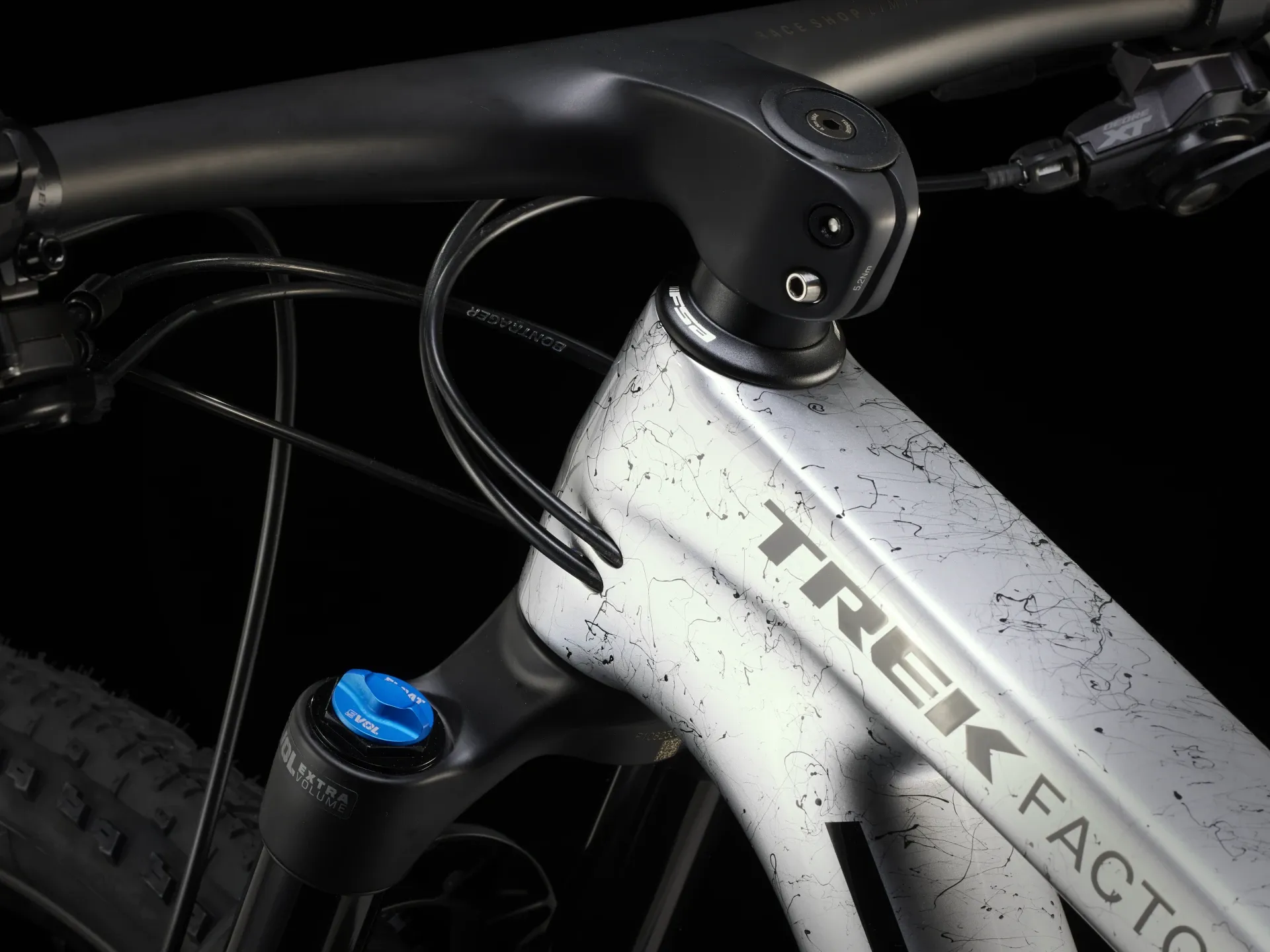

Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
Shimano Deore XT M8100 hydraulic disc
Brake rotor
Size:S, M, M/L, L, XL
Shimano RT86, 6-bolt, 180mm
Size:S, M, M/L, L, XL
Shimano RT86, 6-bolt, 160 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Weight
M - 10.95 kg / 24.15 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
