Frameset

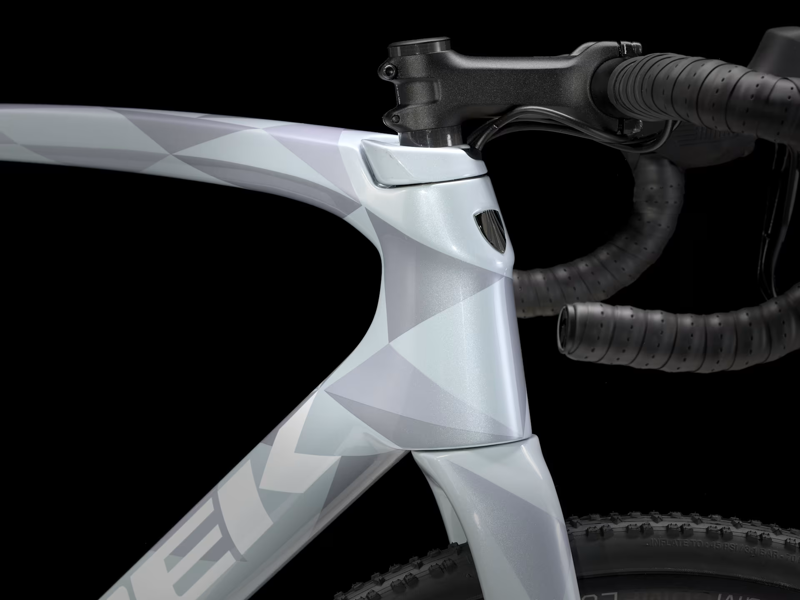

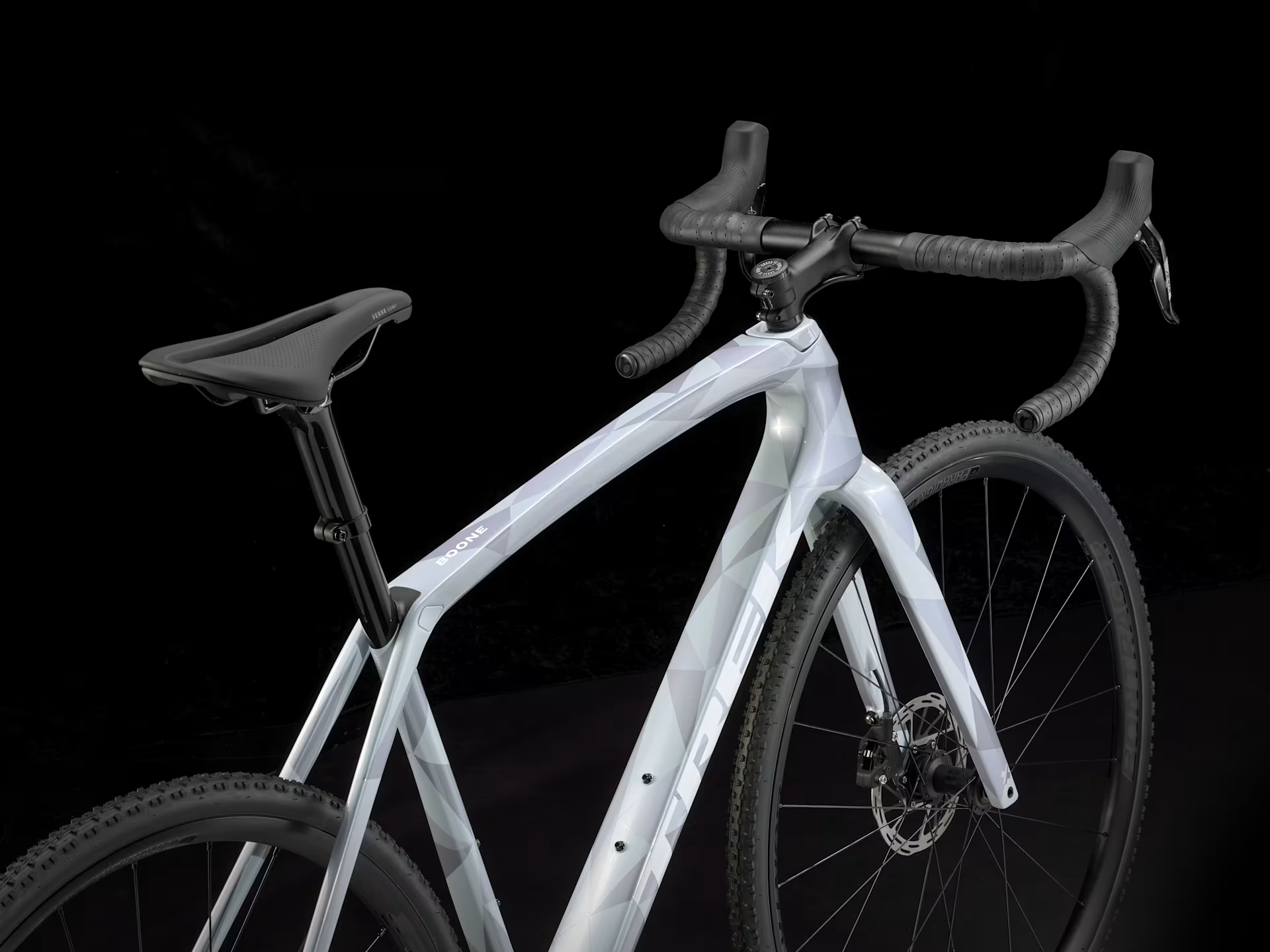

Frame

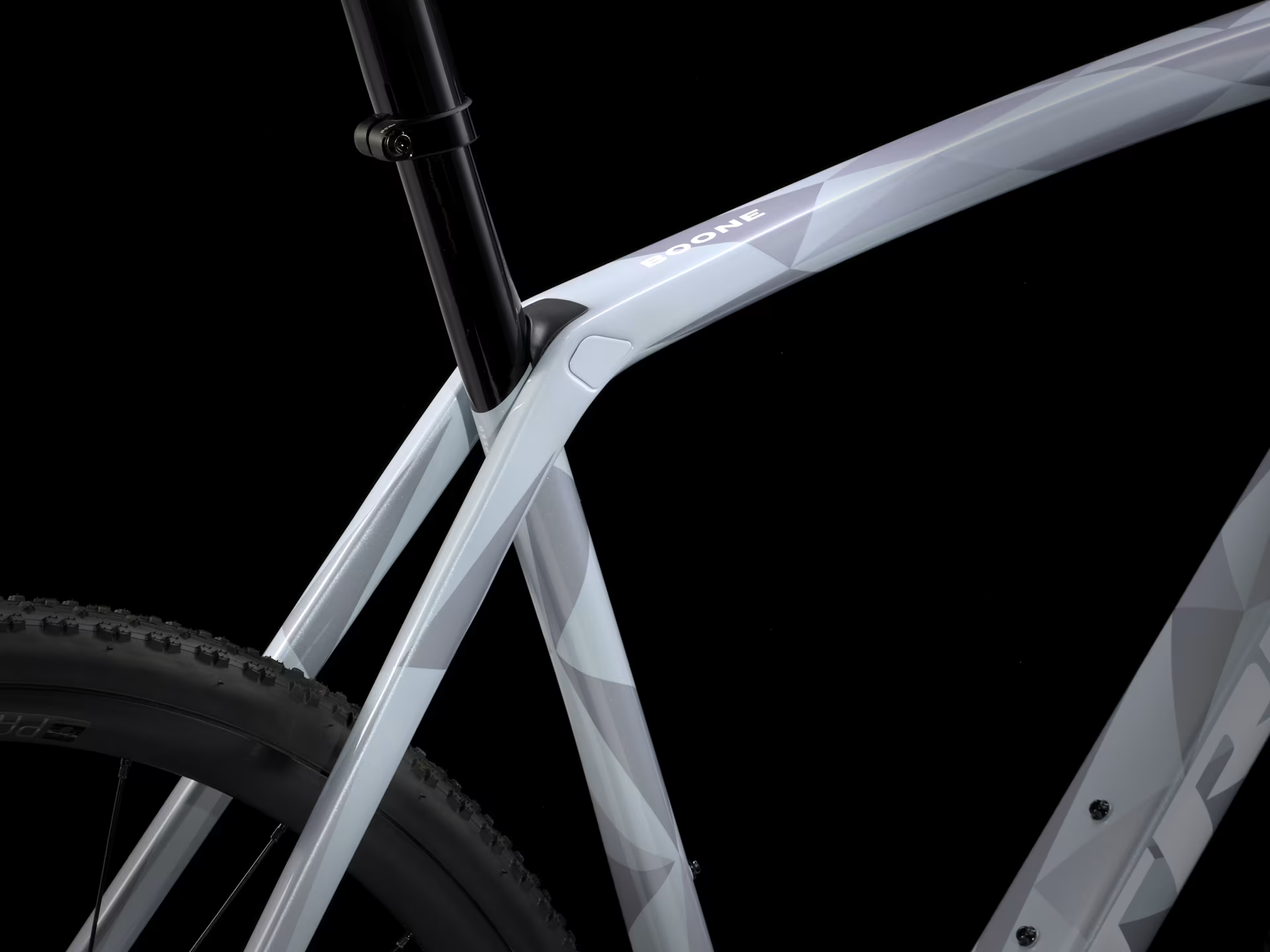

600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seat mast, 3S chain keeper, T47 BB, flat-mount disc, 142x12 mm thru-axle
Fork
Trek Cross, full carbon, tapered carbon steerer, flat-mount disc, 12x100 mm thru-axle
Weight
Weight
56 – 8.50 kg / 18.74 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg / 275 lb

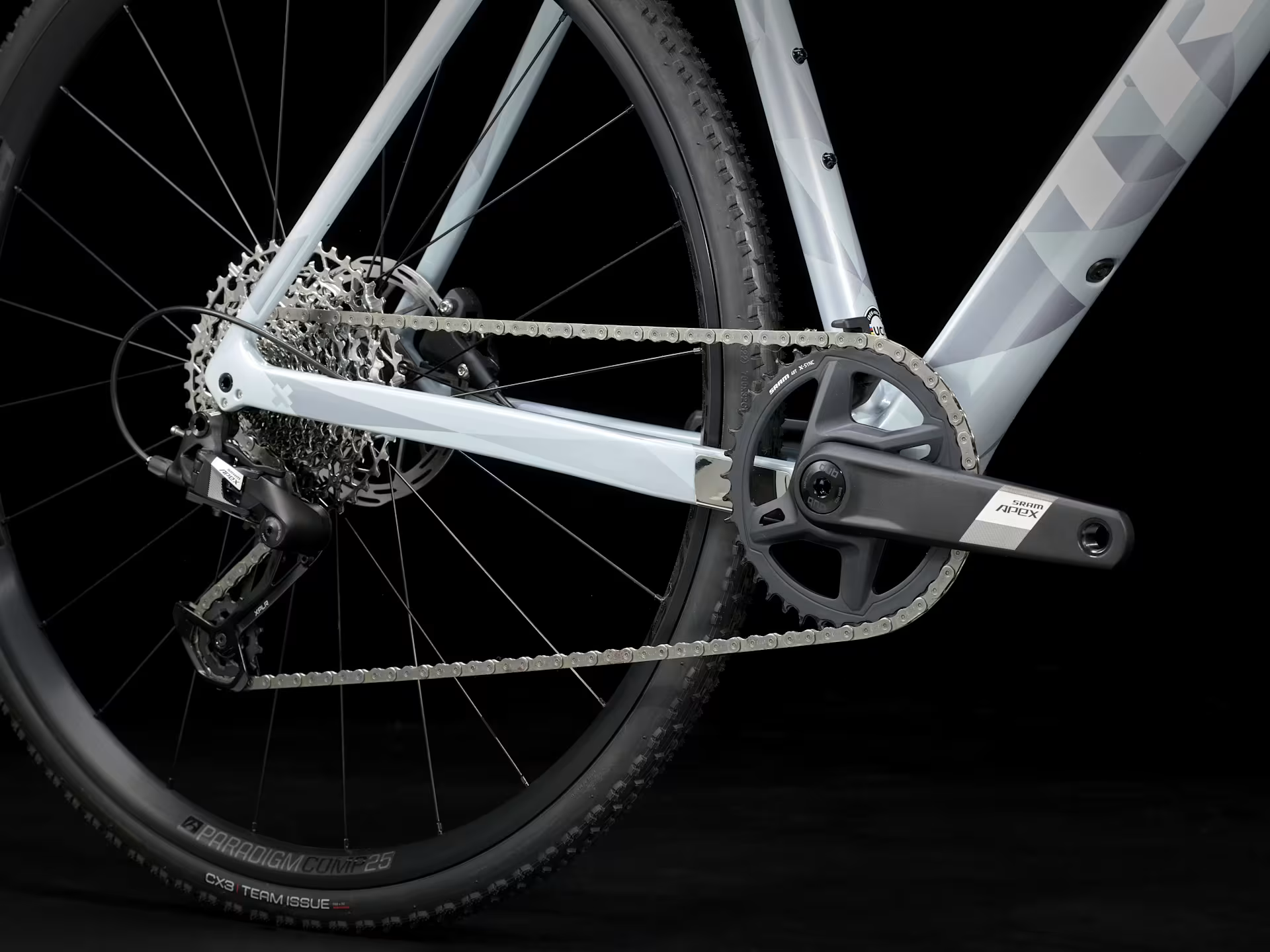

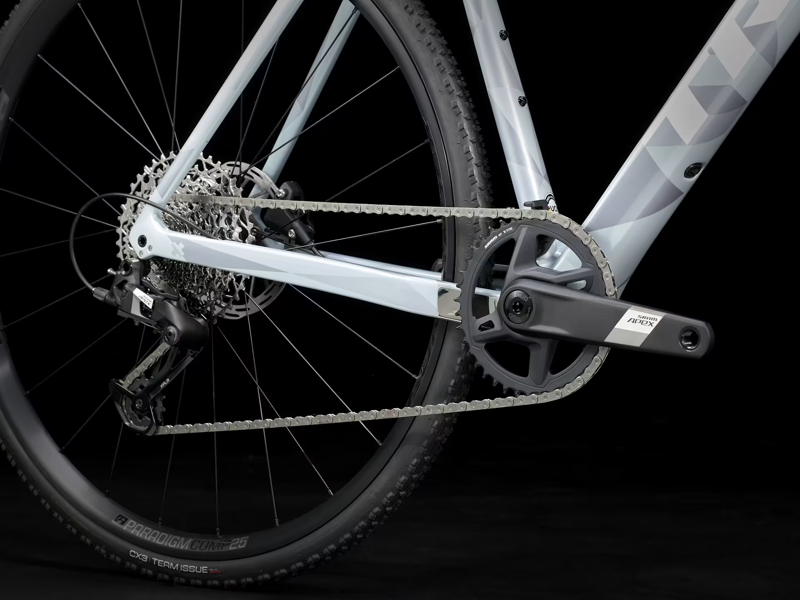

Drivetrain
Shifter
SRAM Apex, 12-speed
Rear derailleur
SRAM Apex XPLR, 44T max cog
Crank
- Size 49: SRAM Apex 1, 40T, DUB Wide, 165 mm length
- Size 52: SRAM Apex 1, 40T, DUB Wide, 170 mm length
- Size 54, 56: SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
- Size 58, 61: SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12-speed
Chain
SRAM Apex, 12-speed
Max. chainring size
See service manual
Wheels
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32 mm
Max tyre size
38 mm
Components
Saddle
- Size 49, 52: Verse Short Comp, steel rails, 155 mm width
- Size 54, 56, 58, 61: Verse Short Comp, steel rails, 145 mm width
Seatpost
- Size 49, 52, 54, 56: Bontrager carbon seat mast cap, 5 mm offset, short length
- Size 58, 61: Bontrager carbon seat mast cap, 5 mm offset, tall length

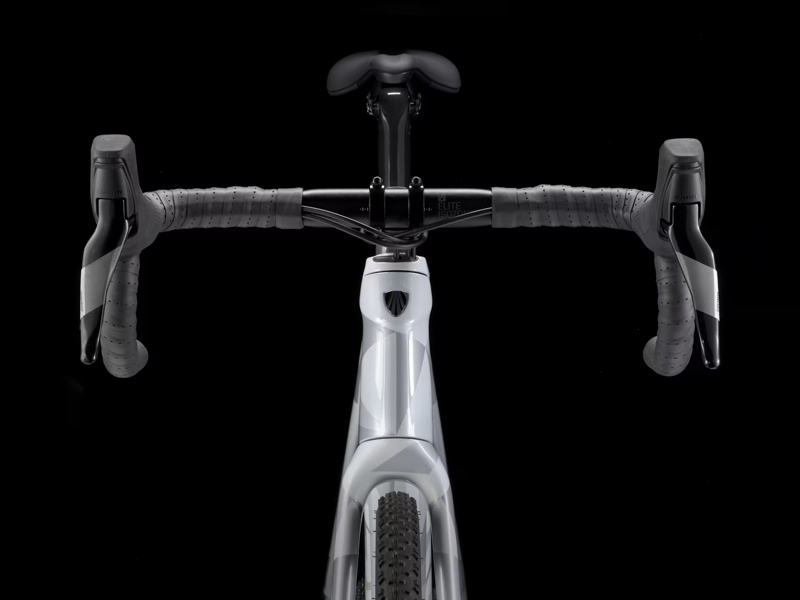

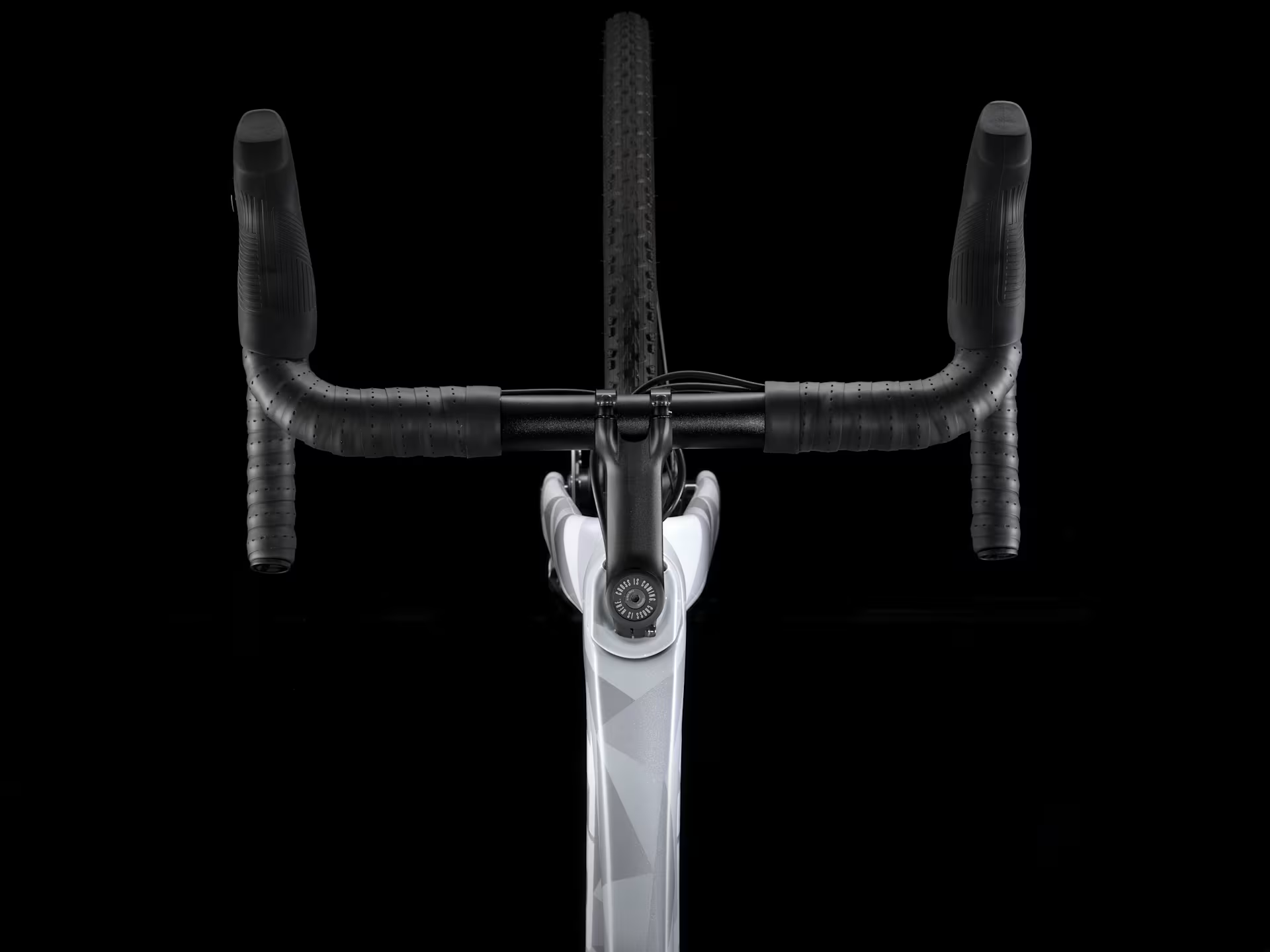

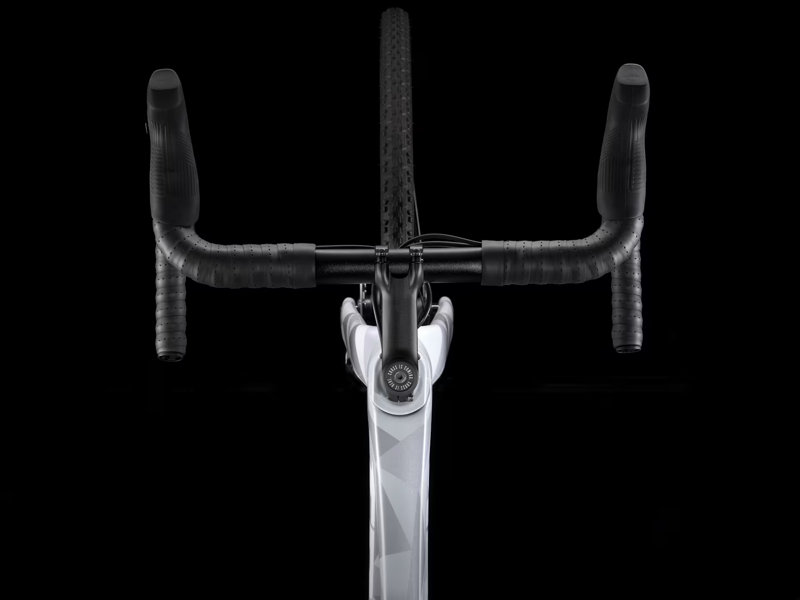

Handlebar
- Size 49: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38 cm width
- Size 52: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40 cm width
- Size 54, 56: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42 cm width
- Size 58, 61: Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape

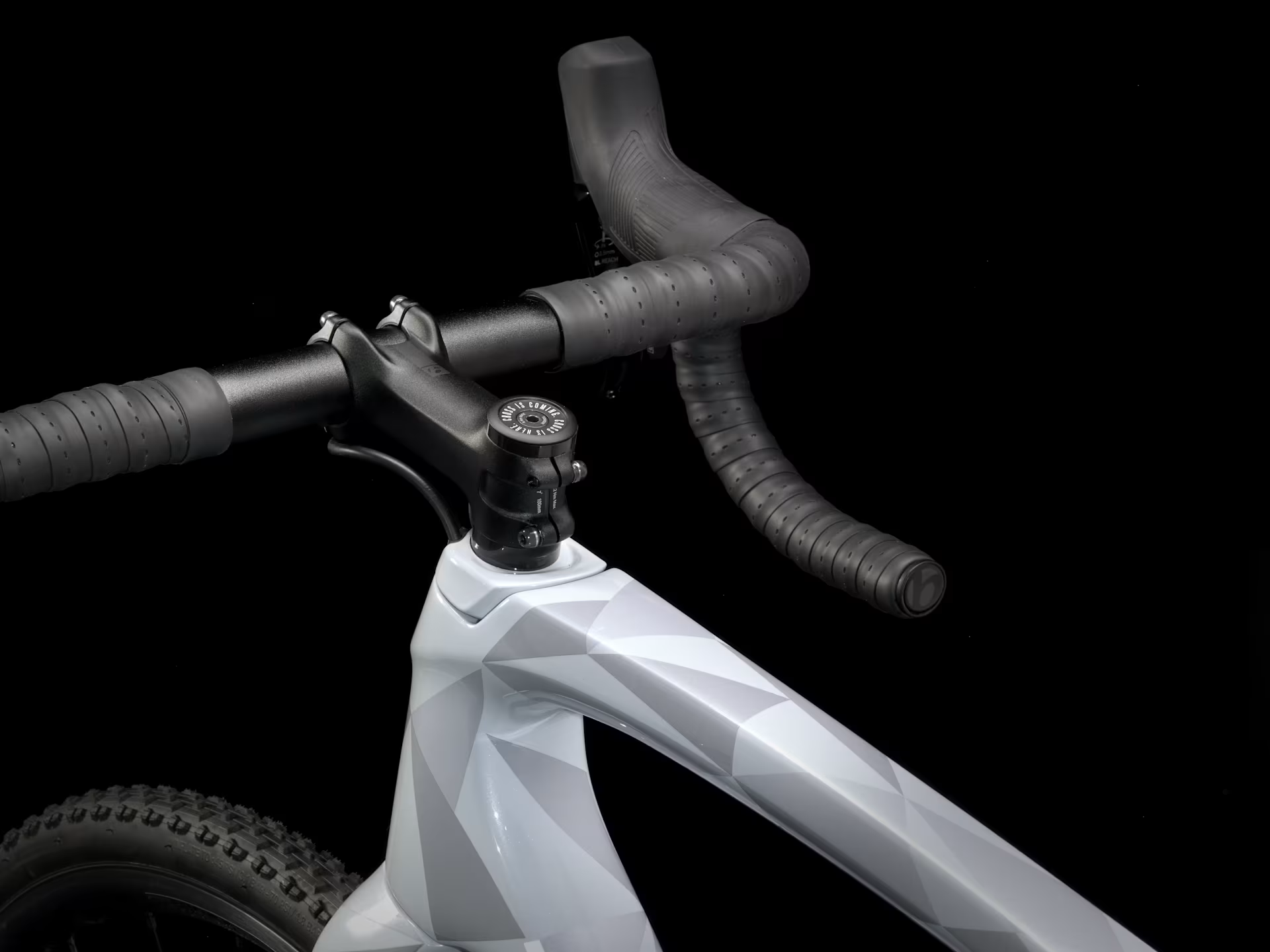

Stem
- Size 49: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
- Size 52, 54: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
- Size 56, 58: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
- Size 61: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

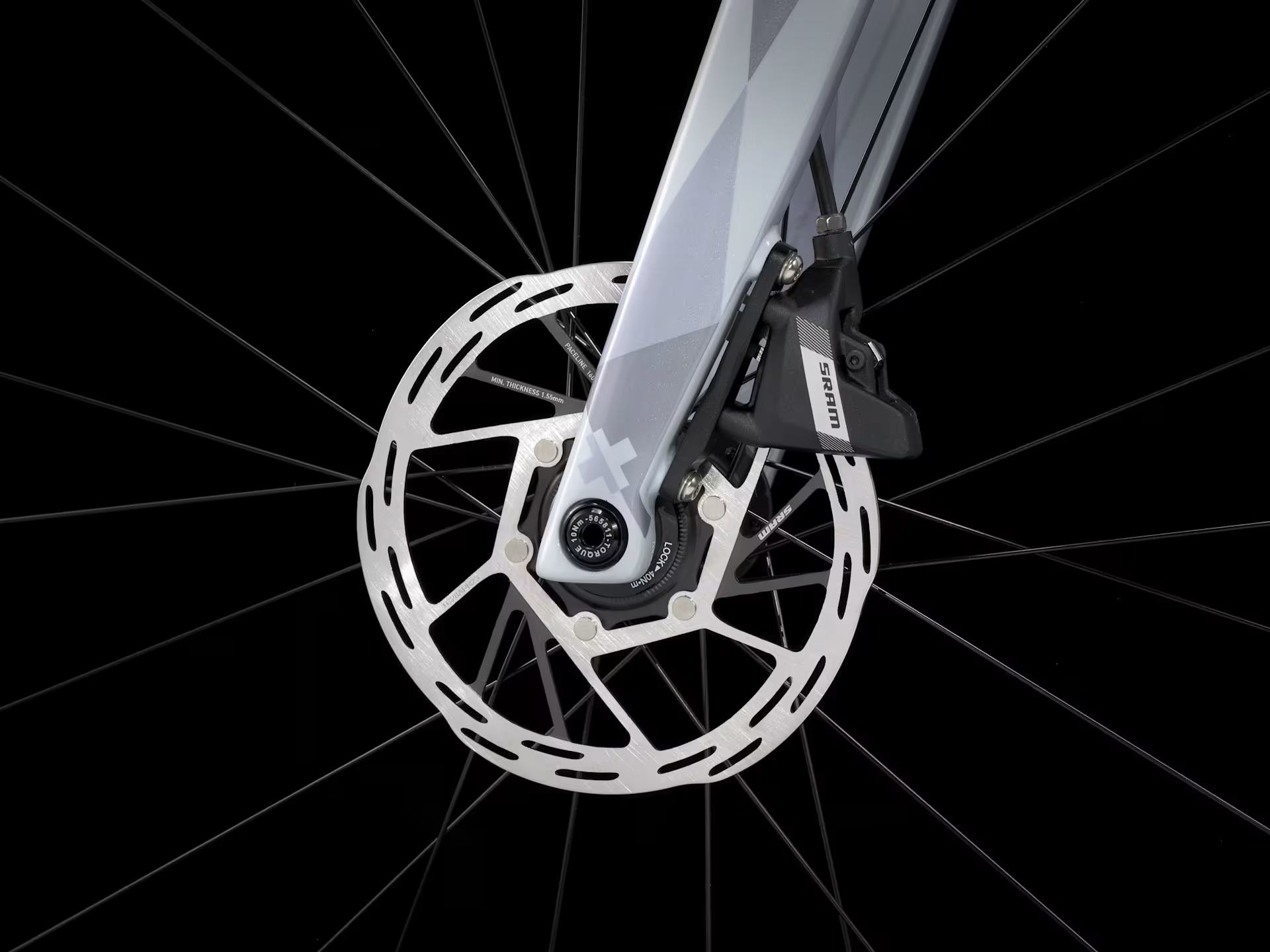

Brake
SRAM Apex hydraulic disc, flat mount
Brake rotor
SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever
SRAM Apex, 12-speed
Rotor size
Max brake rotor sizes: 160 mm front and rear
Notes
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
