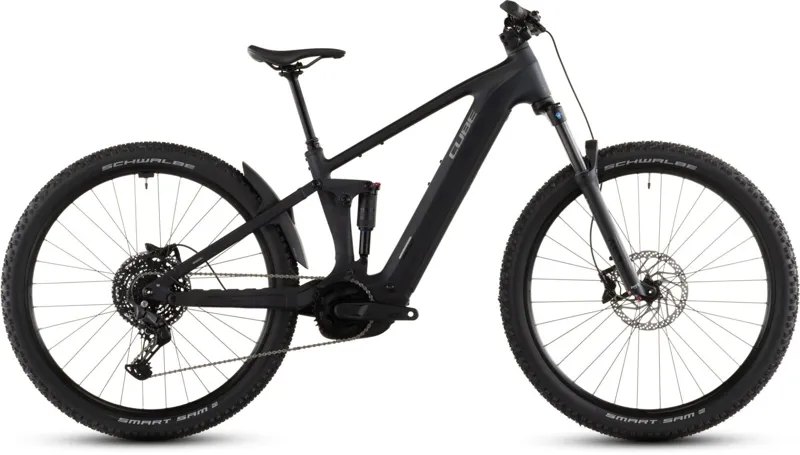

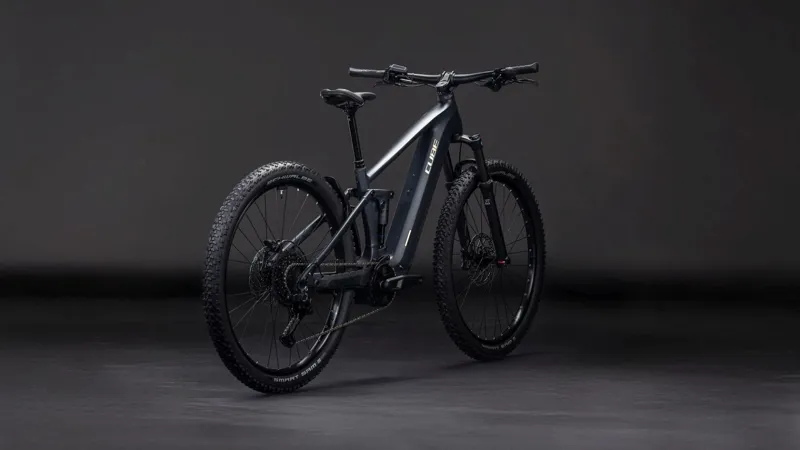

Frameset

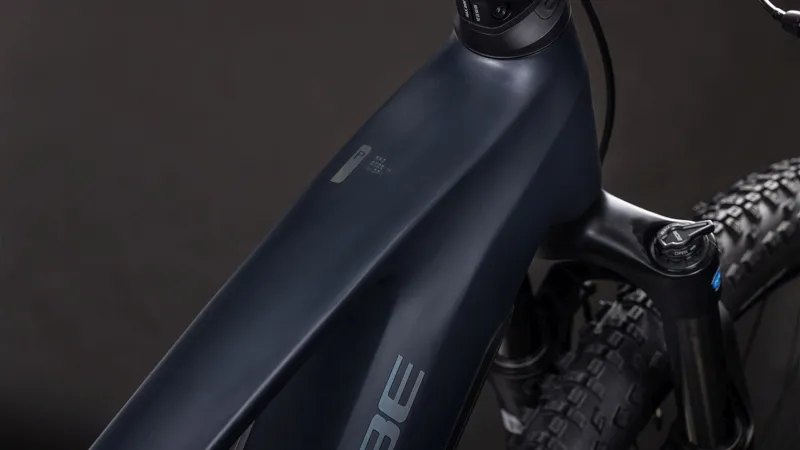

Frame: Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

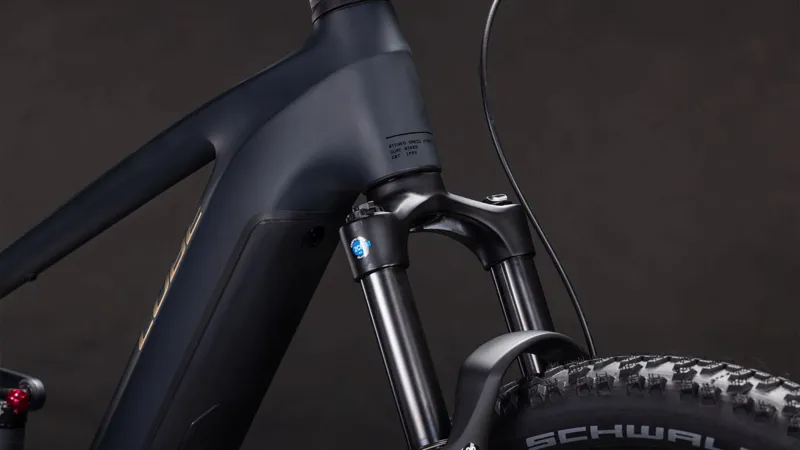

Fork: SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm

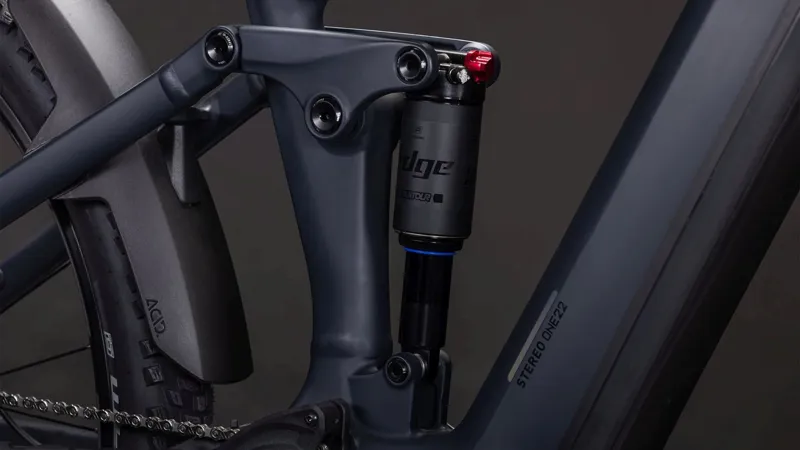

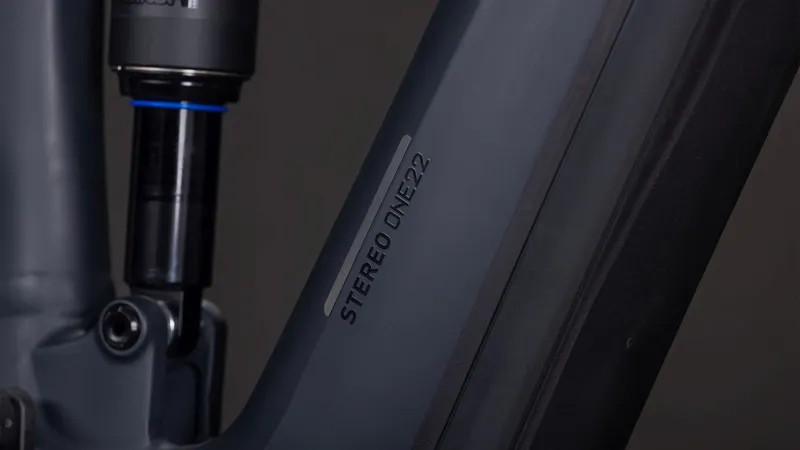

Shock: SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount
E-bike System
Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery: Bosch PowerTube 600
Drivertrain and brakes
Front brake: Shimano BR-MT420, Hydr. Disc Brake (203/203)
Rear brake: Shimano BR-MT420, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano Cues RD-U6000-GS, 10-Speed
Shifters: Shimano Cues SL-U6000, Rapidfire-Plus
Crankset: Acid MTB Hybrid Pro, 38T
Cassette: Shimano Cues CS-LG300, 11-48T
Chain: KMC eGlide
Cockpit
Headset: Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Handlebar: Cube Rise Trail Bar 35
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Grips: Acid Hybrid Perform
Wheels
Wheels: Acid PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre: Schwalbe Smart Sam, Active, 2.6
Other parts
Saddle: Acid Venec EMTB Plus 145
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp: Cube Seatpost clamp
Pedals: Acid PP MTB
