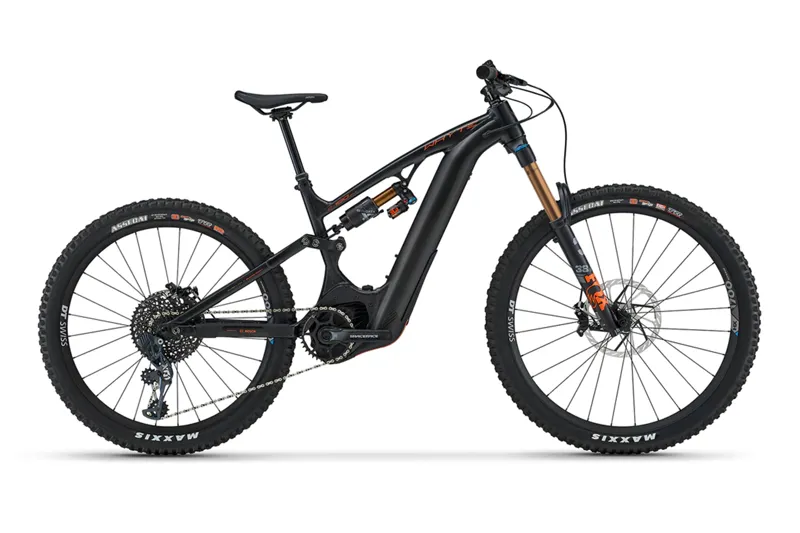

Whyte Bikes E-180 RSX MX in Matt Black with Burnt Orange and Gold

Season:2023

Brand:Whyte Bikes

Code:DLGGROtnruBhetihWKLBXMXSR

Unleash Yourself
Our mid-range E-180 RSX MX is the chaos-crushing, downhill-dominating, climb-shrinking super electric mountain bike (e-MTB) for self-shuttled gravity riding, bike park play, and big mountain terrain. If having the best time doing the biggest rides in the biggest terrain is why you ride, the E-180 RSX MX is ready.

Highlights
– 180mm front and 170mm rear suspension travel
– Bosch Performance Line CX 85Nm motor + 750Wh battery
– MX wheels: 29in front, 27.5in rear
– 6061-T6 aluminium frameset with tapered headtube, internal cable routing, Shape.It link and 12x48mm Boost dropouts
– Exclusive Whyte custom-tuned Fox Factory series suspension: Float X2 Factory (rear) and Float 38 Factory 29in with Grip2 Damper (front)
– SRAM X01 Eagle AXS 1x12 wireless electronic transmission (36T chainring x 11-50T cassette)
– SRAM Code RSC four-piston hydraulic disc brakes (220mm front rotor; 200mm rear)

Why E-180 RSX MX?

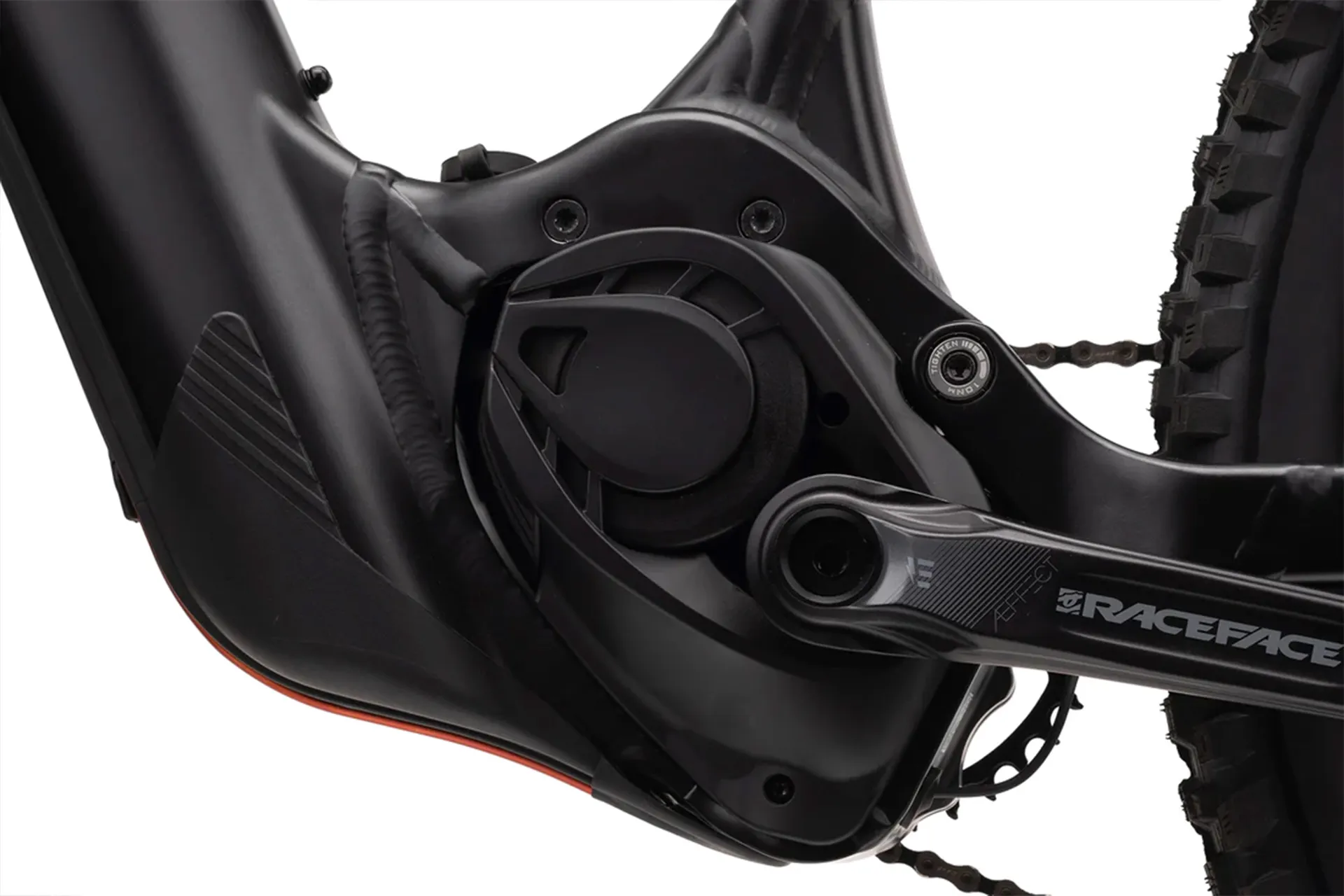

The E-180 RSX is built around Bosch’s Performance Line CX 85Nm motor with its four climb-shrinking power modes so you can effortlessly self-shuttle or conquer the most challenging natural terrain; combined with huge 180mm front/170mm rear suspension and MX (29er front/27.5” rear) wheels, the E-180 RSX is ready for sending the biggest lines, jumps, drops and features with total confidence.

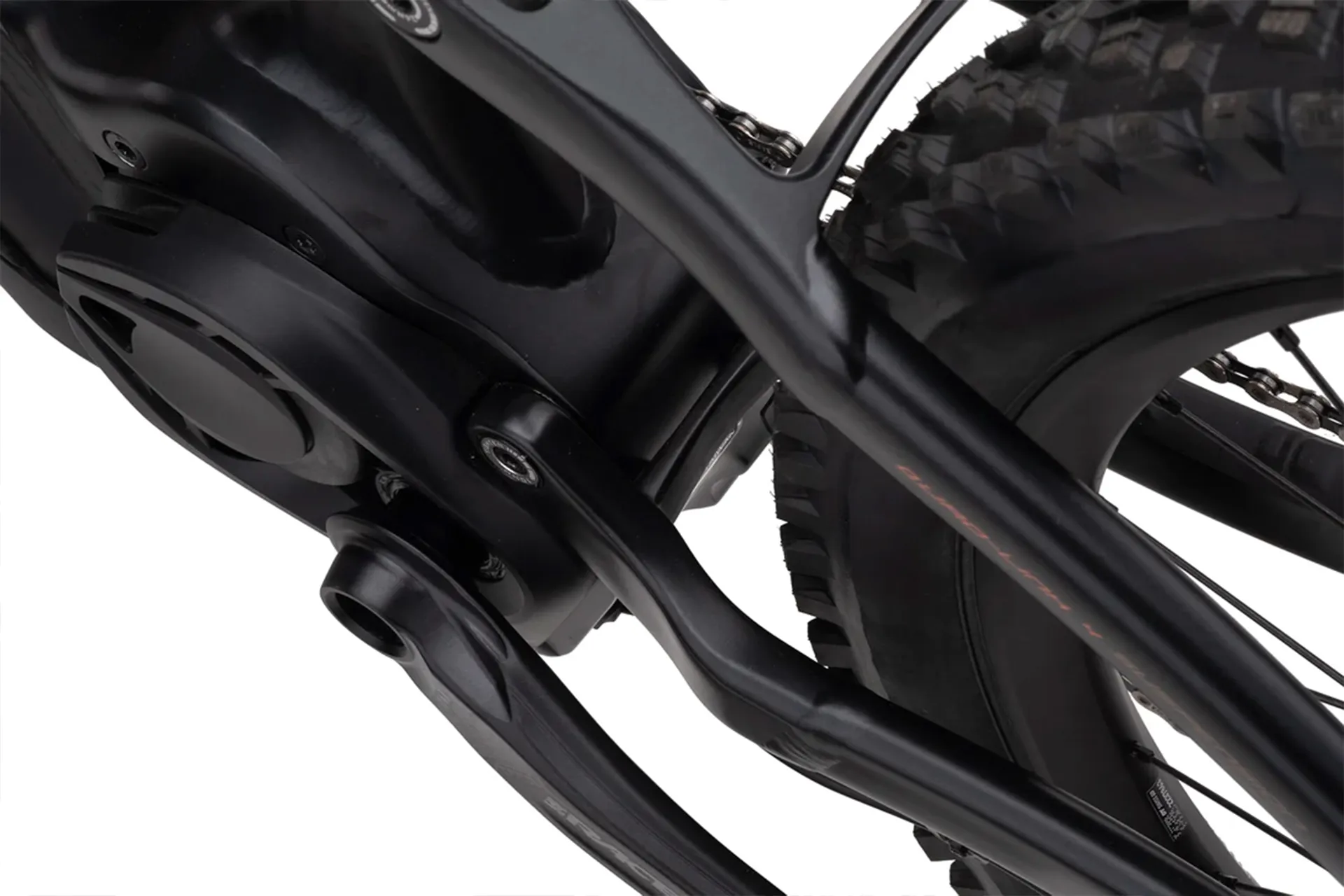

The new frameset maximises the advantage of our unique tilted motor and super low-slung battery arrangement, which brings the bike’s centre of gravity as low as possible, to deliver you ultra-stable, dynamically centred and confident handling at any speed and on any terrain – so you can corner on rails and not high-side wide – while short 165mm cranks deliver maximum pedal control and ground clearance.

We optimised the suspension to be ultra-sensitive and reactive for traction but still support the e-bike weight super well through G-outs and the biggest berms; we also tweaked our Total Geometry system and used an MX wheel set up so the E-180 plays and slays on the tightest, steepest tracks but still has your back when you’re flat out through boulder fields with handling that’s agile and alive for maximum fun.

The extra-large 750Wh battery gives hour after hour, run after run on the biggest tracks and bike park lines, with a unique slide-out system for fast home charging removal and smaller battery options. Our innovative in-tube design is far stronger and stiffer than open tube frames, surviving almost metric ton slam loads in testing so you can feel totally safe full-sending on the hill.

Features & Equipment
To give you the best performance possible for when you’re pushing hard on the biggest terrain, we've equipped the E-180 RSX with 'sorted right from the box' parts selection headlined by Fox's impeccable Factory series suspension units front and rear; wireless electronic shifting across the 1x12 tranmission from SRAM's X01 Eagle AXS; reliable and controllable braking power on even the longest, roughest descents with SRAM Code RSC four-piston hydraulic disc brakes (220mm front rotor; 200mm rear); ebike-tough DT Swiss wheels; and top-drawer Maxxis' dual-compound Assegai WT TR EXO+ tyres with Double Down Casing in the rear to shrug off the hardest knocks.

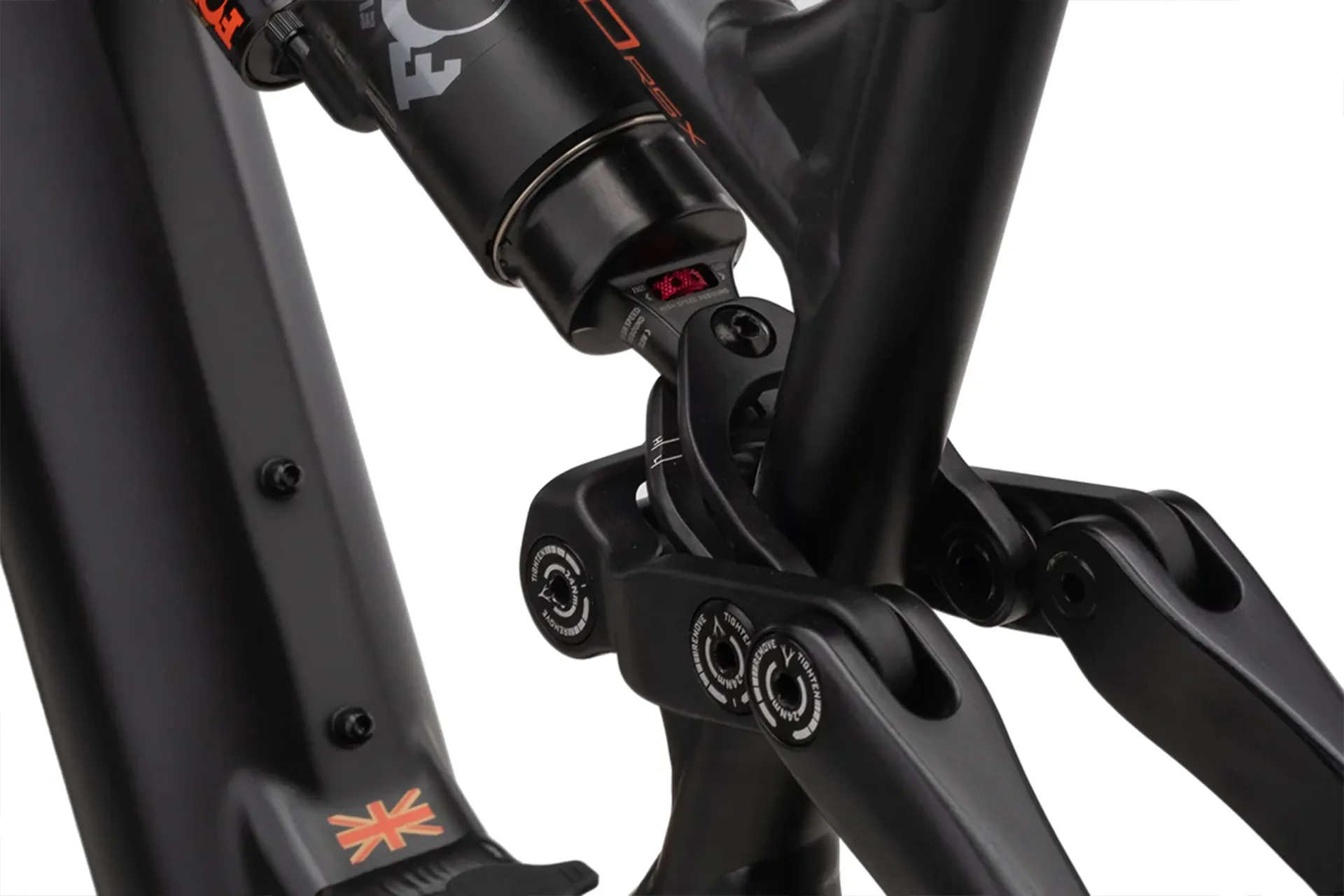

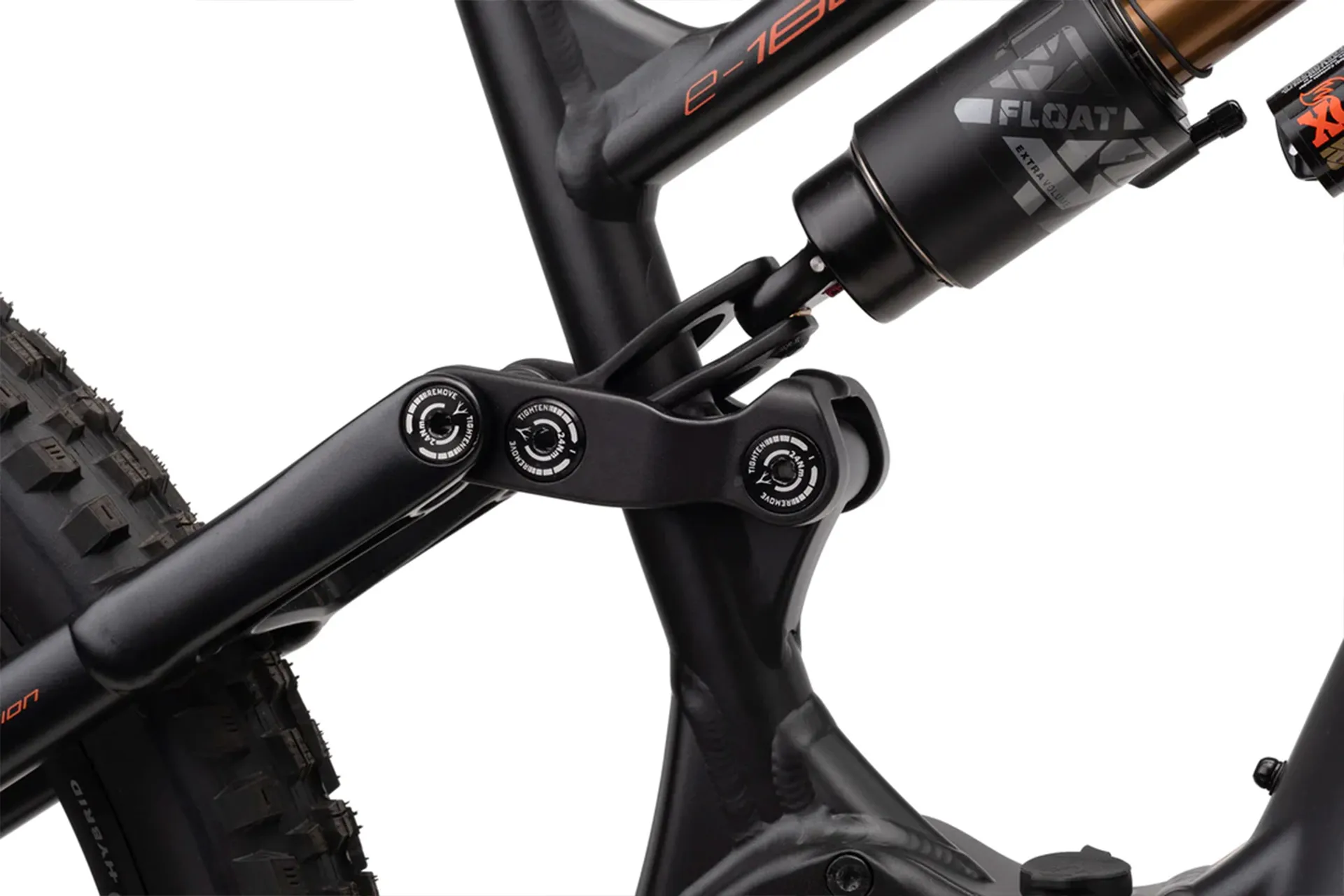

Our Shape.It link ‘flip-chip’ allows you to change the geometry of the bike easily and quickly without affecting the suspension kinematics by raising or lowering the Bottom Bracket (BB) height. By using the shock extender and effectively moving the eye-to-eye length of the shock, the BB can be lifted or lowered. Switch it between high and low positions to slacken the bike out by 0.6 degrees and lower the BB by 8mm.

Lifetime warranty bearings and full weather sealing back up Bosch’s legendarily bombproof reliability. Because when a bike rides this great, downtime is a disaster.
Technical Information

COLOUR
Matt Black with Burnt Orange & Gold,

CASSETTE
SRAM XG-1275 Eagle, 10-50, 12 Speed

FRAME

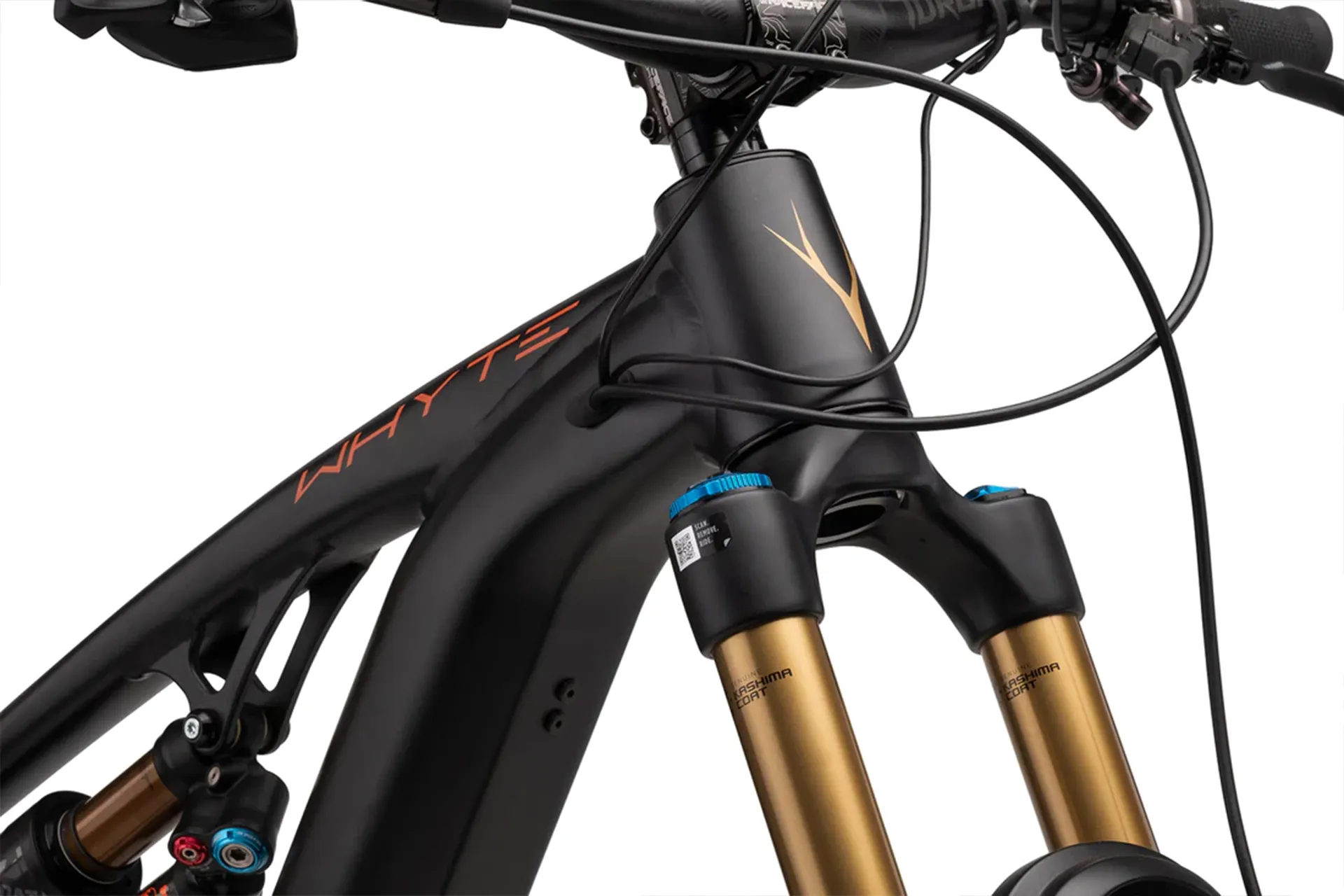

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts,

CHAIN
SRAM GX Eagle, 12 Speed

FORK

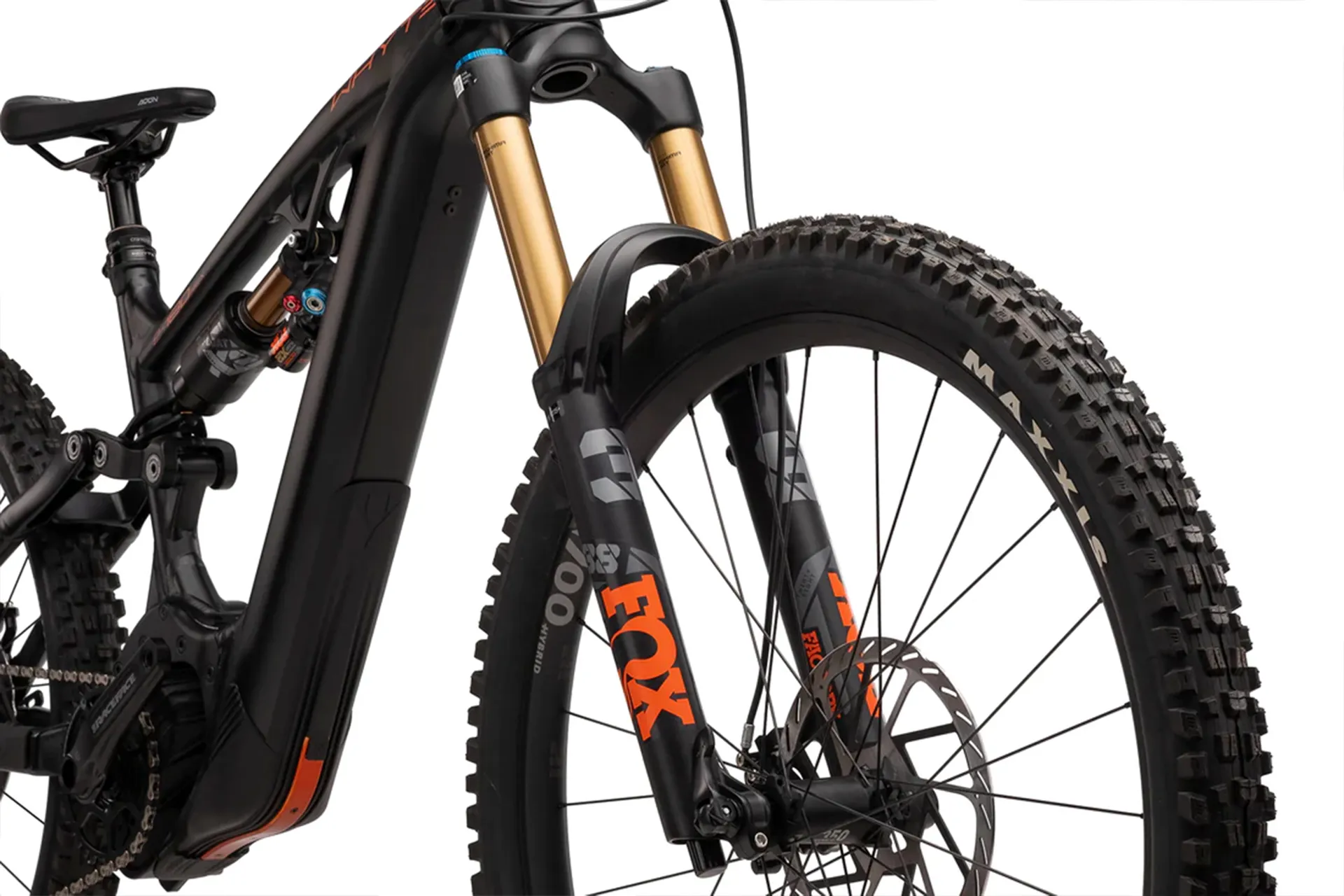

Fox Float 38, Factory 29"", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle,

CRANKSET

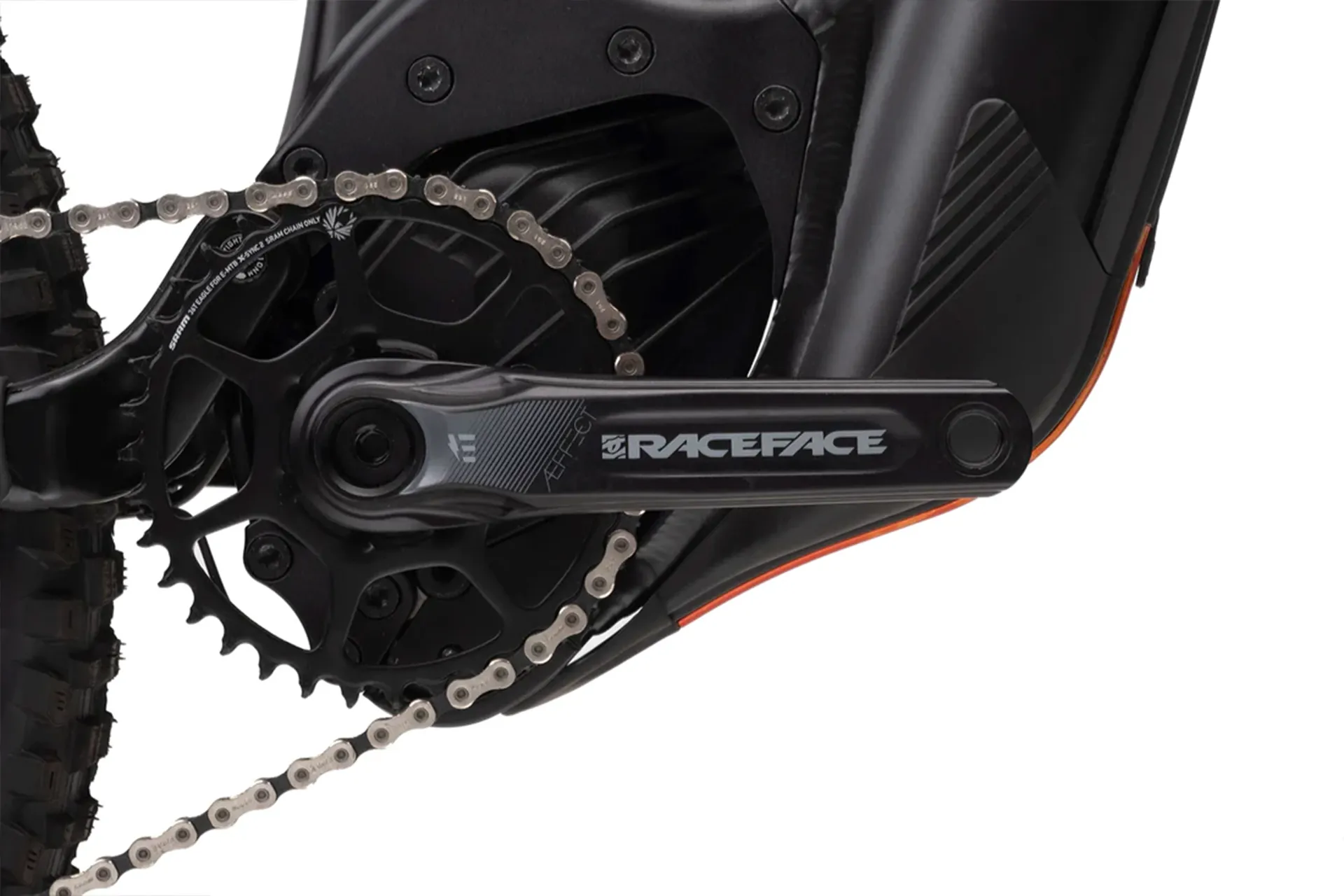

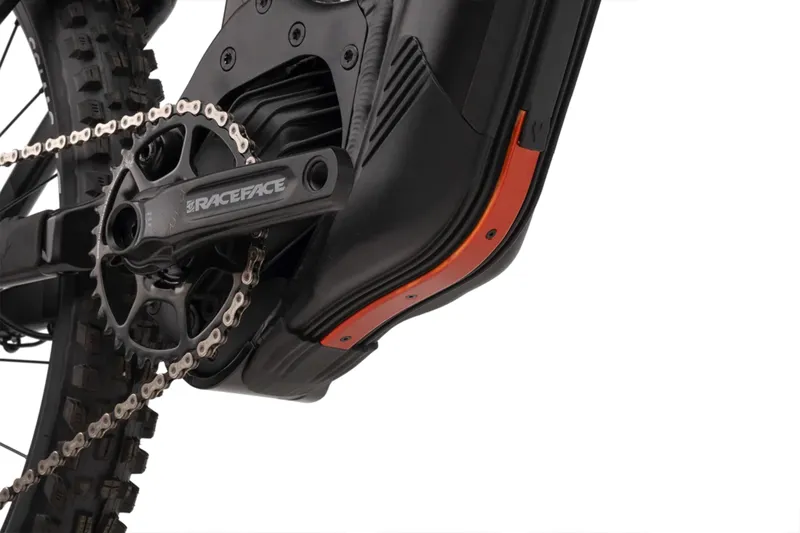

Race Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black

REAR SHOCK
Fox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating,

BOTTOM BRACKET
N/A

HEADSET
FSA No. 55/35 Orbit 1.5 ZS, 1.8"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings,

SEATPOST
Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever

REAR HUB
Hope Pro 4, Stainless Steel Bearings, 12mm x 148mm Boost, XD Driver, 32 Hole,

SADDLE
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

FRONT HUB
Hope Pro 4, Stainless Steel Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole,

HANDLEBAR
Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide

SPOKES
Black Sapim Race stainless steel double butted spokes built with silver brass nipples,

STEM
Race Face Atlas, 35mm Bar Bore, 35mm Extension

RIMS
Hope Fortus 30, Tubless Ready, 32 Hole,

GRIPS
Whyte Lock-on Enduro Grip

TYRE
Maxxis Assigai WT, TR, 29"" x 2.5"" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5"" x 2.5"" 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, Rear,

BRAKES FRONT
SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc

SHIFT LEVERS
SRAM AXS Rocker Paddle, MMX, Eagle 12 Speed,

BRAKES REAR
SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc

FRONT MECH
N/A,

BRAKE LEVERS
SRAM Code RSC, MMX

REAR MECH

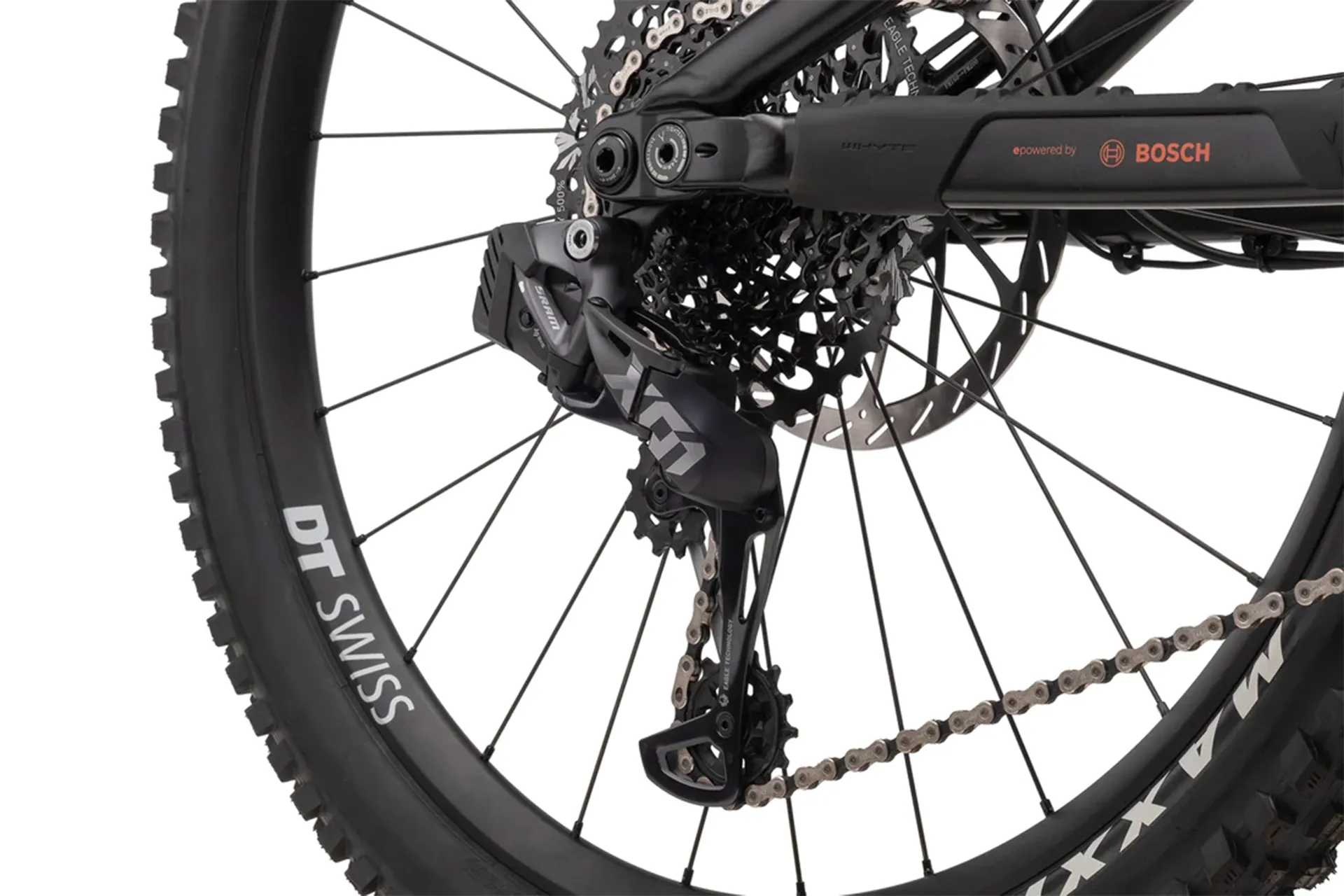

SRAM X01 Eagle AXS 12 Speed, with Battery Protector,

PEDALS
None
