COLOUR | Gloss silver with matt uni-directional (UD) carbon | CASSETTE | SRAM XS 1275, T-Type, 10-52T, 12 speed |
---|

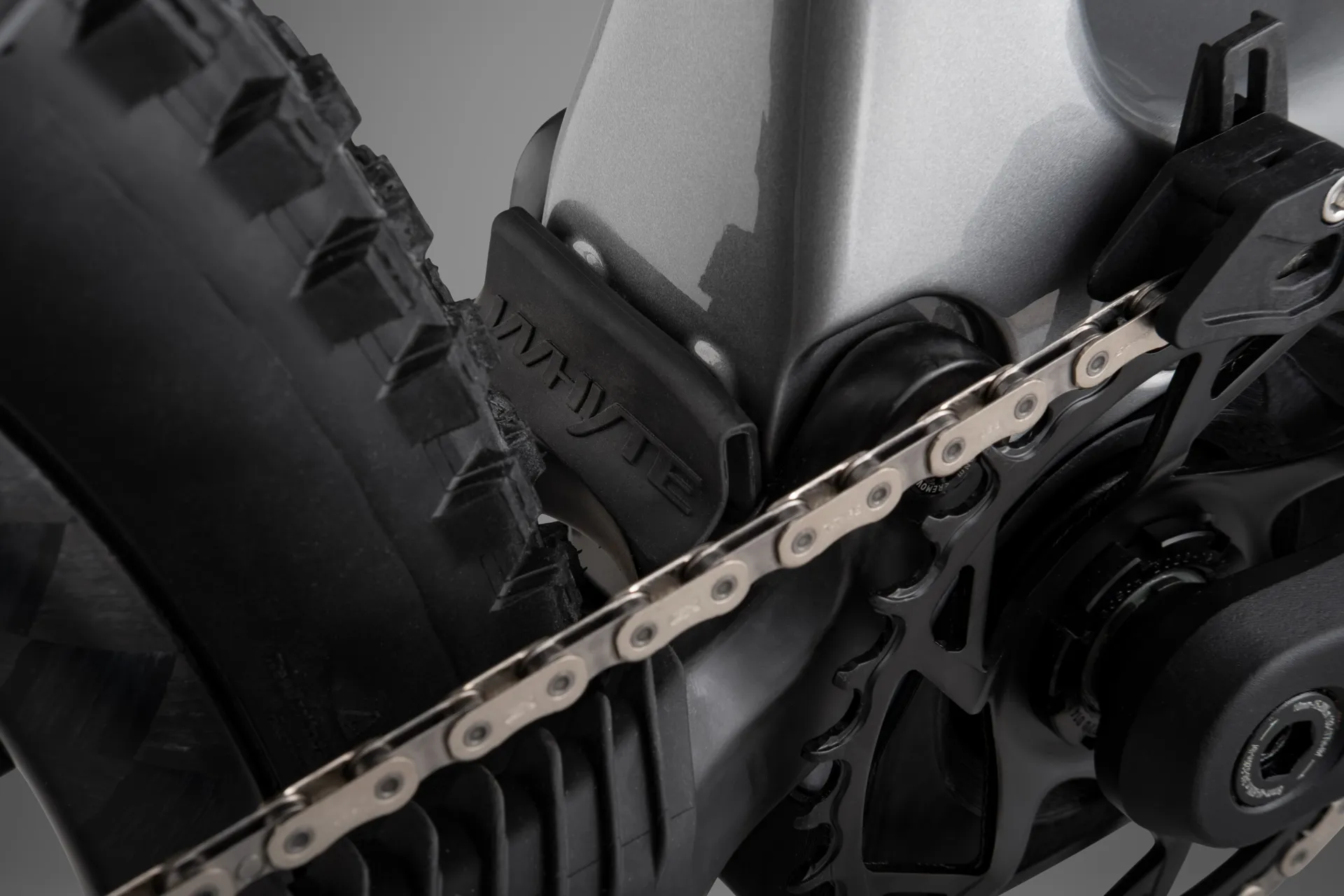

FRAME | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM GX T-Type, 12 speed |
---|
FORK | RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost | CRANKSET | Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type |
---|

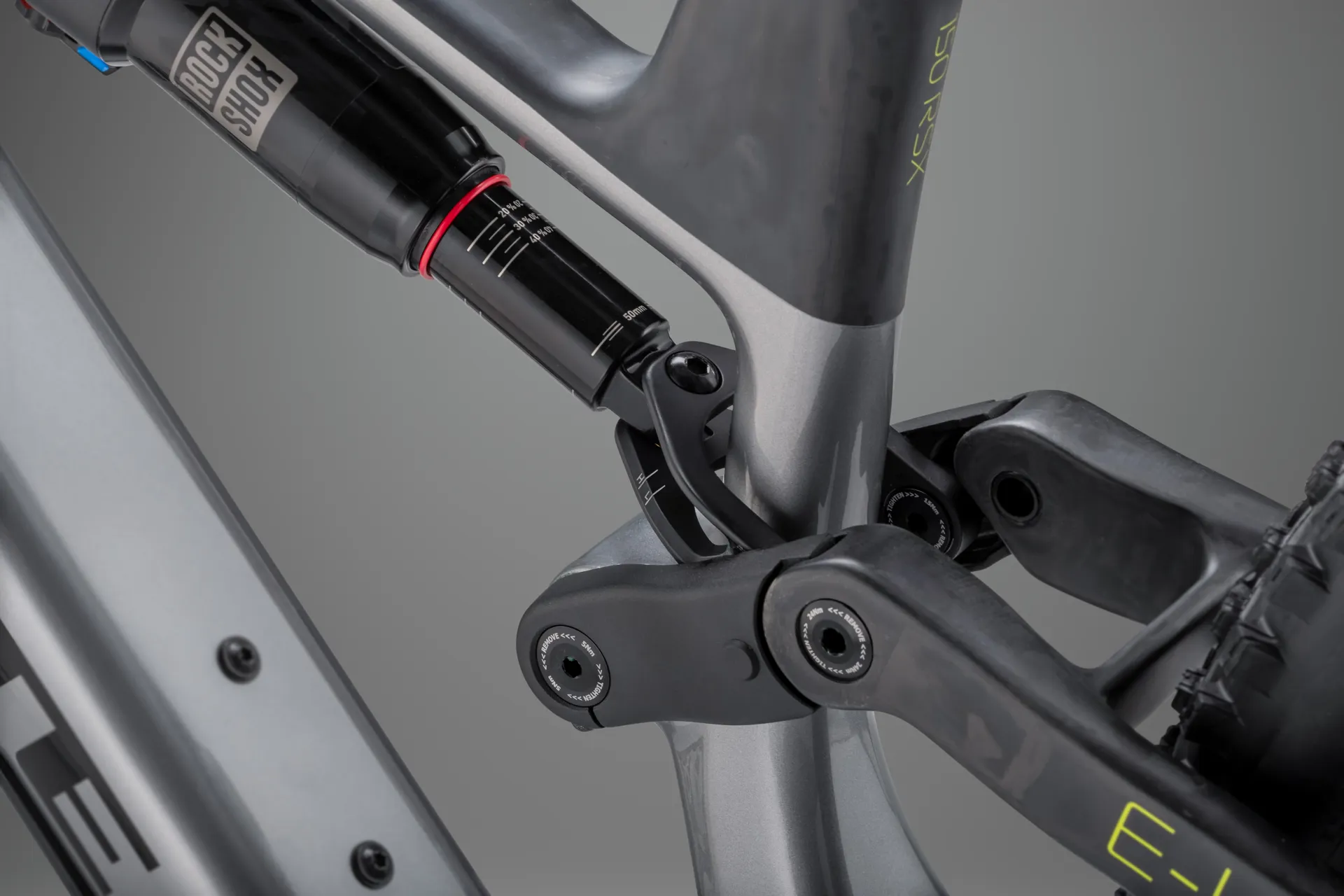

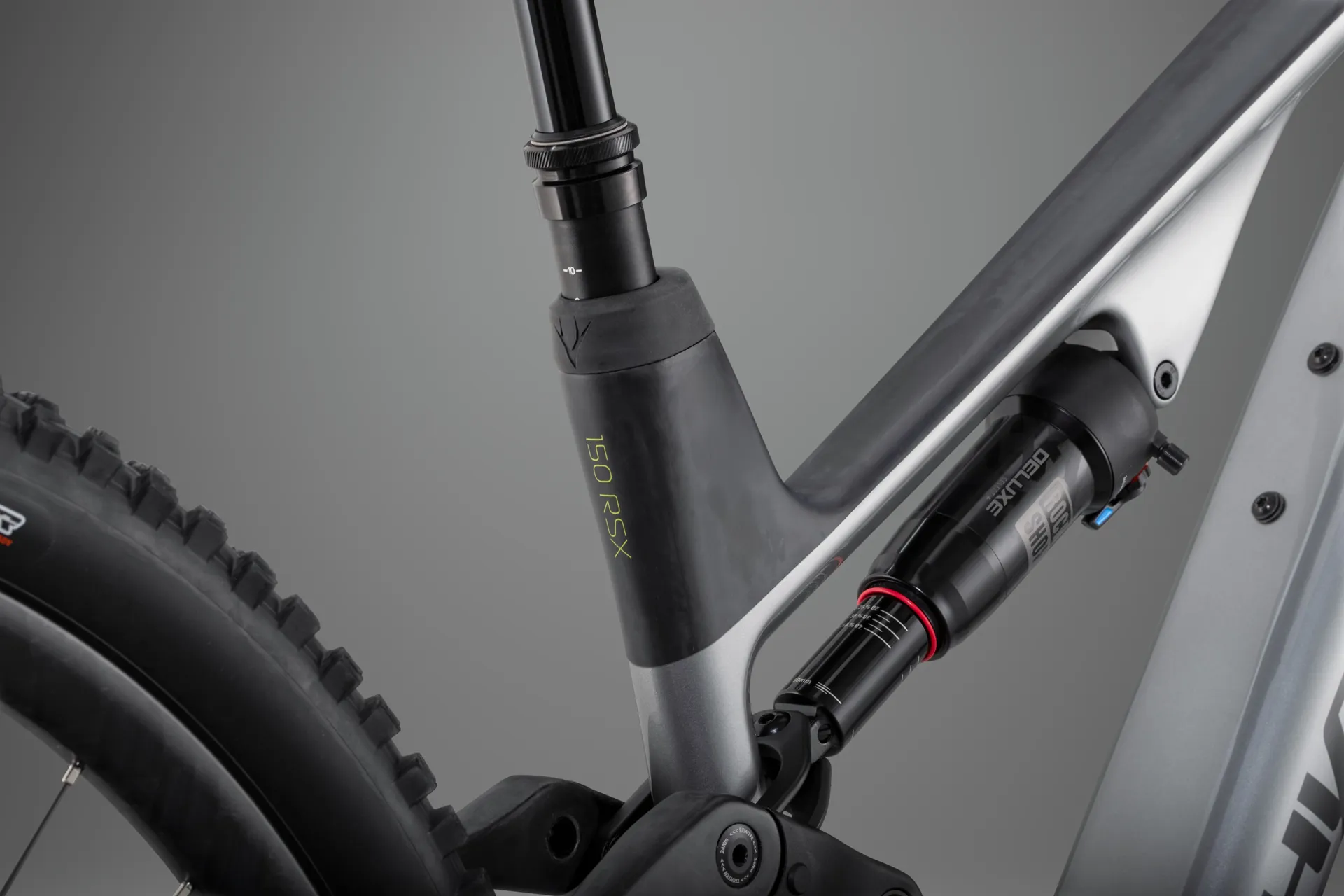

REAR SHOCK | RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment | BOTTOM BRACKET | N/A |
---|

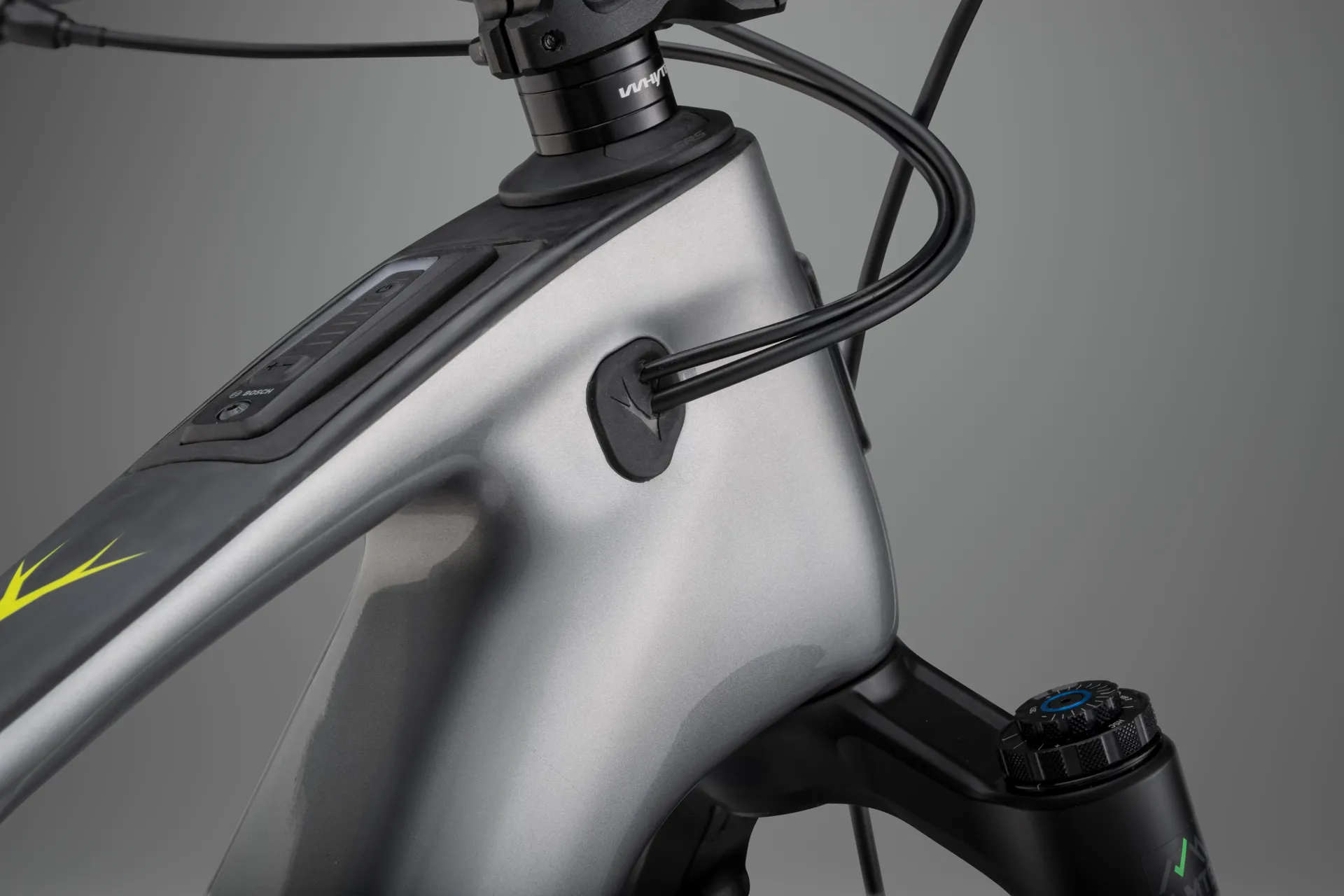

HEADSET | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing | SEATPOST | Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever |
---|
REAR HUB | Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
---|

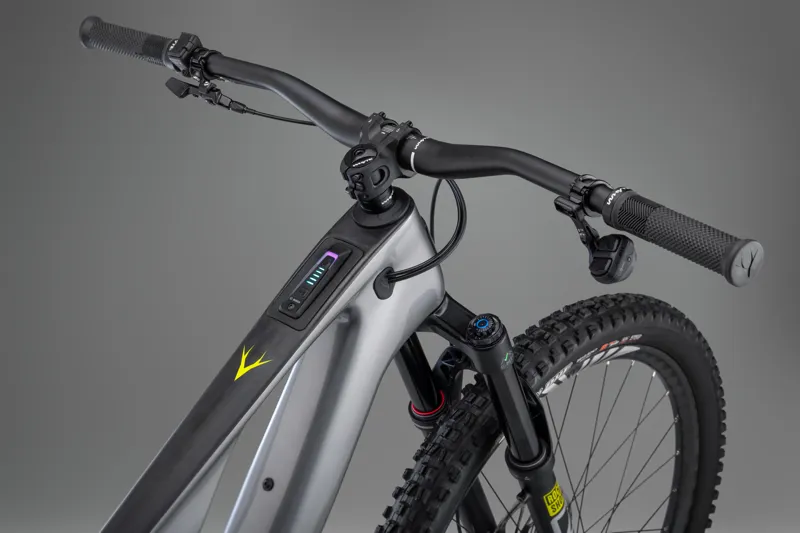

FRONT HUB | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole | HANDLEBAR | Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide |
---|
SPOKES | DT Swiss New Champion 2.0mm, black stainless, brass nipples | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
---|

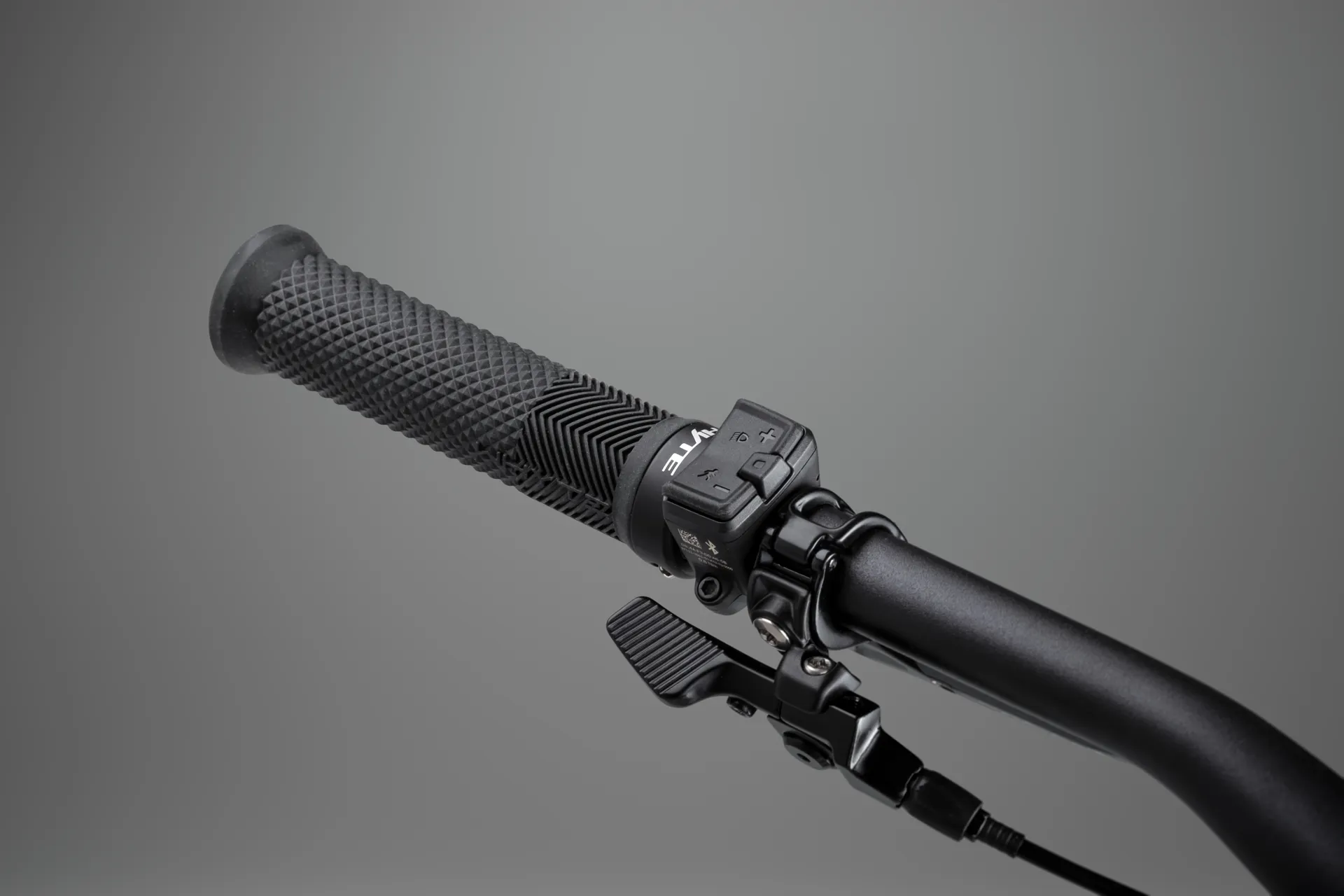

RIMS | Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear (CushCore Trail rim protection fitted to rear wheel) | GRIPS | Whyte Enduro lock-on |
---|

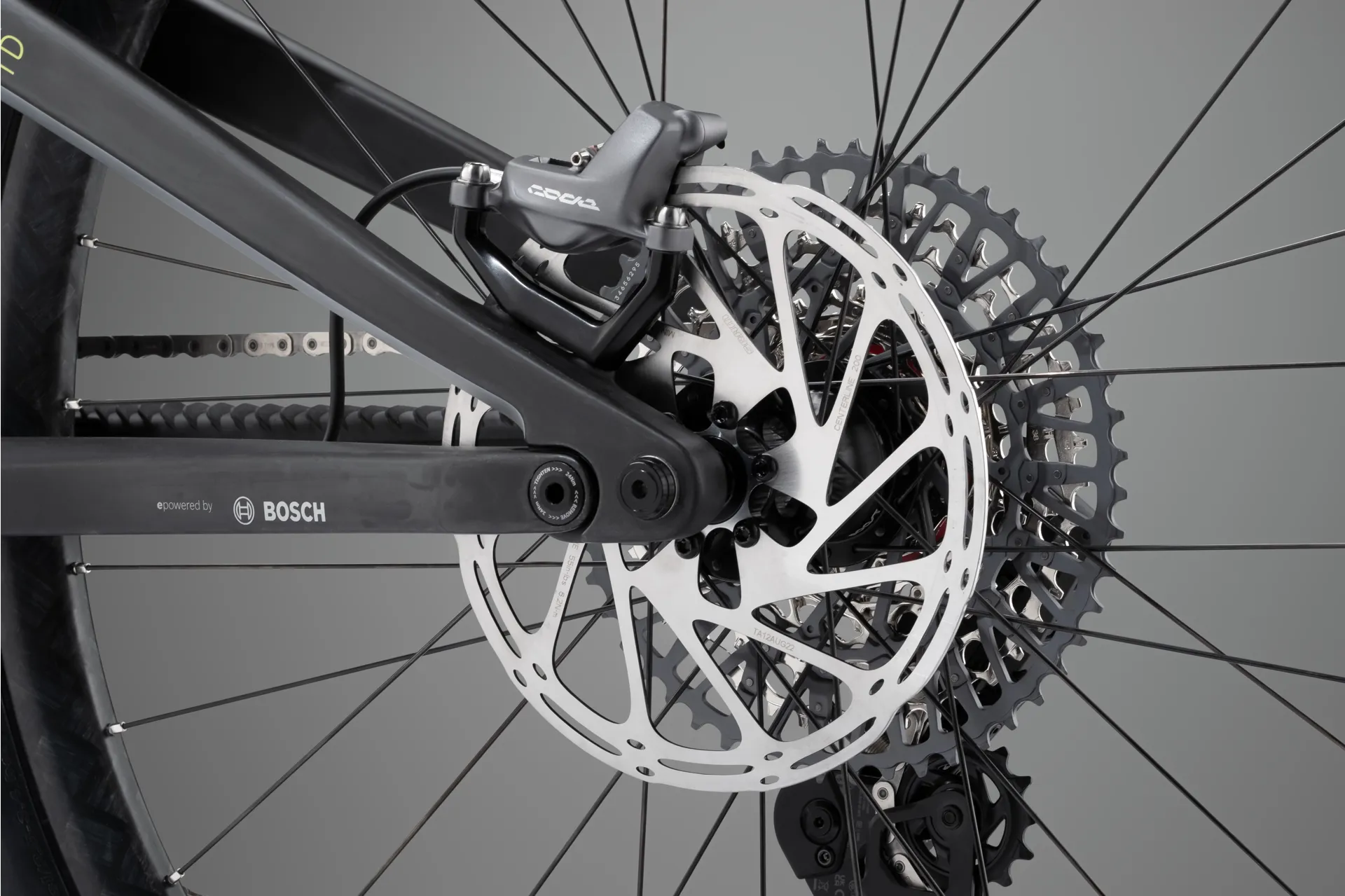

TYRE | Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear | BRAKES FRONT | SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor |
---|
SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor |
---|

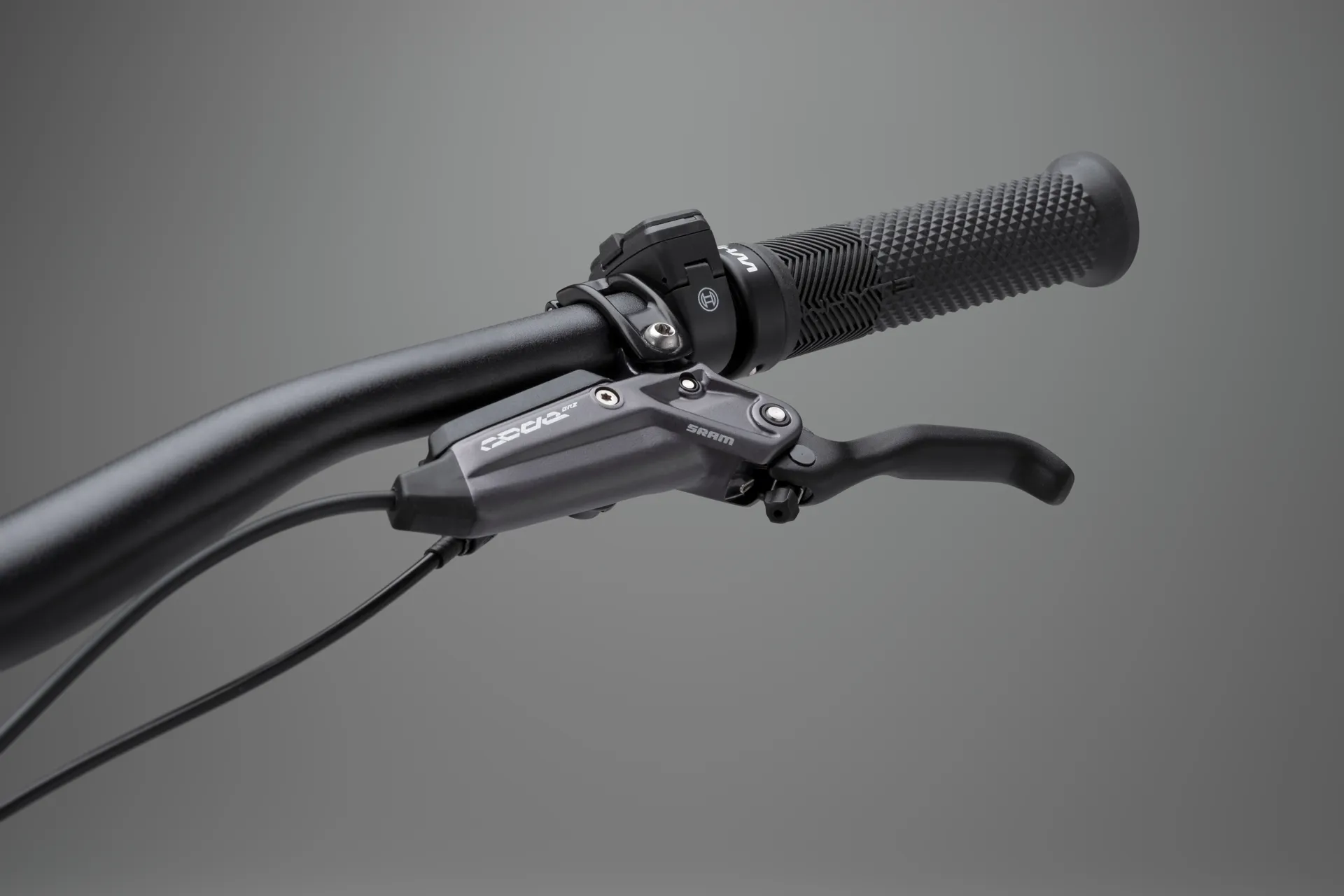

FRONT MECH | N/A | BRAKE LEVERS | SRAM Code Bronze Stealth |
---|

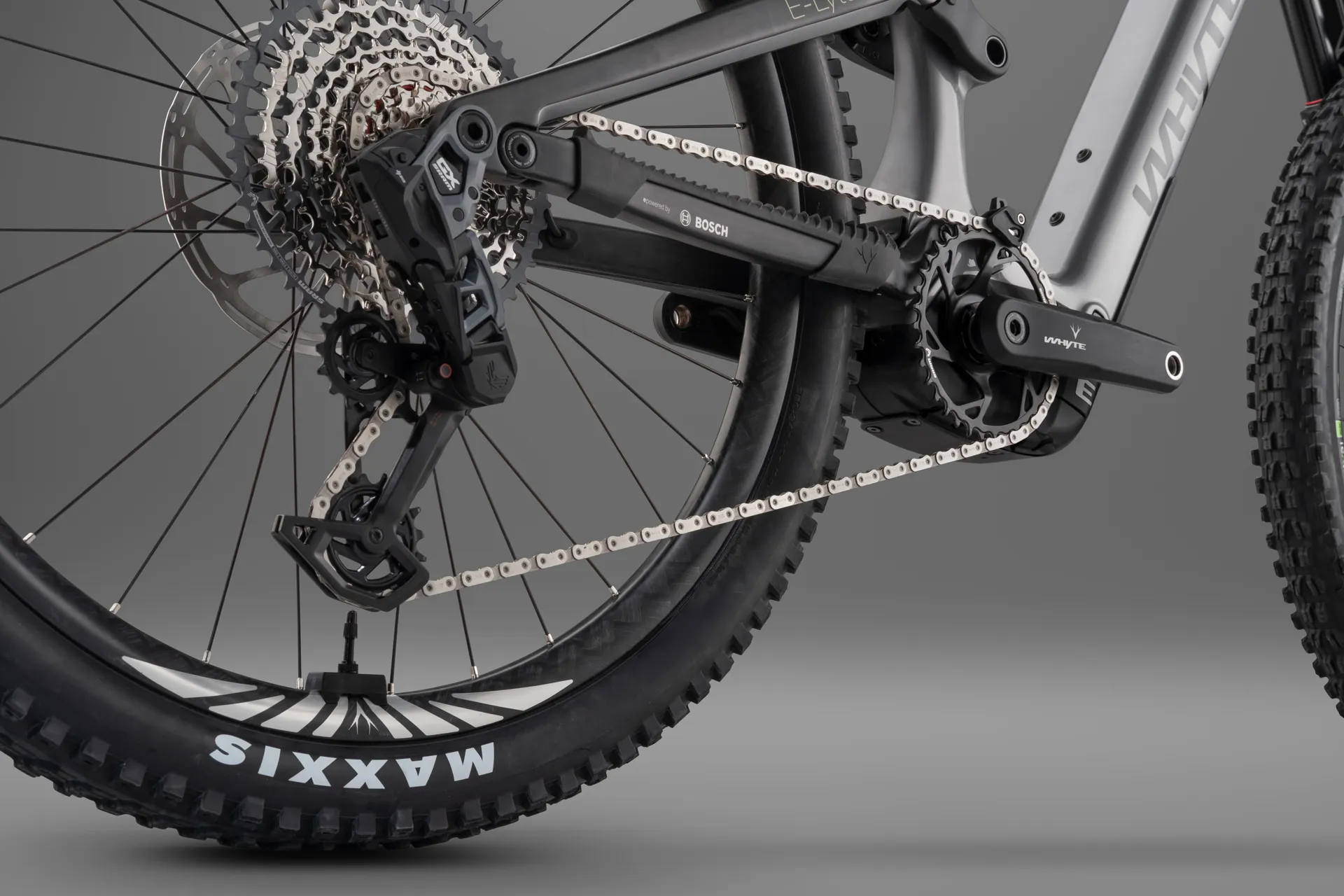

REAR MECH | SRAM GX T-Type AXS, 12 speed | PEDALS | Fibre reinforced composite platform |
---|
WEIGHT | 18.9kg (size M) | | |
---|
